In manufacturing, precision is king. When you're cranking out parts over long production runs, even tiny shifts in dimensions can spell trouble—think scrapped parts, costly rework, or assemblies that just don't fit. One major culprit behind these headaches is heat. Machining processes like milling, turning, or grinding generate serious thermal energy, which can make tools, workpieces, and even machines expand or warp. Over hours or days of continuous production, these temperature swings can throw off your tolerances and derail quality.
Keeping machining temperatures in check isn't just about cooling things down; it's about ensuring every part stays within spec, no matter how long the run. This article lays out practical ways to manage heat in machining, written for manufacturing engineers who need consistent, reliable results. We'll dig into why heat matters, how it messes with production, and what you can do to keep it under control. From coolant systems to smart monitoring tricks, we'll share real-world solutions backed by solid research and shop-floor examples. By the end, you'll have a clear game plan for tackling temperature issues in your own operation.
We've pulled insights from peer-reviewed studies on Semantic Scholar and Google Scholar to keep things grounded. The goal here is to skip the academic fluff and focus on ideas you can actually use, delivered in a straightforward, conversational way. Whether you're running a CNC shop or building high-precision parts for aerospace, this guide is designed to help you keep your production on track.
Heat is part and parcel of machining. When a tool bites into a workpiece, friction and material deformation kick up thermal energy. This can send temperatures soaring, heating up the tool, the part, and even the machine itself. If you don't manage it, these hot spots cause thermal expansion, which shifts dimensions and wrecks precision.
Thermal expansion is simple physics: heat makes materials grow, cooling makes them shrink. For a steel part, a 10°C temperature jump can stretch a 100 mm length by about 0.012 mm, based on a thermal expansion coefficient of roughly 12 µm/m°C. In industries like aerospace or medical devices, where tolerances are razor-thin, that's enough to fail inspection. In long runs, inconsistent temperatures stack up these errors, so parts that were spot-on at the start of a shift might drift out of spec by the end.
Heat doesn't just mess with dimensions. It also chews through tools and hurts surface quality. High temperatures wear out cutting edges faster, forcing you to swap tools more often and racking up downtime. They can also leave thermal cracks or stresses in the part, which might cause failures later. For shops, this means higher costs, longer lead times, and potential quality headaches down the line.
Take this example: A study on high-speed milling of titanium alloys showed that unchecked heat caused tool wear to spike by 50% in just 30 minutes, pushing surface roughness off by 20%. By using a targeted cooling approach, they stretched tool life by 40% and kept surfaces smoother. Another case involved a shop machining aluminum for automotive parts. Without proper coolant, thermal expansion caused bore diameters to vary by 0.015 mm over a 12-hour run, leading to 10% scrap rates. A better coolant setup cut that scrap to under 2%.
So, how do you keep heat from throwing your production off? Let's break down some practical strategies, each backed by research and real-world use. These range from cooling methods to process tweaks and monitoring systems.
Coolants are your go-to for pulling heat out of the machining zone. They work by absorbing thermal energy from the tool and workpiece, then carrying it away. But not all coolant systems are created equal—choosing the right one depends on your material, process, and production goals.

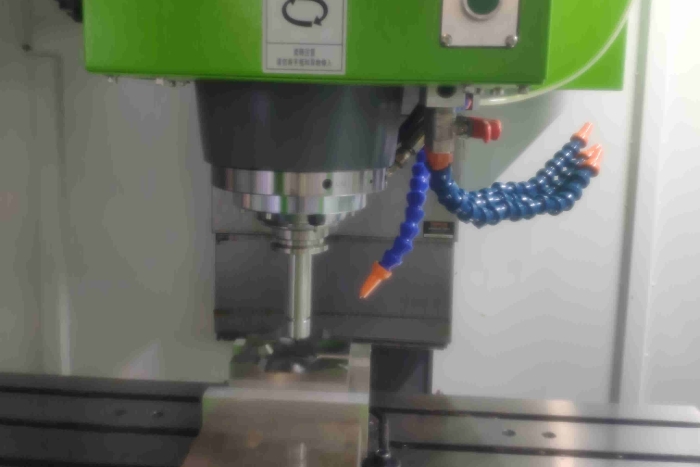

Flood cooling is the old-school approach, where you douse the cutting area with a steady stream of coolant. It's simple and effective for general-purpose machining, like turning steel or aluminum. A study on milling AISI 1045 steel found that flood cooling at 10 liters per minute dropped cutting zone temperatures by 30%, keeping dimensional errors under 0.005 mm over 100 parts.
But flood cooling has downsides. It's messy, uses a ton of fluid, and isn't great for high-speed or precision work, where coolant might not reach deep into the cut. That's where minimum quantity lubrication (MQL) comes in. MQL sprays a fine mist of oil-based lubricant, using just milliliters per hour. It's eco-friendly and works well for materials like titanium or stainless steel. Research on MQL in turning Inconel 718 showed it reduced tool wear by 25% compared to dry machining, while keeping part dimensions within 0.003 mm over 50 cycles.
Cryogenic cooling takes things up a notch, using super-cold liquids like nitrogen or carbon dioxide. It's pricier but shines in tough materials. A shop machining titanium aerospace parts used cryogenic CO2 cooling and saw tool life double, with diameter tolerances holding steady at ±0.002 mm over 200 parts. The catch? You need specialized equipment, and it's not practical for every shop.
Real-world tip: A mid-sized shop in Ohio switched from flood to MQL for milling aluminum extrusions. They cut coolant costs by 60% and reduced cleanup time, while keeping part lengths within 0.01 mm across a 24-hour run.
Sometimes, the best way to control heat is to generate less of it. Tweaking machining parameters—cutting speed, feed rate, depth of cut—can dial down thermal energy while still hitting productivity targets.
Lower cutting speeds reduce friction, which means less heat. A study on turning AISI 4140 steel found that dropping speed from 200 m/min to 150 m/min cut temperatures by 20%, with only a 0.002 mm dimensional shift over 150 parts. Feed rate matters too—higher feeds can shorten machining time, reducing heat exposure. In the same study, increasing feed by 15% at lower speeds kept temperatures stable and boosted throughput.
Depth of cut is trickier. Shallow cuts generate less heat but take longer, while deeper cuts speed things up but crank up temperatures. A shop machining cast iron engine blocks found a sweet spot: a 1.5 mm depth of cut with moderate speed kept cylinder bores within 0.004 mm over 500 parts, balancing heat and efficiency.
Software tools can help here. Many CAM systems now model heat buildup and suggest optimal parameters. A German manufacturer used thermal simulation to optimize milling paths for titanium, cutting temperature-induced errors by 35% and saving 15% on cycle time.
Your choice of tool and workpiece materials can make a big difference in heat management. Tools with high thermal conductivity—like carbide or ceramic—dissipate heat better than high-speed steel. Coatings like TiAlN or diamond-like carbon also reduce friction, lowering temperatures.
A study on milling hardened steel with TiAlN-coated tools showed a 15% drop in cutting temperatures compared to uncoated ones, with dimensional stability holding over 300 parts. For workpieces, materials with lower thermal expansion coefficients—like Invar or carbon composites—expand less when heated. A shop making composite panels for aircraft used diamond-coated tools and kept tolerances within 0.005 mm over 1000 parts, thanks to low heat generation and material properties.
Example: A precision shop in Japan used ceramic tools to machine nickel alloys for jet engines. They saw 30% less thermal expansion in parts compared to carbide tools, keeping hole diameters within 0.003 mm over 12-hour runs.
What gets measured gets managed. Real-time temperature monitoring lets you spot problems before they wreck your parts. Infrared cameras or thermocouples can track tool and workpiece temperatures. A study on grinding AISI 52100 steel used infrared sensors to detect heat spikes, adjusting coolant flow to keep surface temperatures below 150°C, holding flatness to 0.002 mm over 200 parts.
Adaptive control takes this further, using sensors to tweak parameters on the fly. A CNC mill with adaptive control software might slow cutting speed if temperatures climb too high. A shop in California used adaptive control on a 5-axis mill for aluminum aerospace parts, keeping dimensional errors under 0.003 mm over 48 hours by auto-adjusting feed rates based on thermocouple data.
Real-world case: A UK manufacturer of medical implants used laser-based thermal monitoring during turning of cobalt-chrome alloys. They caught temperature spikes early, adjusting MQL flow to keep diameters within 0.001 mm across 1000 parts.
Temperature control isn't a one-size-fits-all fix. Each strategy has trade-offs. Flood cooling is cheap but wasteful; MQL is greener but less effective for deep cuts. Cryogenic cooling delivers precision but requires big upfront costs. Optimizing parameters can save heat but might slow production. Monitoring systems add accuracy but need skilled operators and maintenance.
Shops also face practical hurdles. Retrofitting old machines for MQL or cryogenics can be pricey. Training staff on adaptive systems takes time. And in high-mix, low-volume production, constantly tweaking parameters for different parts can eat into efficiency.
Example: A small shop in Texas tried cryogenic cooling for stainless steel but found the equipment costs outweighed benefits for their low-volume runs. They switched to MQL, which was cheaper and still kept tolerances within 0.005 mm over 100 parts.
Looking ahead, machining temperature control is getting smarter. Industry 4.0 tech—like IoT sensors and AI—is making waves. Smart machines can predict heat buildup using historical data, adjusting parameters before problems arise. A study on AI-driven milling predicted thermal errors with 95% accuracy, cutting dimensional drift by 50% over 500 parts.
Hybrid cooling systems are also emerging, combining MQL with cryogenic jets for flexibility. A prototype system in Germany reduced temperatures by 40% in titanium machining, holding tolerances to 0.002 mm over 300 parts. Digital twins—virtual models of machines—let shops simulate thermal effects before cutting, saving trial-and-error time.
Example: A Swedish aerospace firm tested a digital twin for milling turbine blades, predicting thermal expansion to within 0.001 mm. They used the data to fine-tune MQL flow, keeping parts within spec over 24-hour runs.
Heat is a fact of life in machining, but it doesn't have to ruin your production. By using smart cooling systems, tweaking process parameters, choosing the right materials, and monitoring temperatures, you can keep parts within tight tolerances even over long runs. Each strategy has its place—flood cooling for general work, MQL for eco-conscious shops, cryogenics for high-stakes precision, and adaptive control for cutting-edge operations.
The key is matching the solution to your needs. A small shop might stick with flood cooling and manual tweaks, while a high-volume aerospace plant could invest in cryogenics and AI-driven monitoring. Whatever your setup, the payoff is clear: fewer scrapped parts, longer tool life, and happier customers.
Research backs this up. Studies on coolant systems, parameter optimization, and thermal monitoring show consistent gains in dimensional stability and efficiency. Real-world shops—from Ohio to Japan—prove these strategies work, cutting costs and boosting quality. As tech like IoT and digital twins evolves, temperature control will only get easier and more precise.
So, next time you're staring down a long production run, don't let heat get the better of you. Pick the right tools, keep an eye on temperatures, and tweak as needed. Your parts—and your bottom line—will thank you.
Q: What’s the easiest way to start controlling machining temperatures in a small shop?
A: Start with flood cooling—it’s affordable and works for most materials. Optimize flow rates (around 8-10 liters/min) and ensure nozzles hit the cutting zone. If you’re machining aluminum or steel, this can keep dimensional errors under 0.01 mm for runs up to 100 parts.
Q: Is MQL worth the switch from flood cooling?
A: For shops cutting titanium or stainless steel, MQL can cut coolant use by 90% and reduce tool wear by 20-30%. It’s great for high-speed machining but needs proper setup to avoid dry spots. Try it on a test run to check dimensional stability.
Q: How do I know if my coolant system is working well?
A: Measure tool wear and part dimensions over a run. If wear increases by more than 10% in 30 minutes or dimensions drift beyond 0.005 mm, adjust flow or switch methods. Infrared thermometers can also spot hot zones above 150°C.
Q: Can adaptive control work on older CNC machines?
A: Yes, but you’ll need retrofit kits with sensors and software. Expect costs around $5,000-$10,000 per machine. It’s worth it for high-precision work, keeping errors under 0.003 mm over long runs, but training operators is key.
Q: Are cryogenic cooling systems practical for mid-sized shops?
A: They’re expensive—$50,000+ for setup—and best for tough materials like titanium. If you’re doing high-volume aerospace work, they can double tool life and hold tolerances to 0.002 mm. For general machining, stick with MQL or flood cooling.
A Thermal Modeling to Predict and Control the Cutting Temperature. The Simulation of Face-Milling Process
Procedia Engineering, 2014
The paper introduces a simple method for calculating and managing cutting temperatures in milling, highlighting the importance of nonlinear equivalent resistance in transient heat transfer models. It compares analytical, numerical, and experimental results to validate its thermal modeling approach. Methods include FEM analysis and modified lumped capacitance. Benabid et al. 2014, pp. 37–42
https://daneshyari.com/article/preview/858611.pdf
Predictive Modeling of Machining Temperatures with Force–Temperature Correlation Using Cutting Mechanics and Constitutive Relation
Materials, 2019
This analytical model predicts temperatures at primary and secondary shear zones by correlating machining forces and temperatures via mechanics and Johnson–Cook constitutive models. High computational efficiency enables real-time prediction validated against literature. Ning and Liang 2019, pp. 284–298
https://www.mdpi.com/1996-1944/12/2/284
Monitoring and Neural Network Modeling of Cutting Temperature During Turning Hard Steel
Thermal Science, 2018
Investigates cutting temperature in turning hardened steel using infrared thermovision and neural networks to predict temperature based on cutting parameters. Demonstrates ANN accuracy of ~95 % for temperature prediction and analyzes parameter effects. Tarić et al. 2018, pp. 2605–2614
https://thermalscience.vinca.rs/pdfs/papers-2017/TSCI170606210T.pdf
Evaluation of an Analytical Model in the Prediction of Machining Temperature of AISI 1045 Steel and AISI 4340 Steel
Journal of Manufacturing and Materials Processing, 2018
Evaluates a physics-based model for predicting machining temperatures under various conditions, analyzing sensitivity to input force and chip thickness and validating against experimental data. Authors vary input parameters and compare deviations to assess model robustness. 2018, pp. 74–86
https://www.mdpi.com/2504-4494/2/4/74
