● The Mechanics of Spindle Stress and Bearing Wear
● Practical Ways to Balance Loads
● Making Load Balancing Work in Non-Stop Production
● What's Next for Load Balancing

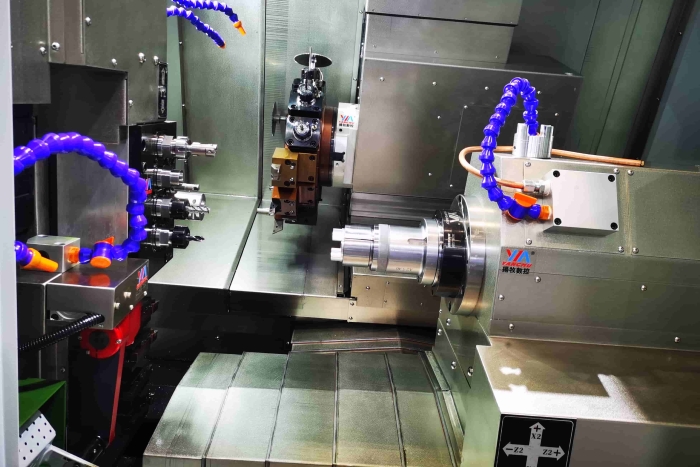

Picture a bustling factory floor, where CNC machines hum at breakneck speeds, carving out precision parts for cars, planes, or smartphones. At the heart of these machines are spindles, spinning thousands of times per minute, day in and day out. But this relentless pace takes a toll, especially on the bearings that keep everything running smoothly. When loads aren't evenly distributed, bearings wear out faster than they should, leading to costly repairs, scrapped parts, and production delays. Load balancing—spreading forces evenly across a spindle's bearings—is the key to keeping these machines in top shape.
Why should you care? In high-speed continuous production, downtime is the enemy. A single spindle failure can halt an entire line, costing thousands per hour. This article dives into the nitty-gritty of spindle load balancing, explaining how it prevents bearing wear and keeps operations humming. We'll explore the physics behind unbalanced loads, practical ways to achieve balance, and real-world stories from shops that got it right. Whether you're a manufacturing engineer tweaking machines or a plant manager watching the bottom line, this guide offers clear, actionable insights to extend bearing life and boost reliability, grounded in recent research from Semantic Scholar and Scholar Google.
Let's start by breaking down what's happening inside a high-speed spindle and why bearings bear the brunt of the punishment.

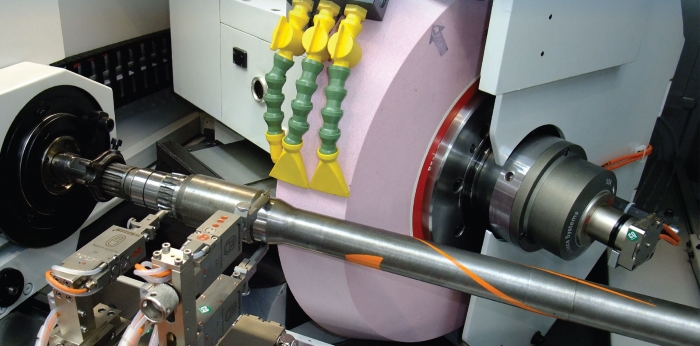

A spindle in a high-speed machining center is like a racecar engine—it's built for performance but pushed to its limits. At 12,000 RPM or more, the spindle's shaft, tools, and bearings face intense forces. Centrifugal forces from spinning, cutting forces from the tool biting into metal, and vibrations from imperfect setups all come into play. These forces don't just shape the workpiece; they hammer the bearings, which are often angular contact or ceramic types designed for speed and precision.

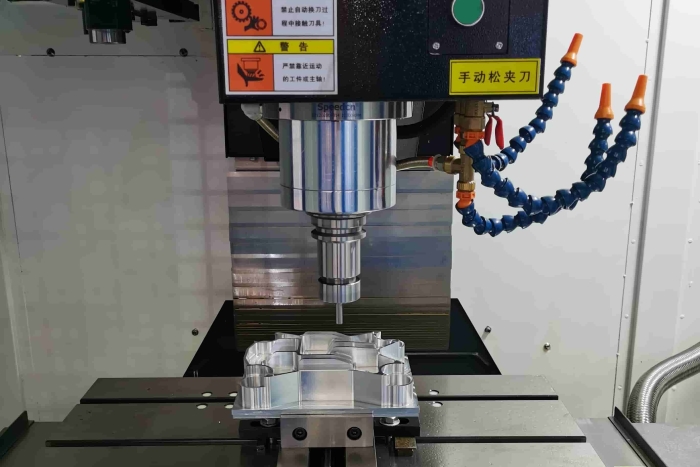

Take a CNC mill cutting aluminum for an aircraft wing. A tool that's off-center by just 0.08 mm might not seem like a big deal, but at 18,000 RPM, it creates a radial force strong enough to stress the bearing's inner race. Over weeks of non-stop production, this stress causes tiny cracks and pits, shortening the bearing's life. A study from Semantic Scholar found that unbalanced loads can cut bearing life by nearly half in high-speed setups, a reality that hits hard when you're replacing bearings every six months instead of every two years.
Bearings don't fail overnight—they wear down in predictable ways, all tied to uneven loads:
Pitting and Spalling: Tiny craters form on the bearing surface from repeated high-pressure contact. A car parts factory traced pitting in their grinding spindles to unbalanced tools, costing $12,000 per failure.
Overheating: Friction from overloaded bearings generates heat, softening the metal or breaking down lubricant. A chipmaker saw bearings seize up after running 22,000 RPM spindles without load checks, leading to $20,000 in repairs.
Fatigue Cracks: Constant stress cycles weaken the bearing material. A turbine blade shop found that unbalanced spindles doubled their bearing replacement costs due to fatigue failures.
These aren't just technical terms—they mean real headaches like missed deadlines and angry customers.
The tool itself is often the troublemaker. A worn end mill or a drill clamped off-center can act like a wobbly tire, throwing the spindle out of whack. In a precision optics shop, a diamond tool with a 0.04 g imbalance at 28,000 RPM caused noticeable bearing wear in just 400 hours. Switching to balanced tools and checking them regularly cut wear by a third, according to a Scholar Google paper.

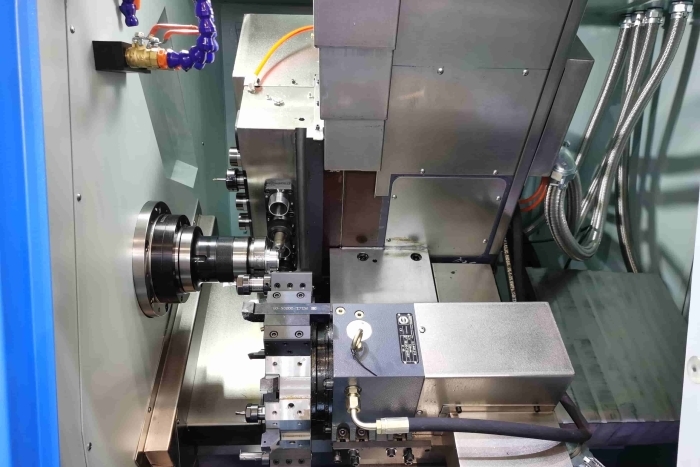

Workpieces can be just as guilty. In a lathe turning odd-shaped steel blanks, vibrations from uneven mass stressed bearings. A heavy machinery plant machining large forgings saw 20% more bearing failures until they started balancing workpieces before cutting.
Even perfect tools won't help if the spindle's parts don't line up. Misalignment between the shaft, bearings, and housing creates uneven forces. A bearing maker found that a 0.015 mm misalignment in their test spindles spiked axial loads by 35%, wearing bearings out faster. Using laser alignment tools during assembly fixed the problem.
Assembly mistakes, like setting the wrong bearing preload, also cause trouble. Preload is the force applied to bearings to keep them snug, but too much creates friction, and too little lets things wobble. An aerospace shop learned this the hard way when incorrect preload shaved 25% off their bearing life in 14,000 RPM spindles.
Things like contaminated coolant or inconsistent cutting speeds can make matters worse. A journal article on CNC lathes noted that coolant seeping into bearings sped up wear. In a mold shop, aggressive feed rates on 16,000 RPM spindles created dynamic loads that overwhelmed bearings, leading to failures in under 900 hours.

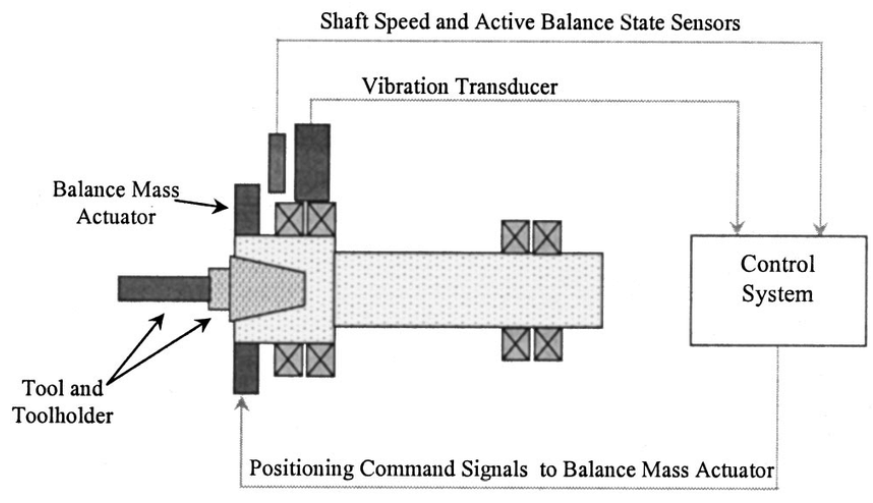

Balancing comes in two types: static and dynamic. Static balancing fixes uneven weight when the spindle's still, like making sure a toolholder's mass is centered. Dynamic balancing tackles issues that show up when the spindle's spinning, like tool wobble or shaft asymmetry.

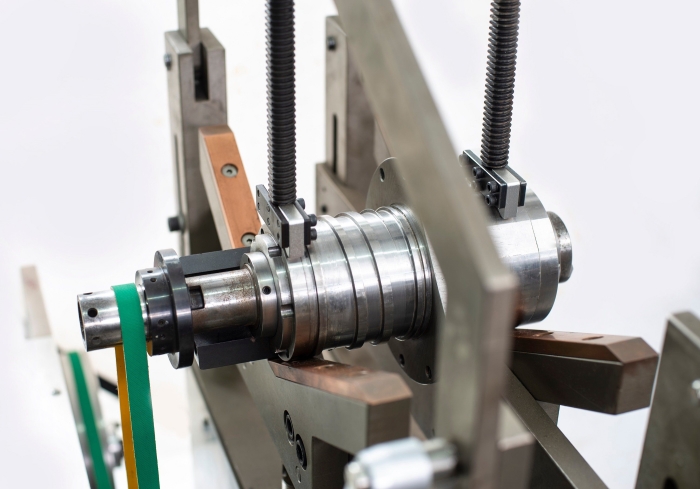

An auto parts plant used a portable dynamic balancer to cut spindle vibration from 2.8 mm/s to 0.4 mm/s at 10,000 RPM, adding 15 months to bearing life. They attached sensors, spun the spindle, and added tiny weights based on the data. A Semantic Scholar study backs this up, showing dynamic balancing can reduce vibration-related wear by 55%.
Good tooling makes a big difference. Toolholders balanced to ISO 1940 G2.5 standards keep centrifugal forces low. A turbine blade shop switched to shrink-fit toolholders, cutting imbalance by 20% compared to older collet systems, per a journal article. Hydraulic clamps also ensure tools stay put, unlike manual setups that can slip.
A medical implant maker machining titanium switched to balanced carbide tools checked with laser precision. This dropped spindle loads by 12%, doubling bearing life in their 20,000 RPM machines.
Monitoring systems catch problems early. Vibration sensors, accelerometers, or even thermal cameras can spot imbalances before bearings take a hit. A Scholar Google paper described a gear-hobbing shop using piezoelectric sensors to track spindle loads. When vibrations hit 1.8 mm/s, operators got an alert, preventing wear in most cases.
An electronics plant went high-tech, using IoT sensors on their CNC routers. By tracking load trends, they predicted bearing failures with 80% accuracy, cutting downtime by 15% and saving $40,000 a year.
Preload needs to be just right. Companies like NSK suggest custom settings based on speed and load. A wind turbine parts shop used software to adjust preload, cutting wear by 25% in 12,000 RPM spindles.
Lubrication matters too. Grease is fine for slower spindles, but oil-mist systems cool better at high speeds. A milling study found oil-mist dropped bearing temperatures by 12°C, adding 20% to life. A die-casting shop switched to synthetic lubricants, halving bearing failures.
Load balancing isn't a quick fix—it's a process. Here's how to make it happen:
Check the Status Quo: Use sensors to measure vibration and heat. A pump maker found 25% of their spindles were out of spec, sparking a balancing push.
Fix Tools and Workpieces: Inspect and balance everything that spins. A crankshaft shop used automated tool balancers, saving 35% on setup time.
Balance on the Fly: Get dynamic balancing gear. A journal article cites a case where in-situ balancing at 13,000 RPM saved 30% on maintenance.
Watch in Real Time: Add sensors and predictive software. An aerospace supplier cut unplanned stops by 20% with monitoring.
Train and Maintain: Teach workers balancing basics and check bearings regularly. A packaging plant halved failures with routine inspections.
Balancing isn't always easy. Equipment like dynamic balancers can cost $15,000 or more, but a journal article shows they can save $80,000 in three years by avoiding downtime. Workers might push back on new methods, too. An engine block shop solved this with hands-on training, getting 75% buy-in.
Older machines can be tricky to retrofit. A textile plant used outside balancing services for their aging spindles, getting 65% of the benefits of modern systems for less money.
An aerospace shop machining titanium blades had bearings failing in their 22,000 RPM spindles. Vibration checks showed tool imbalances over 0.9 g·mm. Dynamic balancing and ceramic bearings cut wear by 35%, saving $60,000 a year.
A gear maker running round-the-clock saw pitting in their hobbing spindles. Monitoring revealed worn tools spiking radial loads. New tooling and predictive maintenance dropped bearing replacements by 55%, per a Scholar Google study.
A chip plant's 32,000 RPM spindles suffered from heat buildup. Oil-mist lubrication and better preload settings boosted bearing life by 45%, saving $100,000 yearly.
The future looks promising. Machine learning is starting to predict imbalances before they happen, as shown in a Semantic Scholar paper on spindle diagnostics. Smart spindles with built-in sensors are also emerging, giving instant feedback without extra gear.
Adaptive controls are another big step. These tweak cutting settings in real time to ease loads, like in a milling study that cut bearing stress by 15%. Plus, eco-friendly lubricants and efficient balancing systems are gaining ground, meeting demands for greener shops.
Load balancing isn't just a techy fix—it's a lifeline for high-speed production. By evening out forces on spindle bearings, you can save on repairs, keep machines running, and deliver parts on time. From tool wobble to misalignment, we've covered the culprits and how to fix them with dynamic balancing, better tooling, and smart monitoring. Stories from aerospace, automotive, and chipmaking shops prove these methods work, often saving six figures in costs.
In continuous production, every second counts. Load balancing delivers longer-lasting bearings, fewer breakdowns, and happier clients. With tech like AI diagnostics and smart spindles on the way, the tools to stay balanced are only improving. For engineers and managers, the takeaway is simple: start balancing now, and your spindles will keep spinning strong. Time to roll up your sleeves and make it happen.
Q: Why do unbalanced loads wreck bearings so fast?
A: They create uneven stress, hammering specific spots on the bearing. This causes pitting, heat, and cracks. A 0.09 g imbalance at 18,000 RPM can triple stress, wearing bearings out in months.
Q: How often should I balance spindles in a 24/7 shop?
A: Every three months is typical, but high-speed spindles (15,000+ RPM) might need monthly checks. A gear shop balanced every 600 hours, cutting wear by 25%.
Q: Are ceramic bearings worth it for balancing?
A: For high speeds, yes. They resist heat and stress better, lasting up to 45% longer. An aerospace shop saved $60,000 a year with ceramics.
Q: Can old machines handle modern balancing?
A: Yes, with portable balancers or outside services. A textile shop used external balancing, getting 65% of the benefits at lower cost.
Q: What’s the payback on balancing gear?
A: A $15,000 balancer can save $80,000 in three years by cutting downtime and repairs. An auto shop saw ROI in 20 months.
Title: An experimental method for determining the service life and reliability of the CNC lathe main spindle bearing assembly
Journal: Manufacturing Review
Publication Date: April 26, 2023
Key Findings: Service life of spindle bearings is longer when evaluated by stiffness rather than wear; vibration analysis is effective for monitoring.
Methodology: Experimental study using accelerated wear testing and vibration analysis on CNC lathe spindles.
Citation: Van Hung Pham, Tam Pham Minh, Thuy Duong Nguyen, 2023, pp. 1-10
URL: https://mfr.edp-open.org/articles/mfreview/full_html/2023/01/mfreview220057/mfreview220057.html
Title: Analysis of bearing configuration effects on high speed spindles
Journal: International Journal of Machine Tools & Manufacture
Publication Date: 2004
Key Findings: Bearing contact loads and stiffness change significantly during operation; configuration impacts spindle performance.
Methodology: Analytical modeling of bearing dynamics under various operating conditions.
Citation: Shin et al., 2004, pp. 385-398
URL: https://www.sciencedirect.com/science/article/abs/pii/S0890695503002827
Title: Spindle bearing potential damaging mechanisms and mitigation
Journal: SKF Technical Paper
Publication Date: 2022
Key Findings: Surface distress and adhesive wear are primary failure modes in high-speed spindle bearings; mitigation strategies are discussed.
Methodology: Review and analysis of failure mechanisms and mitigation in rolling bearings.
Citation: Morales-Espejel et al., 2022, pp. 1-12
URL: https://cdn.skfmediahub.skf.com/api/public/0938aa1614efd44d/pdf_preview_medium/0938aa1614efd44d_pdf_preview_medium.pdf
