Precision machining is the backbone of industries like aerospace, automotive, and medical device manufacturing, where parts must meet tolerances so tight they're measured in microns. But even the most advanced machine tools can falter when the shop's temperature swings. A warm afternoon or a chilly morning can cause metal components—spindles, workpieces, or even the machine frame itself—to expand or contract, throwing dimensions off and risking costly rework. Environmental temperature compensation is the craft of counteracting these thermal effects by tweaking machine parameters, ensuring parts stay within spec no matter the conditions.
This article explores how temperature affects machining accuracy and the practical ways engineers tackle it. We'll dive into the physics of thermal expansion, examine real-world tools like sensors and predictive models, and share examples from shops that have mastered this challenge. Drawing from recent studies, we'll break down methods like real-time compensation, thermal modeling, and machine learning, showing how they're applied in everything from CNC lathes to ultra-precision mills. By the end, you'll have a clear picture of how to keep your machining operations stable, even when the shop feels like a sauna or a freezer. Let's get started.
When a machine tool heats up or cools down, its components don't stay the same size. Metals like steel or aluminum expand when warm and shrink when cold, governed by their coefficient of thermal expansion (CTE). For example, steel expands about 12 micrometers per meter per degree Celsius. In a 2-meter-long machine bed, a 5°C temperature swing could shift dimensions by 120 micrometers—enough to ruin a part with a 50-micron tolerance.
Shops rarely maintain perfect climate control. A typical manufacturing floor might see temperatures vary by 10°C or more daily, especially in facilities without robust HVAC systems. Machines generate their own heat too, from motors, spindles, and cutting friction. These thermal gradients create uneven expansion across the machine, leading to errors in positioning, alignment, and part dimensions.
Thermal errors come from three main sources: environmental conditions, machine operation, and the workpiece itself. Environmental changes—like a sunny day warming the shop through windows—can heat the machine frame unevenly. Internal heat from spindle motors or gearboxes can cause localized expansion, skewing tool paths. The workpiece, heated by cutting forces or coolant application, may also deform, altering its final dimensions.
For example, in a study from Precision Engineering, researchers found that a CNC milling machine's spindle could elongate by up to 50 micrometers after 30 minutes of high-speed operation, even in a controlled 20°C environment. Another case, documented in International Journal of Machine Tools and Manufacture, showed that a lathe's bed warped by 30 micrometers when shop temperatures dropped overnight, throwing off the next morning's cuts.
One way to tackle thermal errors is by monitoring and adjusting in real time. Modern CNC machines often come equipped with temperature sensors embedded in critical components like spindles, beds, and tool holders. These sensors feed data to the machine's control system, which adjusts parameters like tool offsets or feed rates to compensate for thermal expansion.
Take a high-volume automotive parts manufacturer in Michigan. Their CNC turning centers, machining engine components, faced dimensional drift as shop temperatures fluctuated between 18°C and 28°C daily. By installing thermocouples on the spindle and bed, they mapped thermal expansion patterns. The machine's controller used this data to adjust the tool's Z-axis position dynamically, keeping tolerances within 10 micrometers. The result? Scrap rates dropped by 15%, and they saved $200,000 annually in rework costs.
Another example comes from a German aerospace supplier. Their 5-axis milling machine, used for titanium turbine blades, integrated laser-based thermal sensors to measure spindle elongation. The system automatically tweaked tool paths, maintaining 5-micron tolerances even during 12-hour production runs where spindle temperatures rose by 8°C.
Real-time sensors are great, but they react to changes after they happen. Predictive thermal modeling takes a proactive approach, using physics-based simulations to forecast how a machine will behave under different temperatures. These models consider the machine's geometry, material properties, and heat sources, then predict dimensional changes before they occur.
A study in CIRP Annals demonstrated this with a precision grinding machine. Engineers built a finite element model (FEM) of the machine's frame, incorporating CTE values for its cast-iron components. By simulating a 10°C temperature rise, they predicted a 25-micrometer shift in the grinding wheel's position. The model fed correction factors into the CNC controller, which adjusted the wheel's position preemptively, keeping parts within 2 microns of spec.
In practice, a Japanese toolmaker used a similar approach for their CNC lathes. They developed a thermal model based on historical shop temperature data and machine runtime. By programming the controller to anticipate thermal drift, they reduced dimensional errors by 20% on high-precision shafts, even in a shop with no climate control.
Machine learning (ML) is revolutionizing temperature compensation by learning from data to predict and correct thermal errors. Unlike static models, ML algorithms adapt to changing conditions, improving accuracy over time. They analyze sensor data, shop conditions, and machining outcomes to fine-tune compensation parameters dynamically.
A paper in Journal of Manufacturing Processes explored this with a CNC machining center. Researchers trained a neural network on temperature, spindle speed, and positional error data collected over six months. The model predicted thermal errors with 95% accuracy, allowing the machine to adjust tool offsets in real time. This cut dimensional deviations by 30% compared to traditional methods.
A real-world case comes from a U.S. medical device manufacturer. Their ultra-precision machining center, used for orthopedic implants, employed an ML algorithm to monitor spindle and coolant temperatures. The system learned how these factors affected part dimensions, automatically adjusting feed rates and tool paths. This kept tolerances within 3 microns, even during summer heatwaves that pushed shop temperatures to 32°C.
Implementing temperature compensation starts with understanding your shop's thermal environment. Begin by mapping temperature variations—use data loggers to track daily and seasonal changes. Next, assess your machines' thermal behavior. Run test cuts at different times of day, measuring part dimensions to identify patterns of drift.
For sensor-based systems, invest in high-quality thermocouples or infrared sensors. Place them strategically on heat-sensitive components like spindles, beds, and tool holders. Integrate these with a CNC controller that supports real-time compensation, like Siemens SINUMERIK or Fanuc systems. Calibration is key—run trials to ensure sensors accurately reflect thermal changes.
For predictive modeling, software like ANSYS or COMSOL can simulate thermal behavior, but you'll need accurate material data (e.g., CTE, thermal conductivity) for your machine and workpieces. Work with your machine tool supplier to get these specs or hire a consultant to build the model. Once developed, integrate the model's outputs into your CNC controller's compensation algorithms.
ML-based systems require more upfront effort. Collect a robust dataset—temperature, runtime, and error measurements over weeks or months. Use platforms like TensorFlow or MATLAB to train your model, then integrate it with the machine's control system. Partner with a data scientist if your team lacks expertise.

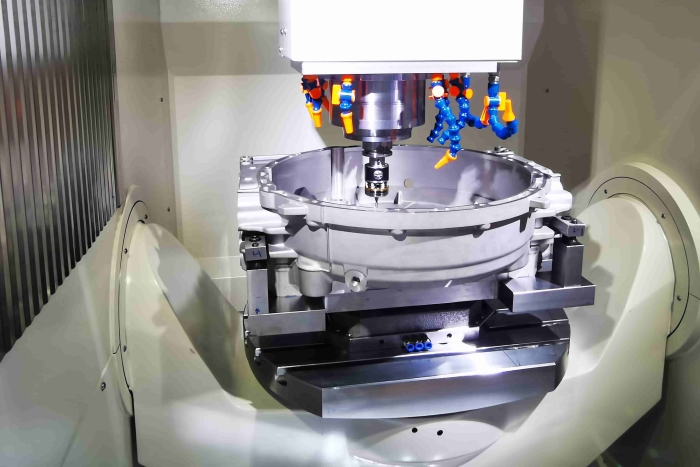

Aerospace Gearbox Manufacturer (UK): This shop machined aluminum gearbox housings with 20-micron tolerances. Seasonal temperature swings (15°C–25°C) caused 40-micrometer errors. They installed spindle and bed sensors, feeding data to a Fanuc controller with custom compensation logic. Errors dropped to 10 microns, boosting yield by 12%.
Automotive Supplier (China): A plant producing steel crankshafts faced thermal drift in their CNC lathes during winter (10°C–20°C swings). They used a thermal FEM to predict bed deformation, adjusting tool offsets preemptively. This reduced scrap by 18% and saved $150,000 yearly.
Medical Device Shop (USA): Machining cobalt-chrome implants required 5-micron precision. An ML model, trained on six months of temperature and error data, adjusted tool paths dynamically. The shop maintained tolerances despite 8°C daily fluctuations, cutting rework by 25%.
Temperature compensation isn't foolproof. Sensors can fail or drift, requiring regular calibration. Predictive models rely on accurate material data, which isn't always available for older machines. ML systems need large datasets and ongoing maintenance to stay effective. Plus, extreme temperature swings (e.g., 15°C or more) can overwhelm even the best systems, pushing errors beyond acceptable limits.
Cost is another hurdle. Sensors, software, and expertise aren't cheap—retrofitting a single CNC machine can cost $10,000–$50,000. Smaller shops may struggle to justify the investment, especially if tolerances are less stringent. Finally, compensation systems add complexity, increasing setup time and requiring skilled operators.
The future of temperature compensation lies in smarter, more integrated systems. Advances in IoT and Industry 4.0 are enabling machines to share thermal data across entire production lines, creating shop-wide compensation strategies. Hybrid approaches—combining sensors, models, and ML—are gaining traction, offering both proactive and adaptive solutions. For example, a 2023 study in CIRP Annals proposed a hybrid system that reduced thermal errors by 40% in a multi-axis milling machine.
Additive manufacturing is also influencing compensation techniques. As hybrid machines (combining additive and subtractive processes) become common, thermal management will need to account for both machining and material deposition. Research into adaptive coolant systems, which adjust flow based on thermal data, shows promise for further reducing errors.
Temperature compensation in machining is about outsmarting the environment to deliver precision parts. Whether through real-time sensors, predictive models, or machine learning, shops can counteract thermal errors and maintain dimensional stability. The examples we've explored—from automotive to aerospace to medical devices—show that these techniques work in the real world, cutting scrap, saving money, and ensuring quality. But success requires investment in the right tools, careful implementation, and ongoing maintenance.
As manufacturing pushes toward tighter tolerances and smarter factories, temperature compensation will only grow in importance. By staying ahead of thermal challenges, shops can turn a variable like temperature into a controlled factor, ensuring every part meets spec, every time. Whether you're running a single CNC lathe or a sprawling production line, mastering these techniques can give you a competitive edge in a world where precision is non-negotiable.
Q: How significant are thermal errors in machining compared to other error sources?
A: Thermal errors can account for 40–70% of total machining errors, depending on the machine and environment. Other sources like tool wear or vibration are significant but often less dominant in shops with temperature fluctuations.
Q: Can small shops afford temperature compensation systems?
A: Basic sensor-based systems can be implemented for $5,000–$10,000 per machine, but predictive modeling or ML requires more investment. Small shops can start with simple thermocouples and manual adjustments to reduce costs.
Q: How do I know if my shop needs temperature compensation?
A: If you’re seeing dimensional drift in parts, especially during temperature changes, or if tolerances are tighter than 50 microns, compensation is worth exploring. Log shop temperatures and measure part errors to confirm.
Q: Are there off-the-shelf solutions for thermal compensation?
A: Yes, CNC controllers like Siemens SINUMERIK and Fanuc offer built-in compensation modules. Third-party systems like Renishaw’s thermal compensation kits are also available for retrofitting.
Q: How does coolant affect thermal compensation?
A: Coolant can stabilize workpiece temperatures but may introduce thermal gradients if unevenly applied. Monitor coolant temperature and flow, and integrate it into your compensation model for best results.
Year-Round Thermal Error Modeling and Compensation for the Spindle of Machine Tools Based on Ambient Temperature Intervals
Sensors
2022
Main Findings: Demonstrated that ambient temperature intervals significantly impact thermal error prediction accuracy, with the proposed ATI-based method achieving 20.6% and 41.7% higher prediction accuracy compared to conventional low and high temperature models
Methodology: C-Means clustering algorithm to determine optimal ambient temperature intervals, with principal component regression for thermal error prediction modeling using data from 46 experimental batches over one year
Wei, X., Ye, H., & Feng, X. (2022), pages 1-25
https://doi.org/10.3390/s22145085
Real-time Thermal Error Compensation of Machine Tools Based on Machine Learning Model and Actual Cutting Measurement via Temperature Sensors
Sensors and Materials
2024
Main Findings: Successfully reduced spindle thermal deformation from 110 μm to within ±10 μm during actual cutting operations using SVR-based prediction models and 8051 microprocessor-based compensation system
Methodology: Support vector regression and transfer function matrix methods for thermal error prediction and compensation, with comprehensive measurement system using semiconductor temperature sensors and Renishaw MP4 probes
Chen, G., & Wang, K. C. (2024), pages 4221-4238
https://doi.org/10.18494/SAM5110
Research on thermal error compensation strategy of CNC machine tools based on full working area modeling
Applied Mathematics and Nonlinear Sciences
2024
Main Findings: Full working area modeling approach achieved 20.27% reduction in maximum prediction error compared to LSTM models, with effective thermal error reduction across entire machine working volume
Methodology: Cuckoo search algorithm optimization of BP neural network combined with B-spline function fitting for full working area thermal error modeling
Pei, X. (2024), pages 1-20
https://doi.org/10.2478/amns-2024-3246
