● Understanding Workpiece Deflection
● Analyzing Workpiece Deflection
● Strategies to Prevent Deflection
● Q&A

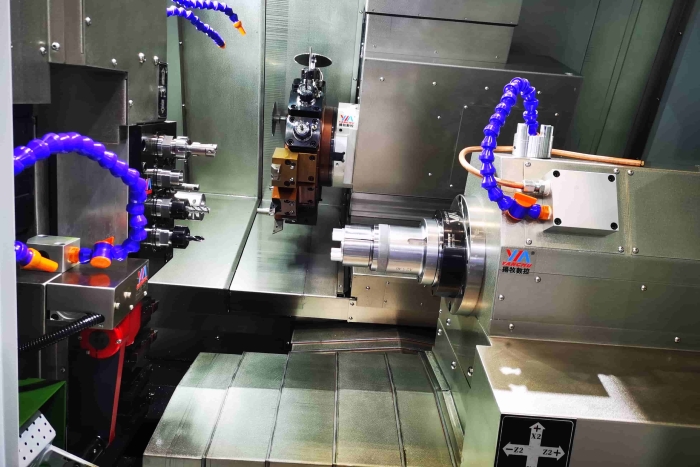

Picture this: you're machining a massive titanium wing spar for an aircraft, and despite your best efforts, the part starts to bend ever so slightly under the tool's pressure. That tiny flex, barely visible to the naked eye, could mean the difference between a component that fits perfectly and one that's scrapped, costing thousands. In manufacturing engineering, particularly when dealing with large-scale structural components like turbine blades, bridge girders, or heavy machinery frames, controlling workpiece deflection is a constant battle. Deflection—the unwanted bending or twisting of a material during machining—can throw off tolerances, ruin surface finishes, and compromise structural integrity. This article is your guide to understanding, analyzing, and preventing deflection in large-scale component manufacturing, with practical insights grounded in real-world examples and research.
Why focus on large-scale components? Their size, complex shapes, and the intense forces involved make them especially prone to distortion. Whether you're milling an aluminum fuselage panel or turning a steel rotor shaft, the stakes are high. A deviation of just 0.1 mm can mean failure in industries like aerospace or energy, where precision is non-negotiable. We'll explore the root causes of deflection, dive into advanced analysis techniques, and share proven strategies to keep distortion at bay. Expect clear explanations, hands-on examples, and lessons drawn from studies found on Semantic Scholar and Google Scholar. By the end, you'll have practical tools to tackle deflection and produce parts that meet the toughest standards. Let's dive in.
Deflection happens when a workpiece bends or twists under the stresses of machining. It's like trying to carve a straight line into a flexible piece of wood—it moves when you don't want it to. For large-scale components, made from materials like aluminum alloys, titanium, or high-strength steel, several factors can trigger this:
Cutting Forces: The tool's pressure on the workpiece can cause it to flex, especially if the part is thin or long. For instance, milling a slender steel beam might involve forces up to 1500 N, enough to cause noticeable bending.
Clamping Forces: If the workpiece isn't held securely or evenly, the clamps themselves can deform it. Imagine clamping a long aluminum plate too tightly at one end—it'll bow in the middle.
Residual Stresses: These are stresses trapped in the material from earlier processes like casting or heat treatment. When you start machining, these stresses can release, causing the part to warp unexpectedly.
Thermal Effects: High-speed machining generates heat, which can cause the material to expand and distort. For example, machining a titanium turbine blade at high speeds can raise local temperatures enough to cause 0.2 mm of warping.
A real-world case: when machining a thin-walled aluminum fuselage panel for an aircraft, engineers noticed deflections of up to 0.4 mm due to uneven clamping and residual stresses from prior forging. Another example is a steel rotor shaft for a wind turbine, where cutting forces caused a 0.3 mm bend, requiring costly rework to meet tolerances.
Large-scale components—like a 10-meter-long wind turbine blade or a 5-ton bridge girder—face unique challenges. Their sheer size means even small forces can create big deflections. Thin walls, common in aerospace parts to save weight, amplify the problem. Complex geometries, like curved turbine blades, make it harder to predict how forces will affect the part. Plus, the materials often used—lightweight but strong alloys like titanium or high-strength steel—can have high internal stresses that complicate machining.
Consider a shipbuilding example: a massive steel hull section, 15 meters long, was machined for precise fitting. Without proper fixturing, the part deflected by 0.7 mm, enough to misalign critical joints. In another case, an aerospace manufacturer machining a titanium wing spar found that its slender shape led to vibrations and deflections under cutting forces, throwing off tolerances by 0.5 mm.

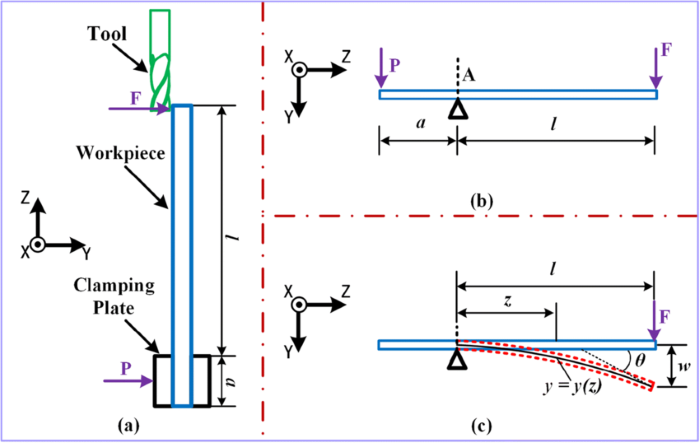

To tackle deflection, engineers first need to predict it. Analytical models, based on principles like beam theory, provide a starting point. These models treat the workpiece as a beam or plate and calculate deflection based on applied forces, material properties, and geometry. For example, Euler-Bernoulli beam theory can estimate deflection in a long, slender part like a steel shaft. The formula for deflection under a point load is:
[ \delta = \frac{F L^3}{3 E I} ]
where ( \delta ) is deflection, ( F ) is the applied force, ( L ) is the length, ( E ) is the material's Young's modulus, and ( I ) is the moment of inertia. For a titanium spar with a length of 2 meters, a cutting force of 1000 N, and known material properties, this equation can predict a deflection of 0.2 mm.
However, analytical models have limits. They assume simplified geometries and uniform forces, which don't always match real-world complexity. For a curved turbine blade, these models might underestimate deflection by 20-30%.
For more accuracy, engineers turn to finite element analysis (FEA). FEA breaks the workpiece into thousands of small elements, simulating how each responds to forces, clamps, and residual stresses. Software like ANSYS or Abaqus can model complex geometries and material behaviors, providing detailed deflection predictions.
In one study, researchers used FEA to analyze a thin-walled aluminum aerospace component. By modeling cutting forces and clamping pressures, they predicted deflections within 0.05 mm of actual measurements, allowing them to adjust fixturing before machining. Another example involved a steel bridge girder: FEA revealed that uneven clamping caused 0.6 mm of distortion, prompting a redesign of the fixture to distribute forces evenly.
FEA isn't perfect—it requires accurate input data, like material properties and cutting forces, which can be hard to measure precisely. Still, it's a powerful tool for large-scale components where precision is critical.
Sometimes, you need to see deflection in action. Experimental methods, like strain gauges or laser displacement sensors, measure how a workpiece deforms during machining. For instance, a manufacturer machining a 3-meter-long steel beam for a construction crane used laser sensors to detect 0.3 mm of deflection in real time, allowing adjustments to cutting parameters on the fly.
Another example comes from aerospace: engineers machining a titanium wing skin used strain gauges to monitor deflection. They found that residual stresses from heat treatment caused 0.4 mm of warping, which they mitigated by adjusting tool paths to balance forces.
Good fixturing is your first line of defense. Fixtures hold the workpiece securely, distributing clamping forces to minimize deformation. For large-scale components, modular or adaptive fixtures are key. These can be adjusted to match the part's geometry and support it at critical points.
In one case, a manufacturer machining a 5-meter-long aluminum fuselage section redesigned their fixture to include additional support points. This reduced deflection from 0.5 mm to 0.1 mm, meeting aerospace tolerances. Another example: a wind turbine blade manufacturer used vacuum fixtures to hold a composite blade, reducing clamping-induced distortion by 40%.
Adaptive machining adjusts cutting parameters in real time based on sensor feedback. For example, a CNC machine equipped with force sensors can reduce cutting depth if it detects excessive deflection. In a study on machining a titanium rotor, adaptive control reduced deflection by 25% by dynamically adjusting feed rates.
A practical case: an automotive manufacturer machining a large steel frame used adaptive machining to monitor vibrations. By slowing the feed rate when vibrations exceeded a threshold, they kept deflection below 0.2 mm, ensuring dimensional accuracy.
Residual stresses are a hidden enemy. To manage them, engineers can use pre-machining treatments like stress-relieving heat treatment or shot peening. For instance, a study on aluminum aerospace parts found that stress-relieving at 300°C before machining reduced distortion by 30%.
In another example, a shipbuilder machining a steel hull plate used vibratory stress relief—a process that vibrates the part to release stresses. This cut deflection by 0.3 mm, saving hours of rework.
The path your tool takes matters. Optimized tool paths can minimize cutting forces and distribute them evenly. For example, trochoidal milling—using circular tool paths—reduces forces compared to traditional straight cuts. A study on milling a titanium wing spar showed that trochoidal paths cut deflection by 20% compared to conventional methods.
In a real-world case, a manufacturer machining a steel bridge component used optimized tool paths to avoid concentrating forces at the part's edges. This reduced deflection from 0.6 mm to 0.15 mm, ensuring the part met structural requirements.
An aerospace manufacturer faced deflection issues when machining a 4-meter-long titanium wing spar. FEA predicted 0.5 mm of deflection due to cutting forces and residual stresses. By combining optimized fixturing (adding support points) and adaptive machining (adjusting feed rates based on sensor data), they reduced deflection to 0.1 mm, meeting tolerances.
A wind turbine blade, made from composite materials, deflected 0.7 mm during machining due to its thin walls and complex curvature. Engineers used vacuum fixtures and trochoidal milling to distribute forces evenly, cutting deflection to 0.2 mm and ensuring the blade's aerodynamic shape.
A 10-meter-long steel girder for a bridge showed 0.6 mm of deflection due to uneven clamping. FEA guided a fixture redesign, adding support rollers to balance forces. Combined with stress-relieving heat treatment, this reduced deflection to 0.15 mm, ensuring structural integrity.
Workpiece deflection is a formidable challenge in large-scale component manufacturing, but it's not insurmountable. By understanding the causes—cutting forces, clamping, residual stresses, and thermal effects—engineers can predict and prevent distortion. Analytical models offer a quick way to estimate deflection, while FEA provides precision for complex parts. Experimental methods, like strain gauges, give real-time insights. Strategies like optimized fixturing, adaptive machining, residual stress management, and tool path optimization are your toolkit for success.
The examples we've explored—a titanium wing spar, a wind turbine blade, a steel bridge girder—show that combining these approaches can achieve remarkable results. Whether you're in aerospace, energy, or construction, the principles are the same: analyze thoroughly, fixture smartly, and machine adaptively. Research from sources like Semantic Scholar and Google Scholar underscores the effectiveness of these methods, and real-world applications prove they work.
As manufacturing demands tighter tolerances and larger components, mastering deflection analysis will only grow more critical. Keep experimenting, stay informed by the latest studies, and don't be afraid to iterate. With the right tools and mindset, you can keep distortion at bay and deliver parts that stand up to the toughest standards.
Q: What’s the most common cause of deflection in large-scale components?
A: Cutting forces are often the biggest culprit, especially for slender or thin-walled parts. They can cause bending or vibrations, particularly in materials like titanium or aluminum.
Q: How does FEA compare to analytical models for deflection analysis?
A: FEA is more accurate for complex geometries, as it accounts for real-world factors like varying forces and material properties. Analytical models are simpler but less precise for intricate parts.
Q: Can adaptive machining be used on older CNC machines?
A: Yes, but it requires retrofitting with sensors and control software. Modern CNCs are better equipped, but upgrades can make older machines adaptive.
Q: How do you balance clamping forces to avoid deflection?
A: Use modular fixtures with evenly distributed support points. Vacuum fixtures or rollers can help for large, flexible parts like fuselage panels.
Q: What’s the best way to manage residual stresses before machining?
A: Stress-relieving heat treatment or vibratory stress relief works well. For example, heating aluminum to 300°C can reduce stresses by up to 30%.

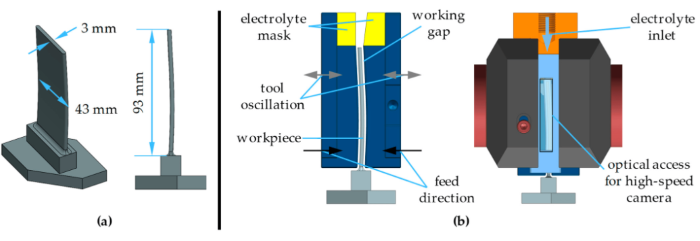

Title: Investigating Workpiece Deflection in Precise Electrochemical Machining of Turbine Blades
Journal: Journal of Manufacturing and Materials Processing
Publication Date: 2024
Main Findings: Blade tip deflection up to 0.03 mm induced by electrolyte flow, dominant vibration at 97.6 Hz
Methods: Experimental high-speed recordings, MATLAB-based blade edge reconstruction
Citation: Tchoupe Sambou et al., 2024
Page Range: 138
URL: https://doi.org/10.3390/jmmp8040138
Title: Physical Simulation of the Deflection in Turning of Thin Disk-Shaped Workpiece
Journal: International Journal of Advanced Manufacturing Technology
Publication Date: 1999
Main Findings: Controlled cutting force limits maximum deflection, enabling reinforcement-free machining
Methods: Modeling and computer simulation of deflection under turning loads
Citation: Cheung, Yuan, Hua, 1999
Page Range: 863-868
URL: https://doi.org/10.1007/s001700050143
Title: Review on Deflection Compensation Methods for Machining of Thin-Walled Components
Journal: Advanced Materials Research (Procedia Title)
Publication Date: 2010
Main Findings: Survey of error prediction and compensation techniques, highlighting FEA and NC offsets
Methods: Literature review of process planning schemes, force modeling, and compensation algorithms
Citation: Madariaga et al., 2010
Page Range: 1768-1776
URL: https://www.scientific.net/AMM.29-32.1768
