Introduction

Understanding Thermal Expansion in Machining

Measuring Thermal Effects

Compensation Strategies

Challenges in High-Volume Production

Future Trends in Thermal Management

Conclusion

Q&A

References

Introduction

In manufacturing, precision is the name of the game. When you're cranking out thousands of parts in a high-volume production run, even a slight hiccup can lead to scrapped parts or costly rework. One of the trickiest challenges? Thermal expansion. As machines grind away for hours, heat builds up, materials stretch, and dimensions that were spot-on at the start of a shift can drift by the end. For machinists, engineers, and production managers, tackling thermal expansion is like wrestling with physics itself—requiring a deep dive into how materials behave, how machines operate, and how processes can be tweaked to keep everything in check.

Thermal expansion happens because most materials grow when they get hot and shrink when they cool. In machining, heat comes from all directions: the cutting tool slicing through metal, the friction of the workpiece, even the ambient temperature in the shop. Over long production cycles, these heat sources can push components out of tolerance, turning a perfectly good part into scrap. This article dives into the nitty-gritty of managing thermal expansion in high-volume manufacturing, with practical strategies, real-world examples, and insights pulled from recent research. We'll cover the science behind thermal effects, measurement techniques, compensation methods, and how to keep your production line humming without breaking the bank.

Understanding Thermal Expansion in Machining

The Science of Thermal Expansion

When you heat a material, its atoms vibrate more, pushing them farther apart. This is thermal expansion in a nutshell, and it's governed by a material's coefficient of thermal expansion (CTE), which measures how much a material expands per degree of temperature change. For example, aluminum has a CTE of about 23 µm/m·°C, meaning a meter-long aluminum bar will grow by 23 micrometers for every degree Celsius it heats up. Steel, with a CTE of around 12 µm/m·°C, expands less, but even that can be enough to throw off tight tolerances in precision machining.

In a CNC machine running for hours, heat builds up in the spindle, cutting tools, and workpiece. A study by Adizue et al. showed that spindle temperatures can rise by 20°C or more during extended milling operations, causing dimensional shifts of up to 50 µm in steel parts. That's a big deal when your tolerances are under 10 µm. The heat doesn't just come from cutting—it's also from the machine's motors, bearings, and even the shop's climate control (or lack thereof). Over time, these thermal effects stack up, making it tough to keep parts consistent.

Real-World Example: Aerospace Component Manufacturing

Take an aerospace shop machining titanium turbine blades. Titanium's CTE is around 8.6 µm/m·°C, lower than steel, but the high-speed milling process generates intense heat. In one case, a manufacturer noticed that blades machined at the start of a 12-hour shift were within ±5 µm of spec, but by hour eight, deviations hit ±15 µm. The culprit? The spindle and workpiece were heating up, causing the tool path to drift. By implementing in-process temperature monitoring and adjusting tool offsets, they brought deviations back under control, saving thousands in scrap costs.

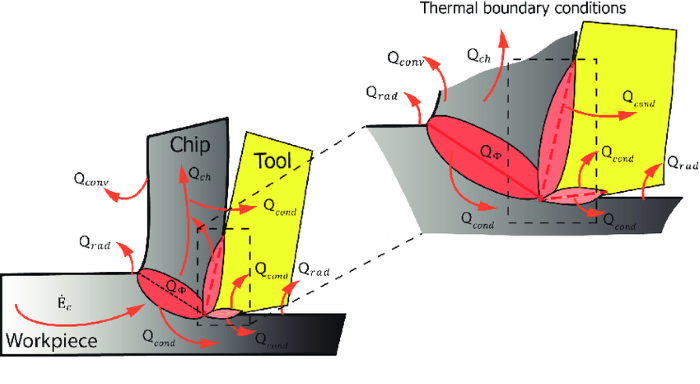

Heat Transfer in Dry Machining

Measuring Thermal Effects

In-Situ Monitoring Techniques

To manage thermal expansion, you first need to know what's happening inside your machine. In-situ monitoring—measuring temperature and dimensional changes during machining—is critical. Thermocouples, infrared cameras, and laser displacement sensors are common tools. For instance, a study by Chen et al. used embedded thermocouples to track temperature rises in a CNC lathe's spindle, finding that temperatures stabilized after about two hours but caused a 30 µm shift in part dimensions until compensated.

One practical setup involves mounting thermocouples on the workpiece and spindle housing, paired with a laser sensor to measure dimensional changes in real time. This data feeds into the machine's control system, allowing for dynamic adjustments. A German automotive supplier used this approach on a high-volume production line for engine blocks. By monitoring temperatures every 10 minutes and recalibrating tool paths, they reduced dimensional errors by 40%.

Post-Process Measurement

Sometimes, in-situ monitoring isn't feasible, especially on older machines. Post-process measurement, where parts are checked after machining, can still catch thermal issues. Coordinate measuring machines (CMMs) with temperature compensation are ideal here. A study by Mears et al. highlighted how CMMs with environmental controls could detect thermal-induced errors in aluminum housings, allowing engineers to adjust process parameters for the next batch. In one example, a shop machining gearbox casings found that parts measured at 25°C were out of spec when checked at 20°C due to thermal contraction. By standardizing measurement temperatures, they improved consistency.

Compensation Strategies

Machine Calibration and Warm-Up Cycles

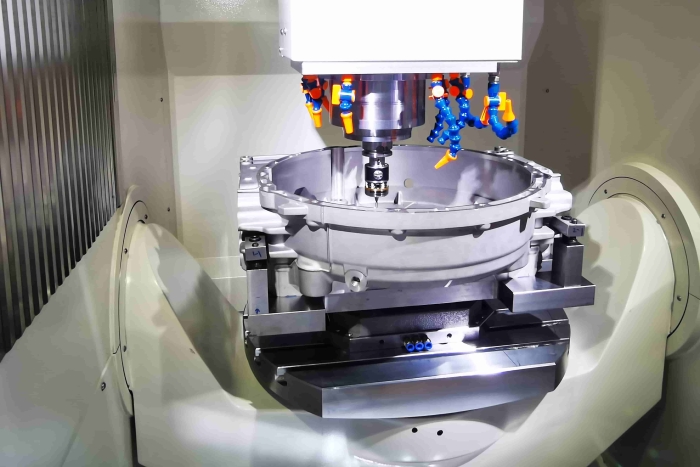

One of the simplest ways to manage thermal expansion is to let the machine “settle” before starting production. Running a warm-up cycle—where the spindle and axes move without cutting—helps stabilize temperatures. A precision machining shop in Ohio used a 30-minute warm-up cycle on their 5-axis CNC machines, reducing initial dimensional errors by 25%. The trick is to mimic the actual cutting conditions during warm-up, so the machine reaches a thermal equilibrium close to what it'll experience during production.

Calibration is another key step. Modern CNC machines often have built-in thermal compensation algorithms that adjust tool paths based on temperature data. For example, a Japanese manufacturer of optical components programmed their machines to adjust for spindle growth after every 100 parts, using data from thermal sensors. This kept tolerances within ±2 µm over a 24-hour run.

Tool Path Adjustments

Adjusting tool paths dynamically is a more advanced approach. By feeding temperature data into the CNC controller, the machine can tweak its movements to account for expansion. A practical example comes from a Chinese factory producing steel shafts. They used a real-time compensation model based on spindle and workpiece temperatures, reducing dimensional errors from 20 µm to under 5 µm. The model relied on a simple linear equation: ΔL = L × CTE × ΔT, where ΔL is the dimensional change, L is the original length, and ΔT is the temperature change.

Material Selection and Process Design

Choosing materials with lower CTEs can help, but it's not always practical—customers often dictate material specs. Instead, process design can make a big difference. For instance, a UK-based shop machining stainless steel medical implants switched to dry machining with air cooling to reduce thermal gradients. This cut dimensional variations by 30%, as the workpiece stayed closer to ambient temperature. Another approach is to break long machining cycles into shorter segments, allowing parts to cool between operations. A US manufacturer of heavy equipment parts adopted this strategy, scheduling 15-minute cooling breaks every two hours, which improved part consistency by 20%.

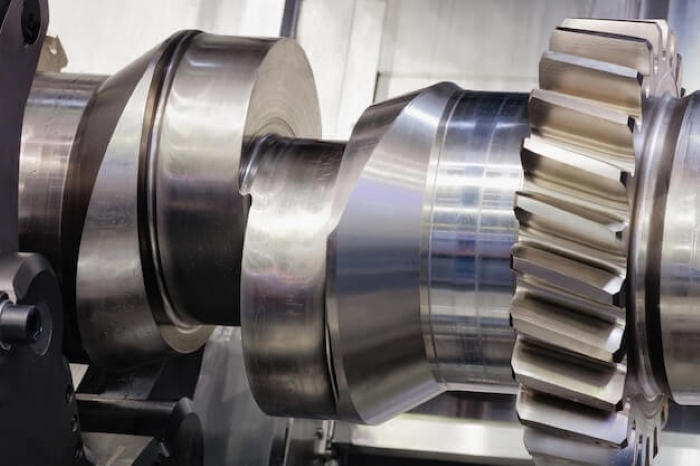

Cutting Metal Components

Challenges in High-Volume Production

Scaling Compensation Across Machines

In high-volume settings, you're not just managing one machine but a whole fleet. Each machine has its own thermal quirks, making standardization tricky. A study by Mears et al. described a factory with 10 CNC lathes producing aluminum pistons. By implementing a centralized thermal monitoring system, they synchronized compensation across machines, cutting scrap rates from 5% to 2%. The system used a network of sensors to feed data into a central controller, which adjusted tool paths for each machine.

Operator Training and Awareness

Even the best systems fail if operators don't understand them. A Midwest manufacturer faced recurring thermal errors because operators skipped warm-up cycles to save time. After a training program emphasizing the link between thermal stability and part quality, compliance improved, and defects dropped by 15%. Training should cover not just procedures but the “why” behind them—explaining how heat affects tolerances resonates with shop-floor staff.

Cost vs. Benefit

Advanced compensation systems aren't cheap. Infrared cameras, laser sensors, and real-time software can set you back tens of thousands. A small shop in Texas weighed the cost of upgrading their CNC machines with thermal monitoring against the savings from reduced scrap. They found that a $50,000 investment paid off in 18 months through lower rework costs and higher throughput. For smaller operations, simpler solutions like warm-up cycles and manual calibration might be more practical.

Future Trends in Thermal Management

Smart Manufacturing and IoT

The rise of Industry 4.0 is changing how we handle thermal expansion. Internet of Things (IoT) devices can monitor temperatures across an entire factory, feeding data into machine learning models that predict and correct for thermal effects. A German research institute tested an IoT-based system on a production line for aerospace gears, achieving a 50% reduction in thermal-related errors by predicting spindle growth patterns.

Advanced Materials and Cooling

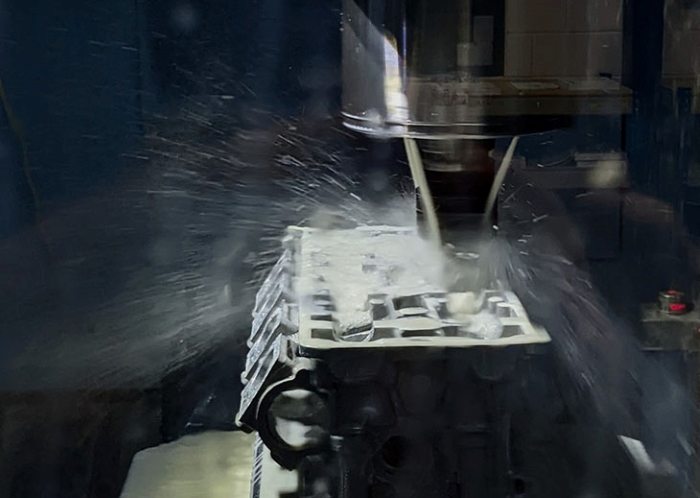

New materials with ultra-low CTEs, like carbon fiber composites, are gaining traction in niche applications. Meanwhile, advanced cooling techniques—like cryogenic machining with liquid nitrogen—are showing promise. A study by Chen et al. explored cryogenic cooling in titanium machining, finding it reduced thermal expansion by 60% compared to traditional wet machining. While expensive, these methods could become standard in high-precision industries.

Conclusion

Thermal expansion is a fact of life in machining, but it doesn't have to derail your production line. By understanding how heat affects materials, measuring its impact in real time, and applying smart compensation strategies, manufacturers can keep tolerances tight even during marathon production runs. From warm-up cycles to IoT-driven predictive models, the tools to manage thermal expansion are evolving fast. The key is to match the solution to your operation—whether it's a small shop tweaking tool paths or a large factory investing in smart systems.

Real-world examples, like the aerospace shop stabilizing titanium blades or the automotive supplier syncing multiple machines, show that thermal management is as much about process as it is about technology. Training operators, choosing the right materials, and balancing cost against benefits all play a role. As manufacturing pushes toward greater precision and efficiency, mastering thermal expansion will separate the good from the great. Keep measuring, keep adjusting, and keep the heat in check—your parts (and your bottom line) will thank you.

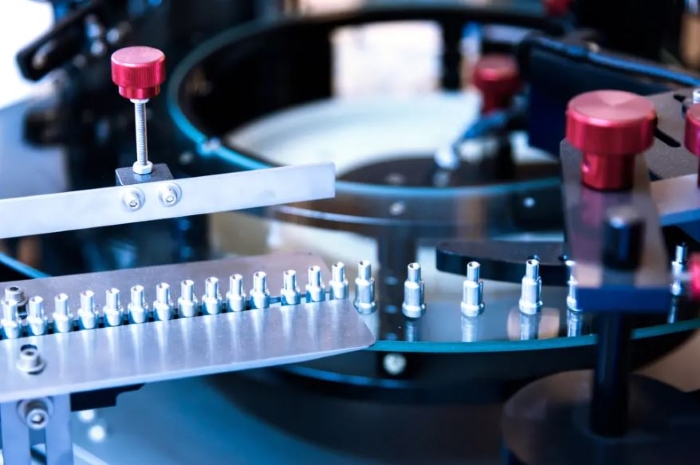

High-Volume Production Setup

Q&A

Q: Why does thermal expansion matter more in high-volume manufacturing?
A: In high-volume runs, small dimensional shifts compound over thousands of parts, leading to significant scrap or rework costs. Consistency is critical, and thermal expansion can push parts out of tolerance over time.

Q: What’s the easiest way to start managing thermal expansion?
A: Start with warm-up cycles to stabilize machine temperatures before production. It’s low-cost, requires no new equipment, and can reduce errors by up to 25%, as seen in many CNC shops.

Q: How do I know if my machine needs thermal compensation?
A: Check for dimensional drift in parts over long runs. If parts are in spec early but deviate later, or if CMM measurements vary with shop temperature, thermal expansion is likely the issue.

Q: Are advanced monitoring systems worth the cost for small shops?
A: It depends. A small shop might break even on a $50,000 system in 18 months through reduced scrap, but simpler methods like manual calibration can work if budgets are tight.

Q: Can material choice eliminate thermal expansion issues?
A: Not entirely—customer specs often limit material options. However, lower-CTE materials like titanium or composites can reduce issues, and process tweaks like dry machining help.

References

Handling Ambient Temperature Changes in Correlative Thermal Error Compensation
Journal of Machine Engineering
November 20, 2023
Main findings: Composite correlative model achieving 56-72% thermal error reduction in normal conditions and 42-52% in extreme ambient conditions through separation of internal and external thermal effects
Methodology: Finite element simulations combined with climate chamber validation using structured thermomechanical analysis and strategic temperature sensor placement
Citation: Naumann et al., 2023, pages 1-25
https://pdfs.semanticscholar.org/a640/1a0d6e122c3ebd521cf74274f3170ea8ddd3.pdf

Numerical Investigation of Thermal Behavior of CNC Machine Tool and Its Effects on Dimensional Accuracy
Scientific Research Publishing Corporation
August 23, 2024
Main findings: Developed numerical model achieving <10% prediction error and 90% accuracy in thermal error compensation using optimized temperature sensor placement
Methodology: 3D finite element thermomechanical analysis with 447,680 elements validated through temperature sensors, thermal imaging, and laser interferometry
Citation: Thermal Behavior Investigation, 2024, pages 1-28
https://www.scirp.org/journal/paperinformation?paperid=135447

Vertical Machining Center Feed Axis Thermal Error Compensation Strategy Research
Applied Sciences Journal
February 26, 2023
Main findings: Data-driven thermal error modeling achieving significant accuracy improvements through clustering analysis and PSO-LSSVM optimization for feed axis compensation
Methodology: Embedded thermal error compensation system development with temperature-sensitive point optimization and real-time dynamic loading technology
Citation: Applied Sciences Feed Axis Research, 2023, pages 1-22
https://www.mdpi.com/2076-3417/13/5/2990
