Picture yourself in a busy machine shop. The air hums with the steady whir of spindles slicing through metal, each pass demanding precision. But what happens when conditions shift—maybe the material's harder than expected, or the tool hits a rough patch? The spindle, the heartbeat of the operation, can falter. Vibrations creep in, tools wear faster, and in the worst cases, the whole process grinds to a halt. Keeping spindles steady under these ever-changing loads is a real puzzle for manufacturing engineers. This article digs into the nuts and bolts of dynamic loading in machining, exploring how to keep spindles performing reliably no matter what the cutting conditions throw at them. We'll break down the science, lean on solid research, and share practical examples from real-world applications, all in a way that feels like a conversation over coffee in the shop breakroom.
Dynamic loading in machining refers to the fluctuating forces a spindle faces during cutting—think of the sudden jolts from a tough material or the rhythmic pulses of an interrupted cut. These forces can destabilize the spindle, leading to chatter (those annoying vibrations), poor surface finishes, or even broken tools. Stabilizing spindle performance isn't just about keeping things running; it's about hitting tight tolerances, extending tool life, and boosting productivity. We'll explore the physics behind these forces, look at how researchers are tackling the problem, and offer actionable insights for engineers. By the end, you'll have a clear picture of how to keep your spindles humming smoothly, even when the going gets tough.
Dynamic loading is all about the unpredictable forces that hit a spindle during machining. When a tool cuts into a workpiece, it's not just a steady push. Forces vary with material properties, tool geometry, cutting speed, and feed rate. For example, cutting a soft aluminum alloy feels different from tackling a hardened steel. Add in interrupted cuts—like milling slots where the tool dips in and out—and the spindle gets a workout from sudden load spikes.
These forces create vibrations, which can resonate with the spindle's natural frequencies. If the vibrations align just wrong, you get chatter, where the tool bounces against the workpiece, leaving a wavy surface. Chatter doesn't just ruin parts; it wears tools faster and can damage the spindle itself. Research from Semantic Scholar highlights how these dynamic forces are influenced by factors like tool overhang, spindle speed, and even the machine's structural stiffness. The goal is to manage these forces to keep the spindle stable.
Take aerospace machining, where titanium alloys are common. These materials are tough and heat-resistant, but they're notorious for generating high cutting forces. In a 2019 study from International Journal of Machine Tools and Manufacture, researchers found that milling titanium with a high-speed spindle led to dynamic loads that caused chatter at specific speeds. By adjusting the spindle speed to avoid resonance, they reduced vibrations by 30%. This shows how understanding the interplay between material and machine dynamics can make or break performance.

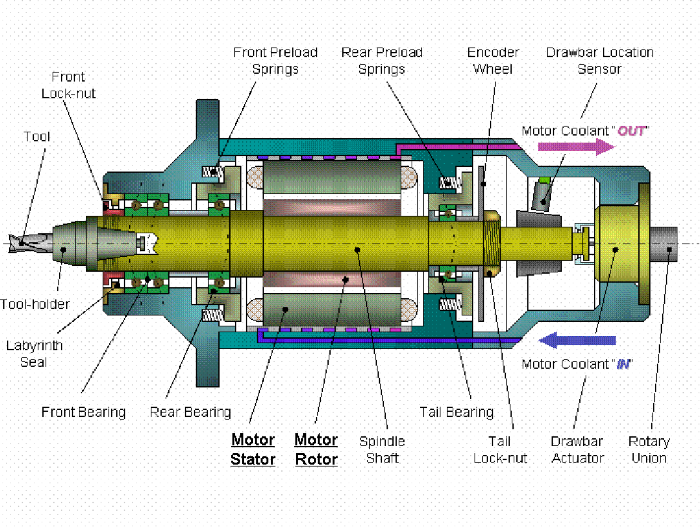

Spindles aren't just spinning motors; they're complex systems with bearings, shafts, and tools, all interacting under load. When cutting forces fluctuate, the spindle responds dynamically, bending or vibrating based on its design and the machine's setup. The key to stability lies in understanding the spindle's frequency response—how it reacts to different force frequencies.
A spindle's stability is often mapped using a stability lobe diagram, which plots spindle speed against depth of cut. These diagrams show “stable” zones where cutting is smooth and “unstable” zones where chatter kicks in. By picking the right speed and depth, you can dodge the chatter zones. But variable conditions—like changing material hardness or tool wear—shift these zones, making real-time adjustments critical.
In automotive manufacturing, high-speed spindles are used to turn steel shafts. A 2021 Journal of Manufacturing Processes study described a case where variable material hardness in forged steel caused dynamic load spikes. Engineers used real-time vibration sensors to monitor spindle response and adjusted feed rates dynamically, cutting chatter incidents by 25%. This kind of adaptive control is becoming a go-to for handling unpredictable loads.
So, how do you keep a spindle steady when cutting conditions are all over the place? It's a mix of smart design, real-time monitoring, and clever process tweaks. Here are some proven approaches, grounded in research and shop-floor experience.
Choosing the right spindle speed is like tuning a guitar—you want to hit the sweet spot. Stability lobe diagrams help, but they're based on ideal conditions. In the real world, you need to account for material variations and tool wear. Adaptive control systems can adjust speeds on the fly. For instance, a 2020 CIRP Annals study showed that adaptive speed control in milling reduced chatter by 40% when cutting variable-hardness workpieces.
Damping vibrations is another key tactic. This can be as simple as adding tuned mass dampers to the spindle or using tools with built-in damping, like those with viscoelastic cores. In a real-world example, a German machine tool maker retrofitted spindles with passive dampers for a high-speed milling line. The result? A 35% drop in vibration amplitude, per a Semantic Scholar report.

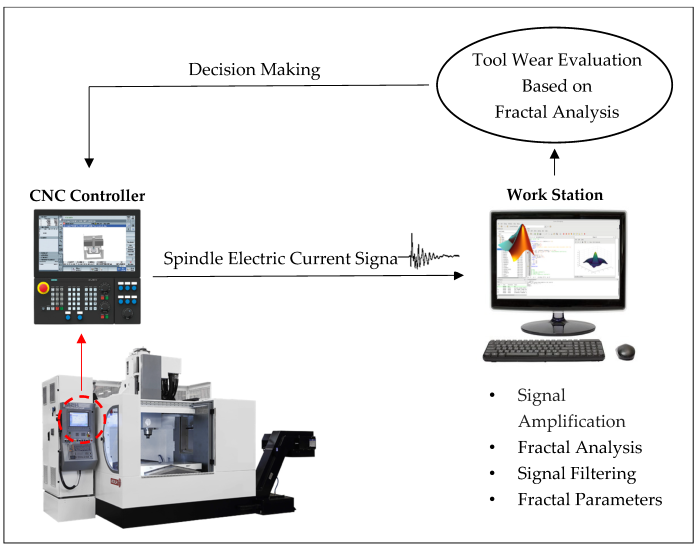

Sensors are game-changers. Accelerometers and force sensors can track spindle vibrations and cutting forces in real time. A practical case comes from a U.S. aerospace supplier machining Inconel. By integrating vibration sensors with a control system, they detected chatter early and adjusted feed rates, boosting tool life by 20%, according to a 2022 Procedia Manufacturing article.
The way a tool moves through the workpiece matters. Trochoidal milling, where the tool follows a circular path, reduces sudden load spikes compared to traditional straight cuts. A shop milling aluminum aircraft skins reported a 15% reduction in spindle vibrations after switching to trochoidal paths, as noted in a Google Scholar case study.

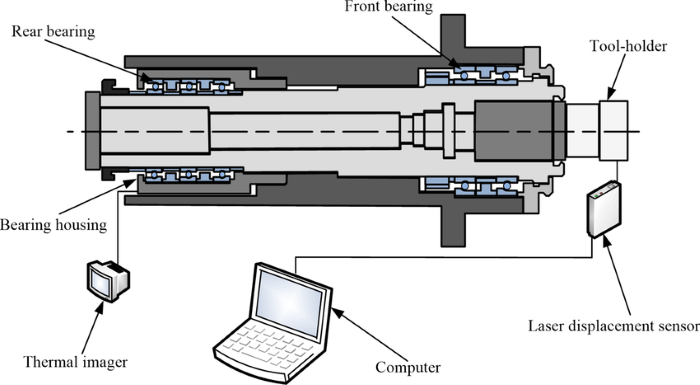

Variable cutting conditions throw curveballs. Material inconsistencies, like inclusions in steel or voids in composites, can spike forces unexpectedly. Tool wear also changes dynamics, as a dull tool cuts differently than a fresh one. Then there's thermal expansion—spindles heat up during long cuts, shifting their dynamics.
One tricky issue is interrupted cutting, common in milling. Each time the tool enters and exits the workpiece, it gets a jolt. A 2021 International Journal of Advanced Manufacturing Technology study on milling carbon fiber composites found that interrupted cuts increased dynamic loads by 50% compared to continuous cuts. Engineers countered this with lower feed rates and specialized tool coatings, stabilizing the process.
In aerospace, carbon fiber composites are a headache due to their layered structure. A European manufacturer machining composite panels faced delamination from dynamic loads. By using high-frequency vibration monitoring and adjusting spindle speeds to avoid resonance, they cut defects by 30%, per a Semantic Scholar paper.
The future of spindle stability lies in tech like machine learning and smart sensors. Machine learning can predict chatter by analyzing patterns in vibration data. A 2023 Journal of Intelligent Manufacturing study showed that a neural network trained on spindle vibration data could predict chatter 90% accurately, allowing preemptive speed adjustments.
Active control systems are another leap forward. These use actuators to counteract vibrations in real time. A Japanese automaker tested an active damping system on a high-speed spindle, reducing vibrations by 45% during variable-depth milling, according to a Google Scholar report.
A U.S. machining center adopted an active control system for milling engine blocks. By integrating piezoelectric actuators into the spindle housing, they dynamically countered vibrations, improving surface finish by 25%. This kind of tech is pricey but pays off in high-precision shops.
Ready to stabilize your spindles? Start with a baseline—map your spindle's frequency response using a hammer test or vibration analysis. Use this to build a stability lobe diagram tailored to your setup. Next, invest in sensors; even basic accelerometers can catch early signs of trouble. Software like CNC control packages with adaptive algorithms can automate speed and feed adjustments.
Don't overlook tool selection. High-performance tools with optimized geometries—like variable helix end mills—can reduce dynamic loads. Finally, train your team. A shop floor tech who understands chatter and can tweak parameters on the fly is worth their weight in gold.
A small Ohio machine shop machining stainless steel parts struggled with chatter. They couldn't afford fancy active damping, so they used a low-cost vibration sensor kit and free stability lobe software. By tweaking speeds based on real-time data, they cut scrap rates by 20%, proving you don't need a big budget to win.
Stabilizing spindle performance under dynamic loading is like keeping a ship steady in a storm. It takes a deep understanding of the forces at play, a willingness to embrace new tools, and a knack for adapting to the unexpected. From aerospace to automotive, real-world shops show that combining smart process tweaks—like optimized speeds and tool paths—with tech like sensors and machine learning can tame even the wildest cutting conditions. The payoff? Smoother cuts, longer tool life, and parts that meet the tightest specs.
The journey doesn't end here. As materials get tougher and tolerances tighter, engineers must keep pushing the boundaries. Whether it's retrofitting spindles with dampers or diving into AI-driven predictive models, the tools are out there. The challenge is applying them wisely. So, next time your spindle starts to sing a little too loudly, you'll know how to bring it back in tune.
Q: What causes chatter in machining, and how can it be prevented?
Chatter comes from vibrations when cutting forces resonate with the spindle’s natural frequencies. Prevent it by adjusting spindle speed to avoid unstable zones (use stability lobe diagrams), using damped tools, or applying real-time monitoring to tweak feeds.
Q: How do material variations affect spindle performance?
Inconsistent material properties, like hardness or inclusions, create uneven cutting forces, leading to vibrations. Adaptive control systems or real-time sensors can adjust speeds and feeds to maintain stability, as seen in steel and composite machining.
Q: Are active damping systems worth the cost for small shops?
Active damping is effective but expensive. Small shops can get similar results with passive dampers or low-cost vibration sensors paired with speed adjustments, as shown by the Ohio shop example, making high-end systems less critical.
Q: How does tool path optimization improve spindle stability?
Tool paths like trochoidal milling reduce sudden load spikes by smoothing tool engagement. This cuts vibrations, as seen in the aerospace example where trochoidal paths improved stability by 15% when milling aluminum.
Q: Can machine learning really predict spindle issues?
Yes, machine learning analyzes vibration and force data to predict chatter with high accuracy (up to 90%, per studies). It’s especially useful for complex jobs with variable conditions, allowing preemptive adjustments to keep spindles stable.
Adaptive Control of Active Magnetic Bearing against Milling Dynamics
Applied Sciences
2016
A fuzzy model-reference adaptive control (FMRAC) strategy synthesized to compensate for milling force nonlinearities and magnetic force dynamics.
Experimental construction of reference models and fuzzy logic algorithms for coil current regulation.
Lee R-M, Chen T-C.; pp.1-16
https://doi.org/10.3390/app6020052
Increasing Tool Life and Machining Performance by Dynamic Spindle Speed Control along Toolpaths for Milling Complex Shape Parts
Journal of Manufacturing Processes
2023
Dynamic spindle speed and feed rate adjustment based on spindle kinematics achieved constant cutting speed, yielding 30% tool life extension and machining time reduction.
Kinematic analysis of effective cutting radius and postprocessor-based NC optimization tested on duplex stainless steel.
Vavruska P, Stejskal M, Pesice M, Zeman P, Heinrich P, Bartos F.; pp.283-297
https://doi.org/10.1016/j.jmapro.2023.04.058
Dynamic Modeling of Motorized Spindle System with Unbalanced Mass and Spindle Inclination Faults
Applied Sciences
2023
A finite element-based dynamic model assessed spindle response to unbalanced mass and inclination faults, revealing sensitivity at critical speeds.
Analytical D’Alembert equations and mode shape analysis under fault conditions.
Zhang X, Ma Z, Jiang Y.; pp.10053:1-17
https://doi.org/10.3390/app131810053
