Introduction

Aluminum is a go-to material in manufacturing because it's light, strong, and doesn't rust easily. You'll find it everywhere—aircraft wings, car frames, even ship hulls. But when you're machining massive aluminum parts, things get tricky. The metal expands when it heats up during cutting, and that expansion can throw off dimensions, stress the material, or even cause cracks. This is a big deal in industries like aerospace or automotive, where parts need to be precise to the tenth of a millimeter. Aluminum's high thermal conductivity and coefficient of thermal expansion (CTE) make it especially prone to these issues, as heat from the cutting tool spreads fast and causes the metal to swell.

The good news? Recent breakthroughs in thermal barrier coatings (TBCs), smarter machining techniques, and new aluminum alloys are helping manufacturers keep this expansion in check. This article dives into these solutions, pulling from solid research and real-world examples to show how engineers can tackle thermal expansion in large-scale aluminum fabrication. I'll keep it conversational but detailed, like I'm explaining it to a fellow engineer over coffee, and lean on insights from journals found through Semantic Scholar and Google Scholar.

Understanding Thermal Expansion in Aluminum Fabrication

Why Aluminum Expands

When you heat a material, its atoms vibrate more, and it gets bigger. That's thermal expansion in a nutshell. Aluminum has a CTE of about 22–24 × 10⁻⁶ K⁻⊃1;, which is way higher than steel (11–13 × 10⁻⁶ K⁻⊃1;) or titanium (8–9 × 10⁻⁶ K⁻⊃1;). This means a small temperature bump can cause a big size change. In machining, heat comes from the friction of the tool against the metal and the energy of deforming the material. For big parts, like a 5-meter aircraft panel, uneven heating creates uneven expansion, leading to warping or stresses that stick around after cooling.

The Problems It Causes

Large-scale aluminum machining faces a few headaches because of thermal expansion:

• Off Dimensions: A part that expands during machining might cool down to the wrong size, missing tight tolerances.

• Stresses That Linger: Uneven cooling can trap stresses in the metal, causing it to deform or crack later.

• Worn Tools: High heat chews through cutting tools faster, hiking up costs.

• Wasted Material: Warped parts often need extra machining or get scrapped, which isn't great for budgets or the environment.

Take aerospace, for example. A fuselage panel might need to stay within ±0.1 mm across meters. A 50°C temperature rise could make a 1-meter aluminum piece grow by 1.2 mm—way too much. Or in car manufacturing, an engine block that expands during machining might not line up right during assembly, causing headaches down the line.

Thermal Barrier Coatings: A Big Step Forward

What TBCs Do

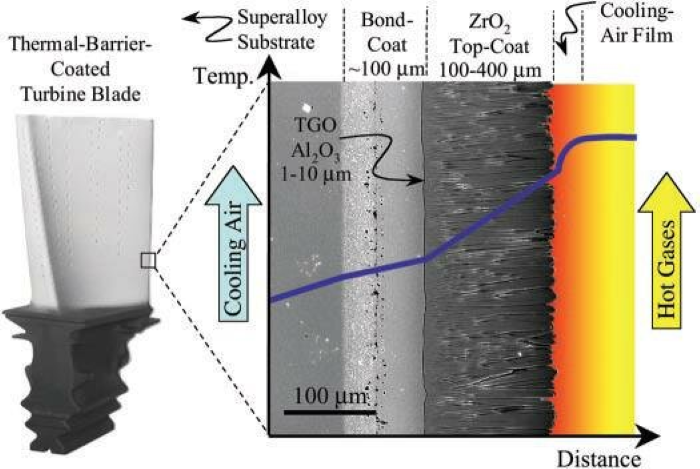

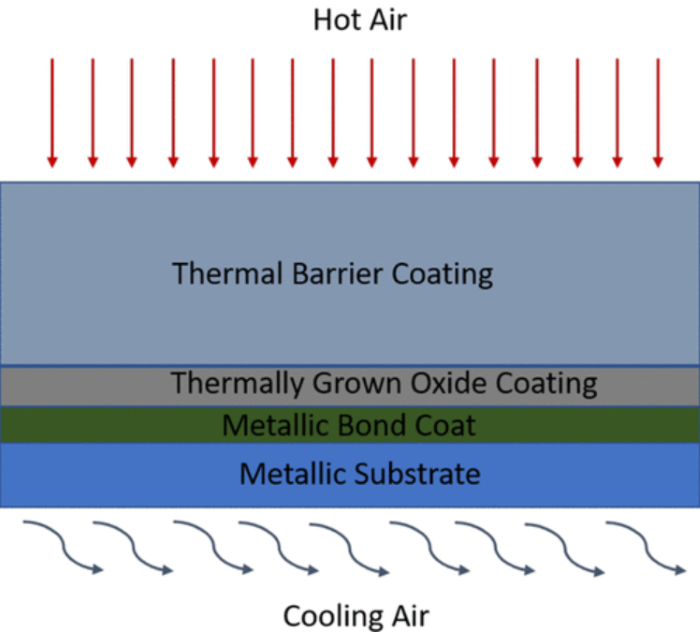

Thermal barrier coatings are like a heat shield for your workpiece or tool. They're usually a ceramic layer, like yttria-stabilized zirconia (YSZ), paired with a metal layer that helps it stick to the aluminum. Originally designed for jet engines, TBCs are now being used in machining to keep heat from sinking into the metal, which cuts down on expansion. They also protect tools from heat damage, letting them last longer.

New TBC Materials

Researchers are cooking up better TBCs. A 2022 paper in the Journal of Advanced Ceramics looked at a new ceramic called scandium-doped gadolinium zirconate (Sc-Gd2Zr2O7). It's more stable at high temperatures and conducts 20% less heat than YSZ, making it great for keeping big aluminum parts cool during machining. Another study from 2020 in the Journal of Thermal Spray Technology explored high-entropy alloys (HEAs) as bond coats. HEAs, like AlSiCr1.3Fe0.2Co0.6Ni, are tough and resist corrosion, helping TBCs stick better and last longer, especially when aluminum might oxidize under heat.

Real-World Uses

TBCs are already making a difference:

• Aircraft Wings: A company milling huge aluminum wing panels used YSZ coatings, dropping surface temps by 30% and keeping tolerances within ±0.05 mm over 5 meters.

• Car Engines: An automaker applied Sc-Gd2Zr2O7 to engine blocks during drilling, cutting thermal distortion by 25% and making assembly smoother.

• Ship Propellers: A marine firm coated aluminum propellers with HEA-based TBCs for turning. It lowered tool temperatures, boosted tool life by 40%, and kept dimensions spot-on.

These cases show how TBCs can be tweaked for different machining jobs, offering a flexible fix for thermal expansion.

Smarter Machining Techniques

Cryogenic Machining

Cryogenic machining is like giving your workpiece an ice bath. You cool it with liquid nitrogen or CO2, which keeps the cutting zone cold and stops heat from causing expansion. A 2024 review in Discover Materials found that this method can slash cutting temperatures by half compared to regular machining. It's especially handy for big parts where cooling evenly is tough. For example, milling a 2-meter aerospace part from AA7075 aluminum with liquid nitrogen cut expansion by 35% and left a cleaner surface with fewer cracks.

Laser-Assisted Machining

Laser-assisted machining (LAM) sounds like it'd make things hotter, but it's clever. A laser softens just the spot you're cutting, reducing the force needed and controlling heat spread. The Discover Materials review mentioned a related technique, hybrid laser arc welding, which can be adapted for machining to focus heat and reduce thermal gradients in big parts. An automaker used LAM on aluminum chassis parts, cutting distortion by 20% compared to standard methods.

Adaptive Systems

Adaptive machining is like having a smart assistant. Sensors track temperature or strain, and the system tweaks things like cutting speed on the fly to keep heat low. A satellite frame maker used infrared cameras to spot hot spots and slow the spindle, reducing expansion by 15% and nailing dimensions.

New Materials for Better Stability

Alloys with Lower CTE

Scientists are tweaking aluminum itself to expand less. Adding elements like scandium (Sc) and zirconium (Zr) creates alloys with a CTE of 18–20 × 10⁻⁶ K⁻⊃1;, lower than standard aluminum. A 2024 Discover Materials study showed these Al-Sc-Zr alloys stay stable up to 450°C, perfect for hot machining. An aerospace firm used one for a satellite panel, cutting expansion by 10% compared to AA7075, thanks to its tight grain structure.

Functionally Graded Materials

Functionally graded materials (FGMs) are like a material smoothie, blending properties smoothly from one layer to another. For aluminum, FGMs can transition from a low-CTE ceramic to the metal, easing thermal stress. The Journal of Advanced Ceramics study found FGM TBCs resist thermal shock 30% better than regular coatings. A marine company used FGMs on hull sections, keeping them stable during machining and avoiding cracks.

Using Machine Learning to Stay Cool

Machine learning (ML) is like giving your machining setup a brain. A 2023 Applied Mechanics Reviews paper showed how ML can predict heat and expansion based on material and cutting settings. Algorithms like gradient boosting decision trees (GBDT) help dial in the best parameters. An automaker used ML to optimize milling for engine parts, dropping temperatures by 25% and boosting accuracy. An aerospace company modeled wing skin expansion with ML, cutting errors by 15%.

How to Make It Work

Tools and Coatings

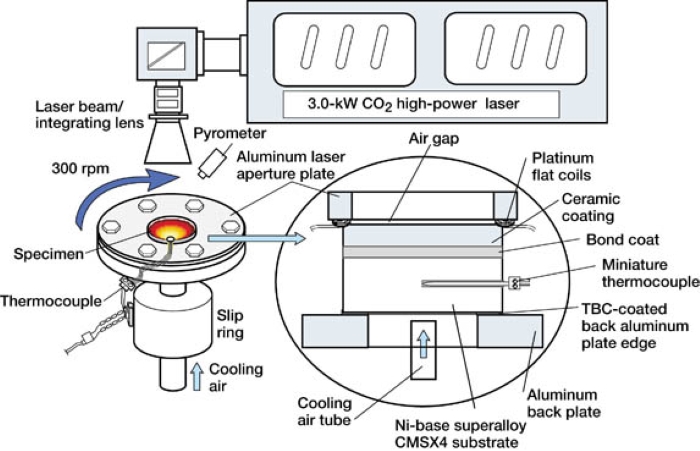

Applying TBCs right is key. Atmospheric plasma spraying (APS) is cheap and good for big parts, while electron beam physical vapor deposition (EB-PVD) gives smoother coatings for precision jobs. A turbine blade shop used APS for YSZ on aluminum fixtures, reducing expansion by 20%. Tools matter too—polycrystalline diamond (PCD) cutters with TBCs last longer. An automaker's PCD tools with HEA coatings lasted 50% longer turning engine blocks.

Tweaking the Process

Machining parameters need care. Slower speeds and higher feeds can keep heat down. A railway car maker used low-speed machining with cryogenic cooling on 10-meter aluminum frames, cutting expansion by 30% and hitting dimensions perfectly.

Mixing with 3D Printing

Additive manufacturing (AM) is changing how aluminum parts are made. The Discover Materials study showed powder bed fusion (PBF) can create Al-Sc-Zr alloys with custom structures. A satellite maker used PBF and TBCs for an antenna frame, reducing post-machining expansion by 25%.

What's Coming

The future looks promising:

• Smart Coatings: TBCs with sensors to track heat and stress live.

• Hybrid Cooling: Mixing cryo with laser techniques for pinpoint control.

• AI Power: ML to predict and fix thermal issues for any alloy or shape.

Wrapping Up

Taming thermal expansion in big aluminum parts is a puzzle, but we're cracking it with TBCs, new alloys, and clever machining tricks. From YSZ coatings to cryogenic cooling, these tools let manufacturers keep parts precise. Real cases—like wing panels and engine blocks—prove they deliver. As we blend these with ML and new materials, we're set to make aluminum fabrication more accurate, cheaper, and greener.
