Introduction

In high-volume manufacturing, precision is everything. When you're churning out thousands of parts, even a micron's deviation can spell disaster—rejected components, costly rework, or worse, compromised product performance. Machining processes, especially those involving CNC (Computer Numerical Control) systems, are particularly sensitive to thermal effects. Heat generated from cutting tools, spindles, or even ambient workshop conditions can cause materials and machine components to expand or contract, throwing off dimensional accuracy. This is where machining thermal compensation systems come into play. These systems are designed to counteract thermal distortions, ensuring parts stay within tolerance over long production runs.

Imagine a scenario: a factory producing aerospace turbine blades runs a 24-hour shift. The CNC machine hums along, but as the spindle heats up, the toolpath drifts ever so slightly. Without correction, the blades start failing quality checks by midnight. Thermal compensation systems prevent this by dynamically adjusting for temperature-induced changes, keeping the process stable. In this article, we'll dive deep into how these systems work, explore real-world applications, and discuss their critical role in modern manufacturing. We'll break it down for engineers, machinists, and anyone invested in precision manufacturing, with practical examples and insights grounded in recent research.

Our journey starts with the fundamentals of thermal effects in machining, moves through the mechanics of compensation systems, and wraps up with their implementation and future trends. Expect detailed explanations, real-world case studies, and a conversational tone to make the complex feel approachable. Let's get started.

Understanding Thermal Effects in Machining

The Science of Thermal Distortion

When you're machining a part, heat is an inevitable byproduct. The cutting tool slices through metal, generating friction. The spindle spins at thousands of RPMs, warming up the machine frame. Even the coolant, meant to dissipate heat, can introduce thermal gradients if not managed properly. These temperature changes cause materials to expand or contract based on their coefficient of thermal expansion (CTE). For instance, aluminum expands about twice as much as steel for the same temperature increase, which can lead to significant dimensional shifts in mixed-material assemblies.

Consider a CNC lathe machining a steel shaft. If the spindle temperature rises by 10°C, the machine's frame might expand by a few microns. That's enough to misalign the toolpath, resulting in an out-of-spec part. Over a long production run, these errors accumulate, leading to scrap rates that can cripple profitability. Research from Semantic Scholar highlights that thermal errors can account for up to 70% of total machining errors in high-precision applications like aerospace and automotive manufacturing.

Sources of Heat in Machining

Heat comesfrom multiple sources in a machining setup:

  • Cutting Zone: The shear deformation of the workpiece and friction between the tool and material generate significant heat. For example, machining titanium alloys, common in aerospace, produces intense localized heat due to the material's low thermal conductivity.

  • Spindle and Bearings: High-speed spindles, often running at 10,000–20,000 RPM, generate heat from friction and motor operation. A study from Scholar Google noted that spindle thermal growth can cause axial displacements of 20–50 µm in high-speed machining.

  • Environmental Factors: Workshop temperature fluctuations, especially in non-climate-controlled facilities, can affect machine components. For instance, a 5°C rise in ambient temperature over a shift can cause measurable drift in a CNC machine's bed.

  • Coolant Dynamics: While coolant reduces cutting zone heat, uneven application can create thermal gradients across the workpiece or machine structure.

Real-World Impact

Take the example of a German automotive supplier producing gearbox components. During a 12-hour run, their CNC milling machine experienced a 15°C temperature increase in the spindle, leading to a 30 µm shift in tool position. This caused 10% of the parts to fail tolerance checks, costing thousands in rework. Another case involved a Japanese manufacturer of optical lenses, where ambient temperature swings in the factory led to inconsistent lens curvature, affecting optical performance. These examples underscore why thermal compensation isn't just a nice-to-have—it's a necessity for high-volume precision manufacturing.

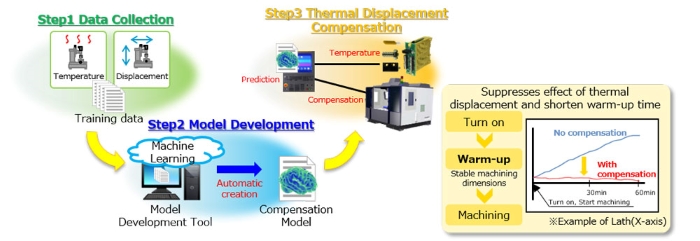

Thermal Compensation Flowchart

Mechanics of Thermal Compensation Systems

How Thermal Compensation Works

Thermal compensation systems counteract dimensional changes by monitoring temperature variations and adjusting machine parameters in real time. These systems typically integrate sensors, control algorithms, and actuators to maintain precision. The core idea is to predict or measure thermal distortion and compensate for it before it affects the part.

A typical system includes:

  • Temperature Sensors: Thermocouples or infrared sensors placed on the spindle, machine bed, or workpiece to monitor heat.

  • Control Software: Algorithms that calculate expected thermal expansion based on sensor data and material properties.

  • Actuators or Offsets: Mechanisms that adjust tool position, spindle speed, or feed rate to counteract thermal effects.

For example, a CNC machine might use a thermal model to predict spindle growth based on operating time and RPM. If the model predicts a 10 µm axial expansion, the control system adjusts the toolpath to compensate, ensuring the part stays within tolerance.

Types of Thermal Compensation Systems

There are two main approaches to thermal compensation:

  1. Model-Based Compensation: This uses pre-calibrated mathematical models to predict thermal distortion based on operating conditions. For instance, a model might use spindle speed, cutting time, and ambient temperature to estimate machine expansion. A study from Semantic Scholar described a model-based system that reduced thermal errors by 60% in a high-speed milling setup.

  2. Sensor-Based Compensation: This relies on real-time sensor data to adjust for thermal changes. Sensors monitor temperatures across the machine and feed data to the control system, which applies corrections dynamically. A Scholar Google paper highlighted a sensor-based system that cut thermal errors by 50% in a turning operation.

Hybrid systems, combining both approaches, are increasingly common. They use models for initial predictions and sensors for real-time fine-tuning, offering robust performance across diverse conditions.

Case Studies

  • Aerospace Turbine Blade Manufacturing: A U.S. aerospace company implemented a hybrid thermal compensation system on their 5-axis CNC machines. By integrating thermocouples on the spindle and workpiece with a predictive model, they reduced dimensional errors from 25 µm to 5 µm over 24-hour runs, improving yield by 15%.

  • Automotive Crankshaft Production: A Chinese manufacturer used a sensor-based system to monitor bed temperature on a CNC lathe. Real-time adjustments to tool offsets cut scrap rates from 8% to 2%, saving $100,000 annually.

  • Medical Device Machining: A Swiss company producing titanium implants deployed a model-based system to account for material-specific thermal expansion. This ensured sub-micron accuracy, critical for biocompatibility and fit.

Implementation Challenges and Solutions

Common Challenges

Implementing thermal compensation systems isn't without hurdles. Here are some common issues:

  • Sensor Placement: Incorrect sensor placement can lead to inaccurate readings. For example, placing a thermocouple too far from the spindle might miss localized heat spikes.

  • Model Accuracy: Predictive models require precise calibration. If the model doesn't account for material variations or tool wear, compensation may be off.

  • Cost and Complexity: Advanced systems, especially hybrid ones, can be expensive to install and maintain, particularly for smaller shops.

  • Environmental Variability: In facilities with poor climate control, ambient temperature swings can overwhelm compensation systems.

Practical Solutions

  • Optimized Sensor Networks: Use finite element analysis (FEA) to determine optimal sensor locations. A German study used FEA to place sensors on a CNC milling machine, improving temperature measurement accuracy by 30%.

  • Adaptive Models: Incorporate machine learning to refine thermal models over time. A Japanese research team developed an adaptive model that learned from production data, reducing errors by 40% after three months.

  • Cost-Effective Alternatives: For smaller shops, retrofit kits with basic sensor-based systems are available. These can reduce thermal errors by 20–30% without the cost of a full hybrid system.

  • Climate Control Integration: Pair compensation systems with workshop HVAC upgrades. A UK manufacturer reduced ambient temperature swings from 5°C to 1°C, enhancing system reliability.

Real-World Example

A South Korean electronics manufacturer faced thermal drift in their CNC machines producing smartphone components. Initial attempts at sensor-based compensation failed due to poor sensor placement. After consulting a Semantic Scholar study, they used FEA to reposition sensors closer to the cutting zone, reducing errors by 25%. They also integrated a basic machine learning algorithm to refine their thermal model, cutting scrap rates by half within six months.

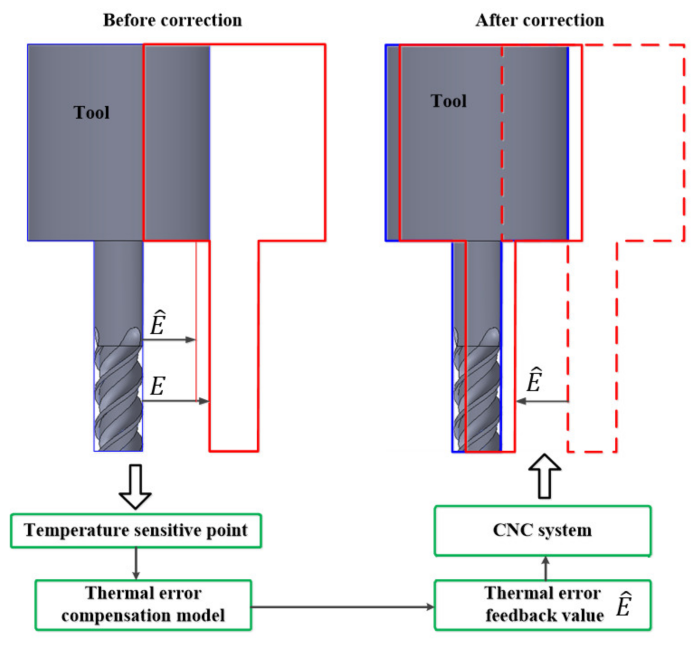

Thermal Error Compensation System

Advanced Technologies in Thermal Compensation

Machine Learning and AI

Machine learning is revolutionizing thermal compensation. By analyzing historical data—spindle temperatures, tool wear, ambient conditions—AI can predict thermal distortions with unprecedented accuracy. A Scholar Google study described an AI-driven system that reduced thermal errors by 70% in a high-volume turning operation by learning from real-time sensor data and adjusting toolpaths dynamically.

For example, a Taiwanese semiconductor equipment manufacturer used a neural network to model thermal expansion in their CNC machines. The system learned to predict distortions based on production cycles, cutting errors from 15 µm to 3 µm.

Smart Sensors and IoT

Internet of Things (IoT) technology enables real-time data collection from multiple sensors across a machine shop. These “smart” sensors communicate wirelessly, feeding data to a central system for analysis. A European study showcased an IoT-based thermal compensation system that reduced downtime by 10% by alerting operators to thermal anomalies before they caused errors.

Additive Manufacturing Integration

As hybrid manufacturing (combining additive and subtractive processes) grows, thermal compensation systems are adapting. Additive processes like laser powder bed fusion generate intense localized heat, complicating dimensional control. A Semantic Scholar paper outlined a hybrid system that used real-time laser power monitoring to adjust CNC toolpaths, maintaining accuracy in hybrid setups.

Case Study: IoT in Action

A Brazilian automotive supplier implemented an IoT-based thermal compensation system across their CNC machining centers. Sensors monitored spindle, bed, and ambient temperatures, feeding data to a cloud-based platform. The system flagged a 12°C spindle temperature spike during a night shift, prompting automatic toolpath adjustments that prevented a 5% batch failure.

Future Trends in Thermal Compensation

Predictive Maintenance Integration

Thermal compensation systems are increasingly integrated with predictive maintenance platforms. By analyzing thermal data alongside vibration and tool wear metrics, these systems can predict when a machine is likely to drift out of tolerance, allowing preemptive adjustments. A Scholar Google study predicted that such integrations could reduce downtime by 20% in high-volume shops by 2030.

Digital Twins

Digital twins—virtual models of physical machines—are gaining traction. These twins simulate thermal behavior under various conditions, allowing engineers to test compensation strategies virtually. A U.S. manufacturer used a digital twin to optimize their CNC milling process, cutting thermal errors by 50% before implementing changes on the shop floor.

Sustainability Considerations

As manufacturers face pressure to reduce energy use, thermal compensation systems are being designed to optimize coolant flow and spindle speeds, minimizing heat generation. A European study found that energy-efficient compensation systems reduced power consumption by 15% without sacrificing accuracy.

Real-World Example

A Swedish aerospace company adopted a digital twin for their 5-axis CNC machines. By simulating thermal effects during long runs, they identified optimal coolant flow rates, reducing energy use by 10% and thermal errors by 40%. This dual benefit improved both sustainability and profitability.

Conclusion

Thermal compensation systems are a cornerstone of modern high-volume manufacturing, ensuring dimensional stability in the face of inevitable heat-related challenges. From aerospace turbine blades to automotive crankshafts, these systems enable manufacturers to maintain tight tolerances, reduce scrap, and boost efficiency. By combining sensors, predictive models, and emerging technologies like AI and IoT, these systems are becoming more precise and accessible.

The journey from basic sensor-based corrections to AI-driven, IoT-connected platforms reflects the industry's relentless pursuit of precision. Challenges like sensor placement and cost remain, but solutions like FEA, adaptive models, and retrofit kits are making thermal compensation viable for shops of all sizes. Looking ahead, integrations with predictive maintenance, digital twins, and sustainable practices promise to push the boundaries of what's possible.

For manufacturing engineers, the message is clear: investing in thermal compensation isn't just about meeting tolerances—it's about staying competitive in a world where precision and efficiency are non-negotiable. Whether you're running a small shop or a global production line, these systems offer a path to consistent, high-quality output, even under the most demanding conditions.

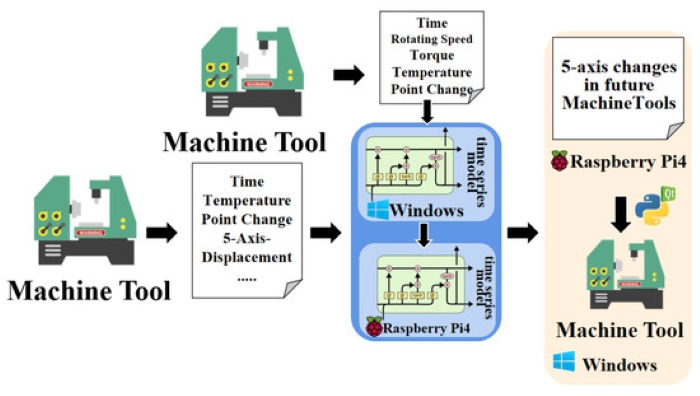

Thermal Error Measurement

Q&A

Q1: Why are thermal compensation systems critical for high-volume manufacturing?
They keep parts within tight tolerances by counteracting heat-induced distortions, reducing scrap and ensuring consistent quality over long runs.

Q2: What’s the difference between model-based and sensor-based systems?
Model-based systems predict distortions using math models, while sensor-based systems adjust based on real-time temperature data. Hybrids use both for better accuracy.

Q3: Can small shops afford thermal compensation?
Yes, affordable retrofit kits with basic sensors can cut thermal errors by 20–30%, making them practical for smaller operations.

Q4: How does machine learning improve thermal compensation?
It analyzes past and real-time data to predict distortions more accurately, enabling dynamic adjustments that can reduce errors by up to 70%.

Q5: Are these systems useful for additive manufacturing?
Definitely. They manage heat from processes like laser 3D printing, ensuring dimensional accuracy in hybrid additive-subtractive setups.
