● Understanding the Challenges of Machining Titanium
● The Role of Fixture Rigidity in Preventing Workpiece Deflection
● Mechanisms of Workpiece Deflection
● Practical Strategies to Enhance Fixture Rigidity and Minimize Deflection
● Aerospace Wing Box Machining
● Landing Gear Component Fabrication
● Thin-Walled Titanium Aerospace Components

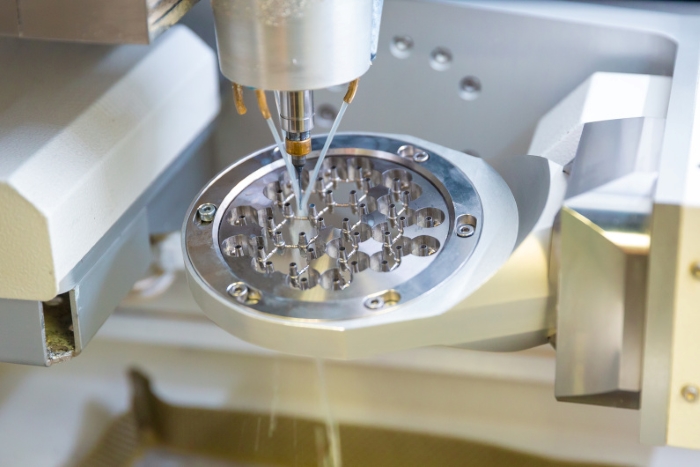

Titanium alloys, such as Ti-6Al-4V, are notoriously difficult to machine due to several metallurgical and mechanical properties. Their low thermal conductivity means heat generated during cutting concentrates at the tool edge, raising tool temperatures and accelerating wear. Additionally, titanium's high chemical reactivity causes chips to weld to cutting tools, leading to premature tool failure. The material's low modulus of elasticity (approximately 114 GPa, roughly half that of steel) results in greater workpiece spring-back and deflection under cutting forces, which can cause chatter, poor surface finish, and dimensional inaccuracies.
Moreover, titanium alloys retain strength at elevated temperatures and exhibit significant work-hardening, increasing cutting forces and complicating chip formation. These factors collectively impose demanding requirements on machining setups, especially in the context of large-scale components where deflection risks are amplified due to increased workpiece flexibility and longer tool engagements.

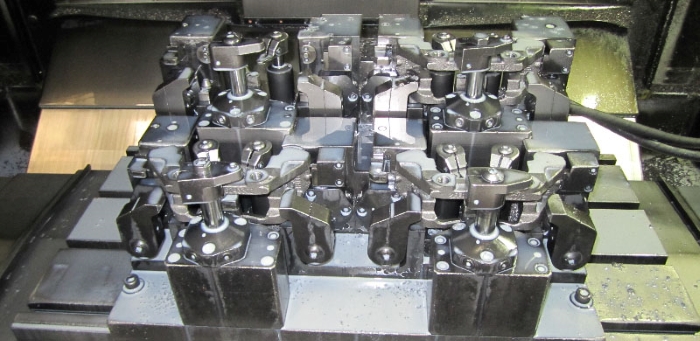

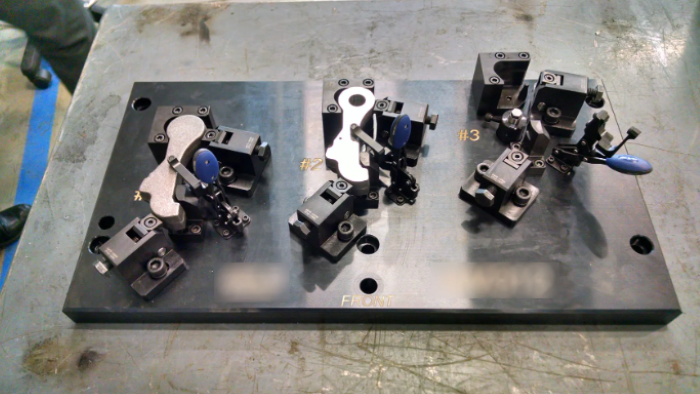

Fixture rigidity is paramount in controlling workpiece deflection during machining. A rigid fixture system ensures that the workpiece remains securely clamped and resists deformation from cutting forces and vibrations. When rigidity is insufficient, the workpiece may flex or vibrate, leading to dimensional errors, surface defects, and even tool damage.
Workpiece deflection arises primarily from the interaction of cutting forces and the elastic properties of the material and the fixturing system. Cutting forces act on the workpiece, causing it to bend or vibrate if the fixture does not provide adequate support. This effect is exacerbated in thin-walled or large components where the structural stiffness is inherently low.
Finite element modeling (FEM) studies have demonstrated that cutting forces in titanium machining can be significant, with peak tangential and normal forces varying depending on tool engagement and machining parameters. These forces induce plastic deformation zones ahead of the cutting tool, contributing to deflection and potential instability.
To maximize rigidity, fixture design must consider:
Contact Interface Stiffness: The interfaces between the fixture and workpiece must be optimized to minimize compliance. Research shows that contact stiffness increases linearly with preload on the contact surfaces, emphasizing the importance of adequate clamping force and surface contact quality.
Use of Enhancing Elements: Adding structural reinforcements or stiffening elements to fixtures can reduce deflection by 40-50%, as demonstrated in numerical and experimental studies. These elements help distribute loads more evenly and reduce localized deformation.
Adaptive Clamping Configurations: Optimizing the number and placement of clamps based on workpiece geometry and expected cutting forces can significantly improve rigidity and reduce deflection. Simulation tools can predict deflections for various configurations, enabling informed fixture design choices.

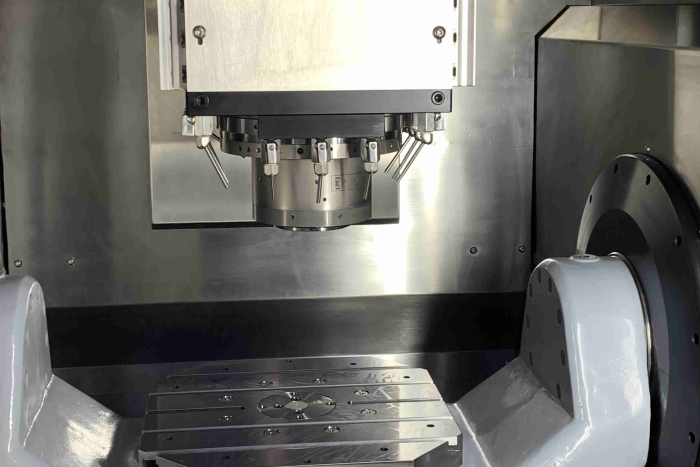

Machine Tool Stiffness: Fixture rigidity must be complemented by the overall stiffness of the machine tool, including spindle geometry, bearings, and housing. A rigid machining system ensures that fixture improvements translate effectively into reduced workpiece movement.
Applying sufficient clamping force increases the contact stiffness between the fixture and workpiece, reducing micro-movements. Ensuring that contact surfaces are clean, flat, and designed to maximize contact area helps distribute forces and prevent localized deformation. For large titanium parts, modular fixture designs with multiple contact points can improve support without inducing stress concentrations.
Adding ribs, gussets, or cross-bracing to fixture structures increases their moment of inertia and resistance to bending. These enhancements have been shown to reduce deflection by up to 54% in experimental setups, improving machining accuracy and surface finish.
FEA enables prediction of deflection and stress distribution under cutting loads, allowing engineers to optimize fixture geometry and clamping strategies before physical trials. For example, simulations of thin-walled titanium components have helped identify critical regions of deformation and guided the placement of additional supports.
Reducing radial engagement of the tool and increasing axial engagement can lower cutting forces and bending moments on the tool and workpiece. Lower cutting speeds and the use of sharp, positive-rake tools also help minimize heat generation and cutting forces, indirectly reducing deflection risks.
Tools with integrated vibration dampening, such as Sandvik Coromant's Silent Tools™, help stabilize the cutting process by absorbing vibrations that could otherwise cause chatter and deflection. These technologies are particularly beneficial when machining deep pockets or features with long tool overhangs in titanium airframe components.
Large titanium wing box structures require removal of up to 90% of the forged material weight. The machining process involves deep pocketing with long tool overhangs, increasing deflection risks. Using fixtures with enhanced stiffness and multiple clamping points, combined with vibration-damping tooling, has enabled manufacturers to achieve tighter tolerances and improved surface quality.
Landing gear parts made from titanium demand high dimensional accuracy and surface integrity. Fixture designs incorporating stiffening ribs and optimized clamping forces have reduced workpiece deflection, preventing chatter and tool wear. Finite element simulations guided fixture modifications, resulting in a 45% reduction in deflection during high-speed milling.

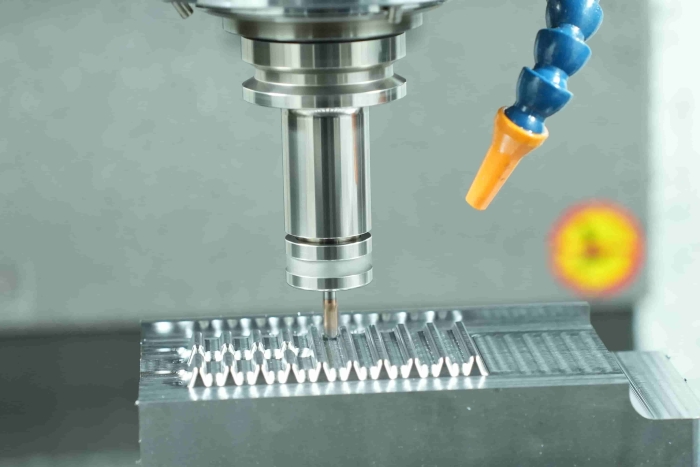

Thin-walled titanium parts are prone to elastic deformation during turning and milling. Adaptive fixture configurations, informed by FEM predictions, allowed for strategic placement of clamps and supports, stabilizing the workpiece and enabling higher metal removal rates without compromising dimensional accuracy.
Machining large-scale titanium components demands meticulous attention to fixture rigidity to prevent workpiece deflection. The low modulus of elasticity and challenging thermal and mechanical properties of titanium alloys necessitate robust fixture designs, optimized clamping strategies, and advanced tooling solutions. Employing finite element analysis and integrating stiffening elements into fixtures can significantly enhance machining stability. Complemented by tailored machining parameters and vibration-damping technologies, these approaches enable manufacturers to achieve high precision and productivity in titanium fabrication, meeting the stringent requirements of aerospace and other high-performance industries.
Q1: Why is titanium difficult to machine compared to steel?
Titanium has low thermal conductivity, high chemical reactivity, and a low modulus of elasticity, leading to high tool temperatures, chip welding to tools, and greater workpiece deflection compared to steel.
Q2: How does fixture rigidity affect machining accuracy?
Higher fixture rigidity reduces workpiece movement and deflection under cutting forces, improving dimensional accuracy and surface finish.
Q3: What role does finite element analysis play in fixture design?
FEA predicts deflection and stress distribution under machining loads, enabling optimization of fixture geometry and clamping configurations before physical testing.
Q4: What are some effective strategies to reduce workpiece deflection?
Strategies include increasing clamping force, adding stiffening elements to fixtures, optimizing clamp placement, reducing radial tool engagement, and using vibration-damping tooling.
Q5: How do advanced tooling technologies like Silent Tools™ help in titanium machining?
They incorporate dampening mechanisms that absorb vibrations, preventing chatter and improving machining stability and surface quality.
Machining and Tool Wear Mechanisms during Machining Titanium Alloys
Advanced Materials Research, 2013
Key Findings: Complex deformation mechanisms and multiple tool wear modes including abrasion, attrition, diffusion, and thermal cracking.
Methodology: Literature review and analysis of machining mechanisms for titanium alloys.
Citation: Pramanik et al., 2013, pp. 338-343
URL: http://hdl.handle.net/20.500.11937/38293
A finite element assessment of the workpiece plastic deformation in machining of Ti-6Al-4V
Procedia CIRP, 2023
Key Findings: FEM with remeshing accurately predicts cutting forces and plastic deformation zones influencing deflection.
Methodology: Finite element modeling and experimental validation of milling forces.
Citation: Jamshidi et al., 2023, pp. 62-67
URL: https://eprints.whiterose.ac.uk/200319/
Titanium Machining Guide
Kennametal, Aerospace Division
Key Findings: Titanium’s low thermal conductivity and high chemical reactivity cause tool wear and workpiece deflection; recommendations include coolant use and sharp tools.
Methodology: Industry R&D and machining trials.
Citation: Kennametal, 2020
URL: https://www.kennametal.com/content/dam/kennametal/kennametal/common/Resources/Catalogs-Literature/Metalworking/Titanium_material_machining_guide_Aerospace.pdf
