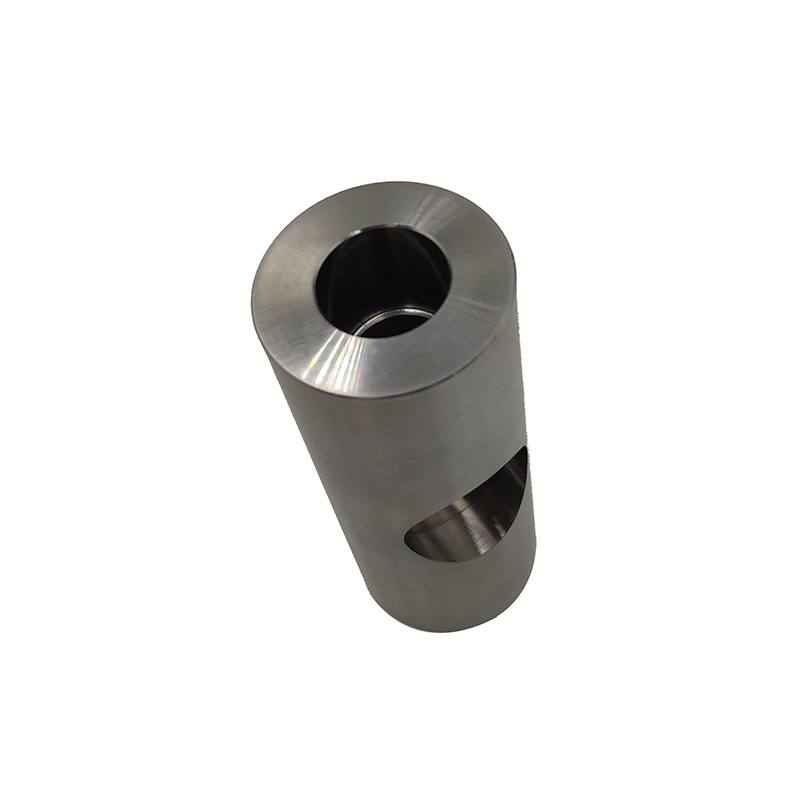

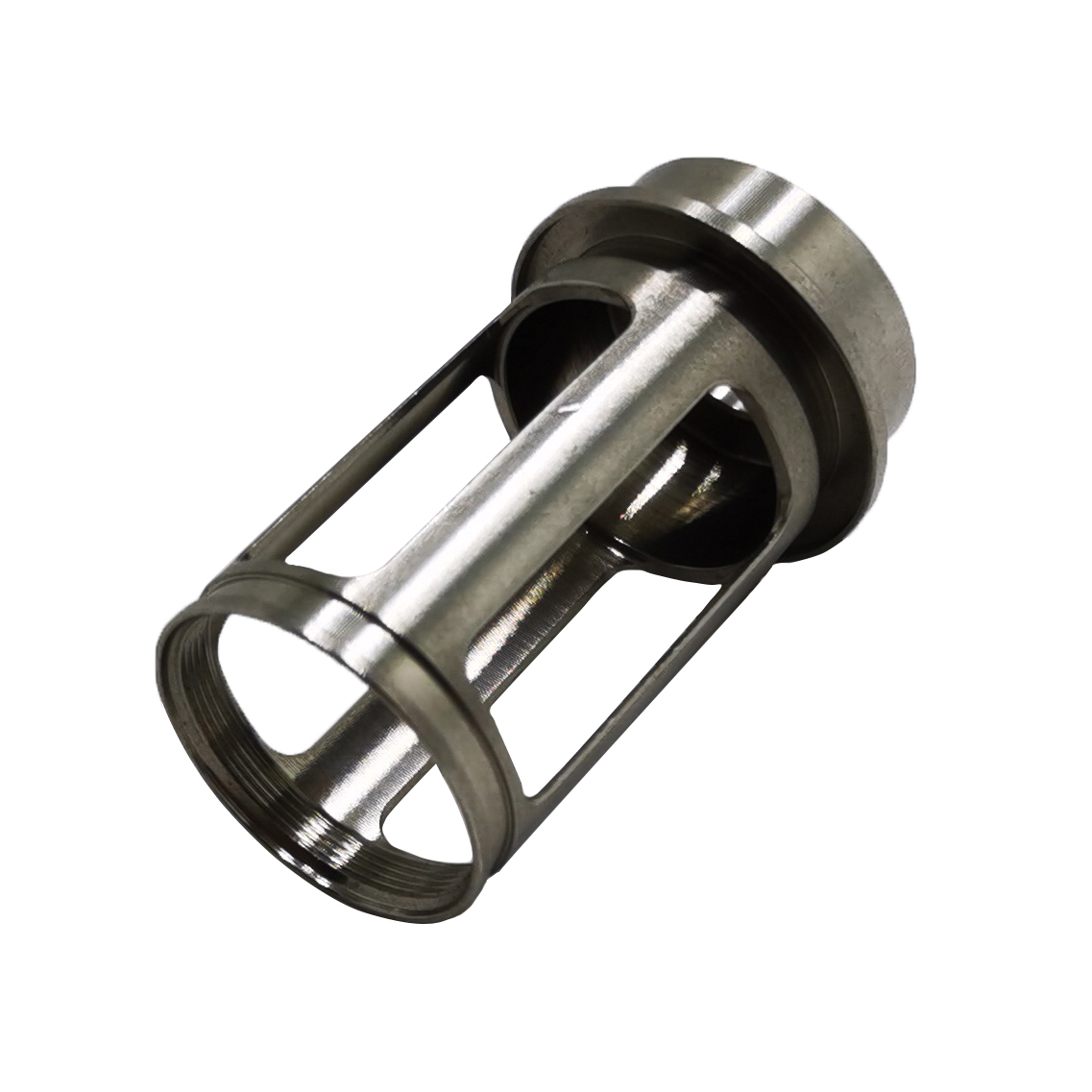

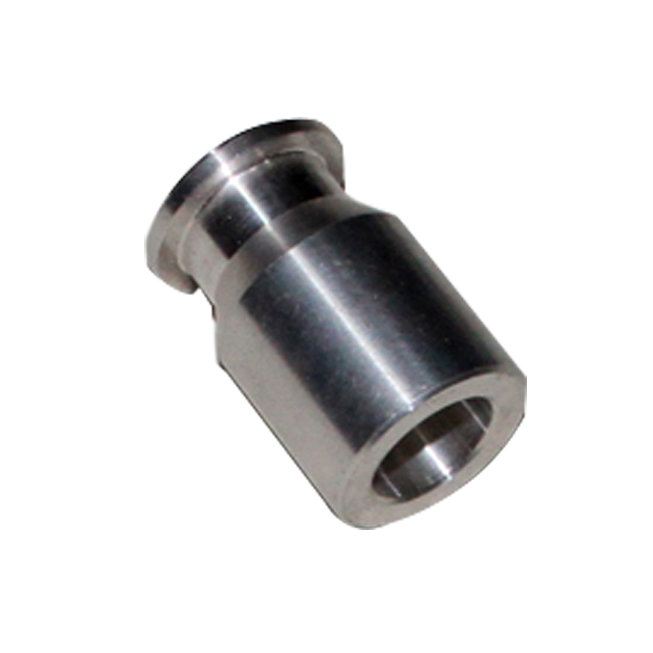

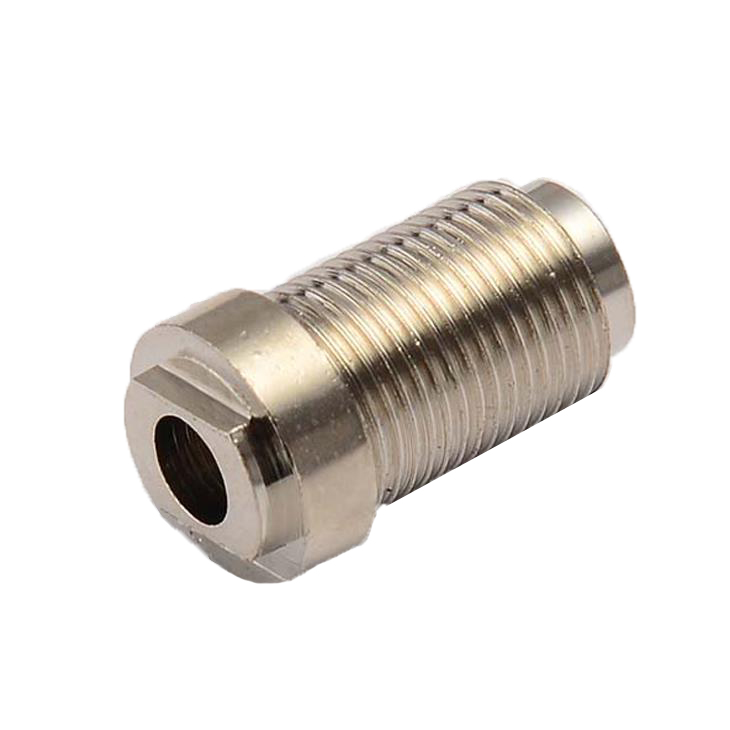

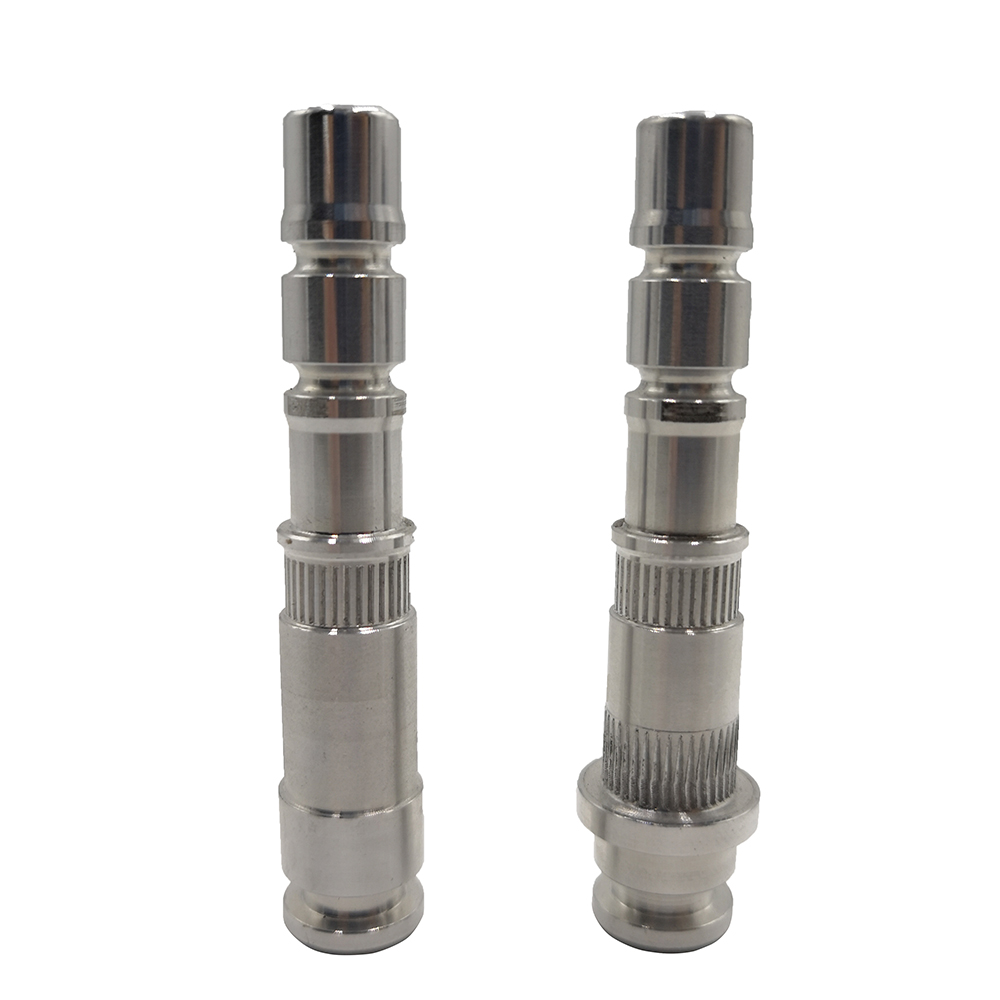

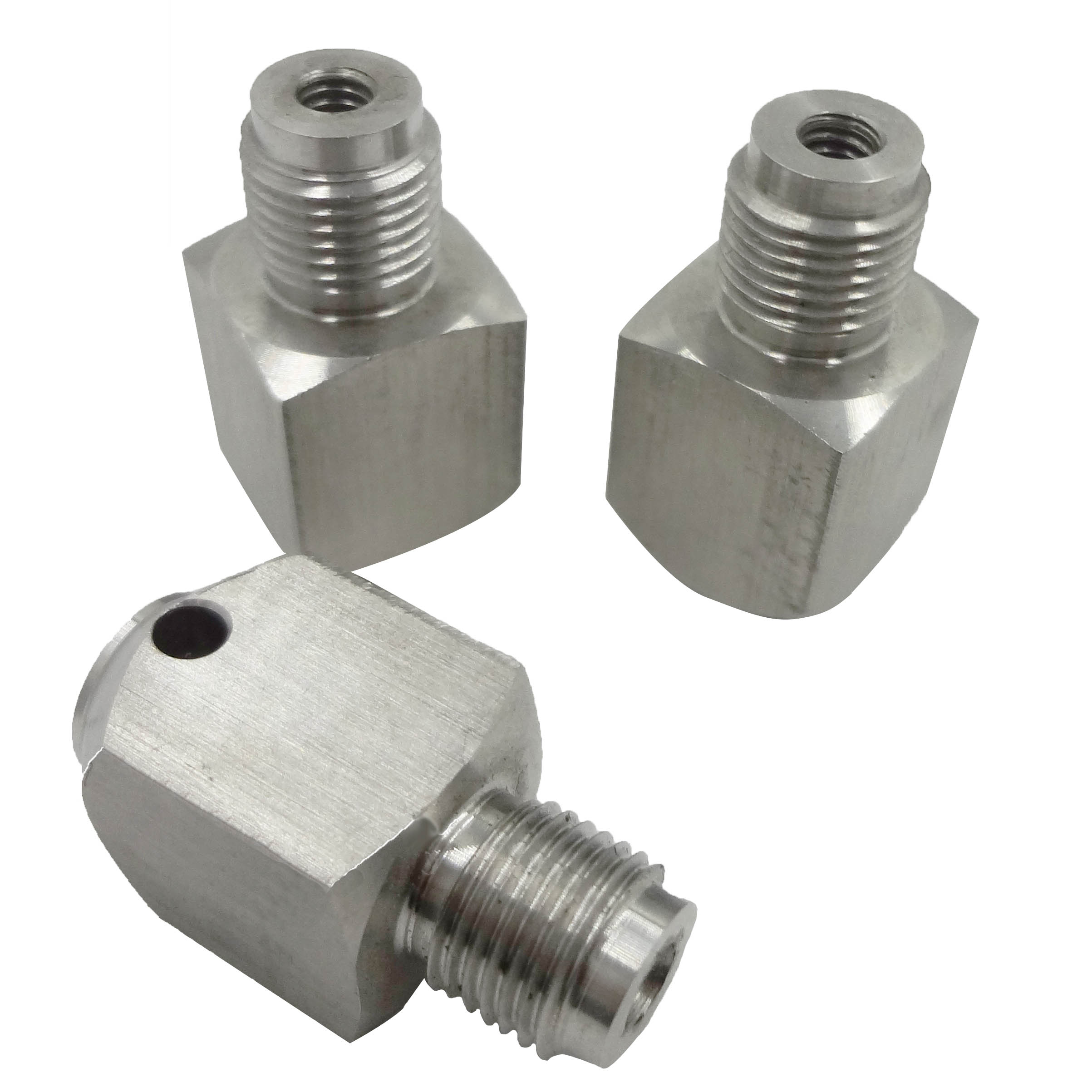

Stainless steel turning parts are precision-engineered components produced through the turning process using stainless steel as the raw material. Turning is a machining process where a cutting tool removes material from a rotating workpiece to create cylindrical parts with high accuracy and fine surface finishes. Stainless steel turning parts are widely used in various industries due to the excellent mechanical properties, corrosion resistance, and aesthetic appeal of stainless steel combined with the precision and versatility of the turning process.
Stainless steel turning parts are components manufactured by rotating a stainless steel workpiece against a cutting tool on a lathe or CNC turning center. This process shapes the material by removing unwanted sections to achieve the desired diameter, length, threads, grooves, and other features. The turning process is highly adaptable, capable of producing simple shafts, bushings, and pins as well as complex parts with multiple diameters, tapers, and intricate details.
The use of stainless steel as the base material provides these parts with excellent corrosion resistance, strength, and durability, making them suitable for demanding environments such as chemical processing, food and beverage, medical, marine, and aerospace industries.
![]() | ![]() | ![]() | ![]() |
![]() | ![]() | ![]() | ![]() |
Corrosion Resistance: Stainless steel naturally forms a protective oxide layer that prevents rust and degradation, ideal for harsh or wet environments.
High Strength and Durability: Stainless steel turning parts withstand mechanical stress, wear, and impact.
Precision and Accuracy: CNC turning machines produce parts with tight tolerances and consistent quality.
Versatility: Turning can create a wide range of geometries, including threads, tapers, grooves, and complex profiles.
Aesthetic Finish: Stainless steel parts have an attractive surface finish that can be further polished or treated.
Biocompatibility: Certain stainless steel grades are suitable for medical and food-grade applications.
Cost-Effectiveness: CNC turning offers efficient production, especially for small to medium batch sizes.
Different stainless steel grades are selected based on the application requirements:
304 Stainless Steel: The most common grade, offering excellent corrosion resistance and good machinability.
316 Stainless Steel: Superior corrosion resistance, especially against chlorides and acids, used in marine and medical applications.
303 Stainless Steel: Specifically designed for improved machinability while maintaining corrosion resistance.
410 Stainless Steel: Martensitic grade with higher hardness and strength, suitable for wear-resistant parts.
17-4 PH Stainless Steel: Precipitation-hardened grade combining high strength and corrosion resistance.
Stainless steel bars, rods, or tubes are selected and cut to length. The material is inspected for quality and consistency before machining.
The workpiece is securely mounted in the lathe chuck or collet. Cutting tools such as carbide inserts or high-speed steel tools are installed in the tool turret.
The lathe rotates the stainless steel workpiece while the cutting tool moves along specified paths to remove material. Operations include:
Facing: Creating a flat surface perpendicular to the axis.
Straight Turning: Reducing diameter to a uniform size.
Taper Turning: Producing conical shapes.
Threading: Cutting external or internal threads.
Grooving and Parting: Cutting grooves or separating parts from stock.
Drilling and Boring: Creating or enlarging holes along the axis.
Post-machining processes such as polishing, passivation, or coating may be applied to enhance corrosion resistance and surface quality.
Dimensional and surface inspections ensure parts meet specifications using tools like micrometers, calipers, and coordinate measuring machines (CMM).
Stainless steel turning parts are critical components in many industries:
Medical: Surgical instruments, implants, and medical device components.
Food and Beverage: Valves, fittings, and sanitary components.
Aerospace: Structural parts, fasteners, and engine components.
Automotive: Shafts, bushings, and connectors.
Marine: Corrosion-resistant fittings and hardware.
Industrial Equipment: Pumps, valves, and precision machinery parts.
Material Selection: Choose stainless steel grade based on corrosion resistance, strength, and machinability.
Tolerance Specification: Define realistic tolerances achievable by CNC turning.
Surface Finish: Specify finish requirements to meet functional and aesthetic needs.
Thread and Groove Design: Ensure compatibility with mating parts and ease of machining.
Part Geometry: Design for manufacturability, considering tool access and minimizing complex features.
Heat Treatment: Consider post-machining heat treatments to improve hardness or corrosion resistance.
Q1: What are stainless steel turning parts?
A1: They are components made by machining stainless steel workpieces on a lathe or CNC turning machine to achieve precise shapes and features.
Q2: Which stainless steel grades are commonly used for turning parts?
A2: Common grades include 304, 316, 303, 410, and 17-4 PH stainless steel.
Q3: What industries use stainless steel turning parts?
A3: Medical, food and beverage, aerospace, automotive, marine, and industrial equipment industries widely use these parts.
Q4: What machining operations are involved in stainless steel turning?
A4: Operations include facing, straight turning, taper turning, threading, grooving, parting, drilling, and boring.
Q5: What design factors are important for stainless steel turning parts?
A5: Material selection, tolerance, surface finish, thread design, part geometry, and heat treatment considerations are critical.
Hot Tags: Stainless Steel Turning Parts, China, Custom, manufacturers, suppliers, factory
