CNC milling and laser cutting are two advanced manufacturing processes that have revolutionized the way products are designed and produced. Both techniques offer unique advantages and are used in various industries, from aerospace to automotive and beyond. This article will delve into the intricacies of CNC milling, comparing it with laser cutting, and exploring its applications, advantages, and limitations.
CNC milling, or Computer Numerical Control milling, is a subtractive manufacturing process that uses computer-controlled machines to remove material from a solid block to create a desired shape. This process is highly precise and can produce complex geometries with tight tolerances. The evolution of CNC technology has made it possible to achieve levels of accuracy and repeatability that were previously unattainable, making it a cornerstone of modern manufacturing.
The CNC milling process begins with a digital design created using CAD (Computer-Aided Design) software. This design is then converted into a format that the CNC machine can understand, typically G-code. The CNC machine uses various cutting tools to remove material from the workpiece, which is usually made of metal, plastic, or wood. The ability to simulate the milling process in software before actual production allows engineers to identify potential issues and optimize the design for manufacturability.

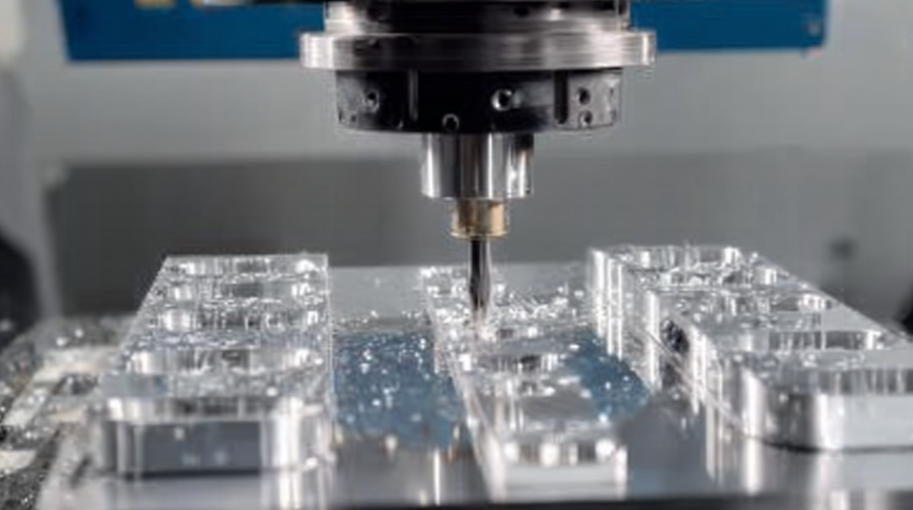

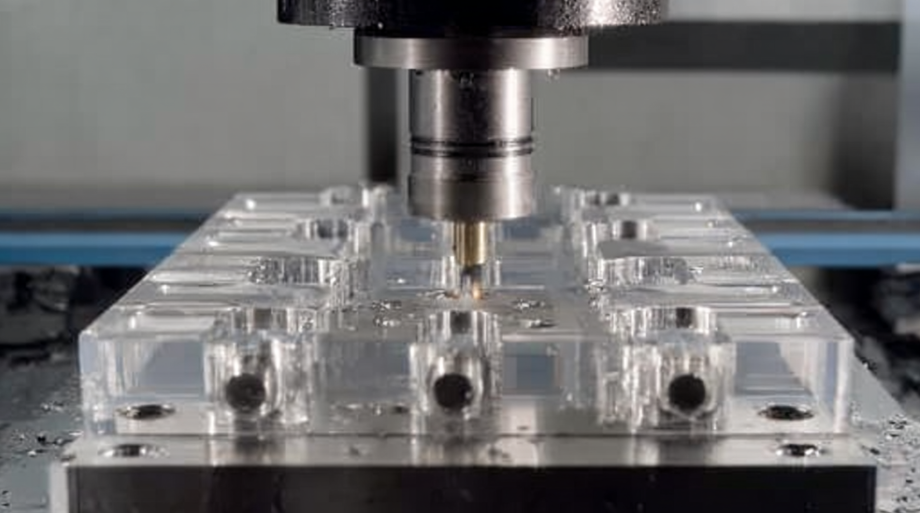

The milling machine operates by moving the workpiece against a rotating cutting tool. The tool can move in multiple axes, allowing for intricate designs and shapes. The most common axes in CNC milling are the X, Y, and Z axes, which correspond to horizontal, vertical, and depth movements, respectively. Advanced CNC milling machines may also include additional axes, such as A and B, which allow for rotational movements, further enhancing the machine's capabilities.
There are several types of CNC milling machines, each designed for specific applications. The most common types include:
Vertical milling machines have a vertically oriented spindle that holds the cutting tool. The workpiece is mounted on a table that can move in the X and Y directions. This type of machine is ideal for producing flat surfaces, slots, and intricate shapes. Vertical milling is often favored for its ease of use and versatility, making it suitable for both prototyping and production runs.
Horizontal milling machines feature a horizontally oriented spindle. The workpiece is mounted on a table that can move in multiple directions. These machines are typically used for larger workpieces and can handle heavier cuts. The horizontal orientation allows for better chip removal and cooling, which can enhance tool life and machining efficiency.
Universal milling machines can operate in both vertical and horizontal orientations. This versatility makes them suitable for a wide range of applications, allowing for more complex machining tasks. Universal milling machines often come equipped with additional features, such as rotary tables, which enable the machining of complex geometries and angles.
CNC milling is widely used across various industries due to its precision and versatility. Some common applications include:
In the aerospace industry, CNC milling is used to manufacture components such as brackets, housings, and structural parts. The high precision required in this industry makes CNC milling an ideal choice. Components must meet stringent safety and performance standards, and CNC milling provides the accuracy needed to ensure reliability in critical applications.
CNC milling is extensively used in the automotive industry for producing engine components, transmission parts, and custom tooling. The ability to create complex shapes and maintain tight tolerances is crucial in this sector. As automotive technology evolves, CNC milling continues to play a vital role in the production of lightweight materials and advanced designs that improve fuel efficiency and performance.
The medical industry relies on CNC milling for producing surgical instruments, implants, and prosthetics. The precision and repeatability of CNC milling ensure that these critical components meet stringent quality standards. With the increasing demand for personalized medical solutions, CNC milling allows for the customization of implants and devices tailored to individual patient needs.
CNC milling offers several advantages that make it a preferred choice for many manufacturing applications.
One of the most significant benefits of CNC milling is its ability to produce highly precise and accurate parts. The computer-controlled nature of the process ensures that each cut is consistent, resulting in parts that meet exact specifications. This level of precision is essential in industries where even the slightest deviation can lead to product failure or safety issues.
CNC milling can work with a wide range of materials, including metals, plastics, and composites. This versatility allows manufacturers to choose the best material for their specific application, enhancing the overall quality of the final product. The ability to mill materials such as aluminum, titanium, and high-strength plastics opens up new possibilities for innovative product designs.
CNC milling can create intricate shapes and designs that would be challenging or impossible to achieve with traditional machining methods. This capability opens up new possibilities for product design and innovation. Designers can push the boundaries of creativity, knowing that CNC milling can bring their visions to life with precision and detail.
The automation of the CNC milling process reduces the time required to produce parts. Once the design is programmed into the machine, it can operate continuously, leading to faster production times and reduced lead times for customers. This efficiency is particularly beneficial in industries where time-to-market is critical, allowing companies to respond quickly to changing market demands.
While CNC milling has many advantages, it also has some limitations that manufacturers should consider.
The initial investment in CNC milling machines and software can be significant. This cost may be a barrier for small businesses or startups looking to enter the manufacturing sector. However, many companies find that the long-term benefits of increased efficiency and reduced labor costs outweigh the initial expenses.
CNC milling is a subtractive process, meaning that material is removed from a solid block. This can lead to material waste, especially when producing complex shapes that require significant cutting. Manufacturers are increasingly looking for ways to minimize waste through better design practices and the use of advanced software that optimizes material usage.
While CNC milling can work with various materials, it may not be suitable for all types. Some materials, such as very hard metals or certain composites, may require specialized tools or techniques. Additionally, the milling process may not be the best choice for very thin materials, where laser cutting might be more effective.
While CNC milling and laser cutting are both advanced manufacturing processes, they differ significantly in their methods and applications.
Laser cutting is a non-contact process that uses a high-powered laser beam to cut through materials. The laser beam is focused on the material, melting or vaporizing it to create a cut. This process is highly efficient and can produce clean, precise cuts without the need for physical contact with the material. The ability to cut intricate designs quickly makes laser cutting a popular choice for many applications.
CNC milling is a subtractive process that removes material from a solid block, while laser cutting is a non-contact process that cuts through materials without removing them in the same way. This fundamental difference affects the types of shapes and finishes that can be achieved with each method. CNC milling is often preferred for creating three-dimensional features, while laser cutting excels in producing two-dimensional shapes.
CNC milling can work with a broader range of materials, including metals, plastics, and wood. In contrast, laser cutting is typically more effective with thinner materials, such as sheet metal, plastics, and wood, but may struggle with thicker materials. Understanding the material properties and thickness is crucial when choosing between these two processes.
Both CNC milling and laser cutting offer high precision, but CNC milling is often preferred for applications requiring tighter tolerances. Laser cutting can produce clean edges but may not achieve the same level of detail in complex geometries. The choice between the two methods often depends on the specific requirements of the project, including the desired finish and tolerances.
Laser cutting is widely used in various industries, including:
Laser cutting is commonly used to create intricate designs for signage and displays. The ability to cut through various materials with precision makes it ideal for this application. Custom signage can be produced quickly and efficiently, allowing businesses to create unique branding elements that stand out.
In manufacturing, laser cutting is used for creating parts and components, particularly in the automotive and aerospace industries. Its speed and efficiency make it a popular choice for high-volume production. The ability to quickly prototype designs also allows manufacturers to test and iterate on new products rapidly.
Artists and designers often use laser cutting to create unique pieces of art or custom designs. The precision and versatility of laser cutting allow for intricate designs that would be difficult to achieve by hand. This technology has opened up new avenues for creativity, enabling artists to explore complex patterns and forms.
CNC milling and laser cutting are both essential manufacturing processes that offer unique advantages and applications. CNC milling is known for its precision, versatility, and ability to create complex geometries, making it a preferred choice in industries such as aerospace, automotive, and medical devices. On the other hand, laser cutting excels in speed and efficiency, particularly for thinner materials and intricate designs.
Understanding the differences between these two processes can help manufacturers choose the right method for their specific needs. As technology continues to advance, both CNC milling and laser cutting will play crucial roles in shaping the future of manufacturing, driving innovation, and improving product quality. The ongoing development of these technologies promises to enhance their capabilities further, making them indispensable tools in modern manufacturing.
CNC milling can work with a wide variety of materials, including metals (such as aluminum, steel, and titanium), plastics (like acrylic and nylon), wood, and composites. The choice of material often depends on the specific application and the desired properties of the final product.
CNC milling offers several advantages over traditional machining methods, including higher precision, the ability to produce complex geometries, and reduced lead times. While traditional methods may require more manual intervention and setup, CNC milling automates the process, leading to greater efficiency and consistency.
CNC milling can achieve tolerances as tight as ±0.001 inches (±0.025 mm) depending on the machine, tooling, and material used. The specific tolerances will vary based on the complexity of the part and the capabilities of the CNC machine.
Safety considerations for CNC milling include wearing appropriate personal protective equipment (PPE) such as safety glasses and hearing protection, ensuring that the work area is clean and free of obstructions, and following proper machine operation protocols. Operators should also be trained in emergency procedures and machine shutdown processes.
Yes, CNC milling is an excellent choice for prototyping due to its ability to quickly produce high-precision parts. The rapid turnaround time and flexibility in design modifications make it ideal for testing and iterating on new product designs before moving to full-scale production.
