CNC Metal Turning Parts

CNC metal turning parts are precision components manufactured through a computer-controlled turning process that removes material from rotating metal workpieces. This method enables the production of highly accurate, complex parts from a wide variety of metals, serving critical roles in diverse industries. The combination of CNC automation, advanced tooling, and careful design ensures that CNC metal turning parts meet stringent quality standards while offering efficiency and cost-effectiveness.
Availability:
Quantity:

CNC metal turning parts are precision-engineered components produced through a highly controlled machining process called CNC turning. This subtractive manufacturing technique involves rotating a metal workpiece while a cutting tool removes material to create parts with cylindrical or complex geometries. CNC metal turning parts are essential in numerous industries due to their accuracy, repeatability, and ability to be manufactured from a wide range of metals including steel, aluminum, brass, titanium, and exotic alloys.

What Are CNC Metal Turning Parts?

CNC metal turning parts are components made by securing a metal workpiece on a CNC lathe or turning center, where it spins around its axis. A computer-controlled cutting tool then moves along the workpiece, removing material to achieve the desired shape, dimensions, and surface finish. These parts often exhibit rotational symmetry and include shafts, pins, bushings, threaded components, flanges, and stepped profiles.

The CNC aspect means that the entire machining process is automated and controlled via digital instructions generated from CAD (Computer-Aided Design) models and translated into G-code by CAM (Computer-Aided Manufacturing) software. This automation allows for complex designs, tight tolerances, and consistent production quality.

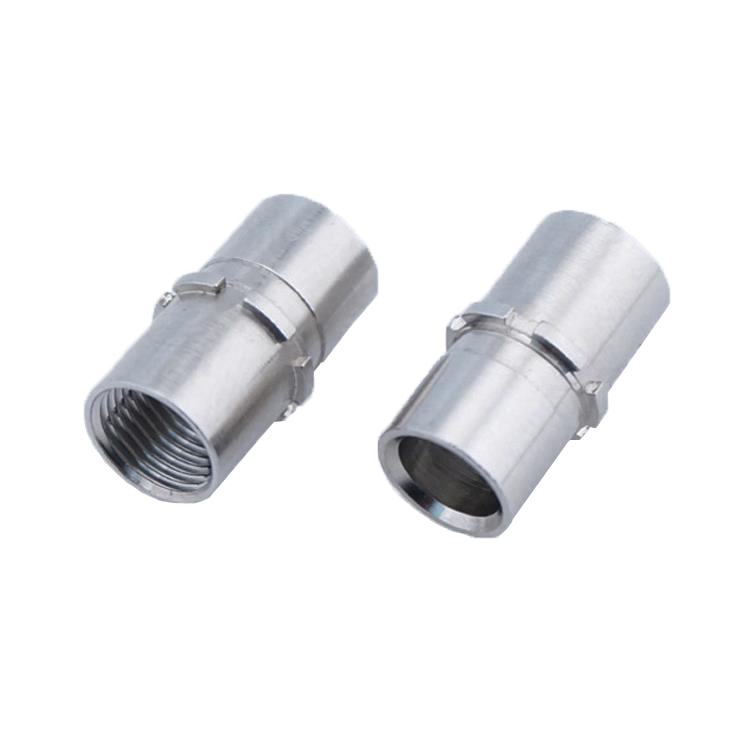

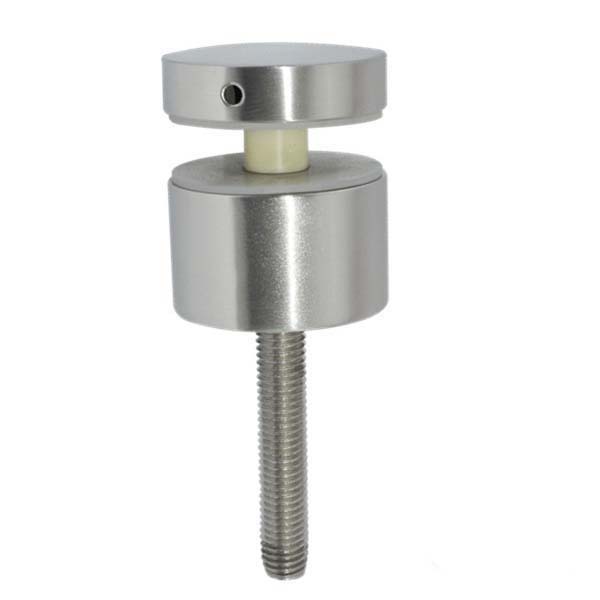

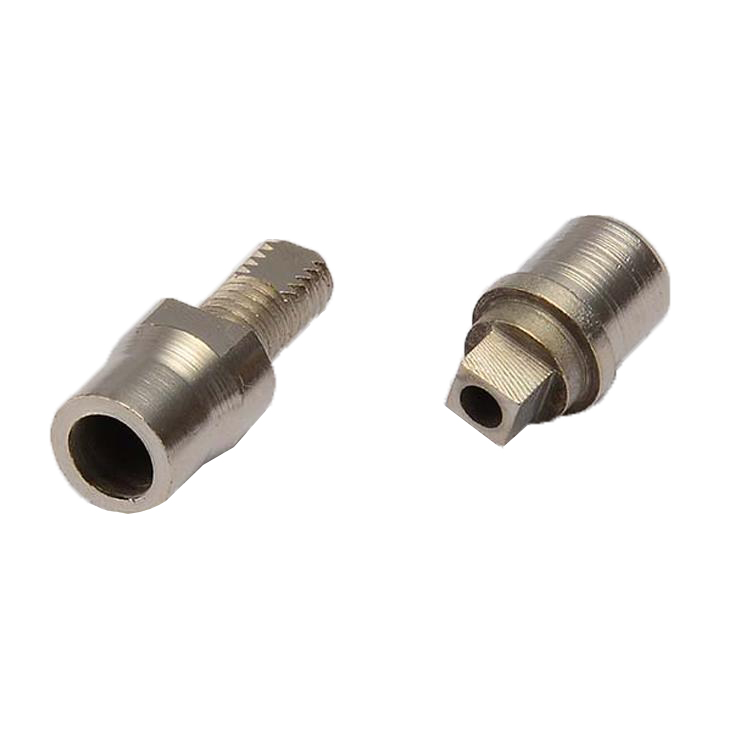

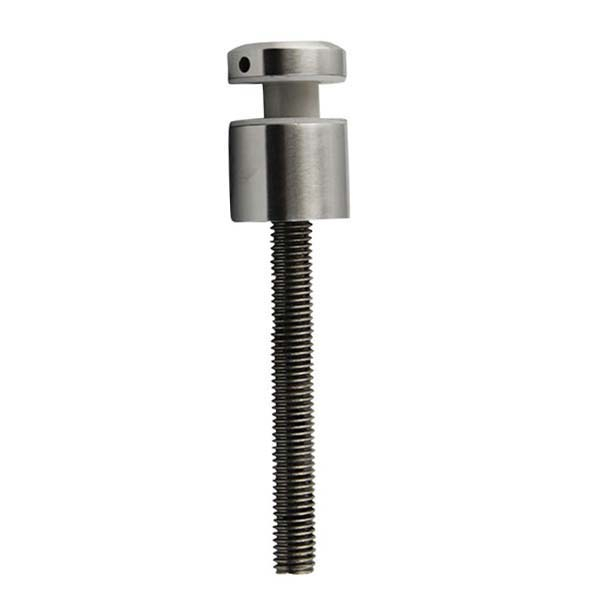

cnc milling machine parts cnc milling components cnc metal cutting service cnc maskin metall

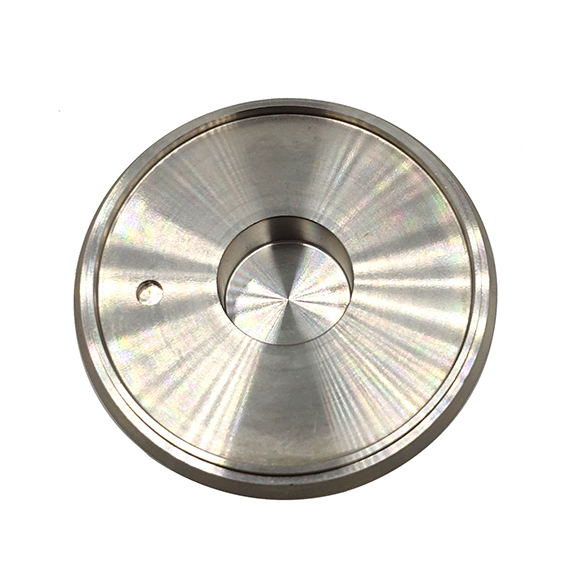

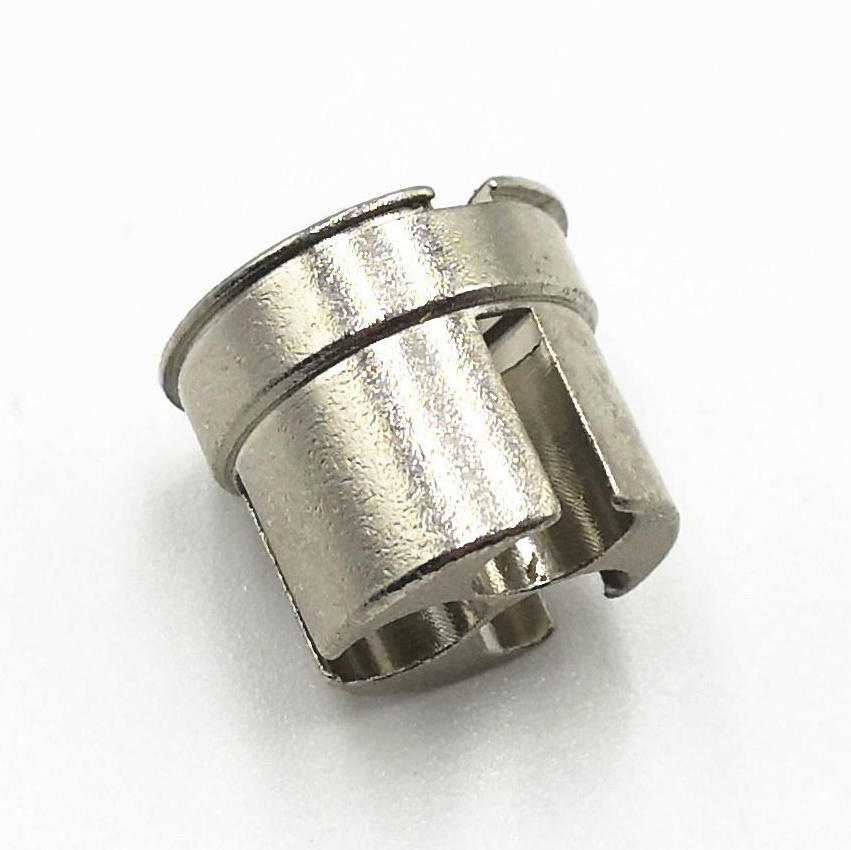

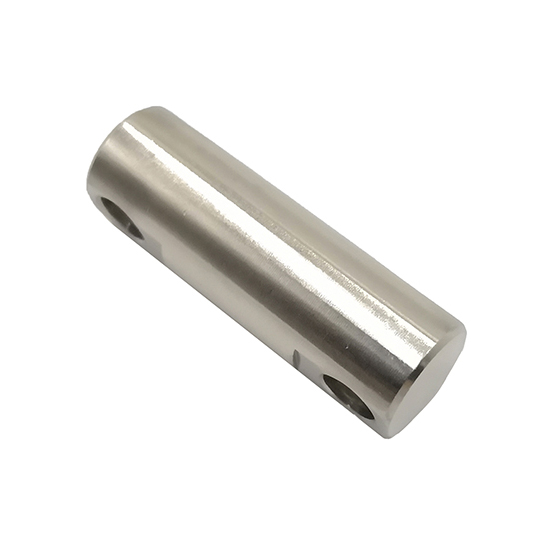

cnc manufacturing cnc manufacturing china cnc metalo frezavimas cnc metal cutting

Key Features of CNC Metal Turning Parts

  • Precision: CNC metal turning parts are manufactured to extremely tight tolerances, often within microns, ensuring exact fit and function.

  • Versatility: The process can produce simple cylindrical parts as well as complex geometries with multiple diameters, threads, grooves, and tapers.

  • Material Compatibility: CNC turning accommodates a broad range of metals, including stainless steel, carbon steel, aluminum, brass, titanium, and specialty alloys.

  • Repeatability: CNC automation guarantees consistent quality across large production runs.

  • Surface Finish: The turning process produces smooth surfaces, often reducing or eliminating the need for secondary finishing.

  • Efficiency: CNC turning is suitable for both prototyping and high-volume production, offering fast turnaround times.

Common CNC Metal Turning Operations

  • Facing: Creating flat surfaces perpendicular to the axis of rotation.

  • Straight Turning: Reducing the diameter along the length of the workpiece.

  • Taper Turning: Producing conical shapes by gradually changing diameter.

  • Thread Cutting: Forming internal or external threads with precise pitch and depth.

  • Grooving: Cutting narrow channels or recesses on the workpiece surface.

  • Parting (Cutoff): Separating the finished part from the remaining stock.

  • Drilling and Boring: Creating or enlarging holes along the axis of rotation.

Materials Used for CNC Metal Turning Parts

  • Steel: Including carbon steel and stainless steel, widely used for strength and corrosion resistance.

  • Aluminum: Lightweight and easy to machine, suitable for aerospace and automotive parts.

  • Brass: Good machinability and corrosion resistance, often used in electrical and decorative components.

  • Titanium: High strength-to-weight ratio, used in aerospace and medical applications.

  • Alloy Steels: Selected for enhanced mechanical properties in demanding environments.

Applications of CNC Metal Turning Parts

CNC metal turning parts are indispensable in many industries:

  • Automotive: Engine shafts, transmission components, fasteners, and custom fittings.

  • Aerospace: Structural components, turbine parts, and precision fittings.

  • Medical Devices: Surgical instruments, implants, and diagnostic equipment parts.

  • Electronics: Connectors, housings, and heat sinks.

  • Industrial Machinery: Rollers, spindles, valves, and tooling components.

  • Consumer Goods: Sporting equipment, appliances, and hardware.

The CNC Metal Turning Process Workflow

  1. Design: Engineers create detailed CAD models specifying dimensions, tolerances, and surface finishes.

  2. Programming: CAM software converts the CAD model into CNC machine code, defining toolpaths and machining parameters.

  3. Setup: The metal workpiece is mounted securely in the CNC lathe; cutting tools are installed and calibrated.

  4. Machining: The CNC machine executes the program, rotating the workpiece and moving the cutting tool to remove material.

  5. Finishing: Optional secondary operations such as polishing, heat treatment, or coating may be applied.

  6. Inspection: Quality control uses precision instruments to verify dimensional accuracy and surface quality.

Design Considerations for CNC Metal Turning Parts

  • Material Selection: Choose metals that balance machinability with required mechanical and environmental properties.

  • Tolerance Specifications: Define realistic tolerances based on CNC turning capabilities.

  • Surface Finish Requirements: Specify finish levels to meet functional or aesthetic needs.

  • Feature Accessibility: Design parts to allow tool access and minimize complex setups.

  • Thread and Groove Standards: Use standardized thread profiles and groove dimensions for compatibility.

  • Wall Thickness and Geometry: Maintain uniform thickness and avoid sharp internal corners to reduce stress concentrations.

Related Questions and Answers

Q1: What are CNC metal turning parts?
A1: Components machined by removing material from a rotating metal workpiece using CNC-controlled lathes to achieve precise shapes and dimensions.

Q2: Which metals are commonly used for CNC metal turning parts?
A2: Steel, aluminum, brass, titanium, and various alloy steels are commonly used.

Q3: What industries rely on CNC metal turning parts?
A3: Automotive, aerospace, medical, electronics, industrial machinery, and consumer goods industries widely use these parts.

Q4: What operations are involved in CNC metal turning?
A4: Facing, straight turning, taper turning, threading, grooving, parting, drilling, and boring.

Q5: What design factors are important for CNC metal turning parts?
A5: Material choice, achievable tolerances, surface finish, tool accessibility, thread and groove design, and part geometry.




Hot Tags: CNC Metal Turning Parts, China, Custom, manufacturers, suppliers, factory
