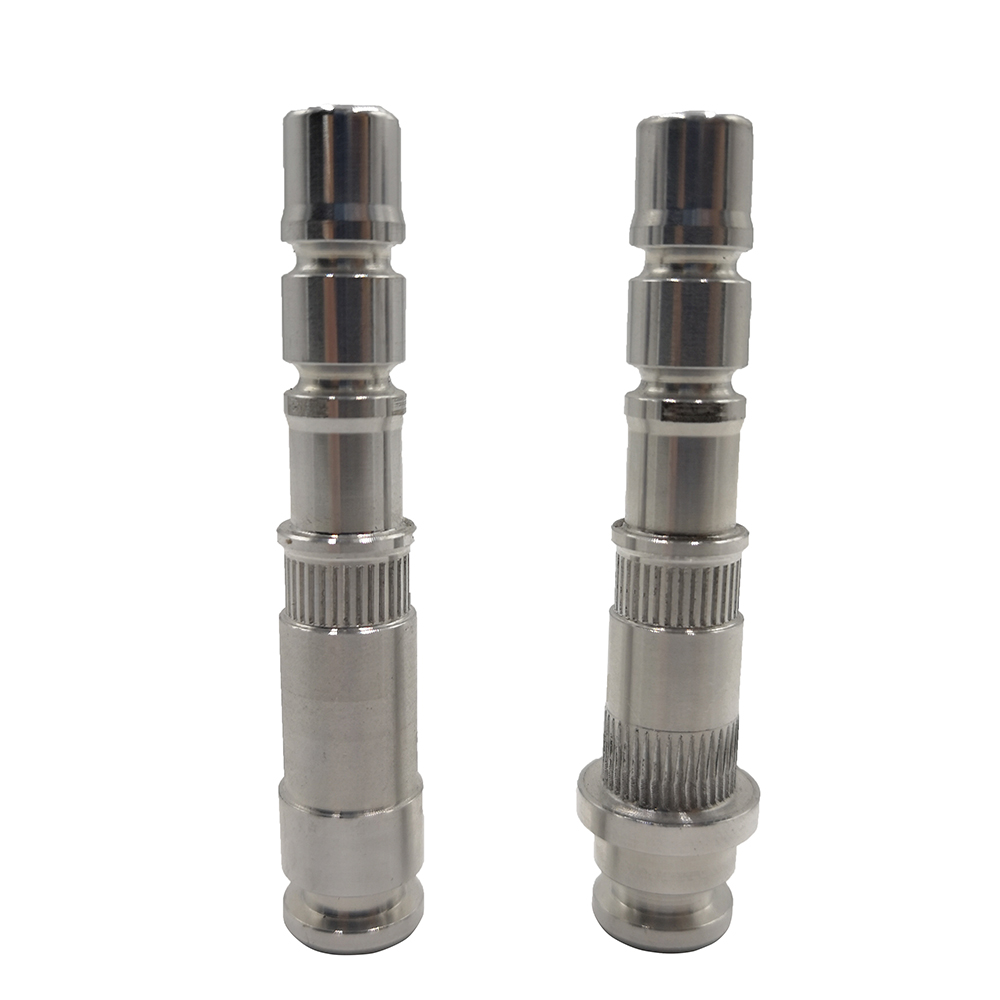

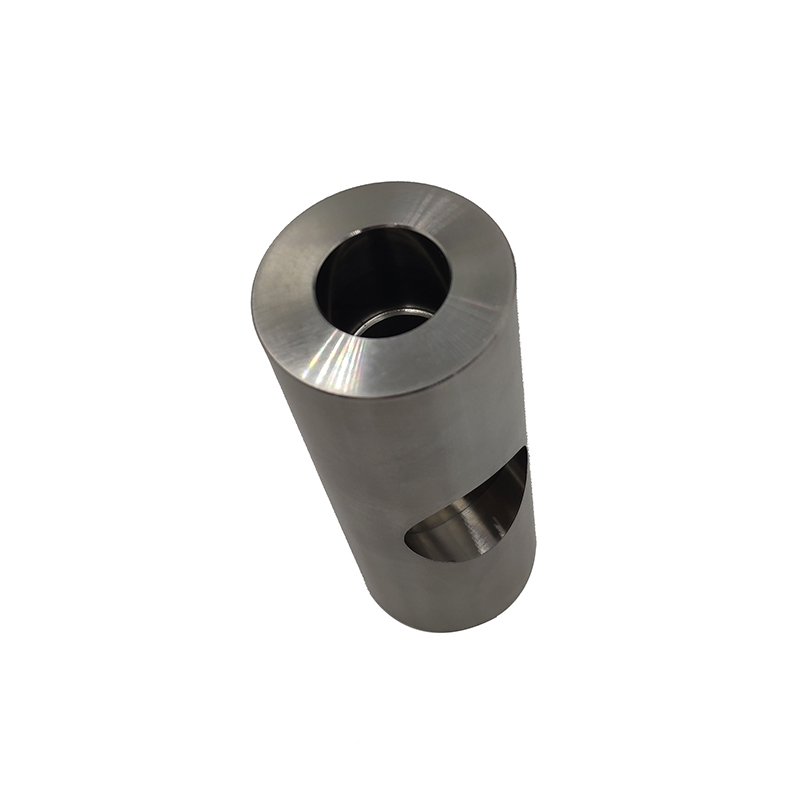

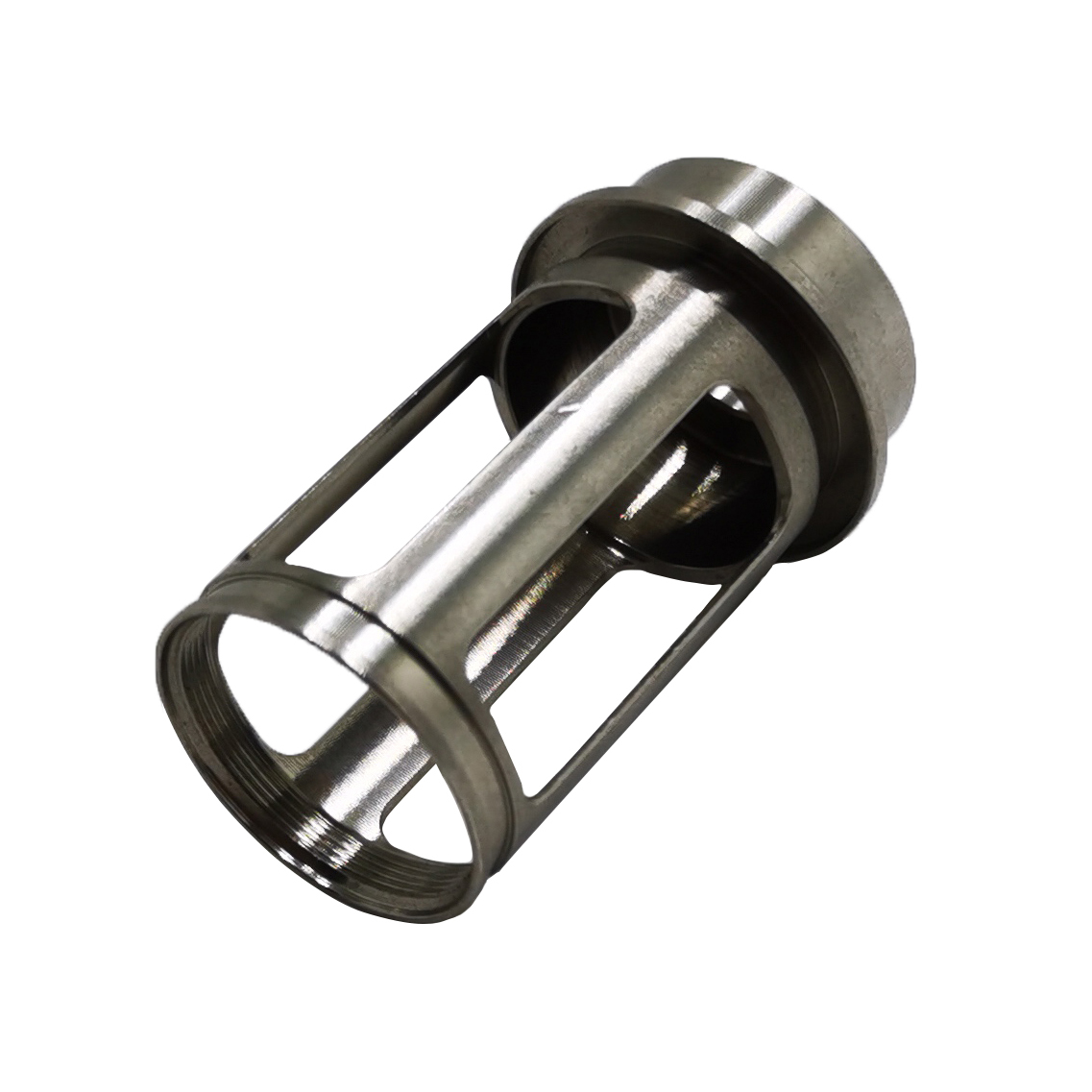

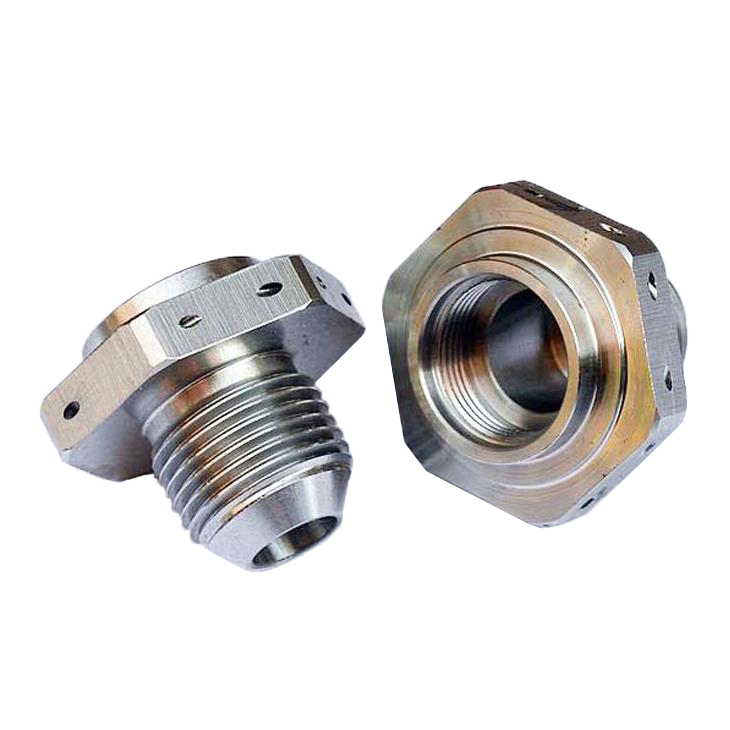

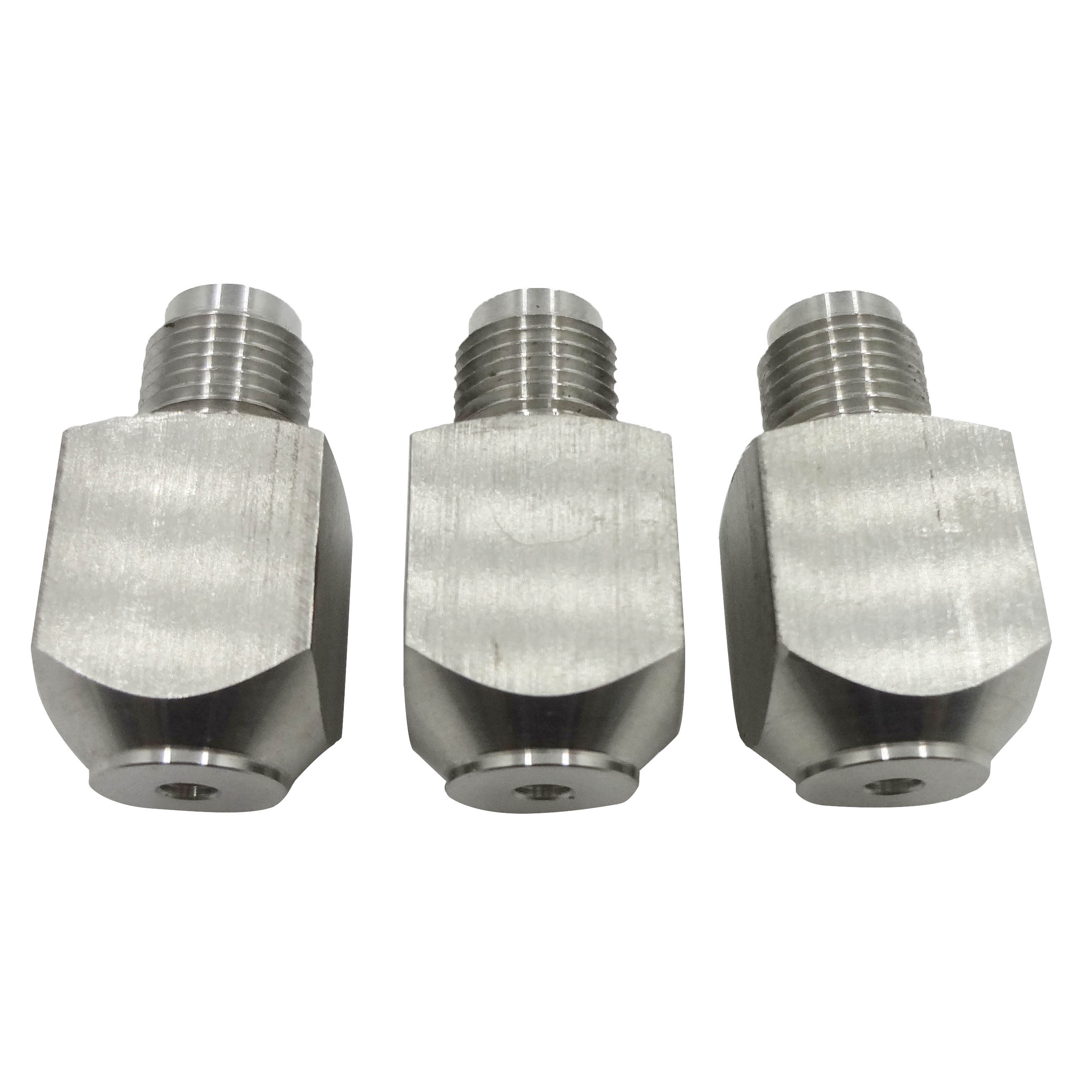

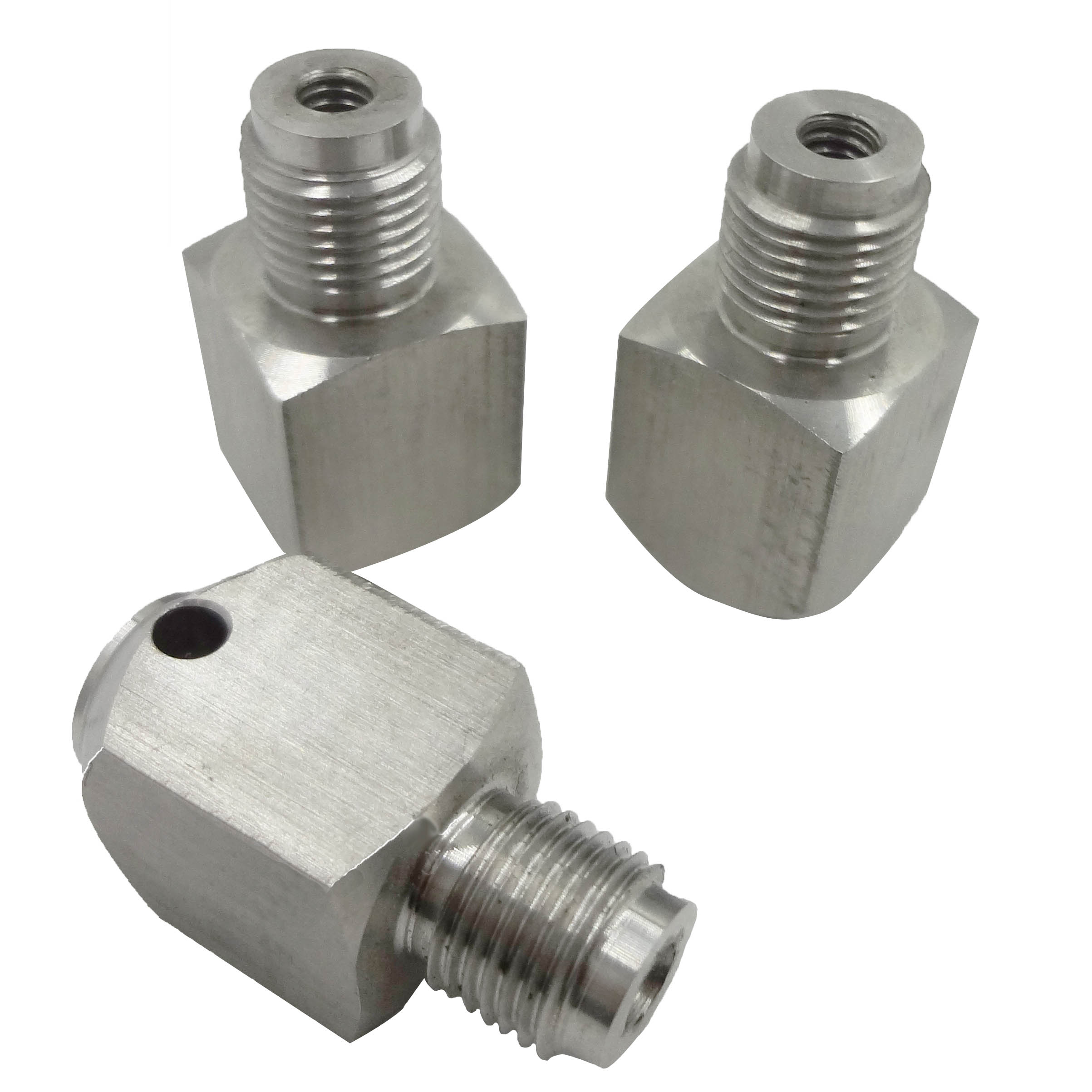

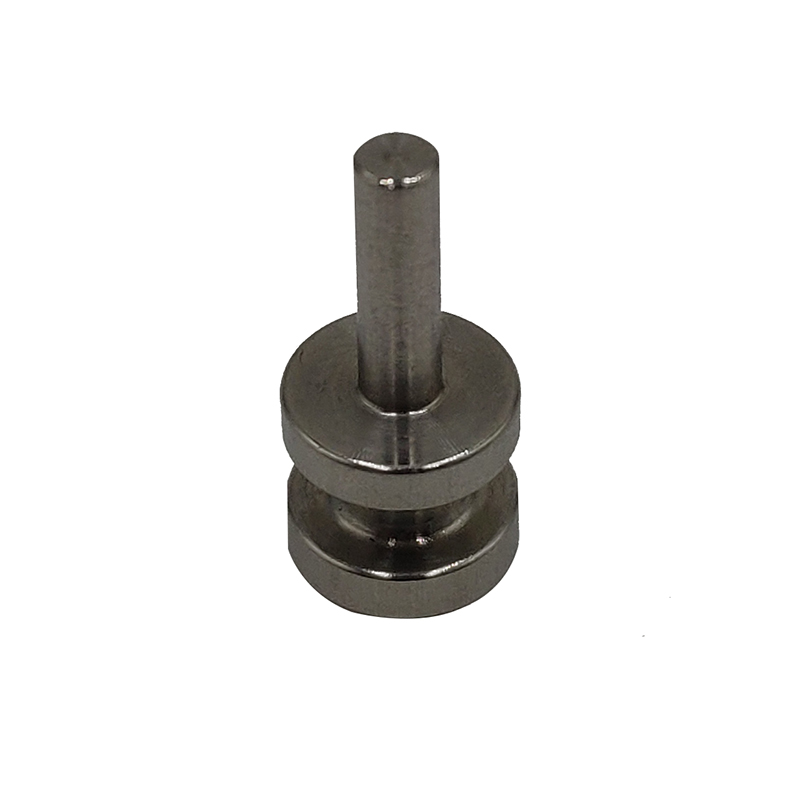

CNC machining parts are precision components manufactured using computer numerical control (CNC) machines, which automate the cutting, drilling, milling, and turning processes to produce highly accurate and complex parts. CNC machining has revolutionized manufacturing by enabling the production of parts with tight tolerances, repeatability, and superior surface finishes across a wide range of materials. CNC machining parts are essential in numerous industries including aerospace, automotive, medical, electronics, and industrial machinery.
This article provides a detailed overview of CNC machining parts, covering the manufacturing process, advantages, applications, materials, and quality control measures that make CNC machining a preferred method for producing high-quality parts.
CNC machining parts refer to components created by removing material from a raw workpiece using CNC machines. These machines are programmed with precise instructions derived from computer-aided design (CAD) models, which guide the movement of cutting tools to shape the part. The process can involve various machining operations such as milling, turning, drilling, boring, and tapping.
The versatility of CNC machining allows for the production of parts ranging from simple geometries to highly complex shapes with intricate features. CNC machining parts can be made from metals, plastics, composites, and other materials, making them suitable for a broad spectrum of applications.
![]() | ![]() | ![]() | ![]() |
![]() | ![]() | ![]() | ![]() |
The process begins with designing the part using CAD software. The digital model is then translated into a CNC program using computer-aided manufacturing (CAM) software. This program contains instructions for tool paths, cutting speeds, feed rates, and machining sequences.
Raw materials such as metal billets, rods, sheets, or plastic blocks are selected based on the part requirements. The material is securely clamped or fixed onto the CNC machine to ensure stability during machining.
CNC machining parts undergo various operations depending on the design:
Milling: Uses rotary cutters to remove material from a stationary workpiece, creating flat surfaces, slots, pockets, and complex 3D contours.
Turning: Rotates the workpiece against a stationary cutting tool to produce cylindrical shapes, threads, and tapers.
Drilling: Creates precise holes in the workpiece.
Boring: Enlarges and finishes existing holes.
Tapping: Cuts internal threads.
Multiple operations can be combined in a single CNC machine or performed on different machines to complete the part.
After machining, CNC machining parts may undergo finishing processes such as deburring, polishing, heat treatment, or coating to enhance performance and appearance. Quality control inspections verify dimensional accuracy, surface finish, and material properties to ensure parts meet specifications.
High Precision and Accuracy: CNC machines operate with tight tolerances, producing parts that meet exact specifications consistently.
Repeatability: Once programmed, CNC machines can produce identical parts repeatedly with minimal variation.
Complex Geometries: CNC machining can create intricate designs and features that are difficult or impossible with manual machining.
Material Versatility: CNC machining parts can be made from a wide range of materials including metals (steel, aluminum, titanium), plastics, and composites.
Reduced Lead Times: Automation speeds up production and reduces human error, enabling faster turnaround.
Cost-Effectiveness: Especially for small to medium production runs, CNC machining parts offer a balance of quality and cost.
Minimal Waste: Precise material removal reduces scrap and optimizes raw material usage.
CNC machining parts can be manufactured from various materials, chosen based on mechanical, thermal, and chemical requirements:
Metals: Stainless steel, aluminum, brass, copper, titanium, and alloys are common for strength, corrosion resistance, and conductivity.
Plastics: Engineering plastics such as nylon, Delrin, PEEK, and PTFE are used for lightweight and corrosion-resistant parts.
Composites: Some composite materials can be machined to produce specialized CNC parts.
Material selection influences tooling, cutting parameters, and overall machining strategy.
CNC machining parts are used in virtually every industry:
Aerospace: Structural components, engine parts, and avionics housings require high precision and reliability.
Automotive: Engine components, transmission parts, and custom fittings benefit from CNC machining’s accuracy and durability.
Medical: Surgical instruments, implants, and diagnostic equipment demand tight tolerances and biocompatibility.
Electronics: Enclosures, connectors, and heat sinks are produced with CNC machining for proper fit and function.
Industrial Machinery: CNC machining parts such as gears, shafts, and couplings are essential for machine operation.
Consumer Goods: Customized parts for appliances, sporting goods, and electronics are manufactured with CNC machining.
Ensuring the quality of CNC machining parts involves rigorous inspection techniques:
Dimensional Measurement: Coordinate measuring machines (CMM), calipers, and micrometers verify part dimensions.
Surface Finish Testing: Profilometers assess surface roughness and finish quality.
Material Testing: Chemical and mechanical tests confirm material properties.
Non-Destructive Testing: Techniques like ultrasonic or X-ray inspection check internal defects without damaging parts.
Statistical process control (SPC) monitors manufacturing consistency and detects deviations early.
Q1: What materials can be used to make CNC machining parts?
A1: CNC machining parts can be made from metals such as aluminum, steel, brass, titanium, and plastics like nylon, PEEK, and PTFE.
Q2: What industries commonly use CNC machining parts?
A2: Aerospace, automotive, medical, electronics, industrial machinery, and consumer goods industries widely use CNC machining parts.
Q3: How does CNC machining ensure part accuracy?
A3: CNC machines follow precise computer programs controlling tool paths and cutting parameters, enabling tight tolerances and repeatability.
Q4: Can CNC machining produce complex geometries?
A4: Yes, CNC machining can create intricate shapes, threads, pockets, and 3D contours that are difficult to achieve manually.
Q5: What quality control methods are used for CNC machining parts?
A5: Dimensional inspection, surface finish testing, material verification, and non-destructive testing are commonly used to ensure quality.
Hot Tags: CNC Machining Parts, China, Custom, manufacturers, suppliers, factory
