The evolution of manufacturing technologies has led to significant advancements in how products are designed and produced. Among these technologies, CNC machining and 3D printing stand out as two of the most influential methods. While both have their unique advantages and applications, the question arises: will 3D printing eventually replace CNC machining? This article delves into the characteristics, advantages, and limitations of both technologies, exploring their roles in modern manufacturing.
CNC machining, or Computer Numerical Control machining, is a subtractive manufacturing process that utilizes computer-controlled machines to remove material from a solid block to create a desired shape. This process is widely used in various industries, including aerospace, automotive, and medical, due to its precision and ability to produce complex geometries. The technology has evolved significantly since its inception, with modern CNC machines incorporating advanced features such as multi-axis capabilities, which allow for more intricate designs and improved efficiency.

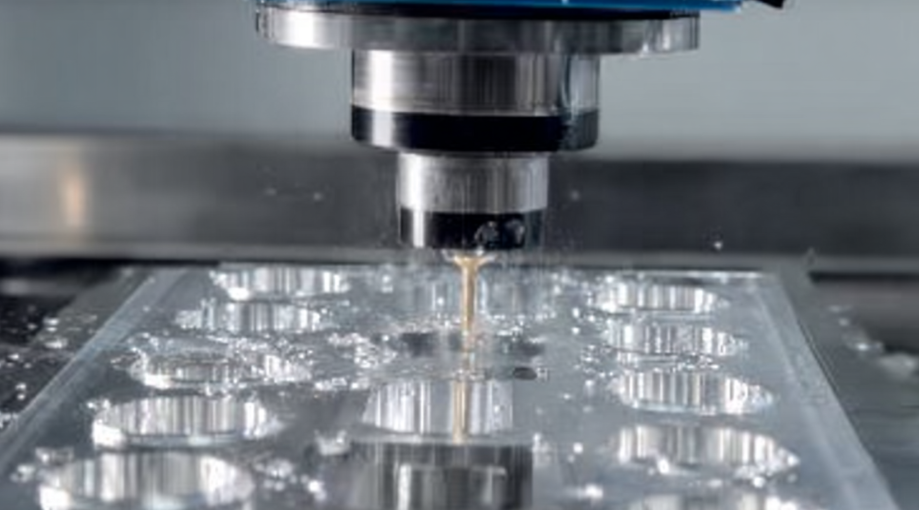

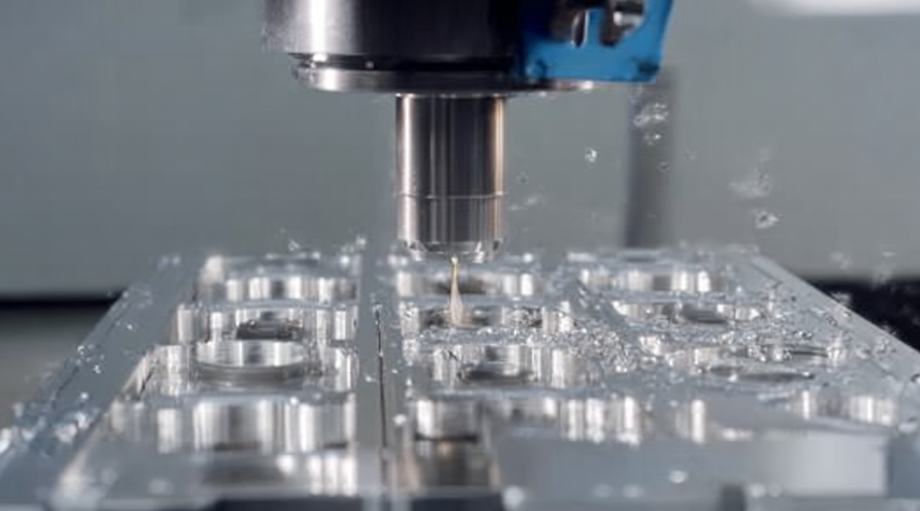

CNC machining involves several steps, starting with the design of a part using CAD (Computer-Aided Design) software. Once the design is finalized, it is converted into a CNC program that instructs the machine on how to move and cut the material. The machine then uses various tools, such as drills, lathes, and mills, to remove material and create the final product. This process can be highly automated, reducing the need for manual intervention and allowing for continuous production runs. Additionally, the ability to simulate the machining process in software helps identify potential issues before physical production begins, further enhancing efficiency and reducing waste.
CNC machining offers several advantages that make it a preferred choice for many manufacturers. One of the primary benefits is its precision. CNC machines can achieve tolerances of up to a few microns, making them ideal for applications that require high accuracy. This level of precision is crucial in industries such as aerospace, where components must meet stringent safety and performance standards. Additionally, CNC machining can work with a wide range of materials, including metals, plastics, and composites, allowing for versatility in production. This adaptability enables manufacturers to select the most suitable materials for their specific applications, optimizing performance and cost-effectiveness.
Another significant advantage is the ability to produce complex geometries. CNC machines can create intricate designs that would be challenging or impossible to achieve with traditional manufacturing methods. Furthermore, once a CNC program is established, it can be reused for mass production, ensuring consistency across multiple parts. This repeatability is essential for maintaining quality control in large-scale manufacturing, where even minor variations can lead to significant issues in assembly and functionality.
Despite its advantages, CNC machining has limitations. The subtractive nature of the process means that material is removed, which can lead to waste. This waste not only increases material costs but also raises environmental concerns, as excess material often ends up in landfills. Additionally, the initial setup costs for CNC machines can be high, making it less economical for small production runs. The process also requires skilled operators to program and maintain the machines, which can be a barrier for some companies. The need for specialized training and expertise can limit the accessibility of CNC machining for smaller businesses or startups.
3D printing, also known as additive manufacturing, is a process that creates objects by adding material layer by layer based on a digital model. This technology has gained popularity in recent years due to its ability to produce complex shapes and reduce material waste. The rise of 3D printing has been fueled by advancements in technology, making it more accessible and affordable for a wider range of applications. From prototyping to end-use parts, 3D printing is transforming how products are conceived and manufactured.
The 3D printing process begins with the creation of a digital model using CAD software. This model is then sliced into thin layers, which the 3D printer uses to build the object. Various materials can be used in 3D printing, including plastics, metals, and ceramics, depending on the specific technology employed. The versatility of materials allows for a broad range of applications, from creating intricate jewelry designs to producing functional aerospace components. Moreover, advancements in printing technologies, such as selective laser sintering and fused deposition modeling, have expanded the capabilities of 3D printing, enabling the production of parts with enhanced mechanical properties.
One of the most significant advantages of 3D printing is its ability to create complex geometries that would be difficult or impossible to achieve with traditional manufacturing methods. This capability allows for innovative designs and the production of customized parts tailored to specific needs. The freedom of design offered by 3D printing encourages creativity and experimentation, enabling designers to push the boundaries of what is possible in product development.
Another advantage is the reduction of material waste. Since 3D printing is an additive process, it only uses the material necessary to create the part, minimizing excess waste. This aspect makes it an environmentally friendly option compared to subtractive manufacturing methods. Additionally, the ability to produce parts on-demand reduces the need for large inventories, further contributing to sustainability efforts in manufacturing.
3D printing also offers rapid prototyping capabilities. Designers can quickly create prototypes to test and iterate on their designs, significantly speeding up the product development process. This agility is particularly beneficial in industries where time-to-market is critical. The ability to produce functional prototypes allows companies to gather feedback and make necessary adjustments before committing to full-scale production, ultimately leading to better products and reduced development costs.
Despite its advantages, 3D printing has limitations that may hinder its ability to replace CNC machining entirely. One of the primary challenges is the speed of production. While 3D printing is excellent for prototyping and small production runs, it can be slower than CNC machining for large-scale manufacturing. The layer-by-layer approach can lead to longer production times, especially for larger parts, which may not meet the demands of high-volume manufacturing environments.
Additionally, the mechanical properties of 3D printed parts may not always match those produced by CNC machining. While advancements in materials and printing technologies are improving this aspect, CNC machining still offers superior strength and durability for many applications. This limitation can restrict the use of 3D printing in certain industries, particularly those that require high-performance components subjected to extreme conditions.
Another limitation is the range of materials available for 3D printing. While the selection is growing, it still lags behind the variety of materials that can be machined. This limitation can restrict the applications of 3D printing in certain industries. Furthermore, the properties of 3D printed materials can vary significantly based on the printing process and parameters, leading to inconsistencies that may not be acceptable in critical applications.
When it comes to precision and accuracy, CNC machining has the upper hand. The subtractive nature of CNC machining allows for tighter tolerances and a higher level of detail in the finished product. This precision is crucial in industries such as aerospace, where components must meet stringent safety and performance standards. The ability to produce parts with minimal variation ensures that they fit together correctly and function as intended, reducing the risk of failure in critical applications.
In contrast, while 3D printing has made strides in improving accuracy, it generally cannot match the precision of CNC machining. The layer-by-layer approach can introduce slight variations, which may be acceptable for some applications but not for others. As a result, manufacturers must carefully consider the requirements of their projects when choosing between these two technologies. For applications where precision is paramount, CNC machining remains the preferred choice.
CNC machining excels in its ability to work with a wide range of materials, including metals, plastics, and composites. This versatility allows manufacturers to choose the best material for their specific application, ensuring optimal performance and durability. The ability to machine hard materials, such as titanium and high-strength alloys, makes CNC machining indispensable in industries like aerospace and defense, where material properties are critical.
3D printing, while expanding its material offerings, still faces limitations. Many 3D printing processes are primarily focused on plastics, with fewer options available for metals and other materials. This limitation can restrict the use of 3D printing in industries that require specific material properties. However, advancements in metal 3D printing technologies, such as direct energy deposition and binder jetting, are beginning to bridge this gap, allowing for the production of metal parts with comparable properties to those made through traditional methods.
In terms of production speed, CNC machining is often faster for large-scale manufacturing. Once a CNC program is set up, machines can produce parts quickly and consistently. This efficiency is particularly beneficial for high-volume production runs, where the ability to produce thousands of identical parts in a short timeframe is essential. The automation of CNC machines further enhances their speed, allowing for continuous operation with minimal downtime.
3D printing, on the other hand, is generally slower, especially for larger parts. While it excels in rapid prototyping and small production runs, it may not be the best choice for mass production where speed is a critical factor. The time required for each layer to be printed can add up, making it less competitive in scenarios where high throughput is necessary. However, ongoing research and development in 3D printing technologies aim to improve speed and efficiency, potentially making it a more viable option for larger production runs in the future.
Cost is a significant factor in the decision-making process for manufacturers. CNC machining typically has higher initial setup costs due to the need for specialized equipment and skilled operators. However, for large production runs, the cost per part can be lower compared to 3D printing. The efficiency of CNC machining in high-volume production can lead to significant cost savings, making it an attractive option for manufacturers looking to optimize their operations.
3D printing, while often more economical for small production runs and prototyping, can become cost-prohibitive for larger quantities. The cost of materials and the time required for printing can add up, making it less competitive in certain scenarios. However, the ability to produce complex geometries and customized parts without the need for expensive tooling can offset some of these costs, particularly in industries where customization is key.
As technology continues to evolve, the future of manufacturing may not be a straightforward replacement of one technology by another. Instead, hybrid manufacturing approaches that combine the strengths of both CNC machining and 3D printing are likely to emerge. This approach allows manufacturers to leverage the precision of CNC machining while taking advantage of the design flexibility offered by 3D printing. For example, manufacturers can use 3D printing to create complex geometries and then employ CNC machining to achieve the desired surface finish and tolerances.
Different industries will continue to favor one technology over the other based on their specific needs. For example, the aerospace and automotive industries may continue to rely heavily on CNC machining for critical components that require high precision and strength. In contrast, industries focused on rapid prototyping and customization, such as consumer products and medical devices, may increasingly adopt 3D printing. The ability to quickly produce customized parts tailored to individual patient needs in the medical field exemplifies the potential of 3D printing to revolutionize traditional manufacturing practices.
Both CNC machining and 3D printing are experiencing continuous advancements in technology. CNC machines are becoming more sophisticated, with improved automation and software capabilities. These advancements enhance the efficiency and accuracy of CNC machining, allowing manufacturers to produce higher-quality parts in less time. Meanwhile, 3D printing technologies are evolving rapidly, with new materials and processes being developed to enhance performance and expand applications. Innovations such as multi-material printing and bioprinting are pushing the boundaries of what is possible in additive manufacturing.
As these technologies continue to advance, the lines between them may blur, leading to new possibilities in manufacturing. The integration of AI and machine learning into both processes could further optimize production efficiency and quality. Predictive maintenance, for instance, can help manufacturers minimize downtime and improve overall productivity by anticipating equipment failures before they occur.
While 3D printing offers unique advantages and is transforming the manufacturing landscape, it is unlikely to completely replace CNC machining in the foreseeable future. Each technology has its strengths and limitations, making them suitable for different applications. The future of manufacturing will likely see a coexistence of both CNC machining and 3D printing, with hybrid approaches becoming increasingly common. As technology continues to evolve, manufacturers will need to stay informed and adapt to the changing landscape to remain competitive. Embracing both technologies and understanding their respective advantages will be key to driving innovation and efficiency in the manufacturing sector.
Recent advancements in CNC machining technology include the integration of artificial intelligence for predictive maintenance, improved automation through robotics, and the development of multi-axis machining capabilities. These innovations enhance precision, reduce production times, and lower operational costs.
3D printing is being integrated into traditional manufacturing workflows through hybrid manufacturing systems that combine additive and subtractive processes. This allows manufacturers to create complex geometries with 3D printing and then finish parts using CNC machining for precision and surface quality.
CNC machining typically generates more material waste due to its subtractive nature, while 3D printing minimizes waste by adding material only where needed. However, the environmental impact also depends on the materials used and the energy consumption of the processes, making it essential to consider the entire lifecycle of the products.
Industries such as aerospace, automotive, and medical devices benefit significantly from CNC machining due to its ability to produce high-precision components that meet strict regulatory standards. These industries require reliable and durable parts, making CNC machining an ideal choice.
While 3D printing technology has advanced significantly, parts produced through 3D printing may not always match the strength and durability of those made by CNC machining. However, advancements in materials and printing techniques, such as metal 3D printing, are improving the mechanical properties of 3D printed parts, making them suitable for more demanding applications.
