CNC milling is a highly versatile manufacturing process that utilizes computer numerical control (CNC) technology to create precise and complex parts from various materials. This process is widely used across multiple industries, including aerospace, automotive, medical, and consumer goods. In this article, we will explore the fundamentals of CNC milling, the types of products made using this technology, and the advantages it offers to manufacturers.
CNC milling is a subtractive manufacturing process that involves the removal of material from a solid block, known as a workpiece, to create a desired shape or part. The process is controlled by a computer program that dictates the movement of the milling machine's cutting tools. This allows for high precision and repeatability, making CNC milling an ideal choice for producing complex geometries. Unlike traditional milling, where manual adjustments are necessary, CNC milling automates the entire process, significantly reducing the potential for human error and enhancing production efficiency.

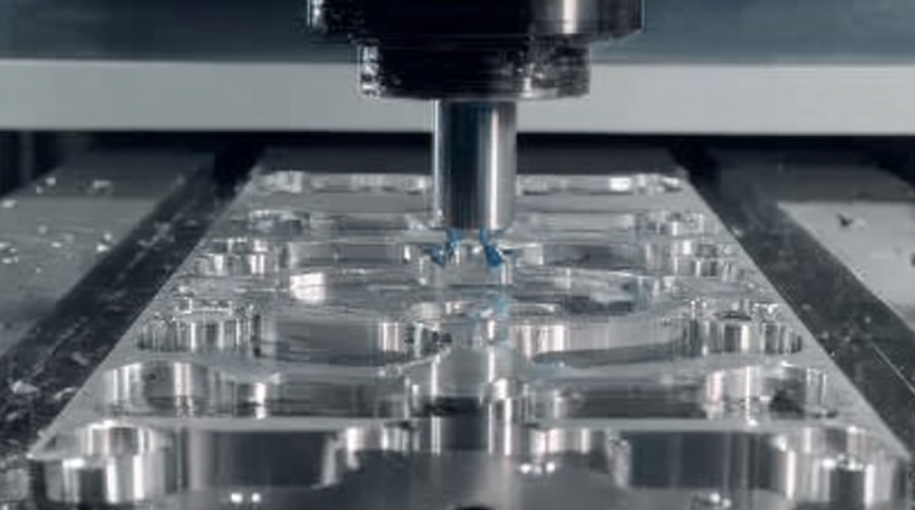

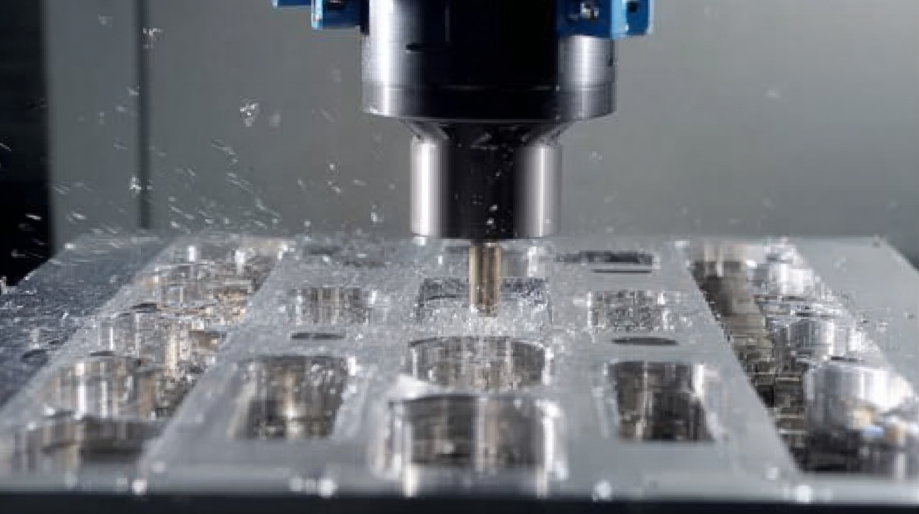

The CNC milling process begins with the creation of a digital design using computer-aided design (CAD) software. This design is then converted into a machine-readable format through computer-aided manufacturing (CAM) software. The CNC machine interprets this data and executes the milling operations by moving the cutting tools along multiple axes. The most common configurations are three-axis, four-axis, and five-axis milling machines, each offering varying degrees of complexity and capability. The ability to manipulate the cutting tool in multiple directions allows for the creation of intricate shapes and features, such as pockets, grooves, and contours, which are essential in many applications.
CNC milling machines come in various types, each suited for specific applications. The most common types include vertical milling machines, horizontal milling machines, and universal milling machines. Vertical milling machines have a vertically oriented spindle, which is ideal for creating flat surfaces and intricate details. Horizontal milling machines feature a horizontally oriented spindle, allowing for more efficient chip removal and better access to the workpiece. Universal milling machines can perform both vertical and horizontal milling operations, providing greater flexibility. Additionally, advancements in technology have led to the development of specialized CNC milling machines, such as those designed for high-speed machining or multi-tasking capabilities, further expanding the range of applications.
The aerospace industry relies heavily on CNC milling for the production of critical components. Parts such as brackets, housings, and structural components are often made using CNC milling due to the need for high precision and lightweight materials. The ability to create complex shapes and intricate designs makes CNC milling an essential process in aerospace manufacturing. Components must meet stringent safety and performance standards, and CNC milling allows manufacturers to produce parts that are not only lightweight but also strong and durable. Furthermore, the rapid prototyping capabilities of CNC milling enable aerospace engineers to test and iterate designs quickly, leading to faster development cycles and improved aircraft performance.
In the automotive sector, CNC milling is used to manufacture a wide range of components, including engine blocks, transmission housings, and custom parts for performance vehicles. The precision offered by CNC milling ensures that these components meet strict safety and performance standards. Additionally, CNC milling allows for rapid prototyping, enabling automotive manufacturers to test new designs quickly. The automotive industry is constantly evolving, with a growing emphasis on electric and hybrid vehicles. CNC milling plays a crucial role in producing specialized components for these new technologies, such as battery housings and electric motor parts, ensuring that manufacturers can keep pace with industry demands.
CNC milling plays a crucial role in the production of medical devices and equipment. Components such as surgical instruments, implants, and prosthetics are often made using CNC milling due to the need for high accuracy and biocompatibility. The ability to work with a variety of materials, including metals and plastics, makes CNC milling a preferred choice in the medical field. The medical industry requires not only precision but also strict adherence to regulatory standards. CNC milling allows manufacturers to produce parts that are consistent in quality and performance, which is vital for patient safety. Moreover, the customization capabilities of CNC milling enable the production of tailored medical solutions, such as personalized implants that fit individual patients perfectly.
Many consumer products are manufactured using CNC milling, including electronics housings, kitchenware, and furniture components. The versatility of CNC milling allows manufacturers to create customized products that meet specific consumer demands. Additionally, the ability to produce small batches efficiently makes CNC milling an attractive option for startups and small businesses. As consumer preferences shift towards personalized and unique products, CNC milling provides the flexibility needed to adapt to these trends. Manufacturers can quickly modify designs and produce limited runs of specialized items, catering to niche markets and enhancing customer satisfaction.
One of the primary advantages of CNC milling is its ability to produce parts with high precision and accuracy. The computer-controlled process minimizes human error and ensures that each part is manufactured to exact specifications. This level of precision is essential in industries where even the slightest deviation can lead to significant issues. CNC milling machines can achieve tolerances as tight as a few microns, making them suitable for applications that require extreme accuracy, such as aerospace and medical device manufacturing. The consistency of CNC milling also means that parts can be reproduced with the same level of precision, ensuring that quality standards are maintained across production runs.
CNC milling offers unparalleled flexibility in design. Manufacturers can create complex geometries and intricate details that would be challenging or impossible to achieve with traditional machining methods. This flexibility allows for innovation and creativity in product design, enabling companies to differentiate themselves in the market. The ability to easily modify digital designs means that manufacturers can quickly adapt to changing market demands or customer preferences. Additionally, CNC milling can accommodate a wide range of materials, from metals to plastics, further enhancing design possibilities and allowing for the creation of hybrid products that combine different materials.
CNC milling is a highly efficient process that can significantly reduce production times. The automation of the milling process allows for continuous operation, minimizing downtime and increasing output. Additionally, CNC milling machines can quickly switch between different tasks, making them ideal for both large-scale production and small batch runs. The speed of CNC milling is particularly beneficial in industries where time-to-market is critical. Manufacturers can produce prototypes rapidly, allowing for faster testing and iteration of designs. This efficiency not only reduces costs but also enables companies to respond more quickly to customer needs and market changes.
While the initial investment in CNC milling technology can be substantial, the long-term cost savings are significant. The efficiency and precision of CNC milling reduce material waste and labor costs, making it a cost-effective solution for manufacturers. Furthermore, the ability to produce high-quality CNC parts consistently can lead to increased customer satisfaction and repeat business. As production volumes increase, the cost per unit decreases, making CNC milling an attractive option for both large manufacturers and small businesses. The long lifespan of CNC machines and their ability to handle various materials also contribute to their cost-effectiveness, as manufacturers can use the same equipment for multiple projects.
Despite its many advantages, CNC milling does have some limitations, particularly regarding the types of materials that can be processed. While CNC milling is effective for metals, plastics, and composites, certain materials may pose challenges due to their hardness or brittleness. Manufacturers must carefully select materials that are compatible with CNC milling to ensure optimal results. For instance, extremely hard materials may require specialized cutting tools and slower machining speeds to prevent tool wear. Additionally, some materials may produce chips or debris that can affect the milling process, necessitating additional considerations for tool selection and machine setup.
CNC milling tools are subject to wear and tear over time, which can affect the quality of the finished product. Regular maintenance and tool replacement are necessary to maintain precision and efficiency. Manufacturers must implement effective maintenance schedules to minimize downtime and ensure consistent production quality. The cost of tool replacement can add up, particularly in high-volume production environments. To mitigate these costs, manufacturers often invest in high-quality cutting tools and implement monitoring systems that track tool performance, allowing for timely replacements before quality is compromised.
The programming of CNC milling machines can be complex, requiring skilled operators who are familiar with CAD and CAM software. The learning curve for new operators can be steep, and companies may need to invest in training to ensure that their workforce is adequately prepared to operate CNC milling machines. As technology evolves, staying updated with the latest software and programming techniques becomes essential. Manufacturers may also face challenges in integrating CNC milling with other manufacturing processes, necessitating a comprehensive understanding of the entire production workflow.
The future of CNC milling is closely tied to advancements in automation and Industry 4.0 technologies. The integration of IoT (Internet of Things) devices and smart manufacturing systems will enable real-time monitoring and optimization of CNC milling processes. This will lead to increased efficiency, reduced downtime, and improved overall productivity. As machines become more interconnected, manufacturers will be able to gather data on machine performance, production rates, and maintenance needs, allowing for proactive decision-making and continuous improvement.
As additive manufacturing technologies continue to evolve, there is potential for integration with CNC milling processes. Hybrid machines that combine CNC milling with 3D printing capabilities may emerge, allowing manufacturers to leverage the strengths of both processes. This could lead to new possibilities in product design and manufacturing efficiency. For example, manufacturers could use additive processes to create complex internal structures within a part, followed by CNC milling to achieve precise external features. This integration could revolutionize the way products are designed and produced, enabling greater customization and functionality.
Sustainability is becoming increasingly important in manufacturing, and CNC milling is no exception. Manufacturers are exploring ways to reduce waste, recycle materials, and implement energy-efficient practices in their CNC milling operations. The adoption of sustainable practices will not only benefit the environment but also enhance the reputation of companies in the eyes of consumers. As regulations around sustainability become more stringent, manufacturers who prioritize eco-friendly practices will likely gain a competitive advantage. Innovations such as using biodegradable cutting fluids, optimizing machining parameters to reduce energy consumption, and recycling scrap materials are all steps toward a more sustainable CNC milling process.
CNC milling is a vital manufacturing process that produces a wide range of products across various industries. Its precision, flexibility, and efficiency make it an essential tool for modern manufacturing. As technology continues to advance, CNC milling will likely evolve, incorporating new innovations and practices that enhance its capabilities. Manufacturers who embrace CNC milling will be well-positioned to meet the demands of an ever-changing market and deliver high-quality products to their customers. The ongoing developments in automation, integration with additive manufacturing, and a focus on sustainability will shape the future of CNC milling, ensuring its relevance and importance in the manufacturing landscape for years to come.
CNC milling can work with a wide variety of materials, including metals (such as aluminum, steel, and titanium), plastics (like acrylic and polycarbonate), and composites (such as carbon fiber and fiberglass). The choice of material often depends on the specific application and the required properties of the final product.
CNC milling and CNC turning are both subtractive manufacturing processes, but they differ in their approach. CNC milling involves rotating the cutting tool against a stationary workpiece, allowing for the creation of complex shapes and features. In contrast, CNC turning involves rotating the workpiece against a stationary cutting tool, which is primarily used for producing cylindrical parts.
Several industries benefit significantly from CNC milling, including aerospace, automotive, medical devices, electronics, and consumer goods. Each of these industries requires high precision and the ability to produce complex geometries, making CNC milling an essential manufacturing process.
The lead time for CNC milling projects can vary widely based on factors such as the complexity of the part, the material used, and the production volume. Generally, simple parts can be produced within a few days, while more complex designs may take several weeks. Rapid prototyping services can significantly reduce lead times for initial designs.
Safety is paramount when operating CNC milling machines. Operators should always wear appropriate personal protective equipment (PPE), such as safety glasses and gloves. Additionally, it is crucial to follow safety protocols, including ensuring that the machine is properly maintained, keeping the work area clean, and being aware of moving parts to prevent accidents. Regular training and adherence to safety guidelines can help minimize risks in the workplace.
