● Understanding Dimensional Errors in Machining
● Q&A
Picture yourself on the shop floor, surrounded by the steady hum of CNC machines, the scent of cutting fluid in the air, and a stack of freshly machined parts that don't quite meet spec. Maybe it's an aerospace component with a bore slightly off-center or an automotive part with a surface that's rougher than it should be. These dimensional errors, even if they're just a few microns off, can grind production to a halt—parts get rejected, schedules slip, and costs pile up. The real challenge? Figuring out whether the issue lies with the machine itself—say, a worn tool or a misaligned spindle—or with the process, like a poorly chosen feed rate or a shaky fixture. Getting to the root cause feels like detective work, and without a clear plan, you're just guessing. This article lays out a practical, step-by-step framework to help manufacturing engineers diagnose machining defects, zeroing in on whether they're mechanical or process-induced. Drawing from real-world cases and recent studies, we'll walk through how to tackle these problems systematically, with examples that bring the concepts to life.
Dimensional errors in machining are frustratingly common, but they're not all created equal. Mechanical issues, like a spindle that's drifted out of alignment or a tool that's seen better days, often leave telltale signs like chatter marks or inconsistent cuts. Process-induced errors, on the other hand, stem from choices made in programming or setup—think overly aggressive cutting speeds, improper fixturing, or even material quirks. The tricky part is that both can produce similar defects, making it tough to know where to start. Misdiagnose the cause, and you might spend hours tweaking the CNC program when the real culprit is a loose bearing. This framework aims to cut through the confusion, offering a clear path to pinpoint the source and fix it fast. We'll lean on insights from recent manufacturing research, pulled from sources like Semantic Scholar and Google Scholar, and share stories from industries like aerospace and automotive to show how this approach works in the real world.
Dimensional errors happen when a machined part doesn't match its blueprint. Maybe a hole is 0.02 mm too wide, a surface isn't flat enough, or a critical feature is slightly off-position. In precision industries like aerospace or medical device manufacturing, these tiny deviations can spell big trouble—think engine failures or implants that don't fit. Broadly, these errors fall into two camps: mechanical, tied to the physical state of the machine or tools, and process-induced, linked to how the machining operation is set up or run. Mechanical issues might include a dull tool cutting unevenly or a spindle wobbling due to worn bearings. Process errors could come from picking the wrong cutting speed, misaligning a fixture, or even variations in the raw material's hardness.
Figuring out whether an error is mechanical or process-induced is the key to fixing it. If a part's out of spec because of a worn tool, swapping it out solves the problem. But if the issue is a feed rate set too high, no amount of tool changes will help—you need to tweak the program. Getting it wrong wastes time and money, like replacing a perfectly good spindle when the real issue was a sloppy setup. A structured approach lets you zero in on the cause without chasing red herrings, keeping the shop running smoothly.
Start by getting a clear picture of the problem. Measure the defect's size, location, and pattern. Is it showing up on every part or just a few? Does it affect specific features, like holes or edges? Tools like coordinate measuring machines (CMMs), laser scanners, or even basic calipers can help quantify the error. This step is like gathering clues—it sets the stage for everything else.
Example 1: Aerospace Turbine BladeAt an aerospace plant, engineers found turbine blades with wall thicknesses off by up to 0.05 mm. The issue wasn't consistent—only about one in ten parts was affected. Using a CMM, they mapped the defects and noticed they appeared mostly on curved surfaces. This suggested something like tool deflection or machine vibration, but they needed more data to decide if it was a machine issue or a process misstep.
Example 2: Automotive Gearbox HousingIn an automotive shop, gearbox housings had bores misaligned by 0.02 mm, causing assembly headaches. The errors were consistent across the entire batch, hinting at a systemic problem. A laser scanner showed the misalignment was always in the same direction, pointing to either a fixture issue (process) or a spindle tilt (mechanical).

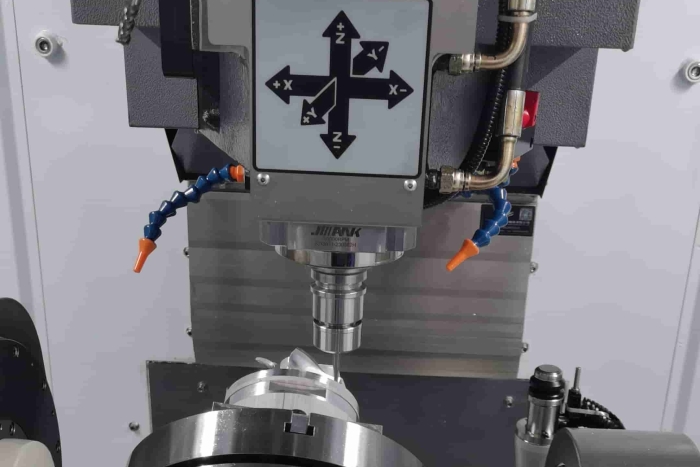

Next, look at the machine itself. Inspect the spindle, tools, fixtures, and workholding setup for signs of trouble. Common mechanical culprits include:
Tool Wear: A dull or chipped tool can leave rough surfaces or cut oversized features.

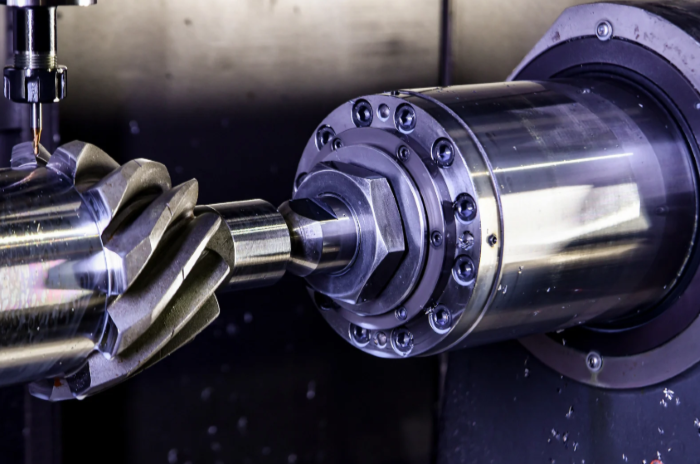

Spindle Misalignment: A wobbly spindle might cause off-center holes or uneven cuts.
Thermal Expansion: Heat buildup in the machine can subtly shift components, throwing off dimensions.
Vibration: Loose bearings or unbalanced tools can create chatter, ruining surface finish.
Tools for Mechanical Checks
Vibration Sensors: Accelerometers can pick up unusual vibrations, often a sign of worn bearings or loose components.
Thermal Cameras: These spot heat buildup in machine parts, which can cause expansion-related errors.
Tool Inspection: Use a microscope or wear measurement system to check for tool damage.

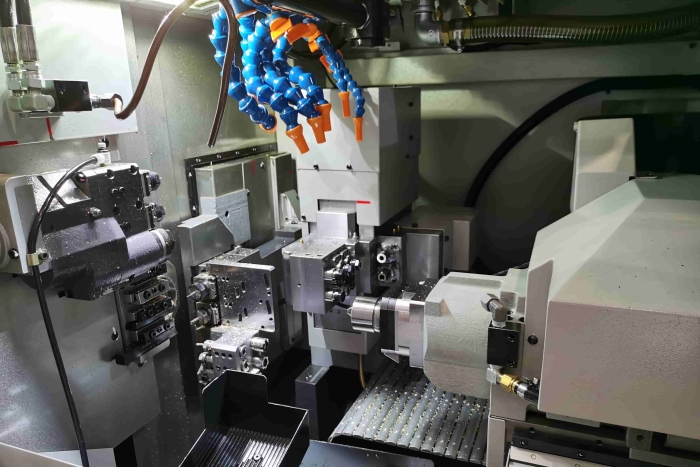

Example 3: Medical Implant MachiningA shop making titanium medical implants noticed rough surfaces on parts. By attaching vibration sensors to the CNC machine, they detected odd frequencies tied to the spindle. Swapping out worn bearings fixed the problem, confirming the issue was mechanical.
Example 4: Heavy Machinery PartFor a large steel component, dimensional errors popped up during long machining runs. A thermal camera showed the machine bed was heating unevenly, causing slight expansion. Adding a better coolant system stabilized temperatures and cleared up the errors.
If the machine checks out, turn to the process. Look at cutting speed, feed rate, depth of cut, tool path, coolant flow, and fixturing. Common process issues include:
Wrong Cutting Parameters: Too-fast feeds or speeds can cause tool deflection or chatter.
Poor Fixturing: A loose or misaligned fixture can let parts shift during machining.
Material Issues: Variations in material hardness or composition can throw off cuts.
Tool Path Problems: Badly programmed tool paths can lead to uneven material removal.
Tools for Process Analysis
Force Monitoring: Sensors measuring cutting forces can spot anomalies tied to bad parameters.
CNC Simulation: Software can model how changes in speed or path affect the part.
Statistical Tools: Methods like ANOVA can link process settings to defect patterns.
Example 5: Additive Manufacturing Post-ProcessingIn a shop blending 3D printing with CNC machining, post-processed parts had dimensional errors. Digging into the CNC program revealed a feed rate too high for the printed material's uneven density. Slowing it down fixed the issue, showing a process-related cause.

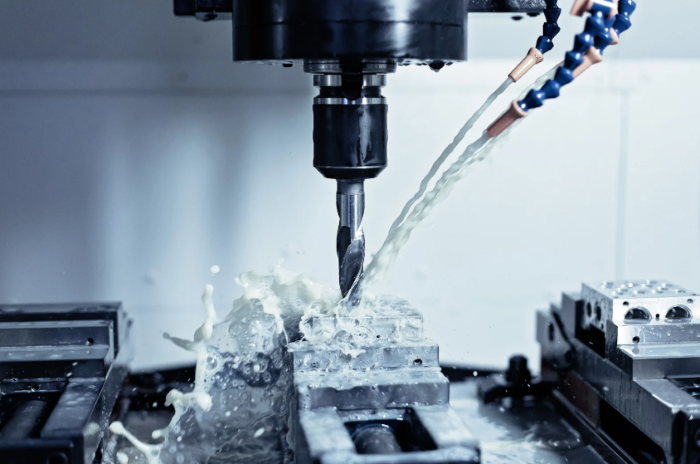

Example 6: Precision OpticsA lens manufacturer dealt with uneven surface flatness. Monitoring showed the coolant wasn't flowing evenly, causing temperature swings across the part. Adjusting the coolant setup solved the problem, pinpointing a process flaw.
New tech, like machine learning, can take diagnosis to the next level. These tools sift through massive amounts of data—vibration readings, cutting forces, or CMM results—to spot patterns that might escape human eyes. Techniques like deep learning or support vector machines can classify defects as mechanical or process-induced with high accuracy.
How Data Tools HelpMachine learning models learn from past data, like sensor readings paired with known defect causes. A deep neural network might analyze vibration patterns to flag bearing issues, while a statistical model could tie errors to specific feed rates. The catch is that these tools need good, clean data to work well.
Example 7: Wind Turbine GearboxIn a study on gearbox production, engineers used a neural network to analyze vibration data. It correctly identified bearing wear versus tool path errors 95% of the time, helping the team decide whether to repair the machine or tweak the process.
Example 8: Semiconductor WafersFor wafer machining, a support vector machine analyzed cutting force data and linked dimensional errors to inconsistent feed rates, not tool wear. This let the team optimize the process without touching the hardware.
Once you've got a likely cause, test your fix on a small batch. For mechanical issues, this might mean replacing a tool or realigning a spindle. For process problems, adjust settings like feed rate or tool path. Use CMM or other measurement tools to check if the fix worked.
Example 9: Automotive CrankshaftA crankshaft line had parts out of spec due to both worn tools and high feed rates. Engineers replaced the tools and cut the feed rate by 15%. A test run of 50 parts came out perfect, proving the combined fix worked.
Example 10: Aerospace Fastener HolesFastener holes in aerospace parts were misaligned. Checks pointed to a fixture issue. After realigning it and machining a test batch, measurements showed the errors were gone, confirming a process fix.
Diagnosing defects isn't always smooth sailing. Mechanical and process issues can mimic each other, like when tool wear and high feeds both cause rough surfaces. Data-driven tools need clean, reliable data—bad sensor readings can lead you astray. And for smaller shops, fancy tools like machine learning might seem out of reach due to cost. To navigate these, start with basic checks (visual inspections, simple measurements) before jumping to advanced methods. Calibrate sensors carefully, and for budget-conscious shops, look into affordable options like cloud-based analytics.
Sorting out machining defects—whether they come from a worn-out machine or a misconfigured process—is a core skill for any manufacturing engineer. This framework gives you a clear path: map out the defect, check the machine, review the process, tap into data tools if needed, and test your fix. Real cases, from turbine blades to semiconductor wafers, show how this approach works across different shops and industries. Whether you're running a small job shop or a high-volume production line, the logic stays the same—observe carefully, analyze methodically, and act decisively.
As shops adopt smarter tech like real-time monitoring and machine learning, diagnosis will keep getting sharper. But even without the latest gadgets, a disciplined approach grounded in shop-floor know-how can get you far. Next time you're staring down a batch of out-of-spec parts, don't guess—follow the steps, dig into the data, and get those machines humming again.
Q1: How do I quickly tell if a defect is mechanical or process-related?
Measure the defect’s pattern with tools like a CMM. Consistent errors across parts often mean process issues (e.g., bad fixturing or speeds). Random errors suggest mechanical problems (e.g., tool wear or vibration). Check machine health with sensors and review process settings next.
Q2: What tools do I need for defect diagnosis?
Start with CMM, calipers, or laser scanners for measurements. Vibration sensors and thermal cameras catch mechanical issues. Force sensors and CNC simulation help with process errors. Machine learning can boost accuracy but needs good data.
Q3: How does machine learning help with diagnosis?
It spots patterns in data—like vibration or cutting forces—that humans might miss. For example, neural networks can flag bearing issues, while other models link errors to feed rates. Success depends on clean data and proper setup.
Q4: What are common diagnosis mistakes?
Mixing up mechanical and process causes is a big one, since symptoms can overlap. Bad data can also mislead, especially with machine learning. Always test fixes on a small batch and double-check sensor calibration to stay on track.
Q5: Can small shops use advanced tools like machine learning?
Yes, but start simple with manual checks and basic metrology. Cloud-based machine learning tools or open-source software can keep costs down. Focus on high-value parts to justify the investment.
Title: Dimensional errors in longitudinal turning based on the unified generalized mechanics of cutting approach. Part II: Machining process analysis and dimensional error estimate
Journal: International Journal of Machine Tools & Manufacture
Publication Date: November 2002
Key Findings: Integrated bending and shear deformation model predicts diameter errors within 5 µm of experimental results.
Method: Mechanics-based beam modeling with numerical simulation and experimental validation.
Citations & Pages: Carrino et al., 2002, pp. 1517–1525
URL: https://doi.org/10.1016/S0890-6955(02)00118-9
Title: Real Time Compensation of Machining Errors for Machine Tools NC Based on Systematic Dispersion
Journal: Jordan Journal of Mechanical and Industrial Engineering
Publication Date: November 2010
Key Findings: Systematic dispersion due to tool wear modeled via least-squares; compensation reduced error by >60%.
Method: Three-stage experimental filtering, statistical modeling, on-line tolerance optimization.
Citations & Pages: Rahou et al., 2010, pp. 597–604
URL: https://jjmie.hu.edu.jo/files/v4n5/Real%20Time%20Compensation%20of%20Machining%20Errors%20for%20Machine.pdf
Title: Characterization of Dimensional Variations in Turning Process for Multistep Rotary Shaft of High-Speed Motorized Spindle
Journal: Machines
Publication Date: May 2023
Key Findings: Locating-error Jacobian model effectively compensates multistage turning deviations to within ±8 µm.
Method: Error-synthesis via Jacobian matrices, simulation and experimental validation.
Citations & Pages: Soori et al., 2023, pp. 561–574
URL: https://doi.org/10.3390/machines11050561
