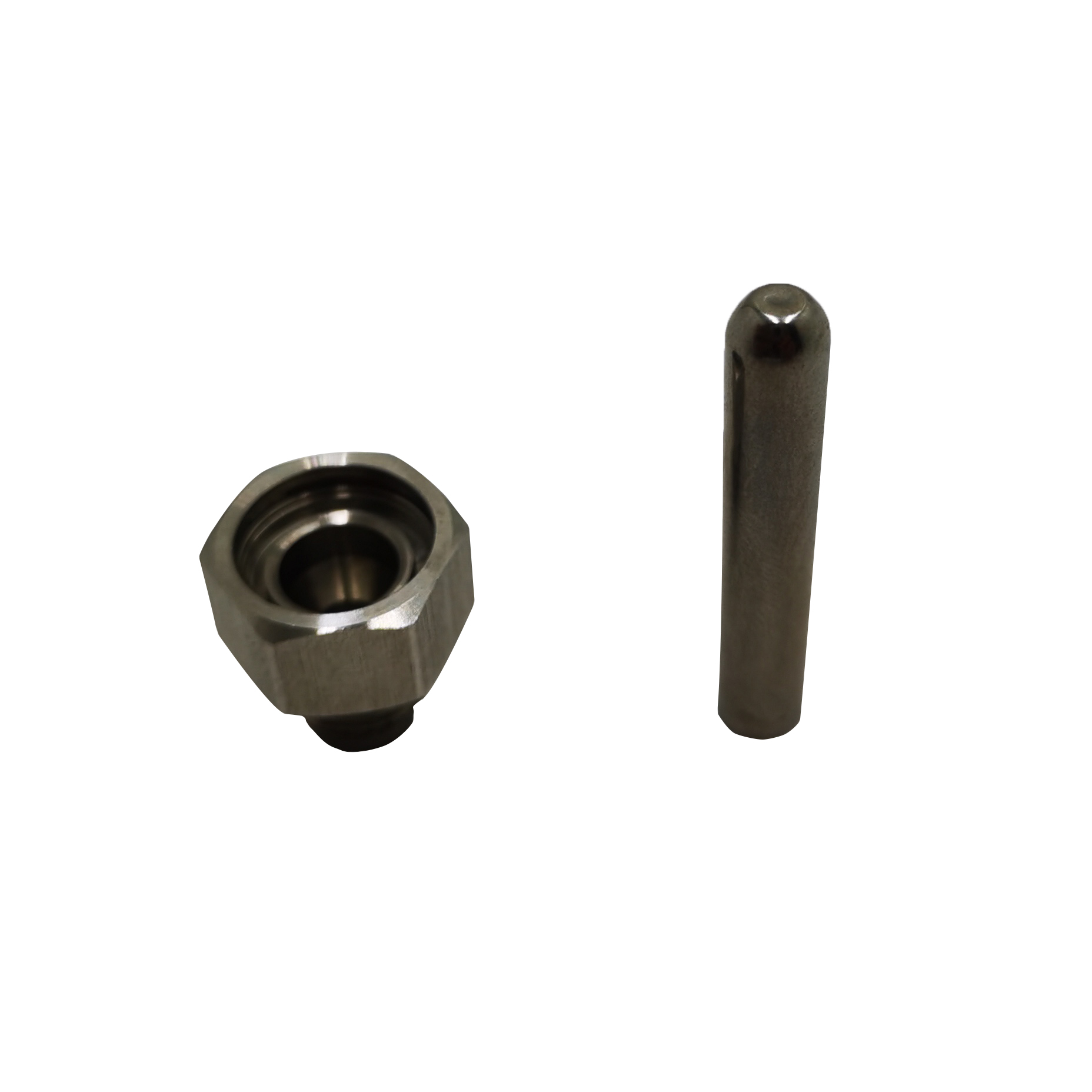

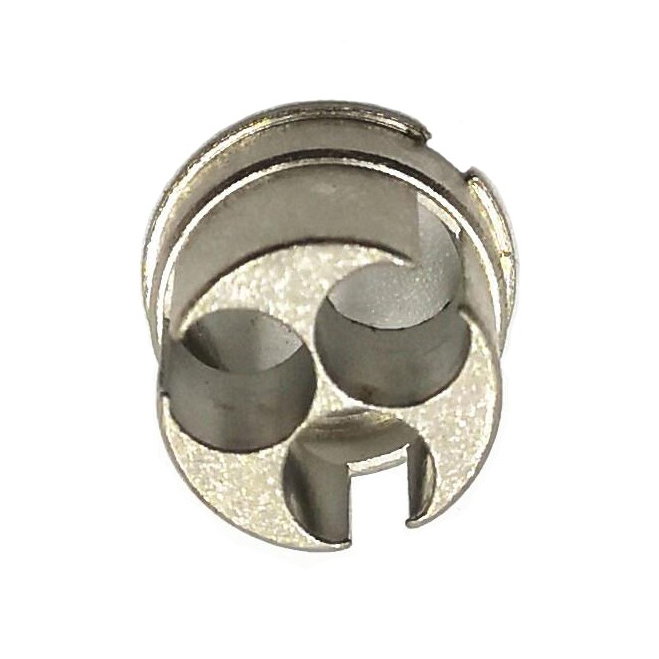

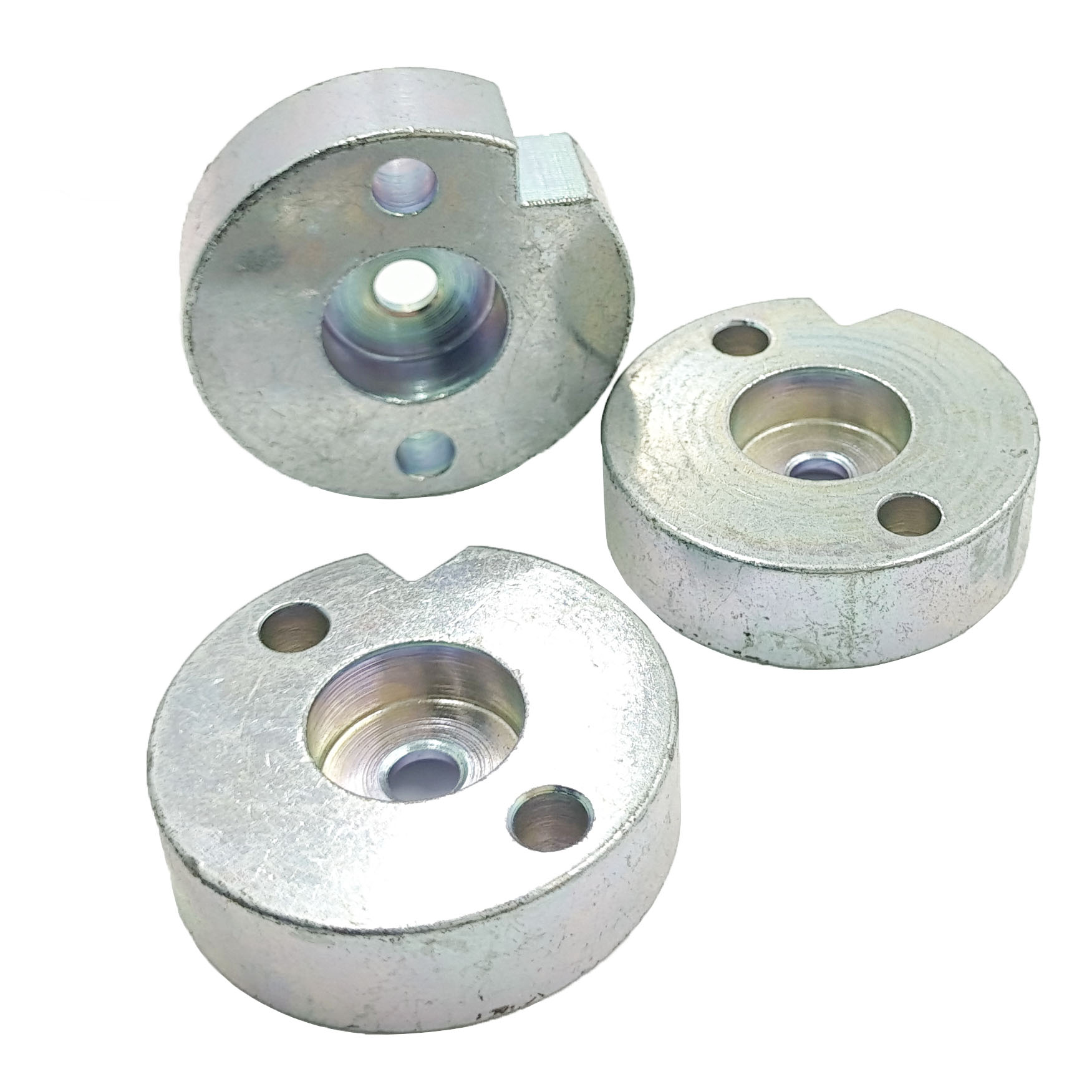

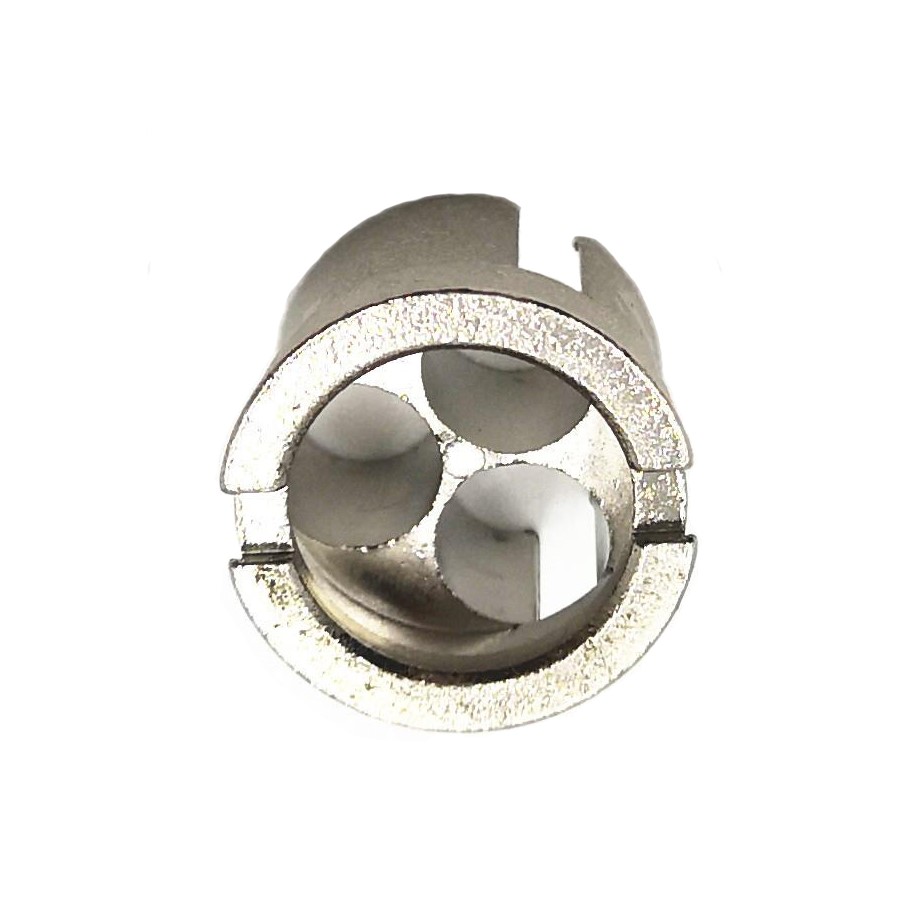

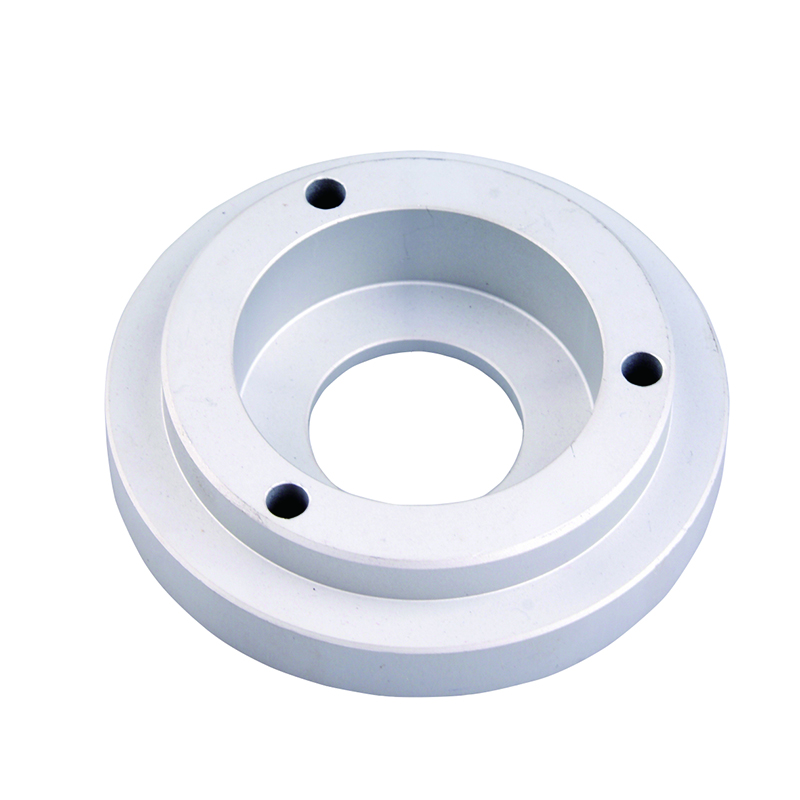

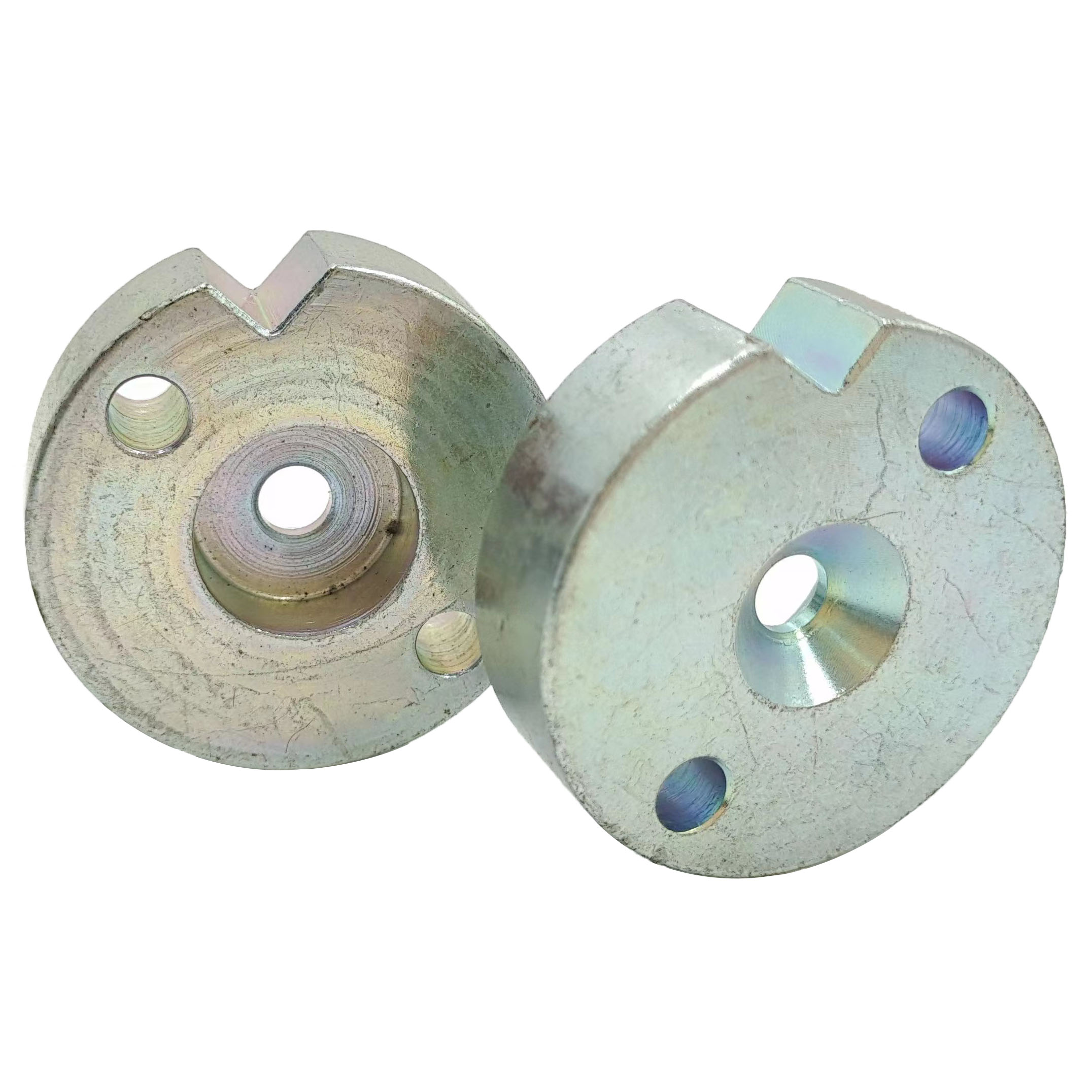

Steel turned parts are precision-engineered components manufactured through the turning process, where steel workpieces are shaped by removing material using a cutting tool on a lathe or CNC turning machine. This subtractive machining technique is essential in producing cylindrical or complex geometries with high accuracy, excellent surface finish, and tight tolerances. Steel turned parts serve as critical elements across numerous industries, including automotive, aerospace, medical, construction, and industrial machinery, due to steel’s strength, durability, and versatility.
Steel turned parts are components created by rotating a steel workpiece against a cutting tool that systematically removes material to achieve the desired shape and dimensions. The turning process can be performed on manual lathes or CNC (Computer Numerical Control) machines, with CNC turning offering superior precision, repeatability, and efficiency. These parts can range from simple shafts, pins, and bushings to complex stepped components, threaded parts, and intricate profiles.
Steel turned parts are characterized by their cylindrical shapes, but turning operations can also produce features such as grooves, tapers, shoulders, internal and external threads, and drilled holes. The process is highly adaptable, allowing manufacturers to meet stringent design requirements and produce parts that fit seamlessly into larger assemblies.
![]() | ![]() | ![]() | ![]() |
![]() | ![]() | ![]() | ![]() |
High Strength and Durability: Steel provides excellent mechanical properties, making turned parts suitable for high-stress and wear-resistant applications.
Precision and Accuracy: CNC turning machines produce parts with tight tolerances and consistent quality.
Versatility: Turning can create a wide variety of shapes and features, including complex geometries.
Surface Finish: The turning process yields smooth surfaces that often require minimal secondary finishing.
Material Variety: Steel turned parts can be made from various steel grades tailored to specific applications.
Cost-Effectiveness: CNC turning is efficient for both prototyping and mass production, reducing lead times and costs.
Different steel grades are chosen based on the application’s mechanical, environmental, and cost requirements:
Carbon Steel: Offers good strength and machinability, ideal for general-purpose parts.
Alloy Steel: Provides enhanced strength, toughness, and wear resistance.
Stainless Steel: Corrosion-resistant and suitable for hygienic or harsh environments.
Tool Steel: High hardness and wear resistance, used for tooling and cutting components.
Maraging Steel: High strength and toughness, used in aerospace and defense.
Steel bars, rods, or tubes are selected and cut to length. The material is inspected to ensure quality and consistency.
The steel workpiece is securely clamped in the lathe chuck or between centers. Appropriate cutting tools, often carbide or high-speed steel, are mounted on the tool post or turret.
The lathe rotates the steel workpiece while the cutting tool moves along defined paths to remove material. Common operations include:
Facing: Creating a flat surface perpendicular to the axis.
Straight Turning: Reducing diameter along the length.
Taper Turning: Producing conical shapes.
Thread Cutting: Forming internal or external threads.
Grooving: Cutting narrow channels or recesses.
Drilling and Boring: Creating or enlarging holes along the axis.
Secondary processes such as polishing, heat treatment, or coating may be applied to enhance performance and appearance.
Dimensional and surface inspections ensure parts meet specifications using precision instruments.
Steel turned parts are integral to many industries and applications:
Automotive: Engine shafts, transmission components, and fasteners.
Aerospace: Structural components, landing gear parts, and engine fittings.
Medical: Surgical instruments, implants, and medical device components.
Industrial Machinery: Shafts, bushings, gears, and valve components.
Construction: Fasteners, connectors, and structural parts.
Electronics: Connectors, housings, and heat sinks.
Material Selection: Choose steel grade based on strength, corrosion resistance, and machinability.
Tolerance Definition: Specify achievable tolerances aligned with turning capabilities.
Surface Finish Requirements: Define finish levels for aesthetics or functionality.
Thread and Groove Design: Ensure compatibility with mating parts and ease of machining.
Part Geometry: Design for manufacturability, considering tool access and minimizing setups.
Heat Treatment Needs: Plan for post-machining treatments to improve hardness or corrosion resistance.
Q1: What are steel turned parts?
A1: Components made by machining steel workpieces on a lathe or CNC turning machine to achieve precise cylindrical shapes and features.
Q2: Which steel grades are commonly used for turned parts?
A2: Carbon steel, alloy steel, stainless steel, tool steel, and maraging steel are commonly used.
Q3: What industries use steel turned parts?
A3: Automotive, aerospace, medical, industrial machinery, construction, and electronics industries widely use steel turned parts.
Q4: What turning operations are typical for steel parts?
A4: Facing, straight turning, taper turning, threading, grooving, drilling, and boring are common operations.
Q5: What design factors are important for steel turned parts?
A5: Material choice, tolerances, surface finish, thread design, part geometry, and heat treatment considerations are key.
Hot Tags: Steel Turned Parts, China, Custom, manufacturers, suppliers, factory
