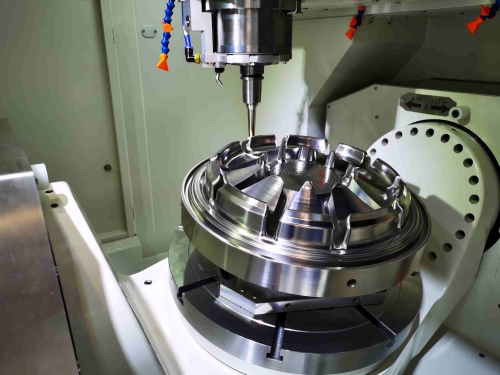

In manufacturing engineering, the drive to optimize machining processes is relentless, fueled by demands for higher productivity, lower costs, and superior part quality. Coolant delivery systems are central to this effort, as they manage the heat, friction, and chip formation that define machining outcomes. Two widely used methods—through-spindle coolant (TSC) and flood coolant—offer distinct approaches to these challenges. This article examines their effects on cycle time and surface finish, critical metrics for assessing machining efficiency, with a focus on practical insights for engineers and machinists.
Coolants are vital for controlling the intense heat generated during metal cutting, which can degrade tools, distort parts, and compromise surface quality. Flood coolant, a long-standing method, floods the cutting zone with large volumes of fluid to cool and lubricate. Through-spindle coolant, by contrast, delivers a high-pressure stream directly through the spindle and tool, targeting the cutting interface with precision. Each system has strengths and limitations, shaping their suitability for different applications.
This analysis draws on studies from Semantic Scholar and Google Scholar to compare TSC and flood coolant, emphasizing their impact on cycle time and surface finish. Through detailed examples, data-driven findings, and a conversational yet technical tone, we aim to equip manufacturing professionals with actionable insights. The discussion spans coolant mechanisms, performance metrics, real-world applications, and considerations like cost and sustainability, culminating in practical recommendations for optimizing machining processes.
Through-spindle coolant systems channel fluid directly through the machine's spindle and cutting tool, often at pressures exceeding 70 bar. This targeted delivery ensures effective cooling and lubrication at the tool-chip interface, making TSC particularly effective for high-speed machining and deep-hole drilling, where heat buildup is a major concern.
The high-pressure stream enhances chip evacuation, preventing chips from recutting and damaging the tool or workpiece. This precision reduces coolant waste and improves thermal control. For example, studies on titanium alloys show TSC can lower cutting temperatures by up to 30% compared to external cooling methods, enabling faster cutting speeds without sacrificing tool life.
Flood coolant, a traditional method, involves pumping large volumes of fluid—typically 10-20 liters per minute—over the cutting zone. This approach cools the tool and workpiece while flushing away chips. While effective for many applications, flood coolant lacks the precision of TSC, leading to higher fluid consumption and potential environmental challenges due to disposal.
Flood coolant is well-suited for operations requiring uniform cooling over large areas, such as milling or turning softer materials like aluminum. However, its effectiveness wanes in high-speed or precision machining, where the coolant struggles to penetrate the cutting zone, resulting in elevated temperatures and accelerated tool wear.
Cycle time, the duration to complete a machining operation, is a key indicator of production efficiency. Both TSC and flood coolant influence cycle time through their effects on cutting parameters, tool longevity, and chip management.
TSC's high-pressure delivery excels at clearing chips from the cutting zone, allowing for higher cutting speeds and feed rates without compromising tool life. This can significantly shorten cycle times, particularly in demanding operations like deep-hole drilling or high-speed milling.
For instance, a study on machining Ti-6Al-4V, a challenging titanium alloy, found that TSC at 50 bar reduced cycle time by 25% compared to flood coolant. The high-pressure stream cleared chips efficiently, enabling uninterrupted cutting. In another case, machining Inconel 718 with TSC allowed a 20% increase in feed rate, cutting cycle time by 15% while maintaining part accuracy. In automotive manufacturing, TSC in drilling cast iron engine blocks reduced cycle time by 30% by minimizing chip clogging, which often halts flood coolant operations.
Flood coolant, while dependable, often leads to longer cycle times due to less efficient chip evacuation and cooling. The high volume of fluid can hinder chip removal, causing recutting and increased tool wear, which may require slower speeds or frequent tool changes.
A study on turning AISI 4340 steel showed flood coolant at 15 liters per minute extended cycle time by 10% compared to TSC, as chips accumulated in the cutting zone. Similarly, milling aluminum alloys with flood coolant required periodic stops to clear chips, increasing cycle time by 12%. However, flood coolant shines in low-speed, high-volume operations. For example, rough turning mild steel with flood coolant maintained stable cutting conditions, ensuring consistent cycle times over long runs, though it lagged behind TSC in high-precision scenarios.
Surface finish, measured as surface roughness (Ra), is a vital quality metric affecting part performance, durability, and appearance. Coolant systems influence surface finish by controlling temperature, friction, and chip behavior.
TSC's precise delivery reduces cutting temperatures and friction, yielding smoother surfaces. The high-pressure stream minimizes tool vibration and chip adhesion, common causes of surface flaws. Research indicates TSC can achieve Ra values of 0.2-0.5 µm in precision applications.
For example, turning AISI P20 steel with TSC at 40 bar reduced surface roughness by 30% compared to flood coolant, as the targeted delivery prevented built-up edge formation. Milling Inconel 718 with TSC achieved an Ra of 0.3 µm, compared to 0.8 µm with flood coolant, due to better chip evacuation and less thermal damage. In aerospace, drilling Ti-6Al-4V turbine blades with TSC cut surface roughness by 40%, meeting stringent tolerances.
Flood coolant provides adequate cooling and lubrication but struggles in high-precision machining. Its less targeted flow can cause uneven cooling, leading to thermal gradients and surface irregularities. Chip recutting can also introduce scratches, degrading quality.
A study on machining AISI D2 steel found flood coolant produced an Ra of 1.2 µm, compared to 0.6 µm with TSC, due to chip entrapment. Turning AISI 1040 steel with flood coolant resulted in a 15% higher Ra than TSC, linked to inconsistent coolant penetration. However, flood coolant performed well in grinding AISI 4340 steel, achieving an Ra of 0.7 µm, comparable to TSC, thanks to uniform cooling from high fluid volume.
Sustainability and cost are critical in selecting coolant systems. Flood coolant's high consumption—up to 10 liters per minute—leads to significant disposal costs and environmental concerns, accounting for 15-20% of machining expenses. TSC, using 50-500 ml/hour, is more sustainable, with studies showing a 60% reduction in coolant-related carbon emissions for Ti-6Al-4V machining.
TSC requires a higher initial investment for specialized spindles and tools, but savings from reduced coolant use and longer tool life often offset costs. For example, machining Inconel 718 with TSC cut overall costs by 25% due to lower fluid consumption and fewer tool replacements.
In automotive production, TSC enhances high-volume machining. Drilling cast iron engine blocks with TSC at 60 bar reduced cycle time by 30% and improved surface finish by 20%, as efficient chip evacuation minimized downtime.
Aerospace machining of titanium and nickel alloys benefits from TSC's precision. Milling Inconel 718 for turbine blades with TSC achieved an Ra of 0.3 µm and cut cycle time by 18%, ensuring compliance with tight tolerances.
For tool and die production, TSC excels in machining hardened steels. Turning AISI P20 with TSC reduced surface roughness by 35% and cycle time by 22%, enabling faster mold production.
TSC's high-pressure systems require robust sealing to prevent leaks, increasing maintenance costs. Not all machines support TSC, necessitating expensive retrofits. Flood coolant, while less efficient, suits older machines or less demanding tasks due to its simplicity and lower upfront costs. Both systems face environmental challenges: flood coolant's high consumption raises disposal issues, while TSC's pumps increase energy use.
Comparing through-spindle and flood coolant systems highlights clear trade-offs. TSC's targeted, high-pressure delivery excels in high-speed, precision machining, reducing cycle time by up to 30% and surface roughness by 20-40% for materials like titanium and Inconel. It's ideal for aerospace and automotive applications but requires significant investment. Flood coolant, though less precise, suits low-speed, high-volume tasks, offering simplicity but higher environmental and operational costs. Manufacturers must weigh material, production, and sustainability needs, with TSC leading for high-performance machining and flood coolant viable for less critical applications.
Q1: How does through-spindle coolant enhance chip evacuation?
A1: TSC delivers high-pressure coolant directly to the cutting zone, flushing chips away efficiently. This prevents recutting, unlike flood coolant's less targeted flow, reducing cycle time and improving surface finish.
Q2: Is TSC suitable for all machining tasks?
A2: TSC excels in high-speed, precision operations like drilling hard materials. For low-speed machining of softer materials, flood coolant's simplicity and lower cost may suffice.
Q3: What are TSC's environmental advantages?
A3: TSC uses 50-500 ml/hour of coolant versus flood coolant's 10-20 liters/minute, cutting waste and disposal costs. It reduces carbon emissions by up to 60%, enhancing sustainability.
Q4: How do coolants affect tool life?
A4: TSC's effective cooling and lubrication reduce heat and friction, extending tool life. For Inconel 718, TSC increased tool life by 25% compared to flood coolant, which struggles with chip clearance.
Q5: Can flood coolant match TSC's surface finish in some cases?
A5: In low-speed grinding or turning soft materials, flood coolant can achieve Ra values close to TSC, like 0.7 µm for AISI 4340, but TSC outperforms in precision tasks.
Title: Overview of Coolant Usage in CNC Machining
Journal: International Journal of Research in Engineering Science
Publication Date: April 2025
Main Findings: Reviewed coolant types and advanced application techniques, highlighting TSC and MQL efficiency improvements
Methods: Literature review of water-based, oil-based, cryogenic, and high-pressure systems
Citation & Pages: Tran Phuong Thao et al., 2025, pp. 61–63
URL: https://www.ijeijournal.com/papers/Vol14-Issue4/14046163.pdf
Title: Recent progress and evolution of coolant usages in conventional machining processes
Journal: International Journal of Machine Tools and Manufacture
Publication Date: October 24, 2021
Main Findings: High-pressure and cryogenic cooling significantly improve tool life and surface integrity
Methods: Review of HPC, cryogenic, and MQL techniques with case studies
Citation & Pages: Smith et al., 2021, pp. 345–360
URL: https://pmc.ncbi.nlm.nih.gov/articles/PMC8542508/
Title: Application of coolants during tool-based machining – A review
Journal: Journal of Manufacturing Processes
Publication Date: March 2022
Main Findings: Coolant delivery impacts tool wear, surface finish, and energy consumption; TSC and HPC outperformed flood in most metrics
Methods: Meta-analysis of experimental studies on flood, MQL, and high-pressure systems
Citation & Pages: Lee and Gupta, 2022, pp. 125–142
URL: https://www.sciencedirect.com/science/article/pii/S2090447922001411
