CNC (Computer Numerical Control) machining has revolutionized the manufacturing industry by providing precision and efficiency in the production of complex parts. Among the various CNC machining processes, CNC milling and CNC turning are two of the most commonly used techniques. While both processes are essential in modern manufacturing, they differ significantly in their operations, applications, and the types of parts they produce. This article will explore the differences between CNC milling and CNC turning, delving into their respective processes, advantages, applications, and considerations for choosing one over the other.

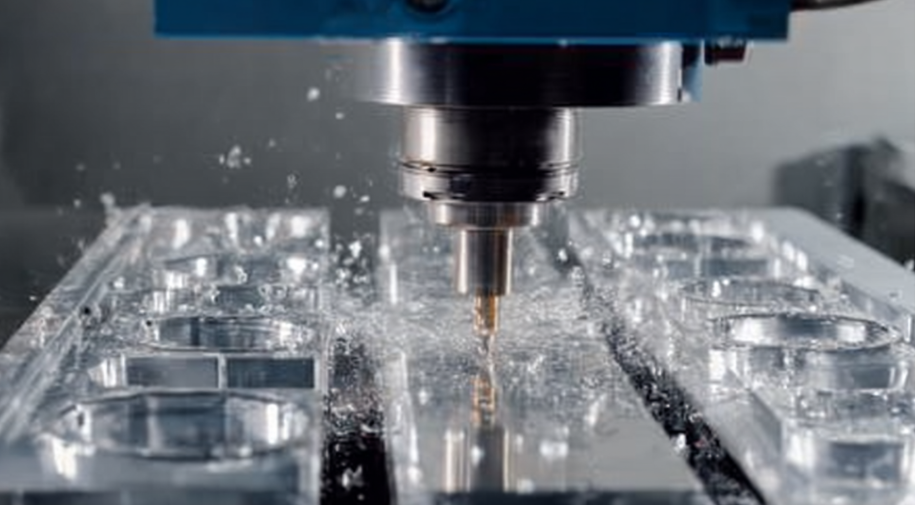

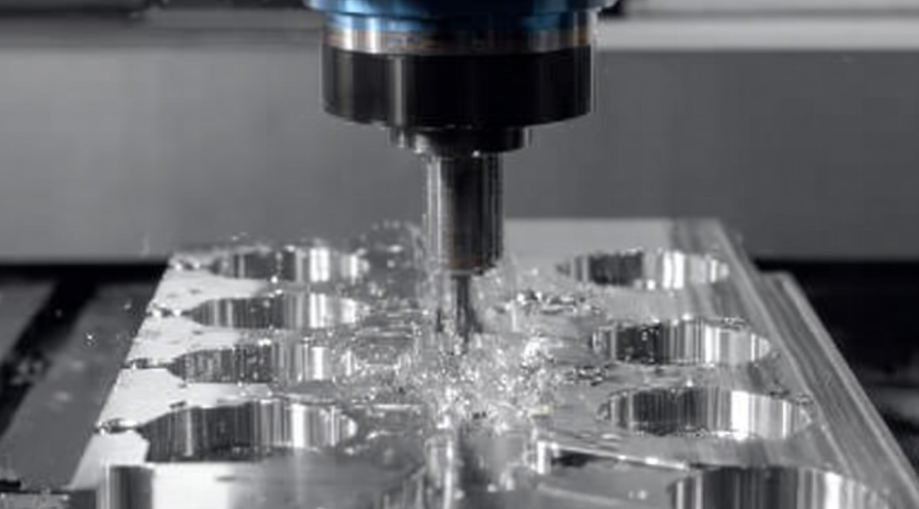

CNC milling is a machining process that utilizes rotary cutters to remove material from a workpiece. The workpiece is typically held in place on a table, and the cutting tool moves along multiple axes to create the desired shape. CNC milling machines can operate on three, four, or even five axes, allowing for intricate designs and complex geometries. This capability enables manufacturers to produce parts with high levels of detail and precision, making CNC milling a preferred choice for applications requiring tight tolerances and complex features.
The versatility of CNC milling extends beyond just the number of axes. Different types of milling machines, such as vertical and horizontal mills, offer unique advantages depending on the specific requirements of the project. Vertical mills are often used for smaller, more intricate parts, while horizontal mills are better suited for larger workpieces and heavy-duty applications. This adaptability makes CNC milling a valuable tool in various industries, from aerospace to medical device manufacturing.
The CNC milling process begins with the creation of a digital design using CAD (Computer-Aided Design) software. This design is then converted into a CNC program that instructs the milling machine on how to move the cutting tool and the workpiece. The machine follows these instructions to cut the material, which can be metal, plastic, wood, or other materials. The ability to program complex movements and operations allows for the production of parts that would be challenging to create using traditional machining methods.
The milling process can be categorized into two main types: face milling and peripheral milling. Face milling involves cutting flat surfaces, while peripheral milling is used for creating grooves and slots. The choice of milling type depends on the specific requirements of the part being produced. Additionally, the selection of cutting tools, feed rates, and spindle speeds can significantly impact the quality and efficiency of the milling process. Understanding these variables is crucial for optimizing production and achieving the desired results.
CNC milling offers several advantages that make it a preferred choice for many manufacturing applications. One of the primary benefits is its ability to produce complex shapes with high precision. The multi-axis capabilities of CNC milling machines allow for intricate designs that would be difficult or impossible to achieve with traditional machining methods. This precision is particularly important in industries such as aerospace and medical, where even the slightest deviation can lead to significant issues.
Another advantage is the versatility of CNC milling. It can be used to work with a wide range of materials, including metals, plastics, and composites. This flexibility makes it suitable for various industries, from aerospace to automotive and beyond. The ability to switch between different materials and adapt to various production needs allows manufacturers to respond quickly to market demands and customer requirements.
Additionally, CNC milling is known for its efficiency. The automated nature of CNC machines reduces the time required for setup and production, leading to faster turnaround times for projects. This efficiency is particularly beneficial for high-volume production runs, where the ability to produce large quantities of parts quickly can significantly impact profitability. Furthermore, the consistency and repeatability of CNC milling processes ensure that each part produced meets the same high standards, reducing waste and rework.
CNC turning is another essential machining process that involves rotating a workpiece against a stationary cutting tool. Unlike milling, where the cutting tool moves, in turning, the workpiece is the component that rotates. This process is primarily used to create cylindrical parts, such as shafts, pins, and bushings. The simplicity of the turning process allows for efficient production of parts that require uniformity and precision.
CNC turning machines, or lathes, come in various configurations, including CNC lathes and multi-tasking lathes. CNC lathes are designed for high precision and can handle a variety of materials, while multi-tasking lathes combine turning and milling capabilities, allowing for more complex operations in a single setup. This versatility makes CNC turning a valuable option for manufacturers looking to streamline their production processes.
Similar to CNC milling, the CNC turning process begins with a digital design created using CAD software. This design is translated into a CNC program that guides the lathe machine in executing the turning operations. The workpiece is mounted on a spindle, which rotates it while the cutting tool moves along the length of the part to remove material. This process allows for the creation of cylindrical shapes with high accuracy and smooth finishes.
CNC turning can be performed on various types of lathes, including horizontal and vertical lathes. The choice of lathe depends on the specific requirements of the part being produced, such as size and complexity. Horizontal lathes are commonly used for larger workpieces, while vertical lathes are ideal for smaller, more intricate parts. The ability to select the appropriate lathe type based on the project requirements enhances the efficiency and effectiveness of the turning process.
CNC turning offers several advantages that make it an ideal choice for producing cylindrical parts. One of the key benefits is its ability to achieve high precision and tight tolerances. The rotating nature of the workpiece allows for consistent cutting, resulting in parts that meet stringent specifications. This level of precision is crucial in industries such as aerospace and automotive, where safety and performance depend on the accuracy of each component.
Another advantage of CNC turning is its efficiency in producing cylindrical shapes. The process is well-suited for high-volume production runs, as it can quickly produce multiple identical parts with minimal setup time. This efficiency is particularly beneficial for manufacturers looking to reduce lead times and increase output. Additionally, CNC turning machines often require less tooling than milling machines, further streamlining the production process.
CNC turning is also versatile in terms of material compatibility. It can work with various materials, including metals, plastics, and composites, making it suitable for a wide range of applications. The ability to adapt to different materials allows manufacturers to explore new opportunities and expand their product offerings, ultimately enhancing their competitiveness in the market.
The most significant difference between CNC milling and CNC turning lies in the way material is removed from the workpiece. In CNC milling, the cutting tool moves while the workpiece remains stationary, allowing for the creation of complex shapes and features. In contrast, CNC turning involves rotating the workpiece against a stationary cutting tool, which is primarily used for producing cylindrical parts. This fundamental difference in operation influences the types of parts that can be produced and the overall efficiency of each process.
The choice of process also affects the tooling requirements. CNC milling typically requires a variety of cutting tools, including end mills, face mills, and drills, to perform different operations. This variety can lead to increased setup times and costs. In contrast, CNC turning often utilizes a single cutting tool for most operations, simplifying the setup process and reducing the time required to switch between different tasks.

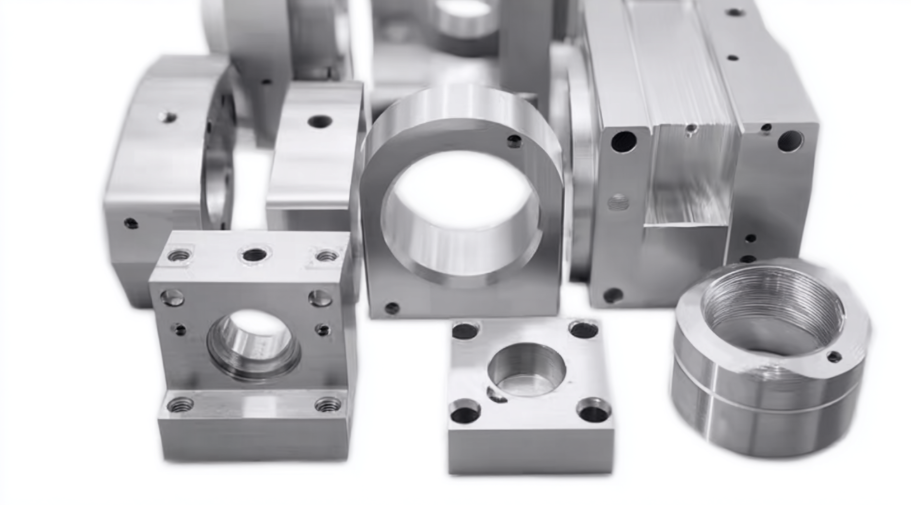

CNC milling is ideal for producing parts with intricate geometries, such as complex shapes, pockets, and contours. It is commonly used for creating components like brackets, housings, and molds. The ability to produce detailed features makes CNC milling a preferred choice for applications where aesthetics and functionality are equally important.
On the other hand, CNC turning is best suited for cylindrical parts, such as shafts, pins, and fittings. The process excels in producing uniform, symmetrical components that require high precision. The choice between the two processes often depends on the specific design requirements of the part, as well as the desired production volume and material.
The tooling and setup requirements for CNC milling and CNC turning also differ. CNC milling machines typically require a variety of cutting tools, including end mills, face mills, and drills, to perform different operations. The setup process may involve changing tools and adjusting the machine for various cutting operations. This complexity can lead to longer lead times and increased costs, particularly for low-volume production runs.
In contrast, CNC turning machines generally use a single cutting tool for the majority of operations. The setup process is often simpler, as the workpiece is mounted on the spindle, and the cutting tool is adjusted for depth and feed rate. This simplicity can lead to faster production times and lower costs, making CNC turning an attractive option for manufacturers focused on efficiency.
CNC milling is often preferred for applications that require high complexity and precision. The multi-axis capabilities of milling machines allow for intricate designs and features that would be challenging to achieve with turning. CNC turning, while precise, is more limited in terms of the shapes it can produce, focusing primarily on cylindrical geometries. This distinction is crucial for manufacturers when selecting the appropriate machining process for their specific needs.
The precision offered by CNC milling is particularly important in industries where safety and performance are paramount. The ability to produce complex parts with tight tolerances ensures that components fit together correctly and function as intended. In contrast, CNC turning is ideal for applications where uniformity and consistency are key, such as in the production of mass-produced cylindrical parts.
CNC milling is widely used across various industries due to its versatility and precision. In the aerospace industry, milling is employed to create complex components such as turbine blades and structural parts. The ability to produce lightweight yet strong components is essential in aerospace applications, where performance and safety are critical.
The automotive industry also relies on CNC milling for producing engine components, brackets, and housings. The precision offered by CNC milling ensures that parts fit together seamlessly, contributing to the overall performance and reliability of vehicles. Additionally, the medical field utilizes CNC milling to manufacture surgical instruments and implants, where precision is critical for patient safety and successful outcomes.
In the electronics industry, CNC milling is used for creating enclosures and circuit boards. The ability to produce intricate designs and features allows manufacturers to create products that meet the demands of modern technology. Furthermore, the versatility of CNC milling makes it suitable for prototyping and low-volume production runs, enabling companies to bring new products to market quickly.
CNC turning is predominantly used in industries that require cylindrical parts. The automotive industry relies heavily on turning for producing shafts, axles, and fittings. The ability to produce high-precision cylindrical components is essential for ensuring the performance and safety of vehicles.
The oil and gas industry also utilizes CNC turning for manufacturing components such as valves and connectors. The durability and reliability of these parts are critical in harsh environments, making precision machining essential. In the aerospace sector, CNC turning is used for producing precision parts like landing gear components and engine mounts, where safety and performance are paramount.
The medical industry also benefits from CNC turning for creating cylindrical instruments and implants. The ability to produce high-quality, precise components is crucial for ensuring the effectiveness of medical devices and instruments. As technology continues to advance, the demand for precision-engineered parts in the medical field is expected to grow, further driving the need for CNC turning capabilities.
When deciding between CNC milling and CNC turning, several factors should be considered. The complexity of the part is a primary consideration. If the part requires intricate shapes and features, CNC milling is likely the better choice. Conversely, if the part is primarily cylindrical, CNC turning may be more efficient. Understanding the specific design requirements and intended use of the part is crucial for making an informed decision.
Material compatibility is another important factor. Both processes can work with a variety of materials, but specific materials may be better suited for one process over the other. For example, softer materials may be easier to mill, while harder materials may be more suitable for turning. Additionally, the choice of material can impact the tooling and setup requirements, further influencing the decision-making process.
Cost is always a consideration in manufacturing. CNC milling may involve higher tooling costs due to the variety of cutting tools required. However, the efficiency of CNC milling in producing complex parts may offset these costs in high-volume production runs. Manufacturers should evaluate the total cost of ownership, including setup, tooling, and production costs, to determine the most cost-effective option.
CNC turning, on the other hand, may have lower tooling costs and simpler setups, making it a cost-effective choice for producing cylindrical parts. The ability to quickly produce multiple identical parts can lead to significant savings in labor and material costs. Ultimately, the choice between the two processes should consider both the initial costs and the long-term production efficiency, ensuring that manufacturers can meet their financial goals while maintaining quality.
CNC milling and CNC turning are two essential machining processes that play a vital role in modern manufacturing. While both processes share similarities in their use of computer numerical control and automation, they differ significantly in their operations, applications, and the types of parts they produce. CNC milling excels in creating complex shapes and features, while CNC turning is ideal for producing cylindrical parts with high precision.
Understanding the differences between these two processes is crucial for manufacturers looking to optimize their production capabilities. By considering factors such as part complexity, material compatibility, and cost, manufacturers can make informed decisions about which machining process is best suited for their specific needs. As technology continues to advance, both CNC milling and CNC turning will remain integral to the manufacturing landscape, driving innovation and efficiency in the production of high-quality components. The ongoing development of CNC technology promises to enhance the capabilities of both processes, enabling manufacturers to meet the ever-evolving demands of the market.
CNC milling and turning can work with a variety of materials, including metals (such as aluminum, steel, and titanium), plastics (like ABS and polycarbonate), and composites. The choice of material often depends on the specific application and the desired properties of the final part.
CNC milling typically requires more setup time due to the need for multiple cutting tools and adjustments for different operations. In contrast, CNC turning often involves simpler setups, as it usually uses a single cutting tool for most operations, leading to quicker production times.
CNC milling is best suited for parts that require complex geometries, intricate shapes, and detailed features. Common applications include brackets, housings, molds, and components with pockets or contours.
CNC turning can achieve tight tolerances, often within ±0.001 inches (±0.025 mm) or better, depending on the machine and tooling used. This precision is crucial for applications in industries such as aerospace and automotive, where component fit and function are critical.
Yes, both CNC milling and turning are widely used for prototyping. Their ability to produce high-precision parts quickly makes them ideal for creating prototypes that can be tested and refined before moving into full-scale production. This capability allows manufacturers to iterate designs efficiently and reduce time to market.
