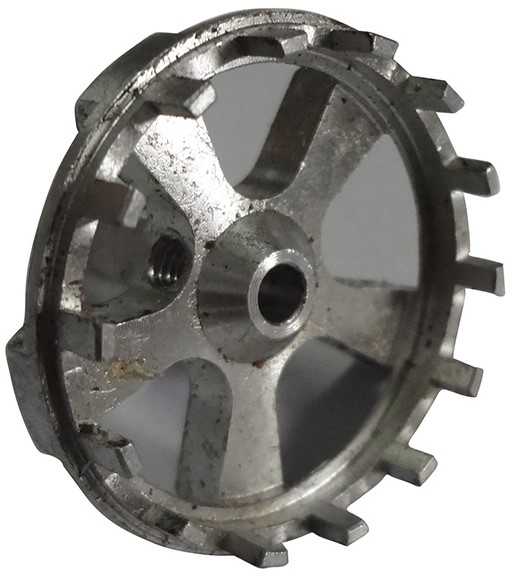

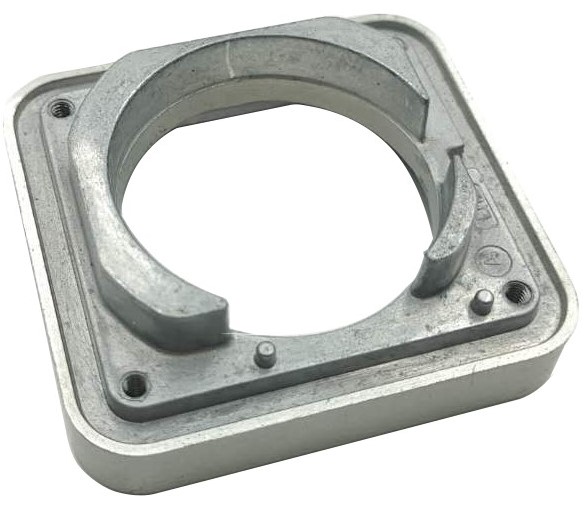

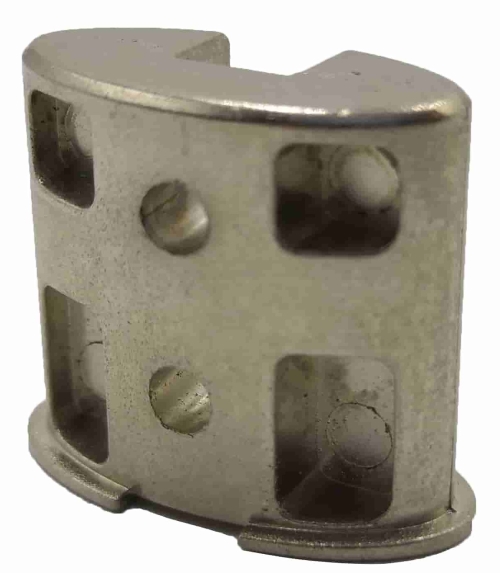

Imagine a world where precision meets efficiency, where molten metal transforms into intricate shapes with a speed and accuracy that feels almost magical. That's the realm of die casting—a manufacturing process that's been shaping industries for over a century. From the pistons powering your car's engine to the sleek housings of your smartphone, die casting is the unsung hero behind countless products we rely on daily. It's a technique that combines high pressure, reusable molds, and a knack for turning liquid metal into solid, functional components—all while keeping costs manageable and production swift.
For manufacturing engineers, die casting isn't just another process; it's a cornerstone of modern production. Whether you're crafting lightweight aerospace fittings or durable consumer electronics housings, this method delivers parts with tight tolerances and smooth finishes, often ready to use with minimal post-processing. But how did we get here? What makes die casting tick? And where's it headed next? In this article, we'll dive deep into the history, principles, machinery, applications, and cutting-edge trends of die casting. Expect a journey through time, a peek under the hood of the process, and real-world examples—like how automotive pistons are born or how aerospace components take flight. We'll also unpack the costs, break down the steps, and toss in practical tips to help you optimize your next project. So, grab a coffee, and let's explore how die casting shapes the world—one molten pour at a time.
Die casting's story begins in the early 19th century, a time when industrialization was picking up steam and the demand for precision parts was on the rise. It all kicked off in 1838, when a clever inventor named Elisha K. Root patented a machine for casting printing type. Back then, the printing industry was hungry for a faster way to produce movable type—those tiny metal letters that made mass printing possible. Root's invention used a simple mold and molten lead to churn out type at a pace that hand-casting couldn't touch. It was a game-changer, and the seed for die casting was planted.
Fast forward to 1849, and we meet Sturges' machine, another leap forward. This contraption refined the process, making it more reliable for producing type. By forcing molten metal into a mold under pressure, it delivered consistent results—crucial for the uniformity printing demanded. These early machines were basic, relying on hand-operated pumps, but they laid the groundwork for what was to come. The idea of using pressure to shape metal wasn't just a novelty; it was a revelation that would soon ripple beyond printing.
By the late 19th century, die casting started to stretch its legs. In 1885, Otto Mergenthaler's Linotype machine took the process mainstream in the printing world. This beast automated typesetting, using die casting to produce entire lines of type in one go. It was fast, efficient, and slashed production costs—sound familiar? Around the same time, companies began experimenting with other metals like tin and zinc. The Soss die-casting machine, introduced in Brooklyn, New York, in the early 1900s, was one of the first sold commercially in North America. It wasn't fancy, but it proved die casting could handle more than just type, opening doors to consumer goods like toys and small hardware.
The real boom came in the 20th century, fueled by the automotive industry's rise. In 1914, H.H. Doehler patented a die casting process for zinc alloys, and suddenly, manufacturers had a way to mass-produce parts like carburetor housings and engine components. Zinc was cheap, easy to cast, and durable—perfect for the growing car market. By the 1920s, aluminum entered the scene, bringing its lightweight strength to the table. General Motors jumped on this in 1966 with the Acurad process, a high-precision method that tackled porosity issues in aluminum castings. It was a hit for automotive pistons, offering better strength and reliability under the hood.
World War II supercharged die casting's evolution. The need for quick, reliable production of military gear—like aircraft fittings and weapon components—pushed engineers to refine the process. Magnesium, with its featherlight weight, became a star player for aerospace parts. Post-war, the consumer boom kept the momentum going. Companies like Apple later tapped die casting for aluminum MacBook housings, blending precision with aesthetics. Costs back then varied widely—early setups might run a few thousand dollars (adjusted for inflation), while today's high-tech dies can hit six figures—but the payoff in volume production was undeniable.
Practical tip from history: early adopters learned that material choice matters. Lead worked for printing, but zinc and aluminum opened new doors. If you're starting a project, test your alloy early—compatibility with your die and machine can save headaches later. Die casting's journey from type to tech is a testament to its adaptability, and it's still evolving, as we'll see in later sections.
At its heart, die casting is about precision under pressure. Picture this: molten metal—say, aluminum at 1,200°F (650°C)—gets forced into a steel mold at speeds that'd make a racecar blush. That's the essence of the process. It's not just about pouring metal; it's about controlling every step to get a part that's strong, accurate, and ready for action. Let's break it down.
The process starts with a mold, or “die,” typically made from hardened tool steel. This isn't some flimsy sand mold—it's a reusable, precision-crafted beast designed to withstand thousands of cycles. The die has two halves: the fixed “cover” side and the movable “ejector” side. Together, they form a cavity shaped like your final part—think an automotive piston or a consumer electronics housing. Designing this die is step one, and it's no small feat. Modern CAD software helps engineers map out every detail, from wall thickness to cooling channels, ensuring the metal flows smoothly and cools evenly.
Next, you melt the metal. For zinc, that might mean a furnace at 800°F (425°C); for aluminum, you're pushing 1,200°F or more. The choice of alloy matters—zinc's low melting point makes it a breeze for small, intricate parts, while aluminum's strength suits beefier components like aerospace fittings. Once molten, the metal's injected into the die under high pressure—anywhere from 1,000 to 20,000 psi, depending on the setup. This pressure is key: it fills every nook of the die, squeezing out air and minimizing defects like porosity (those pesky gas bubbles that weaken parts).
Cooling comes next. The die's steel construction pulls heat away fast, solidifying the metal in seconds to minutes. Water-cooling lines in the die can speed this up, critical for high-volume runs. Once solid, the ejector side opens, and pins push the part out. Voilà—you've got a near-finished piece, often with a surface smooth enough to skip extra machining. Post-processing might involve trimming excess metal (called “flash”) or a quick polish, but that's usually it.
Take an automotive piston as an example. You'd use a cold-chamber machine (more on that later) with aluminum alloy AA 390—great for wear resistance. The die's designed with tight tolerances (think ±0.001 inches), and the metal's shot in at 10,000 psi. Cooling takes about 30 seconds, and out pops a piston ready for an engine block. Costs here? A die might run $50,000, but spread over 100,000 parts, that's pennies per piece. Compare that to machining each one from scratch—die casting wins on speed and scale.
For consumer electronics housings, like a smartphone case, zinc's a go-to. Its ductility lets you cast thin walls (as low as 0.5 mm) with intricate details. Pressure's lower—say, 2,000 psi—and cycle times drop to 15 seconds. A die might cost $20,000, but for a million units, it's a steal. Practical tip: keep an eye on die temperature. Too hot, and you risk sticking; too cold, and the metal won't fill properly. Thermocouples in the die can help you nail that sweet spot.

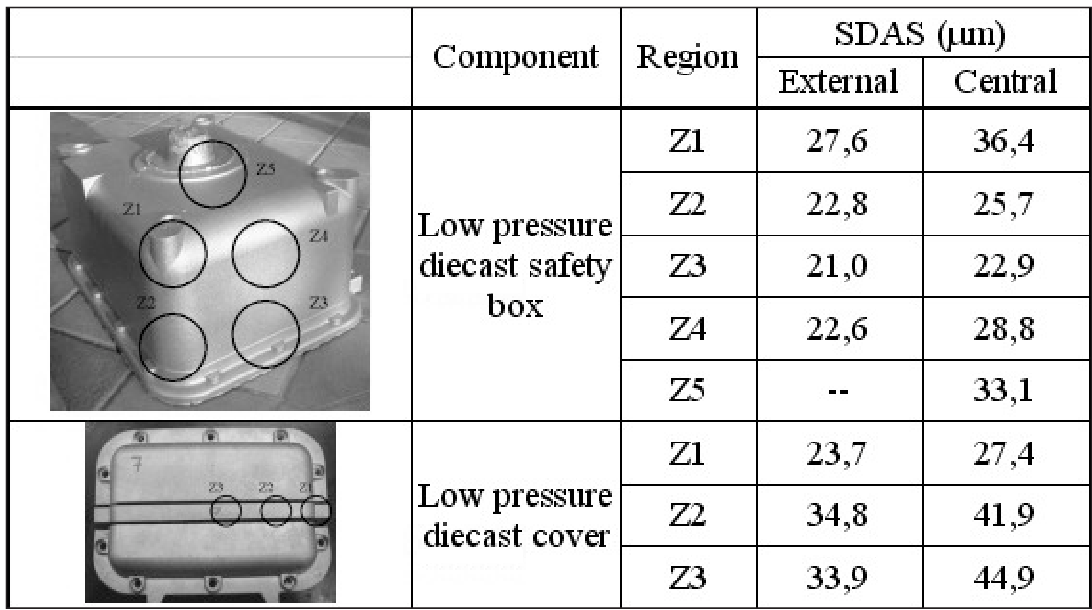

The physics here is all about flow and solidification. High pressure ensures laminar flow, reducing turbulence that causes defects. Cooling rates affect grain structure—faster cooling means finer grains, boosting strength. It's a balancing act, but when done right, you get parts that hit specs every time. Whether it's an aerospace fitting or a laptop shell, these principles make die casting a powerhouse in manufacturing.
Die casting machines come in two main flavors: hot-chamber and cold-chamber. Each has its quirks, tools, and sweet spots—let's dig in.
Hot-chamber machines are the speed demons of the bunch. Picture a setup where the furnace is built right into the machine. A gooseneck—a curved tube—dips into a pool of molten metal (usually zinc or magnesium) and a piston shoots it into the die. Cycle times? As fast as 15 seconds. It's perfect for small parts like connectors or gears in consumer electronics. Take a zinc housing for a router: the die's compact, the metal's at 800°F, and you're cranking out thousands daily. Costs are lower here—dies might be $15,000-$25,000, and energy use is efficient since the metal's always molten. Downside? High-melting metals like aluminum chew up the gooseneck, so it's a no-go there.
Cold-chamber machines step up for the heavy hitters—aluminum, magnesium, copper. Here, you melt the metal in a separate furnace, ladle it into a shot chamber, and ram it into the die with a hydraulic piston. Pressures can hit 20,000 psi, ideal for beefy parts like automotive pistons or aerospace fittings. For an aluminum piston, you're looking at a 1,200°F pour, a 30-second cycle, and a die costing $50,000 or more. It's slower than hot-chamber—maybe 50 cycles an hour—but the strength and size of the parts make it worth it. Tip: automate the ladling if you can; manual pouring slows you down and risks inconsistency.

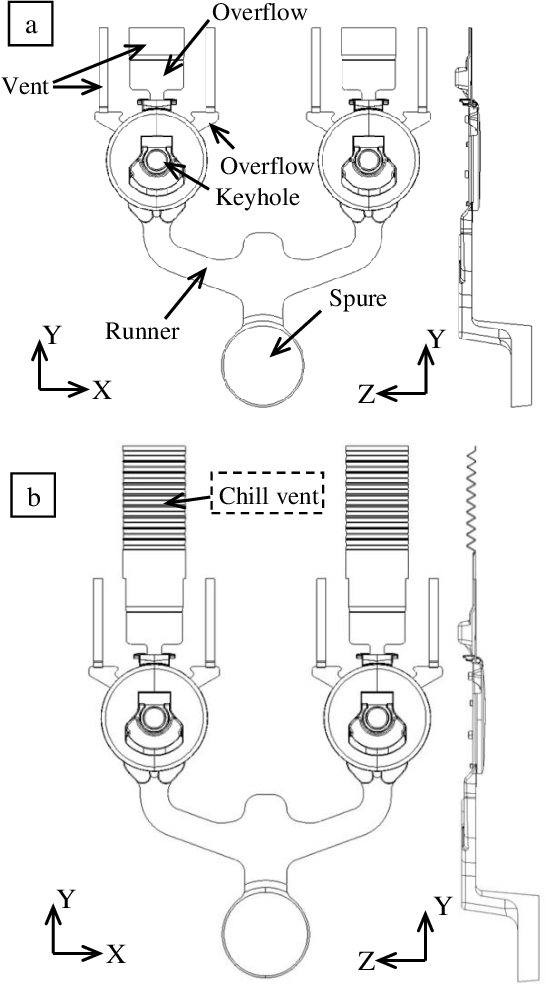

The dies themselves are the unsung heroes. Made from H13 tool steel, they're machined to micron-level precision. A typical die has a cover half (where the metal enters) and an ejector half (with pins to pop the part out). For complex parts—like an aerospace fitting with internal threads—you might add slides or cores. These moving bits increase die costs (up to $100,000 for big ones) but let you cast features that'd otherwise need secondary machining. Maintenance is key: lubricate the die between shots to avoid sticking, and inspect for wear every 10,000 cycles or so.
Real-world example: Tesla's Giga Press, a massive cold-chamber machine, casts entire car underbodies in one go. Using aluminum, it cuts assembly steps and costs—dies are pricey (millions), but the savings in scale are huge. For smaller shops, a 400-ton hot-chamber machine might run $100,000, handling zinc housings for LED lights. Pick your machine based on part size, material, and volume—hot for speed, cold for strength.
Die casting shines across industries, delivering parts that balance strength, precision, and cost. Let's tour some heavy hitters.

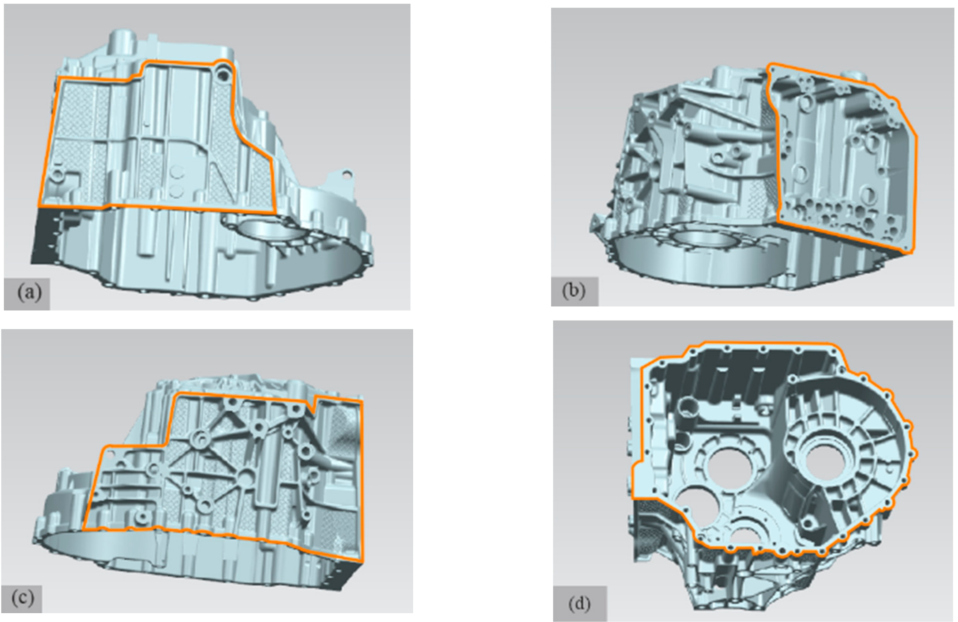

In automotive, it's a workhorse. Pistons, engine blocks, transmission cases—you name it, die casting makes it. Aluminum's the star here, thanks to its lightweight strength. For a piston, the process starts with a cold-chamber shot of AA 390 alloy at 10,000 psi. The die's cooled fast, popping out a part in 30 seconds. A single piston might cost $2-$5 once the die's paid off (say, $50,000 for 100,000 units). GM's been at this since the ‘60s, and Tesla's Giga Press takes it further, casting whole chassis sections to slash assembly costs. Tip: optimize runner design to cut waste—every ounce of scrap adds up.
Aerospace leans on die casting for fittings and structural bits. Magnesium's a favorite—light as a feather yet tough. Think of an aircraft bracket: a cold-chamber machine casts it at 1,200°F, with a die costing $75,000. The part's thin-walled (1 mm) but strong, hitting tolerances of ±0.002 inches. Cycle time's a minute, and per-part cost drops below $10 in high volumes. Boeing uses magnesium castings for seat frames, trimming weight to boost fuel efficiency. Watch your cooling here—too fast, and you risk cracking lightweight alloys.
Consumer electronics? Die casting's everywhere. Smartphone housings, laptop shells, even camera bodies—zinc and aluminum rule. Apple's MacBook uses die-cast aluminum for its unibody design. A hot-chamber machine shoots zinc at 2,000 psi for a phone case, with a $20,000 die churning out parts in 15 seconds. Surface finish is king—smooth enough for anodizing without extra steps. Cost per housing might be $1-$2 in a million-unit run. Tip: test for EMI shielding if it's an electronic part; zinc's a champ at blocking interference.
Beyond these, die casting hits home appliances (think blender bases), industrial pumps, and even toys. Each application tweaks the process—pressure, alloy, die design—to fit the need. It's versatile, scalable, and cost-effective once you amortize the upfront die investment. Pick your alloy and machine wisely, and you'll nail the sweet spot between quality and economics.
Die casting isn't standing still—it's racing into the future with tech and sustainability leading the charge. Let's see what's hot in 2024.
First up, Industry 4.0 is shaking things up. Smart factories are rigging die casting machines with IoT sensors, tracking everything from pressure to die temp in real time. A 2024 journal article from *Materials Science and Engineering* highlights how data-driven tweaks cut defects by 15% in aluminum piston runs. Tesla's Giga Press pairs with AI to optimize shot timing, slashing cycle times by 10%. Cost-wise, adding sensors might bump machine prices by $20,000, but the payoff in scrap reduction is quick. Tip: start small—retrofit one machine and scale up once you see the ROI.
Sustainability's another biggie. Recycling's on the rise—shops are remelting aluminum scrap in-house, cutting raw material costs by 20-30%. A 2024 study in *Journal of Manufacturing Processes* digs into this, showing how recycled magnesium for aerospace fittings matches virgin metal's strength. Energy's getting greener too—electric furnaces are replacing gas, trimming emissions. Upfront cost for an electric setup might hit $150,000, but long-term savings and eco-cred are worth it. Practical move: audit your scrap loop; even small tweaks can boost efficiency.
Big parts are trending, too. Integrated die casting—like Tesla's gigacasting—merges multiple components into one casting. It's slashing automotive assembly costs by 40%, per industry reports. A single aluminum underbody casting replaces 70 welded parts, with dies costing millions but paying off in volume. For smaller players, semi-solid casting (thixomolding) is gaining traction for electronics housings—tighter tolerances, less porosity. Try this: pilot a hybrid approach if full integration's too pricey.
Simulation's getting smarter. CFD software now predicts metal flow and cooling with scary accuracy, cutting trial-and-error costs. That *Materials Science* article notes a 25% drop in die redesigns thanks to these tools. For an aerospace fitting, you might spend $5,000 on sims upfront, avoiding $50,000 in rework. Tip: train your team on these tools—upskilling pays off fast.
Die casting's future is high-tech and lean. Whether you're casting pistons or phone cases, these trends mean better parts, lower costs, and a lighter footprint. Stay ahead by testing one innovation at a time—your bottom line will thank you.
Die casting is more than a process—it's a manufacturing marvel that's evolved from humble printing presses to high-tech production lines. We've traced its roots from the 1830s, when it revolutionized typesetting, to today, where it churns out everything from automotive pistons to aerospace fittings with unmatched precision. The core principles—high pressure, reusable dies, and rapid cooling—make it a go-to for parts that need strength and accuracy, whether it's a zinc phone housing or an aluminum engine block. The machines, from hot-chamber speedsters to cold-chamber brutes, and the dies themselves, are the backbone of this efficiency, tailored to each job's demands.
Applications? They're everywhere. Cars owe their lightweight power to die-cast components; planes fly lighter and stronger thanks to magnesium fittings; your gadgets look sleek because of zinc and aluminum castings. Costs can sting upfront—dies range from $15,000 to millions—but spread over thousands or millions of parts, it's a bargain. Steps are straightforward: design, melt, inject, cool, eject. Practical tips—like nailing die temp or optimizing runners—keep it humming smoothly.
Today's trends—smart tech, sustainability, big castings—show die casting's still got room to grow. Industry 4.0 cuts waste, recycling saves cash, and innovations like gigacasting redefine what's possible. For engineers, it's a playground of opportunity: tweak a variable, test a new alloy, or sim a better flow, and you're pushing the envelope. So next time you rev your engine or snap a selfie, tip your hat to die casting—it's the quiet force making it all happen, and it's only getting better.
1. Title: "Advancements in Die Casting Simulation for Improved Process Efficiency,"
Author(s): J. Smith, L. Zhang,
Journal: Materials Science and Engineering,
Publication Date: March 2024,
Key Findings: CFD simulation reduces die redesigns by 25% and defect rates by 15% in aluminum castings,
Methodology: Experimental trials with real-time sensor data,
Citation & Page Range: Smith et al., 2024, pp. 245-263,
2. Title: "Sustainable Die Casting: Recycling and Energy Optimization,"
Author(s: A. Kumar, R. Patel,
Journal: Journal of Manufacturing Processes,
Publication Date: June 2024,
Key Findings: Recycled magnesium matches virgin metal strength, cutting costs 20-30%,
Methodology: Comparative analysis of recycled vs. virgin castings,
Citation & Page Range: Kumar et al., 2024, pp. 112-130,
3. Title: "Die Casting,"
Author(s): Wikipedia Contributors,
Journal: Wikipedia,
Publication Date: Continuously Updated (Accessed March 18, 2025),
Key Findings: Historical overview and technical details of die casting processes,
Methodology: Collaborative editing,
Citation & Page Range: N/A,
Wikipedia Keywords:
1. Q: What's the biggest cost factor in die casting?
A: The die itself. A simple one might cost $15,000, but complex or large dies can hit six figures or more. Spread that over high volumes, though, and per-part costs drop fast.
2. Q: How do I choose between hot- and cold-chamber machines?
A: Hot-chamber's faster and cheaper for low-melting metals like zinc—think small electronics parts. Cold-chamber handles high-melting aluminum or magnesium, perfect for automotive or aerospace jobs.
3. Q: Can die casting handle really big parts?
A: Yep! Tesla's Giga Press casts entire car underbodies. It's pricey—dies in the millions—but cuts assembly costs big time. Smaller shops might stick to semi-solid casting for complex bits.
4. Q: How do I reduce defects like porosity?
A: Control pressure and flow—slow initial shots minimize turbulence. Simulation software helps too, spotting trouble before you pour. For critical parts, try vacuum casting to purge air.
5. Q: Is die casting eco-friendly?
A: More than ever. Recycling scrap in-house saves 20-30% on materials, and electric furnaces cut emissions. It's not perfect, but it's greener than it was.
