CNC machining, or Computer Numerical Control machining, is a manufacturing process that utilizes computer-controlled machines to create precise parts and components. This technology has revolutionized the manufacturing industry by allowing for high precision, repeatability, and efficiency. In this article, we will explore the fundamentals of CNC machining, its applications, the types of CNC machines, the machining process, and best practices for successful CNC machining.
CNC machining is a subtractive manufacturing process that involves the removal of material from a solid block to create a desired shape. This process is controlled by a computer program that dictates the movements of the machine tools. CNC machines can work with various materials, including metals, plastics, and composites, making them versatile for different applications. The precision of CNC machining allows for the production of intricate designs that would be difficult or impossible to achieve with traditional machining methods. This capability has made CNC machining a preferred choice in industries where accuracy is critical.
CNC machining is essential in modern manufacturing due to its ability to produce complex geometries with high precision. It reduces human error, increases production speed, and allows for the mass production of identical parts. Industries such as aerospace, automotive, medical, and electronics heavily rely on CNC machining for their manufacturing needs. The ability to quickly produce prototypes and iterate designs has also accelerated innovation in product development. Furthermore, CNC machining can significantly lower production costs by minimizing waste and optimizing material usage, making it an economically viable option for manufacturers.

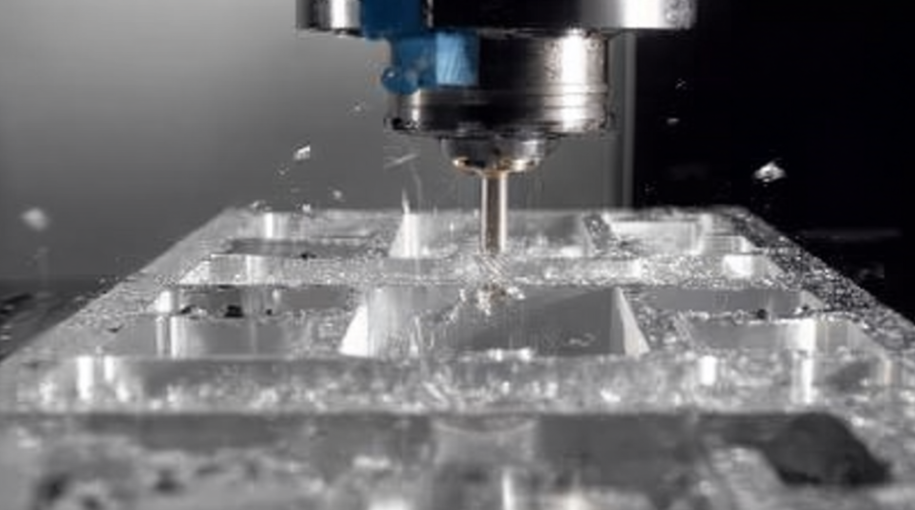

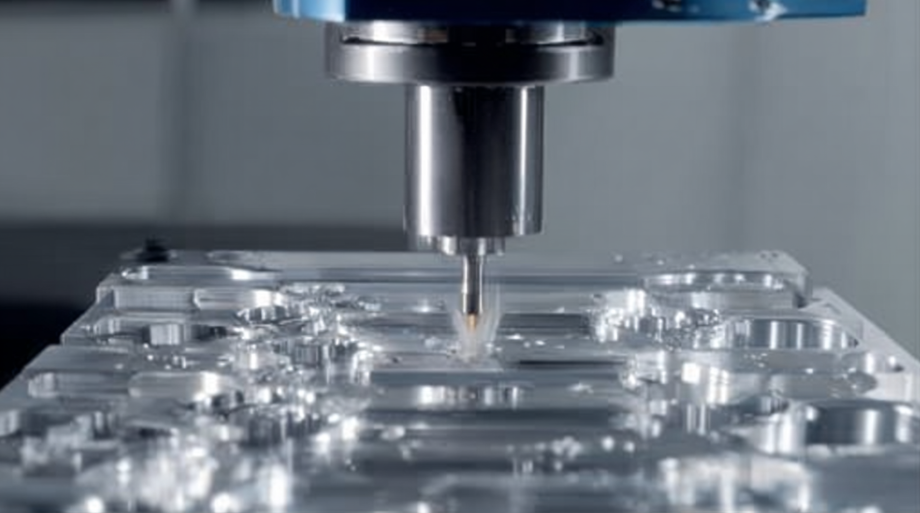

CNC milling machines are among the most common types of CNC machines. They use rotary cutters to remove material from a workpiece. The workpiece is held in place while the cutter moves along multiple axes, allowing for the creation of intricate shapes and features. CNC milling is ideal for producing parts with complex geometries, such as gears, brackets, and housings. The versatility of milling machines allows them to perform various operations, including drilling, tapping, and contouring, making them indispensable in many manufacturing settings.
CNC lathes are used for turning operations, where the workpiece is rotated against a stationary cutting tool. This process is suitable for creating cylindrical parts, such as shafts, pins, and fittings. CNC lathes can operate on multiple axes, allowing for the production of complex shapes and features. The precision of CNC lathes enables manufacturers to produce high-quality components with tight tolerances, which is crucial in industries like automotive and aerospace where performance and reliability are paramount.
CNC plasma cutters utilize a high-velocity jet of ionized gas to cut through conductive materials. This type of CNC machine is commonly used for cutting metals such as steel and aluminum. CNC plasma cutting is known for its speed and efficiency, making it suitable for large-scale production. The ability to cut thick materials quickly and accurately has made plasma cutting a popular choice in industries such as construction and metal fabrication, where time and cost efficiency are critical.
CNC laser cutters use focused laser beams to cut or engrave materials. They are highly precise and can work with various materials, including metals, plastics, and wood. CNC laser cutting is often used for intricate designs and detailed engravings. The precision of laser cutting allows for minimal material waste and the ability to create complex shapes that would be challenging to achieve with traditional cutting methods. This technology is widely used in industries such as signage, jewelry, and custom manufacturing.
CNC waterjet cutters use high-pressure water mixed with abrasive materials to cut through various materials. This method is particularly useful for cutting materials that are sensitive to heat, as it does not produce thermal distortion. CNC waterjet cutting is commonly used in industries such as aerospace and automotive. The versatility of waterjet cutting allows it to handle a wide range of materials, including metals, glass, and ceramics, making it an invaluable tool for manufacturers looking to expand their capabilities.
The first step in the CNC machining process is designing the part using computer-aided design (CAD) software. The design must be precise and include all necessary dimensions and tolerances. CAD software allows engineers to create 2D or 3D models of the part, which will serve as the basis for the machining process. This stage is critical, as any errors in the design can lead to costly mistakes during production. Advanced CAD software also enables simulations to visualize how the part will be machined, helping to identify potential issues before actual machining begins.
Once the design is complete, the next step is to create a CNC program using computer-aided manufacturing (CAM) software. This program translates the CAD design into a language that the CNC machine can understand, typically G-code. The G-code contains instructions for the machine, including tool paths, speeds, and feed rates. The accuracy of the CNC program is vital, as it directly affects the quality of the finished part. CAM software often includes features for optimizing tool paths and minimizing machining time, which can enhance productivity and reduce costs.
Before machining can begin, the CNC machine must be set up. This involves securing the workpiece in place, selecting the appropriate tools, and inputting the CNC program. Proper setup is crucial for ensuring accuracy and preventing errors during the machining process. Operators must ensure that the machine is calibrated correctly and that all safety protocols are followed. A well-executed setup can significantly reduce the likelihood of errors and improve the overall efficiency of the machining process.
With the machine set up, the machining process can begin. The CNC machine follows the programmed instructions to remove material from the workpiece, creating the desired shape. The machining process may involve multiple operations, such as milling, turning, or drilling, depending on the complexity of the part. During this phase, operators must monitor the machine's performance and make adjustments as necessary to ensure optimal results. The ability to make real-time adjustments can help address any issues that arise during machining, leading to higher quality outputs.
After machining, the finished part undergoes quality control to ensure it meets the specified tolerances and dimensions. This may involve measuring the part using precision tools and comparing it to the original design. Any discrepancies must be addressed before the part can be considered complete. Quality control is a critical step in the CNC machining process, as it ensures that the final product meets the required standards for performance and reliability. Implementing rigorous quality control measures can help manufacturers maintain their reputation for producing high-quality components.
Choosing the appropriate material for CNC machining is critical for achieving the desired results. Different materials have varying properties, such as hardness, machinability, and thermal conductivity. Understanding these properties will help in selecting the right material for the specific application. Additionally, considering factors such as cost, availability, and environmental impact can further guide material selection. The right material choice can enhance the performance of the final product and reduce production costs.
The choice of cutting tools is essential for successful CNC machining. Factors such as tool material, geometry, and coating can significantly impact the machining process. Selecting the right tools for the job will enhance efficiency and prolong tool life. It is also important to consider the specific requirements of the machining operation, such as the type of material being cut and the desired surface finish. Investing in high-quality tools can lead to better machining outcomes and lower overall production costs.
Optimizing cutting parameters, such as feed rate, spindle speed, and depth of cut, is crucial for achieving the best results. These parameters should be adjusted based on the material being machined and the specific operation being performed. Proper optimization can lead to improved surface finish and reduced machining time. Utilizing advanced software tools can assist in determining the optimal cutting parameters, allowing manufacturers to maximize efficiency and minimize waste.
Regular maintenance of CNC machines is vital for ensuring their longevity and performance. This includes routine checks of mechanical components, lubrication, and software updates. A well-maintained machine is less likely to experience breakdowns and can produce higher-quality parts. Establishing a comprehensive maintenance schedule can help prevent unexpected downtime and extend the lifespan of the equipment. Additionally, training operators on proper maintenance practices can further enhance machine reliability.
The field of CNC machining is constantly evolving, with new technologies and techniques emerging regularly. Staying updated on industry trends and advancements is essential for maintaining a competitive edge. Continuous learning through training and workshops can enhance skills and knowledge in CNC machining. Engaging with industry professionals and participating in forums can also provide valuable insights into best practices and innovative approaches to CNC machining.
CNC machining plays a crucial role in the aerospace industry, where precision and reliability are paramount. Components such as turbine blades, structural parts, and landing gear are often produced using CNC machining. The ability to create complex geometries with tight tolerances makes CNC machining ideal for aerospace applications. Additionally, the lightweight materials used in aerospace manufacturing require precise machining to ensure optimal performance and safety. The stringent regulations in the aerospace sector further emphasize the importance of high-quality machining processes.
In the automotive industry, CNC machining is used to manufacture a wide range of components, including engine parts, transmission housings, and suspension components. The efficiency and precision of CNC machining allow for the mass production of high-quality parts that meet strict safety and performance standards. As the automotive industry shifts towards electric and autonomous vehicles, CNC machining will continue to play a vital role in producing innovative components that meet evolving market demands. The ability to quickly adapt to new designs and technologies is a significant advantage of CNC machining in this rapidly changing industry.
The medical industry relies on CNC machining for producing surgical instruments, implants, and prosthetics. The ability to create custom parts with high precision is essential for ensuring the safety and effectiveness of medical devices. CNC machining also allows for rapid prototyping, enabling faster development of new products. As the demand for personalized medicine and advanced medical technologies grows, CNC machining will be crucial in developing innovative solutions that improve patient outcomes. The stringent regulatory requirements in the medical field further highlight the importance of precision and quality in CNC machining.
CNC machining is widely used in the electronics industry for manufacturing components such as housings, connectors, and circuit boards. The precision and repeatability of CNC machining are critical for producing reliable electronic devices that meet consumer demands. As technology advances, the complexity of electronic components continues to increase, making CNC machining an essential tool for manufacturers. The ability to produce small, intricate parts with high accuracy is vital for the success of modern electronic devices, and CNC machining provides the necessary capabilities to meet these challenges.
CNC machining is a vital technology in modern manufacturing, offering precision, efficiency, and versatility. Understanding the fundamentals of CNC machining, including the types of machines, the machining process, and best practices, is essential for anyone involved in the manufacturing industry. As technology continues to advance, CNC machining will remain a cornerstone of production, enabling the creation of complex parts and components across various industries. Embracing continuous learning and improvement will ensure that manufacturers can leverage the full potential of CNC machining to meet the demands of the future. The ongoing evolution of CNC technology promises exciting opportunities for innovation and growth in the manufacturing sector, making it an exciting field to be a part of.
CNC machining can work with a wide variety of materials, including metals (such as aluminum, steel, and titanium), plastics (like ABS and polycarbonate), wood, and composites. The choice of material depends on the specific application and desired properties of the final product.
CNC machining is computer-controlled, allowing for higher precision, repeatability, and automation compared to traditional machining, which often relies on manual operation. CNC machines can produce complex shapes and designs with minimal human intervention, reducing the risk of errors.
G-code is a programming language used to control CNC machines. It consists of a series of commands that instruct the machine on how to move, what speed to use, and which tools to employ. G-code is generated from CAD/CAM software based on the design of the part being machined.
Common challenges in CNC machining include tool wear, maintaining tight tolerances, managing material properties, and ensuring proper machine setup. Additionally, programming errors and machine malfunctions can lead to production delays and increased costs.
To improve efficiency, consider optimizing cutting parameters (such as feed rate and spindle speed), selecting the right tools, maintaining the CNC machine regularly, and utilizing advanced CAM software for better tool path planning. Continuous training for operators can also enhance productivity and reduce errors.
