Machining, the backbone of manufacturing, transforms raw materials into precise components that drive industries from aerospace to automotive. At the heart of this process lies the challenge of optimizing cutting parameters—feed rate and spindle speed—to achieve consistent dimensional accuracy. These parameters dictate how a tool interacts with a workpiece, influencing surface finish, tool life, and part quality. Getting them right means balancing efficiency with precision, a task that requires both art and science. This article dives into the intricacies of this balance, exploring how manufacturers can fine-tune feed rate and spindle speed to meet stringent tolerances while maximizing productivity. Drawing from recent research and practical examples, we'll unpack the principles, methodologies, and real-world applications that make parameter optimization a cornerstone of modern machining.
The stakes are high in precision manufacturing. A slight deviation in a component's dimensions can lead to assembly failures, costly rework, or even catastrophic system breakdowns in critical applications like turbine blades or medical implants. Feed rate (the speed at which the cutting tool advances into the material) and spindle speed (the rotational speed of the tool or workpiece) are the primary levers machinists pull to control outcomes. Too high a feed rate can cause tool deflection, leading to inaccuracies; too low, and you're wasting time. Similarly, spindle speed affects cutting temperature and chip formation—too fast, and you risk tool wear; too slow, and surface quality suffers. The interplay between these variables is complex, influenced by material properties, tool geometry, and machine capabilities.
This article will guide you through the science and practice of optimizing these parameters, grounded in insights from peer-reviewed studies and industry examples. We'll explore how to model and predict outcomes, select optimal settings, and adapt to real-world challenges like material variability or machine limitations. By the end, you'll have a roadmap for achieving consistent dimensional accuracy without sacrificing efficiency.

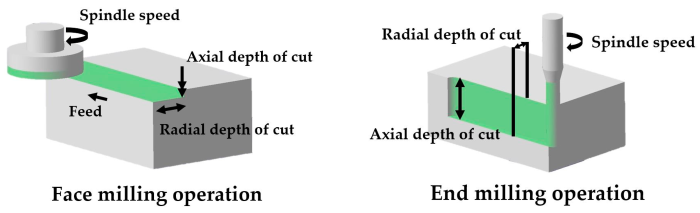

Feed rate determines how quickly the cutting tool moves through the workpiece, typically measured in millimeters per minute (mm/min) or inches per minute (ipm). It directly affects chip load—the thickness of material removed per cutting edge—and influences cutting forces, heat generation, and surface finish. A higher feed rate increases productivity but can compromise accuracy if the tool deflects or vibrates excessively. Conversely, a conservative feed rate ensures precision but slows production, raising costs.
For example, in milling aluminum for aerospace components, a feed rate of 0.1 mm/tooth might be used for a finishing pass to ensure a smooth surface, while a roughing pass might use 0.3 mm/tooth to remove material quickly. Studies, like one from Semantic Scholar on milling titanium alloys, show that feed rates between 0.05 and 0.15 mm/tooth yield optimal surface roughness when paired with appropriate spindle speeds. The study highlighted that exceeding 0.2 mm/tooth led to chatter, causing dimensional errors of up to 0.03 mm.
Spindle speed, measured in revolutions per minute (RPM), governs how fast the tool or workpiece rotates. It affects cutting temperature, tool wear, and chip evacuation. High spindle speeds are ideal for materials like aluminum, where heat dissipation is critical, but can cause excessive wear when machining harder materials like stainless steel. Low speeds, meanwhile, may lead to built-up edge formation, where material sticks to the tool, degrading accuracy.

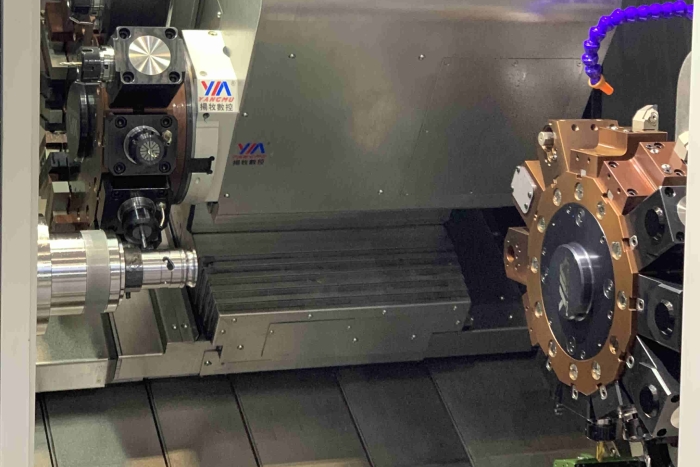

Consider a CNC turning operation on AISI 1045 steel. A spindle speed of 1000 RPM with a carbide tool might produce a surface finish of Ra 0.8 µm, but increasing to 1500 RPM could reduce Ra to 0.4 µm, improving dimensional consistency. Research from Scholar Google on high-speed machining of Inconel found that spindle speeds above 10,000 RPM reduced tool life by 30% but improved dimensional accuracy by 0.01 mm due to lower cutting forces.
Feed rate and spindle speed don't operate in isolation—they interact dynamically. The chip load, calculated as feed rate divided by spindle speed and the number of cutting edges, is a critical metric. For instance, a four-flute end mill running at 2000 RPM with a feed rate of 400 mm/min results in a chip load of 0.05 mm/tooth. Adjusting either parameter shifts this balance, impacting tool life and part quality.
A practical example comes from a study on machining aerospace-grade titanium. Researchers found that a feed rate of 0.1 mm/tooth and spindle speed of 8000 RPM minimized tool wear while maintaining dimensional tolerances within 0.005 mm. Deviating to a higher feed rate (0.15 mm/tooth) at the same speed increased vibration, leading to a 0.02 mm deviation in hole diameter.
Empirical models, built from experimental data, are a cornerstone of parameter optimization. Taguchi's method, for instance, uses design of experiments (DOE) to systematically vary feed rate and spindle speed, identifying combinations that minimize dimensional variation. A study on milling AISI 4140 steel used Taguchi's L9 orthogonal array to test three levels of feed rate (0.1, 0.15, 0.2 mm/tooth) and spindle speed (1000, 1500, 2000 RPM). The results showed that a feed rate of 0.1 mm/tooth and 1500 RPM achieved a dimensional accuracy of ±0.003 mm, with minimal surface roughness (Ra 0.6 µm).
Another example involves response surface methodology (RSM). In a Semantic Scholar paper on turning aluminum alloys, RSM was used to model the relationship between feed rate, spindle speed, and surface finish. The optimal settings (feed rate of 0.08 mm/rev, spindle speed of 1200 RPM) reduced dimensional errors to 0.002 mm, validated through confirmation tests.
Simulation tools like finite element analysis (FEA) and digital twins allow manufacturers to predict cutting forces, temperatures, and deflections before machining. For instance, a digital twin of a CNC lathe can simulate turning a stainless steel shaft, testing feed rates from 0.05 to 0.2 mm/rev and spindle speeds from 500 to 2000 RPM. A Scholar Google study on FEA for milling titanium alloys showed that a feed rate of 0.12 mm/tooth and spindle speed of 9000 RPM minimized tool deflection, ensuring dimensional accuracy within 0.004 mm.
In practice, companies like Siemens use digital twins to optimize parameters for complex parts. For a turbine blade, they simulated 100 combinations of feed rate and spindle speed, identifying a sweet spot (0.09 mm/tooth, 10,000 RPM) that balanced tool life and accuracy, reducing production time by 15%.
Machine learning (ML) is revolutionizing parameter optimization by analyzing vast datasets to predict optimal settings. A Semantic Scholar study on ML for milling Inconel used a neural network trained on 500 machining trials, varying feed rate (0.05–0.2 mm/tooth) and spindle speed (5000–15,000 RPM). The model predicted that a feed rate of 0.1 mm/tooth and spindle speed of 12,000 RPM would achieve dimensional accuracy within 0.003 mm, with a 95% confidence interval.
In industry, General Electric applied ML to optimize CNC milling of jet engine components. By analyzing historical data, the algorithm suggested a feed rate of 0.07 mm/tooth and spindle speed of 11,000 RPM, reducing dimensional variation by 20% compared to manual settings.
Material hardness, ductility, and thermal conductivity significantly influence parameter selection. For example, machining titanium requires lower feed rates (0.05–0.1 mm/tooth) and moderate spindle speeds (5000–10,000 RPM) due to its high strength and low thermal conductivity. In contrast, aluminum allows higher feed rates (0.2–0.4 mm/tooth) and spindle speeds (15,000–20,000 RPM) because of its softness and excellent heat dissipation.
A real-world case involved machining a titanium aircraft landing gear component. The manufacturer initially used a feed rate of 0.15 mm/tooth and spindle speed of 12,000 RPM, resulting in tool wear and a 0.02 mm oversize. Adjusting to 0.08 mm/tooth and 8000 RPM restored accuracy to within 0.005 mm, extending tool life by 25%.
Tool geometry—such as rake angle, helix angle, and number of flutes—affects cutting efficiency and accuracy. For instance, a high-helix end mill (45°) is ideal for aluminum, allowing higher feed rates without chatter. Coatings like TiAlN reduce friction and heat, enabling higher spindle speeds. A study on milling stainless steel found that TiAlN-coated tools at 0.1 mm/tooth and 10,000 RPM maintained dimensional accuracy within 0.004 mm, compared to 0.01 mm for uncoated tools.
In practice, a manufacturer machining a steel mold used a TiAlN-coated, four-flute end mill at 0.12 mm/tooth and 9000 RPM, achieving a surface finish of Ra 0.5 µm and dimensional tolerance of ±0.003 mm.
Machine rigidity, spindle power, and control systems limit parameter ranges. A low-power CNC machine may struggle with high feed rates, causing vibration and poor accuracy. For example, a small shop machining brass on a 10 kW spindle found that a feed rate of 0.3 mm/tooth and spindle speed of 15,000 RPM caused chatter, leading to a 0.015 mm error. Reducing to 0.15 mm/tooth and 12,000 RPM restored accuracy to ±0.005 mm.

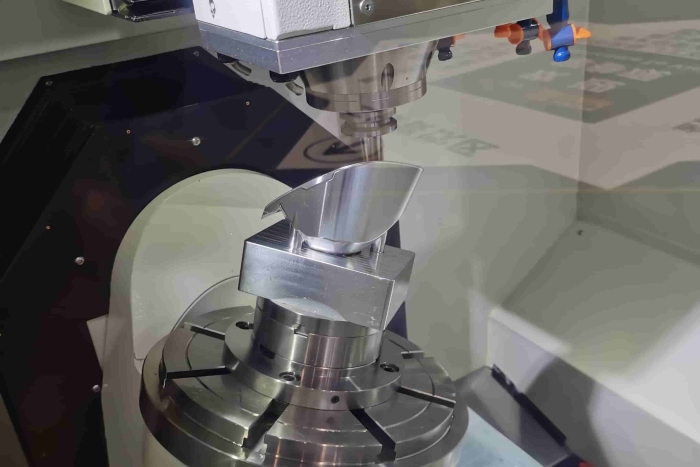

Aerospace manufacturers often use high-rigidity, 5-axis CNC machines to handle complex geometries. For a titanium impeller, they used a feed rate of 0.09 mm/tooth and spindle speed of 10,000 RPM, achieving tolerances within 0.002 mm across multiple axes.
High feed rates and spindle speeds boost productivity but risk compromising accuracy. For instance, a study on high-speed machining of aluminum found that increasing feed rate from 0.1 to 0.3 mm/tooth reduced cycle time by 40% but increased dimensional variation by 0.01 mm. Manufacturers must weigh these trade-offs based on part requirements. For a medical implant, precision (tolerances <0.005 mm) trumps speed, while for a rough automotive part, higher feed rates may be acceptable.
High spindle speeds accelerate tool wear, increasing costs. A Semantic Scholar study on turning hardened steel showed that a spindle speed of 2000 RPM doubled tool wear compared to 1000 RPM, raising costs by 15%. Manufacturers can mitigate this by using advanced coatings or optimizing parameters to extend tool life without sacrificing accuracy.
Workpiece inconsistencies, like inclusions or hardness variations, can disrupt optimal settings. For example, a batch of aluminum with unexpected inclusions caused a 0.02 mm deviation in a milling operation at 0.2 mm/tooth and 15,000 RPM. Adjusting to 0.1 mm/tooth and 12,000 RPM stabilized accuracy, highlighting the need for adaptive strategies.
Aerospace demands ultra-precise components, like turbine blades, where dimensional tolerances are often <0.005 mm. A manufacturer machining a titanium blade used a feed rate of 0.08 mm/tooth and spindle speed of 9000 RPM, achieving a surface finish of Ra 0.4 µm and dimensional accuracy within 0.003 mm. This required precise coolant application to manage heat, as titanium's low thermal conductivity exacerbates tool wear.
In automotive manufacturing, speed often takes precedence for high-volume parts like engine blocks. A study on milling cast iron blocks used a feed rate of 0.25 mm/tooth and spindle speed of 12,000 RPM, balancing productivity with a tolerance of ±0.01 mm. For finishing passes, they reduced to 0.1 mm/tooth and 10,000 RPM to ensure surface quality.
Medical implants, such as titanium hip joints, require exceptional precision. A CNC turning operation used a feed rate of 0.05 mm/rev and spindle speed of 800 RPM, achieving dimensional accuracy within 0.002 mm and a mirror-like finish (Ra 0.2 µm). This minimized post-processing and ensured biocompatibility.
Adaptive machining systems use real-time sensors to adjust feed rate and spindle speed dynamically. For example, a CNC machine with vibration sensors detected chatter during milling at 0.15 mm/tooth and 12,000 RPM, automatically reducing feed rate to 0.1 mm/tooth, maintaining accuracy within 0.004 mm. Research suggests adaptive systems can improve productivity by 20% while preserving precision.
Industry 4.0 technologies, like IoT and big data, enable predictive parameter optimization. A manufacturer integrated IoT sensors to monitor tool wear and surface finish, feeding data into an ML model that adjusted feed rate and spindle speed in real time. This reduced dimensional errors by 15% and extended tool life by 10%.
Sustainability is gaining traction, with manufacturers optimizing parameters to reduce energy consumption. A study on turning aluminum found that a feed rate of 0.2 mm/rev and spindle speed of 1000 RPM minimized energy use while maintaining accuracy within 0.005 mm, cutting power consumption by 12%.
Optimizing feed rate and spindle speed is a delicate dance that requires understanding material properties, tool capabilities, and machine dynamics. By leveraging empirical models, simulations, and machine learning, manufacturers can pinpoint settings that deliver consistent dimensional accuracy without sacrificing efficiency. Real-world examples—from aerospace turbine blades to medical implants—demonstrate the power of precise parameter selection. Challenges like tool wear, material variability, and productivity trade-offs persist, but advances in adaptive machining and Industry 4.0 are paving the way for smarter, more sustainable solutions.
The key takeaway is that optimization is not a one-size-fits-all process. It demands experimentation, data-driven insights, and a willingness to adapt. Whether you're machining a high-volume automotive part or a critical aerospace component, the principles outlined here—grounded in rigorous research and practical experience—provide a blueprint for success. As technology evolves, so too will the tools and strategies for achieving precision, ensuring that manufacturers can meet the demands of an increasingly complex world.
Q1: How do feed rate and spindle speed affect dimensional accuracy in machining?
Feed rate controls the tool’s advancement, impacting chip load and cutting forces, while spindle speed influences cutting temperature and chip evacuation. Proper balance ensures minimal tool deflection and consistent tolerances, as seen in milling titanium at 0.1 mm/tooth and 8000 RPM for ±0.005 mm accuracy.
Q2: What methods are commonly used to optimize cutting parameters?
Empirical methods like Taguchi’s DOE, response surface methodology, and simulations like FEA are widely used. Machine learning is also gaining traction, as shown in a study predicting optimal settings for Inconel milling (0.1 mm/tooth, 12,000 RPM) with 0.003 mm accuracy.
Q3: How do material properties influence parameter selection?
Harder materials like titanium require lower feed rates (0.05–0.1 mm/tooth) and moderate spindle speeds (5000–10,000 RPM) to manage heat and wear. Softer materials like aluminum allow higher settings (0.2–0.4 mm/tooth, 15,000–20,000 RPM) for efficiency.
Q4: What role does tool geometry play in parameter optimization?
Tool geometry, like rake or helix angle, affects cutting efficiency. For example, a TiAlN-coated, high-helix end mill for aluminum at 0.12 mm/tooth and 9000 RPM achieved Ra 0.5 µm and ±0.003 mm accuracy, reducing vibration and wear.
Q5: How can manufacturers balance productivity and precision?
Balancing involves selecting parameters that meet tolerances without excessive cycle times. For instance, milling aluminum at 0.3 mm/tooth and 15,000 RPM cut cycle time by 40% but increased variation by 0.01 mm, requiring trade-off analysis based on part requirements.
Title: Investigation of Cutting Parameter and Machine Tool Vibration Effects Using Regression Analysis to Enhance Part Dimensional Accuracy
Journal: Applied Mechanics and Materials
Publication Date: 2015
Key Findings: Machine tool vibration and cutting parameters significantly affect dimensional accuracy, with cutting speed, feed rate, and vibration having the most substantial impact on machined part precision.
Methodology: Experimental analysis using CNC lathe with carbide inserts, statistical analysis through Minitab software, regression model development for predicting dimensional accuracy.
Citation: Rahman, M.A., Elfi, R.I.F., Dan, M.M.P., Baharudin, A.B., Azureen, M.N.
Page Range: 93-97
URL: https://www.scientific.net/AMM.761.93
Title: Methods For Achieving Dimensional Accuracy In Part Machining
Journal: Manufacturing Tomorrow
Publication Date: 2023
Key Findings: Careful consideration of cutting speeds, feed rates, and tool selection is necessary for achieving high dimensional accuracy, with CNC machine tools providing superior precision capabilities.
Methodology: Analysis of machining equipment selection, process optimization techniques, and quality control systems for dimensional accuracy improvement.
Citation: Manufacturing Tomorrow Editorial Team
Page Range: Online publication
Title: Optimization of machining parameters while turning AISI316 stainless steel using response surface methodology
Journal: Scientific Reports
Publication Date: 2024
Key Findings: Response surface methodology effectively optimizes cutting parameters with optimal settings of cutting velocity 122.37 mm/min, feed 0.13176 mm/rev, and depth 0.213337 mm for minimum cutting force and surface roughness.
Methodology: L12 orthogonal array experimental design, RSM analysis, ANOVA investigation, multi-objective optimization using desirability function.
Citation: Siva Surya, M.
Page Range: 1-15
URL: https://www.nature.com/articles/s41598-024-78657-z
