Imagine you're a manufacturing engineer tasked with choosing the right process to produce a complex metal part—say, a lightweight automotive housing or a precision turbine blade for a jet engine. The stakes are high: cost, quality, and production speed all hang in the balance. Two standout options often come to mind: *die casting* and *investment casting*. Both are giants in the world of metal forming, yet they couldn't be more different in their approach, applications, and outcomes. If you've ever wondered what sets these processes apart—or how to decide which one fits your next project—this article is for you.
Die casting and investment casting are metal casting methods that transform molten metal into solid, functional components. They're rooted in the same basic idea—pouring liquid metal into a mold—but the similarities end there. Die casting is a high-speed, high-pressure process that churns out parts like aluminum gearbox housings with remarkable efficiency. Investment casting, often called “lost-wax casting,” takes a slower, more meticulous path, crafting intricate shapes like titanium medical implants with stunning precision. Each method has its own history, principles, tools, and sweet spots in the manufacturing world, and understanding them can make or break your production goals.
In this technical deep dive, we'll explore the ins and outs of both processes, drawing from reputable sources like Semantic Scholar and Wikipedia, plus insights from journal articles that unpack their nuances. We'll travel through their histories, break down their core principles, examine the equipment involved, spotlight real-world applications, and peek at the latest trends shaping their future—all with a conversational tone that keeps things grounded and practical. Whether you're optimizing for cost, tackling a tricky geometry, or scaling up production, you'll find the details you need to make an informed call. Let's get started by stepping back in time to see where these processes came from.
Casting metal into useful shapes is as old as civilization itself, but die casting and investment casting took distinct paths to become the powerhouses they are today. Let's start with investment casting, which has roots stretching back over 5,000 years. Archaeologists have uncovered evidence of lost-wax casting in Mesopotamia around 3200 BCE, where artisans poured molten copper into molds formed by melting wax patterns. By the Bronze Age, this technique was widespread, used to craft everything from jewelry to tools. Fast forward to ancient Egypt and China, and you'll find stunning examples like bronze statues and intricate ritual vessels—proof of investment casting's early knack for detail. The process got its modern name in the 19th century when industrialists “invested” (or coated) wax patterns with refractory materials, but its core idea remained unchanged: precision through patience.
The Renaissance and beyond saw investment casting evolve into a go-to for art and engineering. By the 20th century, it found a new calling in aerospace and dentistry. During World War II, the demand for complex, high-strength parts—like turbine blades for jet engines—pushed investment casting into the industrial spotlight. A 2018 journal article by Zhang et al. in *Materials Science and Engineering* highlights how the process adapted to nickel-based superalloys, enabling single-crystal turbine blades that withstand extreme heat. Today, it's a staple for anything requiring tight tolerances and exotic alloys.
Die casting, by contrast, is a much younger player, born from the industrial revolution's need for speed and scale. Its story kicks off in the mid-19th century with the invention of the printing press. In 1838, a guy named David Bruce patented a machine to cast lead type for newspapers, using pressure to force molten metal into molds. This was the spark that lit die casting's fire. By 1849, Sturges patented the first manually operated die casting machine, and the process took off. The real game-changer came in 1907 when Herman H. Doehler introduced high-pressure die casting for zinc and aluminum alloys, as noted in Wikipedia's historical timeline. Suddenly, manufacturers could churn out parts like automotive housings at a pace investment casting couldn't touch.
The 20th century saw die casting explode, especially in the automotive sector. Henry Ford's assembly lines demanded fast, repeatable production, and die casting delivered—think zinc carburetor bodies and aluminum transmission cases. A 2021 study by Adizue et al. in the *Journal of Manufacturing Processes* traces how cold-chamber die casting emerged in the 1920s to handle higher-melting-point metals like aluminum, boosting durability for engine components. Post-war, the rise of consumer goods—everything from toy cars to appliance handles—cemented die casting's reputation as a mass-production king.
Both processes have rich histories shaped by human ingenuity and industrial demands. Investment casting's ancient origins gave it a head start in precision, while die casting rode the wave of mechanization to dominate high-volume manufacturing. Real-world examples abound: the lost-wax method crafted the delicate bronze wings of a 3rd-century BCE Greek statue, while die casting spat out thousands of aluminum gearbox housings for 1960s muscle cars. Understanding these roots helps us appreciate why each method excels where it does—and why they're still evolving today.
At their heart, die casting and investment casting are about turning molten metal into solid parts, but their principles reveal stark contrasts in execution. Let's break them down step-by-step, with a focus on how they work, what they cost, and where they shine.
Die casting is all about efficiency under pressure—literally. The process starts with melting a metal, typically a non-ferrous alloy like aluminum, zinc, or magnesium, in a furnace. Once it's molten (say, 660°C for aluminum), the liquid is injected into a steel mold, called a die, at high pressure—anywhere from 1,000 to 20,000 psi, depending on the setup. This force ensures the metal fills every nook of the die's cavity, solidifying quickly as the mold absorbs heat. The die then opens, and the part pops out, ready for trimming and finishing.
There are two main flavors: *hot-chamber* and *cold-chamber*. Hot-chamber die casting, used for low-melting-point metals like zinc, keeps the molten metal in a chamber attached to the machine, injecting it directly into the die. It's fast—cycle times can be under 15 seconds—but limited to alloys below 450°C. Cold-chamber die casting, ideal for aluminum or magnesium, melts the metal separately and ladles it into the injection system, adding a step but handling higher temperatures. Costs vary: hot-chamber setups are cheaper to run (around $0.50-$1 per part), but cold-chamber dies need pricier maintenance due to thermal stress.

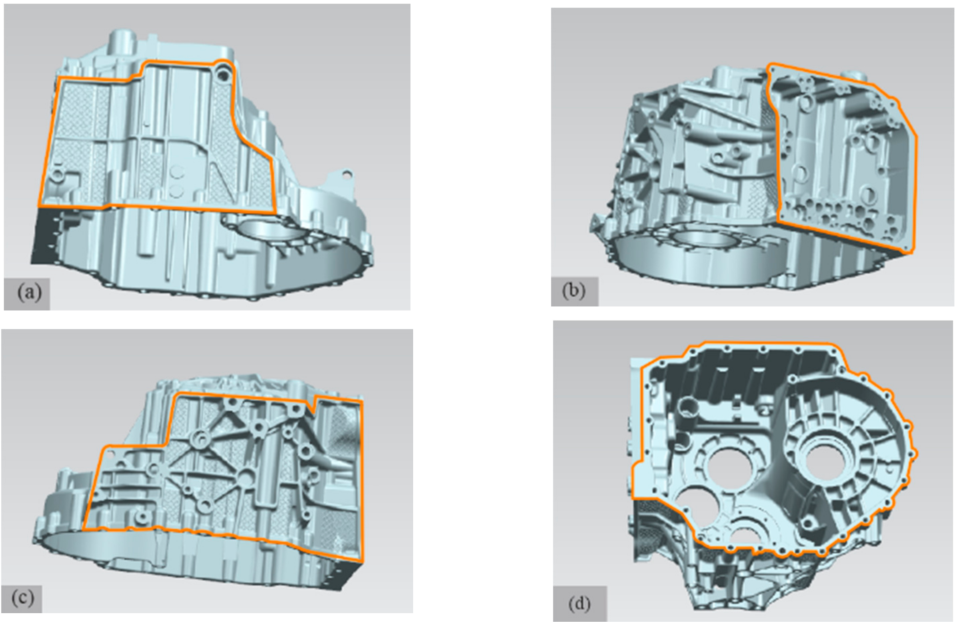

The principle here is repeatability. The steel dies are machined to exact specs, often costing $10,000-$50,000 upfront, but they can produce millions of parts with minimal variation. Think of a die-cast aluminum gearbox housing: the high pressure ensures tight tolerances (±0.1 mm) and a smooth finish, cutting down on machining time. Practical tip: keep your design simple—complex undercuts mean pricier multi-part dies.
Investment casting takes a slower, more artisanal approach. It begins with crafting a wax pattern of the part—imagine a turbine blade with intricate cooling channels. This pattern is coated (“invested”) with layers of ceramic slurry and sand, building a thick, heat-resistant shell. Once dry, the shell is heated to melt out the wax (hence “lost-wax”), leaving a hollow mold. Molten metal—often stainless steel, titanium, or superalloys—is poured in, typically under gravity or low pressure, and left to cool slowly. The shell is then broken away, revealing the part.
The steps are meticulous: pattern-making, shell-building, wax removal, pouring, and shell removal. Costs stack up fast—ceramic materials and labor can push small-batch expenses to $5-$20 per part, though economies of scale kick in for larger runs. The magic lies in precision: tolerances as tight as ±0.05 mm and surface finishes rivaling machined parts (Ra 1.6-3.2 µm). A 2018 study by Zhang et al. notes how directional solidification in investment casting creates single-crystal structures in turbine blades, boosting strength at high temperatures.
Real-world example: a titanium hip implant. The process captures fine details like porous surfaces for bone integration, impossible with die casting's blunt-force approach. Tip: plan for shrinkage—metals contract 1-2% as they cool, so patterns need slight oversizing.
Die casting thrives on speed and volume; investment casting excels in complexity and quality. Die casting's high-pressure injection suits simple, robust shapes, while investment casting's gravity pour handles delicate, intricate designs. Cost-wise, die casting wins for mass production (think thousands of zinc door handles), but investment casting justifies its price for low-volume, high-value parts like medical implants. Both need skill—die casting demands die maintenance, while investment casting requires shell expertise. Choose based on your priorities: speed or precision?
The tools and equipment behind die casting and investment casting are as different as their principles, each tailored to their unique demands. Let's dive into the hardware that makes these processes tick.

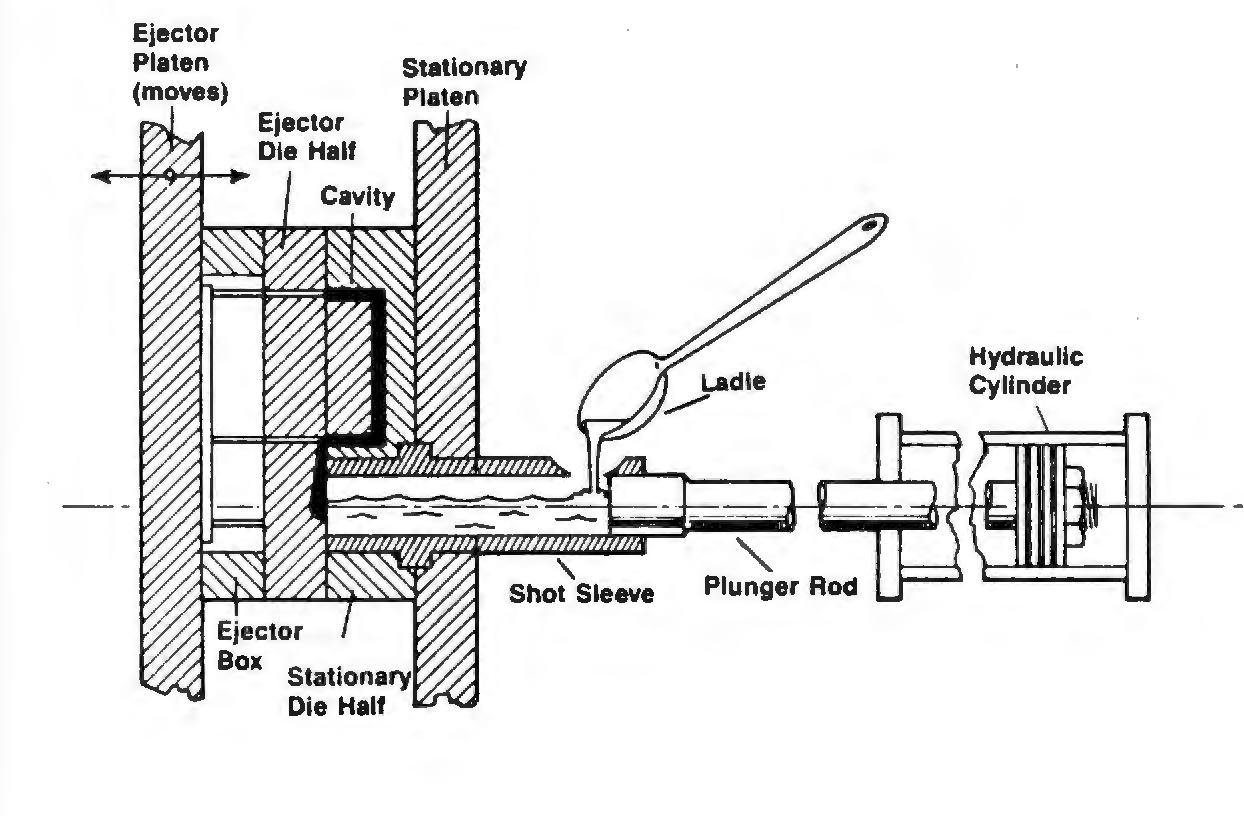

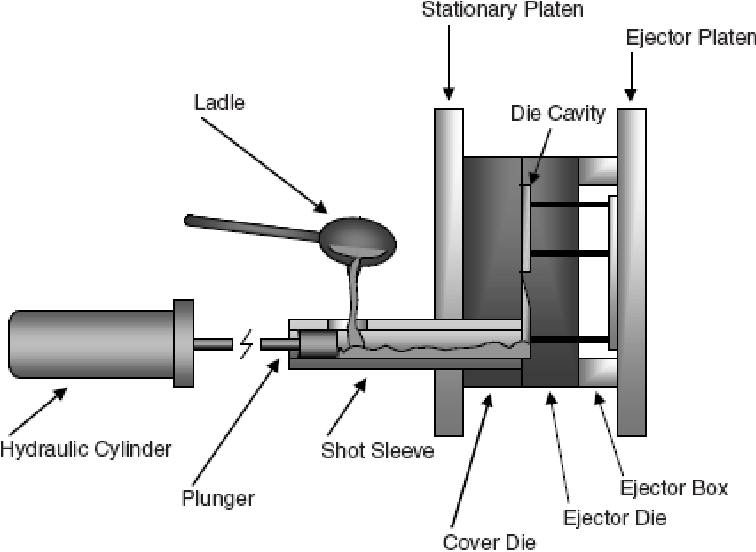

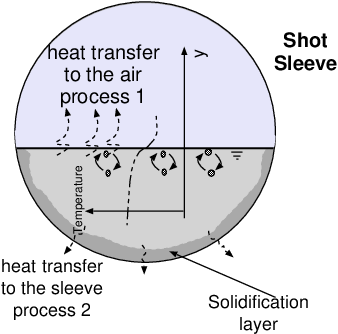

Die casting relies on heavy-duty machinery built for speed and durability. The star is the *die casting machine*, which comes in hot-chamber and cold-chamber variants. Hot-chamber machines, like those from Italpresse, feature a built-in furnace and a gooseneck injection system—molten zinc or magnesium (up to 450°C) is sucked into a plunger and shot into the die at 1,000-10,000 psi. They're compact, fast, and cost $50,000-$200,000. Cold-chamber machines, used for aluminum, separate the furnace (e.g., a gas-fired crucible) from the injection unit, requiring a ladle or robotic arm to transfer metal. These beasts, like Buhler's Evolution series, handle 600-700°C and cost $100,000-$500,000.
The *dies* themselves are precision-machined steel molds, often H13 tool steel, cooled with water channels to manage heat. A simple two-part die for an automotive housing might cost $15,000, while complex multi-slide dies for connectors hit $50,000+. Support tools include trimming presses to remove flash and CNC machines for finishing. Example: a die-cast magnesium phone frame starts in a cold-chamber machine, gets trimmed, and is polished—all in under a minute.
Investment casting leans on simpler, more specialized gear. It starts with a *wax injection press*, like a MPI 55 Series, which molds wax patterns under low pressure (50-100 psi). These cost $20,000-$50,000 and need dies too—aluminum ones for wax run $1,000-$5,000. Next, the *slurry system*—tanks and mixers—coats patterns with ceramic (e.g., silica-zircon blends), a setup costing $10,000-$30,000 for small foundries. Drying racks or conveyor ovens ($5,000-$20,000) harden the shells over hours or days.
The *autoclave* or *furnace* melts out the wax (300-500°C), while a *melting furnace*—often induction-based, like Inductotherm's—pours metal at 1,500°C+. These range from $50,000 for small units to $200,000+ for industrial scale. Shells are broken with hammers or vibratory knockout machines ($5,000-$15,000). Example: a nickel-alloy turbine blade's shell is built over a week, poured in a vacuum furnace, and cracked open manually—precision over pace.
Die casting's equipment is robust and automated, built for high throughput—think a cold-chamber machine spitting out 500 aluminum housings an hour. Investment casting's tools are slower and hands-on, prioritizing detail—a wax press might make 50 patterns a day. Costs reflect this: die casting's upfront investment is steep but scales well; investment casting's lower entry cost suits smaller runs. Tip: match your equipment to your volume—don't overspend on a die caster for a 100-part job.
Die casting and investment casting serve distinct niches in manufacturing, each shining in real-world scenarios. Let's explore where they're used, with examples that bring their strengths to life.

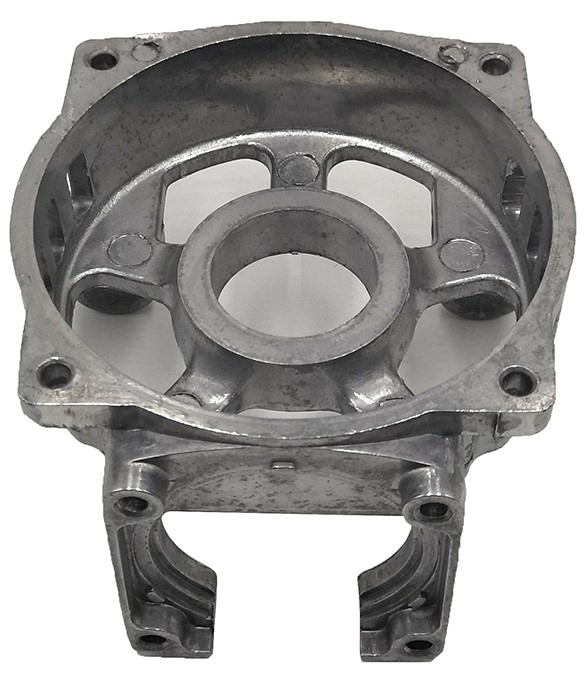

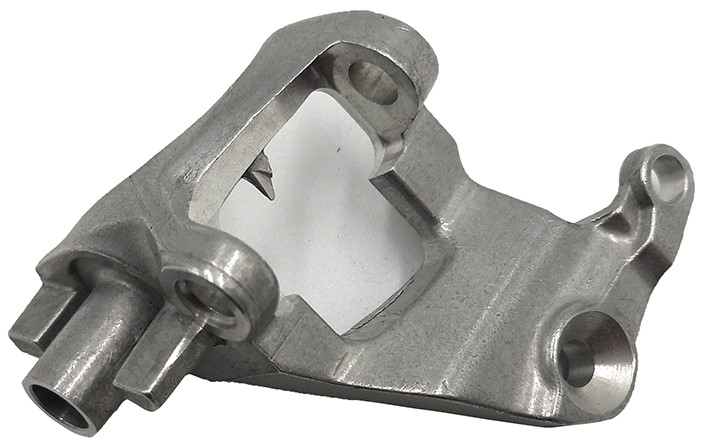

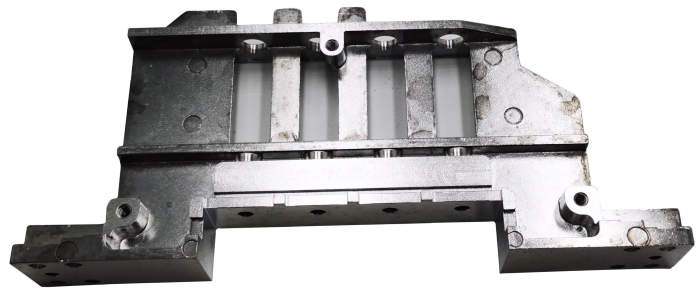

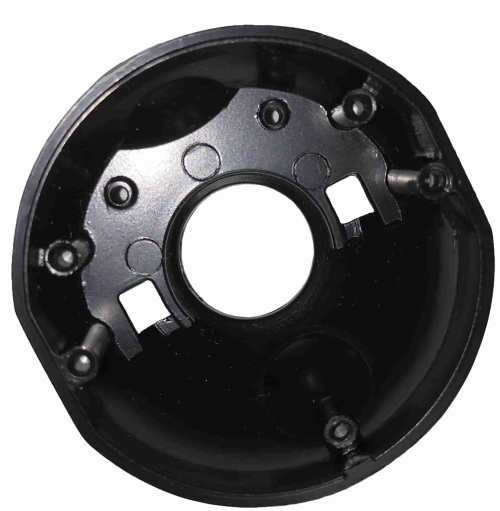

Die casting dominates high-volume production of non-ferrous parts. In the *automotive industry*, it's the backbone for components like aluminum transmission housings (e.g., Ford's F-150 gearbox) and zinc door lock mechanisms. These parts need strength, tight tolerances (±0.1 mm), and a smooth finish—die casting delivers at $1-$2 per unit in runs of 10,000+. The *electronics sector* leans on it too—magnesium laptop frames (think Lenovo ThinkPads) and aluminum heat sinks benefit from lightweight durability and rapid cycles.
Another gem: *consumer goods*. Die-cast zinc alloy toy cars (Hot Wheels) and brass faucet bodies showcase its ability to handle intricate yet simple shapes affordably. A 2021 study by Adizue et al. highlights how cold-chamber die casting improved aluminum engine block longevity, cutting warranty costs by 15%. Tip: use die casting when you need thousands of identical parts fast—its repeatability is unmatched.
Investment casting tackles complex, high-value parts where precision trumps volume. In *aerospace*, it's king—nickel superalloy turbine blades (e.g., GE's jet engines) rely on its ability to form cooling channels and single-crystal structures, tolerating 1,200°C+. Costs here are $50-$100 per blade, but the performance justifies it. The *medical field* loves it too—titanium hip implants and stainless steel surgical tools (e.g., Stryker's instruments) need biocompatibility and fine details (±0.05 mm), which investment casting nails.
Then there's *energy*: wind turbine hubs in steel, cast via lost-wax, handle massive loads with intricate geometries. Zhang et al.'s 2018 research shows how investment casting's directional solidification boosts creep resistance in superalloys, critical for turbine longevity. Tip: opt for investment casting when your design screams complexity—its flexibility handles what die casting can't.
Die casting churns out automotive housings and electronics casings by the truckload; investment casting crafts turbine blades and implants with surgical precision. Volume drives die casting; intricacy fuels investment casting. Pick based on your part's destiny—mass-market or mission-critical?
Both processes are evolving with technology and market demands. Let's look at what's hot in 2025, backed by examples and insights.
Die casting is leaning into *automation and sustainability*. Robotic arms now handle ladling and trimming, slashing cycle times—think a Buhler machine producing 600 aluminum housings hourly, up 20% from manual setups. *Lightweighting* is big too: magnesium alloys, down to 1.8 g/cm³, are replacing aluminum in EV battery trays (e.g., Tesla's Model Y), cutting vehicle weight by 10%. A 2021 Adizue et al. study notes how vacuum-assisted die casting reduces porosity in these parts, boosting strength.
*Additive manufacturing* is creeping in—3D-printed die inserts speed prototyping, dropping lead times from 12 weeks to 4. Costs are shifting too: energy-efficient furnaces save 15% on power, though steel die prices are up 10% due to raw material spikes. Tip: invest in vacuum systems for high-stress parts—they're worth the $50,000 add-on.
Investment casting is embracing *advanced materials and 3D printing*. Nickel-based superalloys with nano-additives, per Zhang et al. (2018), enhance turbine blade heat resistance by 50°C, critical for next-gen jets. *3D-printed patterns*—polymer instead of wax—cut production time by 30%, as seen in GE's rapid prototyping of engine vanes. Costs drop too: a $5,000 polymer die replaces a $20,000 wax setup for small runs.
*Sustainability* is trending—recycled ceramic shells and water-based slurries reduce waste by 25%. Medical implants are hotter than ever: cobalt-chrome knee joints with porous surfaces (e.g., Zimmer Biomet) leverage investment casting's precision. Tip: try 3D-printed cores for hollow parts—they're game-changers for complex designs.
Die casting pushes speed and eco-efficiency; investment casting refines precision and materials. Both are adapting to a world demanding lighter, stronger, greener parts—whether it's an EV housing or a jet turbine blade, these trends keep them relevant.
So, what's the difference between die casting and investment casting? It boils down to a tale of two philosophies: speed versus precision, volume versus complexity. Die casting is your go-to for cranking out thousands of parts—think aluminum automotive housings or zinc appliance handles—with efficiency that keeps costs low and production humming. Its high-pressure, steel-die approach delivers consistency and speed, perfect for mass-market needs. Investment casting, though, is the craftsman of the pair, sculpting intricate shapes like turbine blades or medical implants with a finesse that justifies its higher per-part cost and slower pace. It's the choice when quality and detail outweigh quantity.
Looking back, their histories tell the story: die casting rode the industrial wave to mass production, while investment casting's ancient roots evolved into a precision art. Their principles—pressure-driven versus gravity-fed—shape their equipment, from robust die casters to delicate wax presses, and their applications, from gearbox casings to hip replacements. Today, trends like automation and 3D printing are pushing both forward, balancing cost, sustainability, and performance.
Choosing between them? Ask yourself: How many parts do I need, and how complex are they? For a run of 10,000+ simple housings, die casting's your champ—expect $1-$2 per piece and a week's turnaround. For 100 turbine blades with internal channels, investment casting wins—$50-$100 each, but unmatched quality after a month's work. Practical tip: prototype with investment casting for tricky designs, then scale with die casting if volume justifies it. Both processes are vital, and understanding their strengths ensures you pick the right tool for the job.
