Milling aluminum plate involves removing material from a flat aluminum workpiece using rotating cutting tools. This subtractive process shapes the plate into the desired form, whether it be flat surfaces, pockets, slots, or complex contours. The versatility and machinability of aluminum make it an ideal candidate for milling, but achieving optimal results requires understanding the material’s properties, tooling, cutting parameters, and best practices.
Aluminum plates come in various alloys and thicknesses, each suited for different applications. The choice of alloy affects machinability, strength, corrosion resistance, and thermal properties. Common alloys for milling include 6061, 7075, and 2024, each offering a balance of machinability and mechanical performance.
Aluminum’s relatively low hardness compared to steels allows for higher cutting speeds and feed rates, which improves productivity. However, aluminum’s softness and ductility can also cause challenges such as chip welding to the cutting tool or poor surface finish if machining parameters are not optimized.
![]() | ![]() | ![]() | ![]() |
![]() | ![]() | ![]() | ![]() |
Several milling operations are commonly performed on aluminum plates:
Facing creates flat, smooth reference surfaces on the aluminum plate. It is often the first step in machining to ensure the workpiece is level and dimensionally accurate. When facing aluminum plates, climb milling is preferred to reduce tool wear and improve surface finish. Depths of cut typically range from shallow to moderate, balancing material removal with tool life.
Slotting cuts grooves or channels into the aluminum plate, useful for features like T-slots or keyways. Due to the confined cutting area, chip evacuation is critical. Using end mills with fewer flutes (1-2) maximizes chip clearance, and applying coolant helps prevent chip packing.

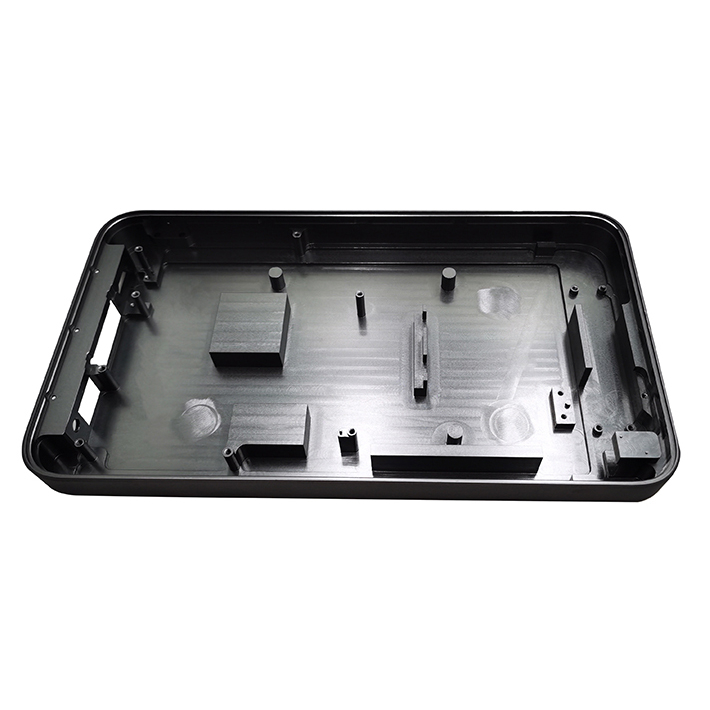

Pocketing removes material to create cavities or recesses within the plate. For aluminum, helical tool entry and trochoidal toolpaths are effective to maintain chip flow and reduce tool load. Progressive depth strategies are used for deeper pockets to avoid excessive tool stress.
Contour milling shapes the edges or complex curves on aluminum plates. The tool follows a predefined path to create smooth, precise profiles. High spindle speeds and appropriate feed rates are essential to prevent built-up edge and achieve a fine finish.
Drilling, counterboring, countersinking, and tapping are common hole-making operations on aluminum plates. Proper tool selection and speeds ensure clean holes without burrs or deformation.
Choosing the right cutting tools is critical for successful aluminum milling:
Material: Carbide tools are preferred for their hardness and heat resistance. High-speed steel (HSS) tools can be used for softer alloys or lower volume runs.
Flute Count: Tools with 2 or 3 flutes are common for aluminum to allow efficient chip evacuation.
Coatings: Uncoated or TiN-coated tools reduce chip welding and improve surface finish.
Geometry: Tools with sharp cutting edges and higher helix angles enhance cutting efficiency and reduce heat buildup.
Proper spindle speed, feed rate, and depth of cut are essential for milling aluminum plates effectively:
Spindle Speed: Aluminum allows for high spindle speeds due to its softness. Carbide tools can operate at several thousand RPMs depending on tool diameter.
Feed Rate: Feed per tooth should be balanced to maintain chip thickness and avoid tool overload. Typical values range from low to moderate depending on tool size and operation.
Depth of Cut: Shallow to moderate depths of cut prevent excessive tool deflection and heat generation.
Using the formula RPM = (SFM × 12) ÷ (π × tool diameter) helps calculate the correct spindle speed for a given surface feet per minute (SFM) value.
Use climb milling to reduce tool wear and improve surface finish.
Apply coolant or lubricant to dissipate heat and improve chip evacuation.
Maintain sharp cutting tools to prevent built-up edge formation.
Use proper fixturing to secure the aluminum plate and minimize vibrations.
Perform regular tool inspection and replacement to ensure consistent quality.
Optimize tool paths to minimize rapid movements and reduce machining time.
Aerospace: Lightweight structural components, brackets, and housings.
Automotive: Engine parts, chassis components, and custom fixtures.

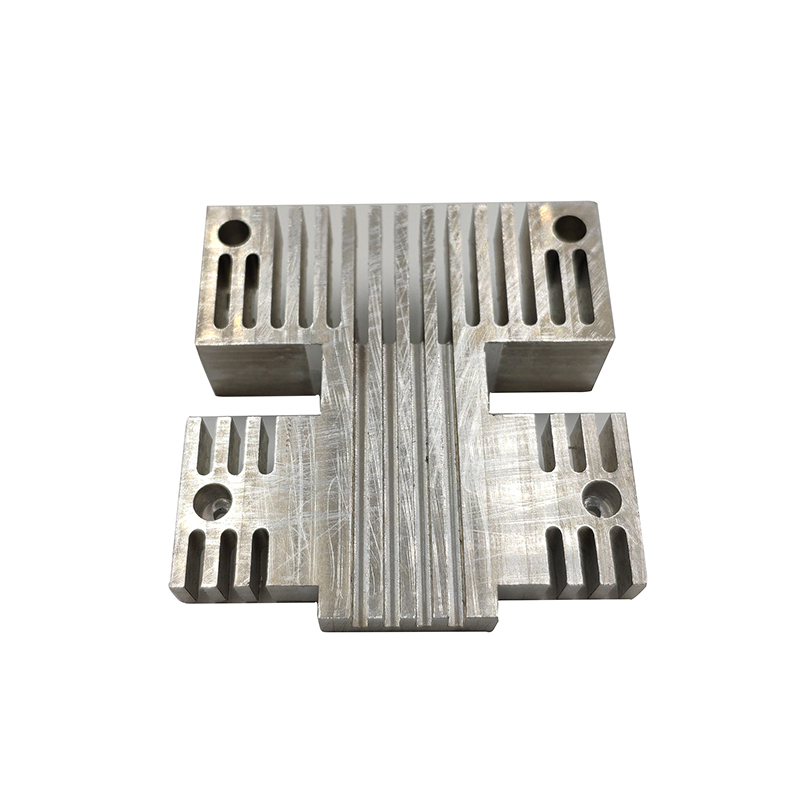

Electronics: Enclosures, heat sinks, and mounting plates.
Consumer Goods: Appliance panels, decorative trims, and hardware.
Industrial Machinery: Machine bases, tooling plates, and covers.
Milling aluminum plate is a versatile and efficient manufacturing process that transforms raw aluminum sheets into precise, functional components. Understanding the properties of aluminum, selecting the right tooling, and optimizing machining parameters are key to achieving high-quality results. CNC milling of aluminum plates enables the production of complex geometries with excellent surface finishes and tight tolerances, supporting a wide range of industrial applications.
Q1: What types of aluminum alloys are best for milling aluminum plate?
A1: Commonly milled alloys include 6061 for general use, 7075 for high strength, and 2024 for aerospace applications, each balancing machinability and mechanical properties.
Q2: Why is climb milling preferred when milling aluminum plate?
A2: Climb milling reduces tool wear and heat buildup, improves surface finish, and prevents chip welding to the cutting tool.
Q3: What cutting tools are recommended for milling aluminum plate?
A3: Carbide end mills with 2-3 flutes, sharp cutting edges, and appropriate coatings such as TiN are ideal for efficient aluminum milling.
Q4: How do you calculate the optimal spindle speed for milling aluminum plate?
A4: Use the formula RPM = (SFM × 12) ÷ (π × tool diameter), where SFM is the recommended surface feet per minute for aluminum and tool diameter is in inches.
Q5: What are the common challenges when milling aluminum plate?
A5: Challenges include chip welding, heat buildup, tool wear, and maintaining dimensional accuracy, all of which can be managed with proper tooling, coolant, and machining parameters.
