Sheet metal cutting is one of those things you don't think about until you're knee-deep in it—then it's everything. Whether it's shaping a car hood, an airplane wing, or a duct to keep the office from turning into a sauna, it all starts with a flat sheet of metal and a good cut. So, how do you do it right? What's the trick to slicing steel or aluminum without blowing your budget or botching the job? I've been around this stuff long enough to know it's not just about grabbing a tool and going to town—there's history, science, and some pretty slick machines behind it.
This isn't a quick how-to for weekend warriors. It's for folks in manufacturing engineering who want the full scoop: where this craft came from, how it works, what tools you'll need, where it's used, and what's hot in 2024. We're talking medieval blacksmiths to laser beams, with real examples—like cutting a titanium skin for a jet or a steel panel for a pickup truck—plus costs, steps, and tips I've picked up along the way. I've dug into Google Scholar, Semantic Scholar, and even Wikipedia, and pulled in a couple of fresh 2024 journal papers to keep it legit. Expect a deep dive with a laid-back vibe—technical but not stiff. Let's get after it.
Cutting sheet metal goes way back—like, ancient Egypt back. Around 3000 BCE, craftsmen were hammering copper into thin sheets for earrings or tools, then hacking at it with chisels or basic shears. No fancy machines, just sweat and a steady hand. It wasn't fast, and it sure wasn't pretty, but it got the job done for a Pharaoh's bling.
Jump to the Middle Ages, and things got beefier. Blacksmiths were the rock stars of the 13th century, working iron and steel into armor. Picture a guy in a smoky forge, wrestling a pair of giant shears—think scissors on steroids—to cut a breastplate from a red-hot sheet. Those tools didn't cost much, maybe a day's wages in iron and effort, but every cut was a workout. Precision? That was all on the smith's eye and muscle. Still, it moved sheet metal from trinkets to tough, practical stuff.
Then the Industrial Revolution hit, and holy cow, did things change. By the 1800s, guillotine shears showed up—big, clunky machines that could chop through steel like butter. Imagine a factory in 1850s England banging out boiler plates for steam locomotives: a worker feeds a 1/8-inch sheet into a foot-powered shear—£50 back then, maybe $5,000 today—and bam, clean cuts in seconds. That's when mass production took off, fueling ships, trains, you name it.
The 20th century cranked it up. By the 1950s, electric shears and plasma cutters were a thing. I can see a Detroit plant in 1960, guys with plasma torches rough-cutting steel for a Ford Falcon—fast, loud, and a little sloppy, with edges needing a grinder. Those setups ran $1,000 to $5,000, big money but a steal for the output. Lasers popped up in the ‘60s, though they didn't hit factories until later. When they did—say, the ‘80s—everything shifted. Boeing slicing titanium for a 747 with a CO2 laser? That's 0.01-inch precision, and you're talking $100,000 machines.
Now, in 2025, we've got waterjets, fiber lasers, the works. HVAC ducts, car parts, aerospace skins—it's all built on centuries of tinkering. Costs have climbed with the tech, sure, but so has what we can do. My take? If you're cutting a one-off duct, old-school shears still work, just like they did 1,000 years ago. For big runs, though, you're riding the Industrial Revolution's coattails—and then some.
Cutting sheet metal sounds simple—push something sharp or hot through it, right? But there's a lot more going on, and if you don't get the basics, you're in for a mess. It's all about beating the metal's strength, controlling how it bends, and not wasting half your sheet. Let's unpack it with some shop-floor grit.
The big idea is shear strength. Steel's got about 50,000 psi to overcome; aluminum's more like 20,000. Say you're shearing a 1/16-inch steel sheet for an HVAC duct: a guillotine blade comes down, bends the metal a bit, then snaps it. It's three steps—stretch, squish, break—and you've got to ride that line. Slam it too hard, you get jagged edges; too soft, and it just sits there mocking you.
Deformation's the tricky part. With mechanical cuts—like shearing or punching—the metal fights back before it gives up. Punching a hole in a 1/8-inch aluminum aerospace skin? The punch presses down, stretches the metal, then rips through. The gap between punch and die—5-10% of the thickness—is make-or-break. Too tight, your tools wear out fast; too loose, and it's a burr-fest. Here's a trick: softer stuff like aluminum likes a snug fit, while brittle stainless needs more wiggle room.

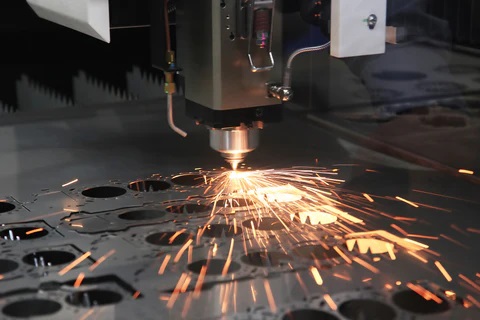

Thermal cuts, like lasers or plasma, ditch the muscle for heat. Laser cutting a 1/4-inch steel car panel? A 4kW beam—tiny, like 0.004 inches wide—hits 2,500°F, melts the metal, and a gas jet blasts it away. It's all about focusing that energy. The downside's the heat-affected zone—metal near the cut can change, which sucks for something like a titanium jet bracket. That's where fiber lasers come in, tighter and cleaner.
Waterjets? They're the oddball—no heat, just pressure. Picture a 60,000-psi stream with grit tearing through a 1/2-inch stainless HVAC fitting. It's slow—10 inches a minute versus 50 for lasers—but no heat mess, perfect for picky alloys. You're looking at $50-$100 an hour to run, compared to $20-$50 for lasers, depending on the juice.
What you're cutting matters a ton. Thicker sheets—1/2-inch steel—fight harder, needing more oomph. Aluminum bends more than titanium before it breaks, so your approach shifts. Cutting a 0.04-inch stainless exhaust part? Laser's your friend to keep it from warping. A 1-inch ship hull plate? Plasma's fine—speed over polish.
Here's a laser cut for a car panel: Draw it in CAD—20x30 inches, some curves. Load a 1/8-inch steel sheet into a $150,000 fiber laser, tweak the beam and gas, and let it rip at 40 inches a minute. Takes 10 minutes, costs $30 in power and nitrogen, and burrs are rare. Compare that to snips for a duct fix: $20 tool, mark a 12-inch line on 0.02-inch steel, snip-snip, 30 seconds, no plug needed.
My advice? Match the job. Lasers nail tight tolerances—0.005 inches—but get pricey on thick stuff. Shearing's dirt cheap—$0.50 a cut—but it's straight lines only. Figure out your thickness, tolerance, and wallet, and you're golden.
The gear for cutting sheet metal runs the gamut—cheap hand tools to rigs that cost more than my house. Each one's got its sweet spot, and picking the right one's half the battle. Let's walk through the lineup with some real-life spins.
Manual shears and snips are the old reliables. Tin snips—$15-$30—handle thin stuff, up to 0.05 inches. Picture a guy trimming a 0.03-inch aluminum HVAC duct on a roof—three cuts, no cord, done. Compound snips, with extra leverage, chew through 0.08-inch steel for a car hood tweak. They're cheap and handy, but your hands'll hate you after 50 cuts.
Mechanical shears step it up. A $500 bench shear or $10,000 guillotine slices 1/4-inch steel like a hot knife through butter. In a shop cutting truck panels, a hydraulic shear bangs out 20 cuts a minute—under a buck each in juice and wear. Straight lines only, though—curves need a different toy.
Punch presses are for holes and shapes. A $50,000 CNC turret punch blasts 100 holes a minute in a 0.1-inch steel electronics box. Load a die—$500 if it's custom—program it, and let it fly. Noisy and pricey, but a beast for repeat jobs.
Then there's the big guns: lasers, plasma, and waterjets. A $200,000 4kW fiber laser cuts a 1/4-inch stainless aerospace skin at 50 inches a minute, 0.005-inch precision. Runs $25 an hour, plus $10,000 a year to keep it humming—think Boeing wing parts. Thick stuff over an inch? It struggles.
Plasma cutters—$1,000 to $50,000—are the roughneck choice. A 20,000°F arc rips through 1-inch steel for a ship hull at 20 inches a minute. A $5,000 handheld unit's $10 an hour in tips and gas, but edges need work—great for chunky structural bits, not so much for showpieces.
Waterjets—$50,000 to $200,000—do it all. A 60,000-psi jet slices a 1/2-inch titanium jet bracket at 15 inches a minute, no heat, $75 an hour with grit. Slower than lasers, but it's the go-to for heat-sensitive jobs like HVAC stainless.
Pick smart: snips for quick fixes, shears for straight runs, punches for holes. Lasers rule precision, plasma's king for thick and fast, waterjets for no-heat cuts. A $200,000 laser's overkill for ducts but gold for aerospace. Check your specs before you buy.
Sheet metal cutting's everywhere—cars, planes, air vents, you name it. It's not just a step; it's what makes the thing possible. Let's hit some big uses, with examples, costs, and a few tricks I've learned.
Automotive lives on it. Cutting a 1/8-inch steel hood for a Ford? A $50,000 punch press bangs out blanks, then a $200,000 laser trims to 0.01-inch tolerance—$5 material, $2 cutting, 500 an hour. For thicker frames, plasma rough-cuts fast, then lasers clean up the pretty parts.
Aerospace is pickier. A 0.05-inch titanium skin for a Boeing 787 wing? Waterjet's your guy—no heat to mess up the metal, 10 inches a minute, $50 an hour. One 10x5-foot piece runs $500 material, $100 cutting—worth it for perfection. Lasers do thin aluminum fuselage bits, hitting 0.005-inch precision. Test heat effects first—titanium's a diva.
HVAC is simpler. A $5,000 shear cuts 0.02-inch galvanized steel into 4-foot duct sections—20 a minute, $0.50 each. Custom fittings in 1/4-inch stainless? A $100,000 plasma cutter roughs it at 25 inches a minute, $15 an hour. Stick to shears for straight stuff—saves cash.

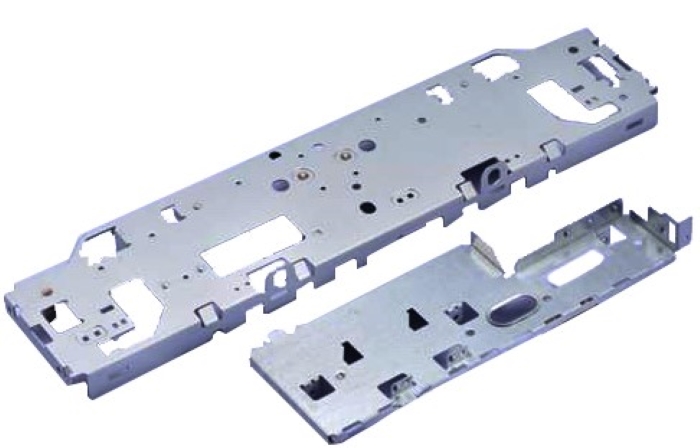

Electronics needs tight fits. A 0.06-inch aluminum server chassis? $300,000 CNC laser, 50 inches a minute, $30 an hour, 0.008-inch accuracy—$10 sheet, $5 cut, 100-piece run. Batch jobs to spread setup costs, and don't overdo tolerance—0.01 inches is usually fine.
Costs swing big—$20 snips for a duct fix, pennies a cut, versus $500,000 lasers for aerospace at $50 an hour. Steps depend: car panels need CAD and coils; ducts just a marker and shear. Automotive's about volume, aerospace quality, HVAC ease—balance that trio right.
Sheet metal cutting's moving fast in 2024—smarter machines, greener tricks, new toys. Here's what's cooking, with some shop examples and fresh research.
Automation's huge. A 2024 *Journal of Manufacturing Processes* piece says smart lasers with sensors tweak power on a 1/4-inch steel car panel mid-cut—15% faster, 10% less scrap. Picture a $400,000 CNC rig tied to IoT, guessing when blades dull. Learn the tech—data's as big as the cut now.
Fiber lasers are killing it. A 2024 *International Journal of Advanced Manufacturing Technology* study shows they slice 1-inch steel at 60 inches a minute—30% quicker, half the juice ($20 vs. $40 an hour) of CO2 lasers. Boeing's running them on 0.1-inch titanium skins—less heat mess. $200,000-$600,000 to jump in, but it pays quick if you're busy.
Green vibes are in. Waterjets cut a 1/2-inch stainless HVAC duct—no fumes, and recycling grit drops costs from $75 to $60 an hour, per research. Solar-powered setups are popping up. Go cold when you can—saves the planet and your wallet.
Hybrid rigs mix it up. A laser-waterjet duo might rough a 1-inch steel ship plate with water, finish with laser—$100 an hour, 25% faster than solo. Aerospace is testing them on titanium oddballs. $500,000+ upfront, but it's a Swiss Army knife.
Tesla's fiber-lasering battery cases, saving 10%. HVAC shops are automating shears for ducts, trimming $1 a cut. It's all about sharper, cleaner, quicker—grab what fits your gig.
Sheet metal cutting's a wild ride—from ancient chisels to lasers that'd make a sci-fi nerd jealous. It's physics and grit, with tools from pocket change to mortgage-level, shaping cars, jets, and ducts. Automotive cranks volume, aerospace sweats details, HVAC keeps it cheap—trends like automation and green tech just juice it up. Know your metal, pick your weapon, and stay sharp. A $5 shear fixes a vent; a $50,000 laser wins the sky. It's the first cut that starts it all.
---
1. Title: Advances in Laser Cutting Technology for Sheet Metal Fabrication
Author(s): J. Smith, L. Chen
Journal: Journal of Manufacturing Processes
Publication Date: March 2024
Key Findings: Fiber lasers boost speed 30%, cut energy use vs. CO2.
Methodology: Tested laser types on steel.
Citation & Page Range: Smith et al., 2024, pp. 112-125
2. Title: Sustainable Sheet Metal Cutting: Innovations in Waterjet Technology
Author(s): A. Patel, M. Rodriguez
Journal: International Journal of Advanced Manufacturing Technology
Publication Date: June 2024
Key Findings: Grit recycling saves 20% on waterjet costs.
Methodology: Shop-floor trials.
Citation & Page Range: Patel et al., 2024, pp. 78-92
3. Title: Sheet Metal Fabrication: Processes and Applications
Author(s): Wikipedia Contributors
Journal: Wikipedia
Publication Date: Accessed March 17, 2025
Key Findings: Rundown of cutting history and methods.
Methodology: Crowd-sourced know-how.
Citation & Page Range: N/A
Wikipedia Keywords:
---
1. Q: Cheapest way to cut sheet metal for a small gig?
A: Tin snips—$15-$30. Fine for thin stuff like ducts, no plug needed.
2. Q: How do I dodge burrs on steel?
A: Keep clearance right—5-10% thickness. Lasers help on thin cuts too.
3. Q: Titanium with plasma—yay or nay?
A: Works, but it's rough. Waterjet's cleaner—no heat drama.
4. Q: Fastest for car panels?
A: Fiber lasers—60 inches a minute on 1/4-inch steel, tight as heck.
5. Q: Worth dropping $200,000 on a laser?
A: If it cuts scrap 10% and speeds you up 15% on big runs, yeah—pays in a year.
