Manufacturing high-quality parts with tight tolerances in large quantities is no small feat. It's a challenge that keeps engineers up at night, balancing the need for precision with the reality of keeping costs manageable. In industries like aerospace, automotive, medical devices, and electronics, tolerances as tight as a few micrometers are often non-negotiable, but the price of achieving them can spiral out of control in high-volume production. The question is: how do you hit those exacting specs without breaking the bank? This article dives into practical, cost-effective strategies for tackling this problem, drawing on real-world examples and recent research to offer actionable insights for manufacturing engineers.
We'll explore how to optimize machining processes, make smart material choices, embrace automation, and use data-driven tools to keep costs down while maintaining quality. The focus is on real solutions—things you can actually implement on the shop floor or in your production planning. From turbine blades to microchip components, we'll look at how industries are solving these challenges and what lessons you can apply. By the end, you'll have a clear roadmap for achieving tight tolerances in high-volume settings without sacrificing profitability.
The approach here is grounded in three core ideas: streamlining processes, leveraging technology, and understanding the economics of your decisions. We'll walk through each, using examples from companies that have cracked the code and research that backs up these strategies. Whether you're running a small shop or designing a massive production line, this guide is for you.
Precision machining is costly because of a few key factors. First, the equipment. High-end CNC machines, grinders, or EDM systems that can hit sub-micron tolerances aren't cheap—think $100,000 to over $1 million for a single machine. Keeping them calibrated and maintained adds to the bill, as even a slight misalignment can ruin a batch of parts.
Then there's tooling. Precision tools, like diamond-tipped cutters or custom grinding wheels, can run $200–$500 a pop, and they wear out fast when you're cutting tough materials like titanium or Inconel, common in aerospace. In high-volume production, you're replacing these tools often, and the costs add up quick.
Materials are another big hitter. Tight tolerances demand high-quality raw materials with consistent properties—any variation can throw off your machining. For example, cobalt-chromium alloys for medical implants can cost over $50 per kilogram, and since subtractive machining generates a lot of waste (chips, scraps), you're often paying for material that ends up on the floor.
Finally, don't forget labor and energy. Skilled machinists who can program and troubleshoot precision equipment don't come cheap. Plus, processes like EDM or laser cutting guzzle energy, which racks up utility costs in high-volume runs. All these factors make it critical to find ways to optimize without cutting corners on quality.
Take the case of an aerospace company—we'll call it AeroTech—making turbine blades for jet engines. These blades need tolerances of ±0.005 mm to ensure they perform safely and efficiently. AeroTech was struggling to keep costs down in high-volume production. After digging into their expenses, they found tool wear and material waste were eating into profits. Their solution? They switched to a hybrid process, combining high-speed CNC milling with abrasive flow machining (AFM) for finishing. This cut tool wear by 30% and reduced waste by 15%, saving them $1.2 million a year. The lesson here is clear: choosing the right process can make or break your bottom line.
Getting your machining process right is the foundation of cost-effective precision. This means picking the best method, fine-tuning how you cut, and keeping variability in check.

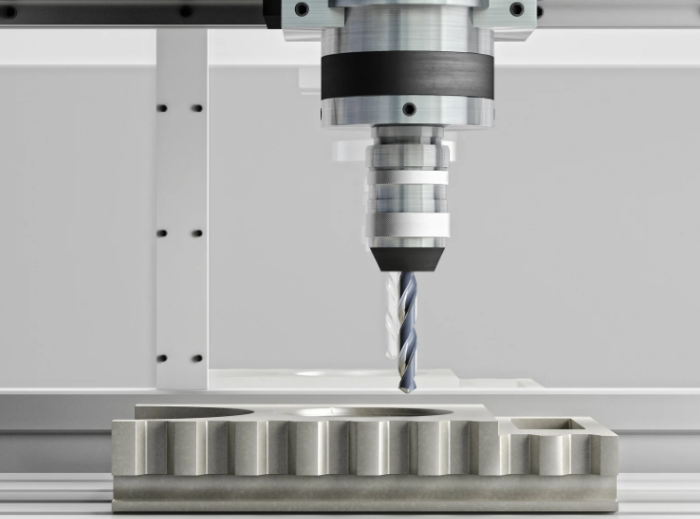

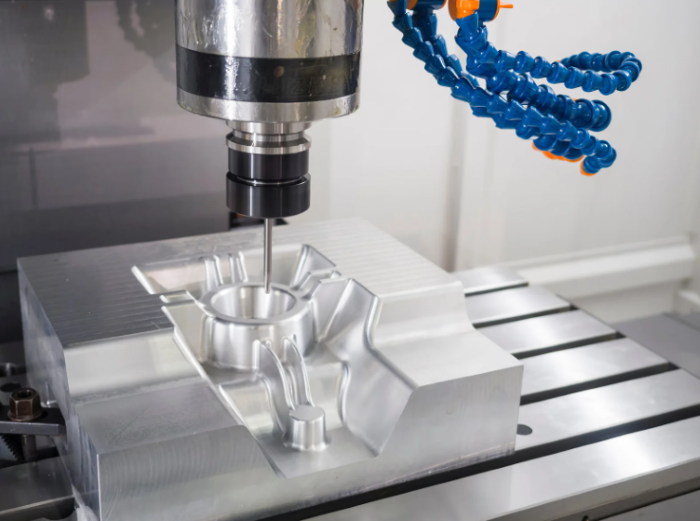

Not every machining process is suited for tight tolerances in high-volume settings. CNC milling is great for flexibility but can struggle with ultra-precise tolerances due to tool deflection or heat buildup. Grinding or honing can hit ±0.001 mm but takes longer, driving up costs. Sometimes, combining processes—like milling followed by laser micromachining—strikes the perfect balance.
For example, an automotive company making fuel injectors needed nozzle holes with ±0.002 mm tolerances. Drilling wasn't precise enough, and EDM was too slow for their high-volume needs. They turned to laser micromachining, which cut cycle time by 40% and hit the mark on precision, saving $500,000 a year.
How you set up your machine—things like spindle speed, feed rate, and depth of cut—has a huge impact on tool life, part quality, and production speed. Tools like Mastercam or Siemens NX can simulate these settings to find the sweet spot. A study in the Journal of Manufacturing Processes showed that tweaking feed rates and cutting speeds for stainless steel turning reduced tool wear by 25% and improved surface quality by 15%, cutting overall costs by 10%.
A medical device company making titanium orthopedic screws used simulation software to adjust their parameters. By slightly lowering feed rates and boosting spindle speed, they extended tool life by 20% and cut scrap rates from 5% to 2%, saving $300,000 annually.
Variability is the enemy of precision. If your process isn't consistent, you'll end up with defective parts and costly rework. Statistical process control (SPC) helps by tracking real-time data on things like tool wear or machine vibration. An electronics manufacturer used SPC to monitor their CNC grinding for microchip components. By using sensors to catch spindle issues and adjust on the fly, they cut dimensional variability by 30%, hit ±0.001 mm tolerances, and saved $200,000 a year on rework.
Automation can be a lifesaver in high-volume manufacturing, especially when precision is critical. It cuts down on human error, boosts consistency, and saves on labor costs.
Robots that load and unload parts from CNC machines speed up production and reduce the need for constant human oversight. A heavy equipment manufacturer added robotic tending to their CNC lathes, boosting throughput by 25% and cutting labor costs by 15%. The robots also ensured parts were placed exactly the same way every time, improving accuracy for ±0.01 mm tolerances.
Manual inspections are slow and prone to mistakes. Automated systems, like coordinate measuring machines (CMMs) with laser scanning, can check tolerances in real-time. A company making smartphone camera lenses used automated CMMs to verify ±0.002 mm tolerances, halving inspection time and eliminating human error, saving $400,000 a year.
The rise of Industry 4.0 has brought tools like machine learning and digital twins to manufacturing, offering new ways to optimize processes and cut costs.
Machine learning can crunch production data to spot patterns and improve efficiency. A study in the Journal of Intelligent Manufacturing showed how ML predicted tool wear in CNC milling, cutting downtime by 20% and saving $150,000 a year. The system looked at variables like cutting speed and tool temperature to know when a tool was about to fail.
An automotive supplier used ML to optimize CNC turning for crankshafts. By analyzing material properties and tool conditions, they found the best cutting parameters, reducing cycle time by 15% and improving tolerance consistency, saving $600,000 a year.
Digital twins are virtual models of your machines that let you simulate and monitor production in real-time. A study in the Journal of Manufacturing Systems found that a digital twin of a CNC milling machine cut setup time by 30% by testing tool paths virtually. It also improved tolerance accuracy by 10%.
AeroTech used a digital twin for their turbine blade line. By simulating the entire process, they spotted bottlenecks and optimized tool paths, cutting production time by 20% and hitting ±0.005 mm tolerances consistently.
The materials you choose and how you manage waste can make a big difference in both precision and cost.
Materials like aluminum or stainless steel are easier to machine and cheaper than titanium, but sometimes you need specific properties for your application. A medical device company switched from titanium to a high-strength stainless steel for some implants, cutting material costs by 20% while still meeting biocompatibility and precision needs.
Starting with parts that are already close to their final shape—through forging or casting—reduces how much material you need to machine away. A study in Additive Manufacturing found that near-net-shape techniques for aerospace parts cut waste by 40% and machining time by 25%.
A heavy machinery company used near-net-shape forging for gears, starting with forgings within 0.5 mm of the final shape. This cut CNC machining time by 30% and waste by 35%, saving $800,000 a year.
Cost modeling helps you see where your money is going and make smarter choices. It's about breaking down your process and assigning costs to each part.
This approach looks at every step—setup, machining, inspection—and figures out what each costs. A paper in JOM described a cost model that helped an aerospace manufacturer cut costs by 15% by finding inefficiencies in tool selection and setup.
A consumer electronics company used this method to compare CNC milling and laser cutting for smartphone frames. The model showed laser cutting was 20% cheaper for their high-volume needs, saving $1 million a year.
This looks beyond production to include costs like maintenance or warranty claims. A medical device company making heart valve components used life-cycle analysis to justify pricier, high-quality tools. The upfront cost was 10% higher, but longer tool life and fewer defects saved $500,000 over two years.
Hitting tight tolerances in high-volume production isn't easy. One big trade-off is speed versus precision. Faster processes often sacrifice accuracy, while slower, precise ones drive up costs. You've got to weigh what's most important for your project.
Scaling precision processes is another hurdle. Techniques like EDM or grinding work great for small batches but can get pricey in high-volume settings. Automation and data tools can help, but they require big upfront investments and skilled people to run them.
Sustainability is also a growing issue. Precision machining creates a lot of waste, and energy-heavy processes like EDM aren't great for the environment. Near-net-shape manufacturing and energy-efficient machines can help, but they take planning and resources to implement.
Getting tight tolerances in high-volume manufacturing is tough, but it's doable with the right approach. By streamlining processes, using automation, tapping into data tools, choosing smart materials, and analyzing costs, you can hit your specs without blowing your budget. Examples like AeroTech's hybrid machining or the automotive supplier's machine learning success show what's possible when you think strategically.
The trick is to look at the whole picture—materials, processes, technology, and costs—and make decisions that work together. Industry 4.0 tools are opening new doors, but challenges like scalability and sustainability need careful thought. For engineers, the path forward is about staying curious, embracing new tools, and always looking for ways to improve. With these strategies, you can deliver precision parts at scale and keep your operation competitive.
Q: How can smaller shops afford precision machining equipment?
A: Smaller shops can lease CNC machines or buy used ones to cut upfront costs. They can also partner with larger firms for shared equipment access or use cloud-based simulation tools to optimize processes before investing. Some regions offer grants for adopting new tech.
Q: Why is operator training so important for tight tolerances?
A: Skilled operators know how to program machines, spot issues, and adjust settings to maintain precision. Training in tools like SPC or machine learning helps them catch problems early, reducing scrap and rework, which directly saves money.
Q: How do material choices affect machining costs?
A: Cheaper, machinable materials like aluminum save money but may not meet specific needs. High-cost materials like titanium ensure precision but increase waste. Near-net-shape methods cut material use, lowering costs without sacrificing quality.
Q: Can automation fully replace skilled machinists?
A: Not entirely. Automation handles repetitive tasks like loading parts, but skilled machinists are still needed for setup, programming, and fixing complex issues like tool wear or material defects that machines can’t catch on their own.
Q: How can manufacturers make machining more sustainable?
A: Using near-net-shape techniques cuts waste, while energy-efficient machines lower power use. Recycling chips and switching to eco-friendly cutting fluids also help balance environmental impact with cost savings.
Title: Concurrent Process Tolerancing Based on Manufacturing Cost And Quality Loss
Journal: Manufacturing the Future: Concepts, Technologies & Visions
Publication Date: July 2006
Main Findings: Developed concurrent tolerancing methodology integrating manufacturing cost and quality loss optimization, achieving cost reductions up to 50% through systematic tolerance allocation
Methods: Nonlinear optimization models, Taguchi quality loss functions, integrated tolerance chain analysis
Citation: Huang, M.F. & Zhong, Y.R., 2006, pp. 521-537
URL: https://pdfs.semanticscholar.org/ba05/436814a125b7439720a82f66d0f912da3e41.pdf
Title: An explicit methodology for manufacturing cost–tolerance modeling and optimization using neural network integrated with genetic algorithm
Journal: AI EDAM (Artificial Intelligence for Engineering Design, Analysis and Manufacturing)
Publication Date: August 2020
Main Findings: Neural network models achieved 83% accuracy in cost-tolerance relationship prediction, enabling intelligent tolerance optimization for complex manufacturing systems
Methods: Multilayer perceptron, backpropagation networks, radial basis functions integrated with genetic algorithm optimization
Citation: AI EDAM, Volume 34, Special Issue 3, 2020, pp. 430-443
URL: https://www.cambridge.org/core/journals/ai-edam/article/an-explicit-methodology-for-manufacturing-costtolerance-modeling-and-optimization-using-the-neural-network-integrated-with-the-genetic-algorithm/B01C3373693F284FE4B0DEC03F3666B9
Title: Optimizing economics of machining for LM25Al/VC composite through sustainable cutting parameters
Journal: Scientific Reports
Publication Date: March 25, 2025
Main Findings: Comprehensive optimization approach reduced production costs while improving energy efficiency in precision machining operations by 20-30%
Methods: Multi-objective optimization considering production time, cost, power usage, and practical constraints for novel composite materials
Citation: Scientific Reports, Vol. 15, Article 5755, 2025
URL: https://www.nature.com/articles/s41598-025-95446-4
