CNC machining is a pivotal technology in modern manufacturing, revolutionizing the way products are designed and produced. This article delves into the intricacies of CNC machining, exploring its definition, processes, applications, advantages, and future trends.
CNC stands for Computer Numerical Control. It refers to a manufacturing process that utilizes computer software to control machine tools. This technology allows for precise and automated control of machinery, enabling the production of complex parts and components with high accuracy. CNC machining encompasses various processes, including milling, turning, drilling, and grinding, all of which are essential in creating intricate designs. The ability to program machines to follow specific paths and instructions means that manufacturers can produce parts that are not only accurate but also repeatable, ensuring consistency across large production runs.
The origins of CNC machining can be traced back to the 1940s and 1950s when the first numerical control machines were developed. These early machines relied on punched tape to control their movements, which limited their flexibility and complexity. Over the decades, advancements in computer technology led to the development of more sophisticated CNC systems, allowing for greater precision and flexibility in manufacturing. Today, CNC machining is an integral part of various industries, including aerospace, automotive, medical, and electronics. The evolution of CNC technology has also led to the integration of advanced features such as multi-axis machining, which allows for the creation of more complex geometries and designs that were previously unattainable.
CNC machining involves several key components that work together to produce high-quality parts. These components include:
CNC Machine: The core of the process, which can be a milling machine, lathe, or router, equipped with a computer control system. These machines are designed to handle various materials and can be customized with different tools to suit specific tasks.
Computer Software: Programs that generate the instructions for the CNC machine, often created using CAD (Computer-Aided Design) software. This software allows designers to create detailed 3D models that can be easily translated into machine instructions.
Tooling: The cutting tools used in the machining process, which can vary based on the material and desired finish. The choice of tooling is critical, as it affects the quality of the finished product and the efficiency of the machining process.
The CNC machining process typically follows several steps:
Design Creation: The first step involves creating a detailed design of the part using CAD software. This design serves as the blueprint for the machining process. Designers can simulate the machining process within the software to identify potential issues before production begins.
Programming: Once the design is complete, it is converted into a CNC program using CAM (Computer-Aided Manufacturing) software. This program contains the specific instructions for the CNC machine, including tool paths, speeds, and feeds. The programming phase is crucial, as it determines how efficiently the machine will operate.
Setup: The CNC machine is set up with the appropriate tooling and material. This step ensures that the machine is ready to execute the programmed instructions. Proper setup is essential for minimizing errors and ensuring that the machining process runs smoothly.

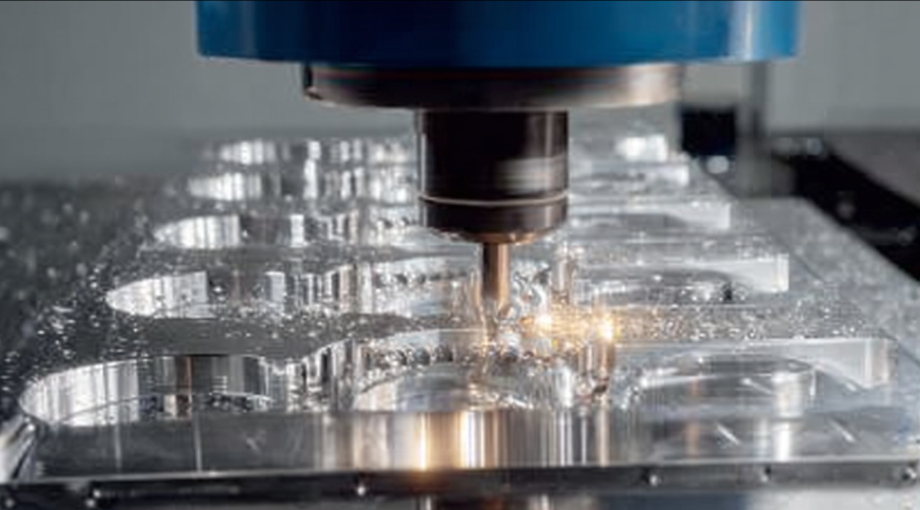

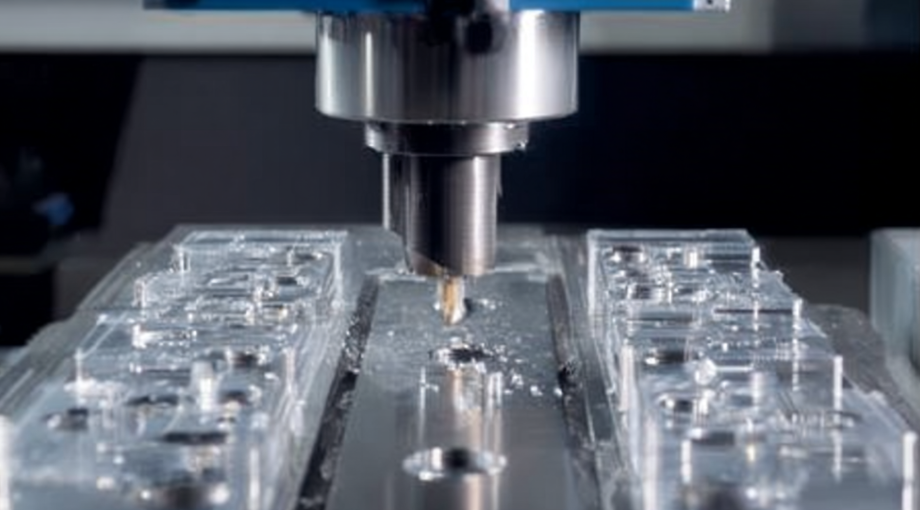

Machining: The CNC machine begins the machining process, following the programmed instructions to cut, shape, and finish the material. During this phase, the machine operates autonomously, allowing for continuous production without the need for constant human intervention.
Quality Control: After machining, the finished part undergoes quality control checks to ensure it meets the required specifications and tolerances. This step often involves using precision measuring tools and techniques to verify that the part conforms to the design specifications.
CNC machining is widely used across various industries due to its versatility and precision. Some of the key industries include:
Aerospace: CNC machining is crucial in producing components for aircraft and spacecraft, where precision and reliability are paramount. The aerospace industry demands high-quality parts that can withstand extreme conditions, making CNC machining an ideal solution.
Automotive: The automotive industry relies on CNC machining for manufacturing engine parts, transmission components, and other critical elements. The ability to produce complex geometries and tight tolerances is essential for ensuring the performance and safety of vehicles.
Medical: CNC machining is used to create surgical instruments, implants, and prosthetics, ensuring high standards of quality and safety. The medical field often requires custom solutions, and CNC machining allows for the production of tailored components that meet specific patient needs.
Electronics: The production of circuit boards, housings, and other electronic components often involves CNC machining for accuracy and efficiency. As electronic devices become more complex, the demand for precise machining continues to grow.
One of the significant advantages of CNC machining is its ability to produce custom parts tailored to specific requirements. This capability is particularly valuable in industries where unique designs and specifications are essential. CNC machining allows manufacturers to create prototypes and small production runs efficiently, reducing lead times and costs. The flexibility of CNC machines means that they can be quickly reconfigured to accommodate new designs, making them ideal for businesses that need to adapt to changing market demands.
CNC machining is renowned for its ability to produce parts with exceptional precision and accuracy. The computer-controlled nature of the process minimizes human error, ensuring that each part meets the exact specifications outlined in the design. This level of precision is critical in industries such as aerospace and medical, where even the slightest deviation can have significant consequences. The ability to achieve tight tolerances consistently makes CNC machining a preferred choice for high-stakes applications.
CNC machining significantly enhances manufacturing efficiency. The automation of the machining process allows for faster production times compared to traditional methods. Once a CNC machine is programmed, it can operate continuously, producing parts with minimal downtime. This efficiency translates to reduced production costs and shorter lead times for manufacturers. Additionally, CNC machines can often run unattended, allowing operators to focus on other tasks while the machine completes its work.
CNC machining is highly versatile, capable of working with a wide range of materials, including metals, plastics, and composites. This versatility allows manufacturers to produce various parts and components, making CNC machining suitable for diverse applications. Additionally, CNC machines can be easily reprogrammed to accommodate different designs, further enhancing their adaptability. This flexibility is particularly beneficial for manufacturers who need to respond quickly to changing customer demands or market trends.
The precision of CNC machining also contributes to reduced material waste. Traditional machining methods often result in excess material being cut away, leading to higher costs and environmental impact. In contrast, CNC machining optimizes material usage, ensuring that only the necessary amount is removed during the machining process. This efficiency not only lowers production costs but also aligns with sustainability initiatives, making CNC machining an environmentally friendly option.
While CNC machining offers numerous advantages, the initial setup costs can be significant. The investment in CNC machines, software, and tooling can be substantial, making it a barrier for some small manufacturers. However, the long-term benefits often outweigh these initial costs, as CNC machining can lead to increased efficiency and reduced production times. Many manufacturers find that the return on investment justifies the initial expenditure, especially as they scale their operations.
Operating CNC machines requires a certain level of skill and expertise. Programmers and machinists must be trained in using CAD and CAM software, as well as understanding the intricacies of machining processes. This skill requirement can pose challenges for companies looking to adopt CNC machining, as they may need to invest in training and development for their workforce. As technology evolves, ongoing education and training become essential to keep pace with advancements in CNC machining.
CNC machines require regular maintenance to ensure optimal performance. Downtime due to maintenance or repairs can impact production schedules and lead to delays. Manufacturers must implement effective maintenance strategies to minimize downtime and keep their CNC machines operating efficiently. Predictive maintenance techniques, which use data analytics to anticipate potential issues, can help manufacturers avoid unexpected breakdowns and extend the lifespan of their equipment.
The future of CNC machining is closely tied to advancements in technology. Innovations such as artificial intelligence, machine learning, and the Internet of Things (IoT) are poised to enhance CNC machining capabilities. These technologies can improve predictive maintenance, optimize machining processes, and enable real-time monitoring of production. As CNC machines become more interconnected, manufacturers will gain valuable insights into their operations, allowing for continuous improvement and increased efficiency.
As additive manufacturing (3D printing) continues to gain traction, the integration of CNC machining and additive processes is becoming more prevalent. This hybrid approach allows manufacturers to leverage the strengths of both technologies, enabling the production of complex geometries and reducing material waste. By combining CNC machining with additive manufacturing, companies can create parts that are not only lightweight but also structurally sound, opening new possibilities for design and functionality.
Sustainability is becoming increasingly important in manufacturing. CNC machining is well-positioned to contribute to sustainability initiatives through reduced material waste and energy efficiency. Manufacturers are exploring ways to implement eco-friendly practices in their CNC machining processes, such as using biodegradable lubricants and optimizing energy consumption. As consumers and regulatory bodies place greater emphasis on sustainability, CNC machining will play a crucial role in helping manufacturers meet these expectations.
CNC machining stands as a cornerstone of modern manufacturing, offering unparalleled precision, efficiency, and versatility. As technology continues to evolve, CNC machining will play a crucial role in shaping the future of production across various industries. By understanding the intricacies of CNC machining, manufacturers can harness its potential to drive innovation and meet the demands of an ever-changing market. The ongoing advancements in technology and the increasing focus on sustainability will further enhance the capabilities of CNC machining, ensuring its relevance in the years to come.

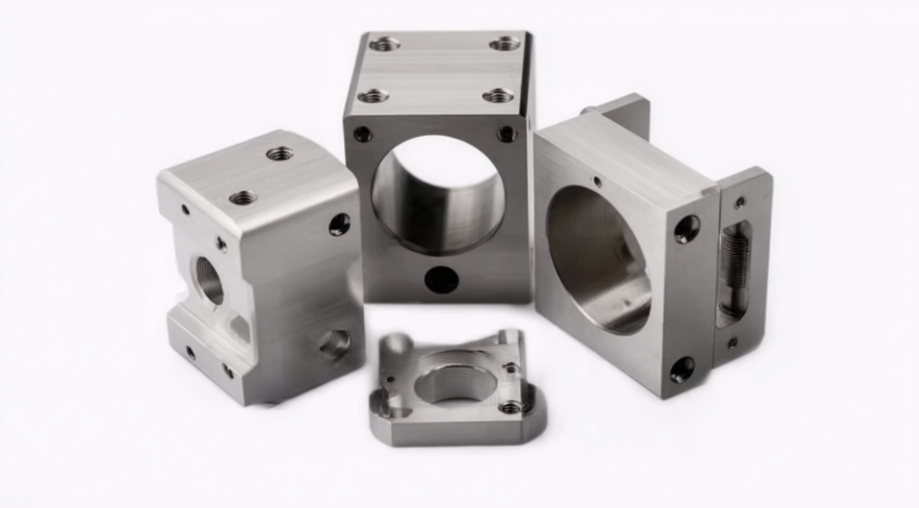

CNC machining can work with a wide variety of materials, including metals (such as aluminum, steel, and titanium), plastics (like ABS and polycarbonate), and composites (such as carbon fiber). The choice of material often depends on the specific application and desired properties of the final product.
CNC machining improves production efficiency by automating the machining process, which reduces the time required for setup and operation. Once programmed, CNC machines can run continuously with minimal human intervention, allowing for faster production rates and reduced lead times.
CNC milling involves rotating a cutting tool to remove material from a stationary workpiece, allowing for complex shapes and features. In contrast, CNC turning involves rotating the workpiece against a stationary cutting tool, primarily used for creating cylindrical parts. Both processes are essential in CNC machining but serve different purposes.
In the medical field, CNC machining is commonly used to produce surgical instruments, implants, prosthetics, and dental devices. The precision and customization capabilities of CNC machining make it ideal for creating components that meet strict regulatory standards and specific patient needs.
Manufacturers can ensure the quality of CNC machined parts by implementing rigorous quality control measures, such as using precision measuring tools (like calipers and micrometers), conducting regular inspections during the machining process, and adhering to industry standards and specifications. Additionally, utilizing advanced software for simulation and testing can help identify potential issues before production.
