In the world of precision manufacturing, even the slightest deviation can throw off an entire production run. Heat is often the culprit, creeping into machine tools and workpieces, causing them to expand or deform in ways that mess with tight tolerances. Think about a CNC machine running for hours—spindles spinning, motors humming, and cutting tools grinding away. All that activity generates heat, and over time, it can shift dimensions by microns, which is a big deal when you're making parts for jet engines or surgical implants. For shops aiming to keep parts within spec during long production runs, managing this heat is a make-or-break challenge.
Enter thermal compensation systems. These setups don't just react to heat—they predict it, measure it, and adjust for it in real time, keeping parts accurate even after hours of machining. By combining sensors, smart algorithms, and precise control, these systems are changing how manufacturers tackle extended cycles. This article dives into how thermal compensation works, why it matters, and how it's being used in real-world shops. We'll look at the nuts and bolts of these systems, share examples from industries like aerospace and automotive, and talk about what's holding them back and where they're headed. Drawing from recent studies, we'll keep things grounded in practical insights while steering clear of overly polished or formulaic explanations.
Thermal errors can cause up to 70% of machining inaccuracies, especially in high-precision CNC setups. With Industry 4.0 pushing for smarter factories, real-time compensation is becoming a go-to solution. We'll explore how these systems use sensors to track heat, models to predict distortion, and controls to fix it on the fly, all while keeping the conversational tone of a shop floor veteran explaining a new tool to a colleague.
Heat in machining comes from a few key places, and each one adds its own twist to the problem:
Machine Itself: Spindles, motors, and cutting tools get hot from friction and power draw. A spindle spinning at 12,000 rpm can warm up fast, stretching its housing or shaft just enough to throw off precision.
Shop Environment: If the shop's temperature swings—say, from a chilly morning to a warm afternoon—it can affect the machine and the part. A study from Dalian University of Technology showed a 6°C shop floor change could distort a CNC lathe's bed noticeably.
Workpiece Friction: Cutting metal generates heat where the tool meets the material. For tough stuff like titanium, which doesn't conduct heat well, this can cause the part to swell locally.
Coolant Issues: Coolant is supposed to keep things cool, but uneven application or warm coolant can create temperature gradients that add to the mess.
These heat sources don't just sit still—they interact and build up over time, creating a shifting thermal landscape that's tough to predict without the right tools.
Short jobs might not heat up a machine enough to cause trouble, but extended cycles—think 12, 24, or even 48 hours—are a different story. Heat spreads through the machine's frame, spindle, and workpiece, causing steady and shifting distortions. For example, a heavy-duty CNC mill used for aerospace parts might see its spindle stretch by 40 µm after 10 hours, enough to ruin a part with tight tolerances. Without intervention, shops either have to stop and let things cool (killing productivity) or accept out-of-spec parts (killing quality).
Industries like aerospace or medical device manufacturing, where tolerances are often ±10 µm or less, feel this pain the most. Long runs are common in these fields, and thermal drift can turn a good day into a costly one fast.
To fight thermal errors, you need to know what's happening inside the machine. That's where sensors come in. Thermocouples or resistance temperature detectors (RTDs) measure heat at key spots like the spindle or bed, while displacement sensors like eddy current probes check for movement. Picture a CNC mill with a dozen RTDs tracking temperatures across its structure and a laser interferometer measuring spindle shifts. A 2014 study in the International Journal of Advanced Manufacturing Technology showed how this setup cut thermal errors by 60% during a 10-hour run by giving the system real-time data to work with.
Sensors alone don't fix anything—they just provide the raw data. Predictive models turn that data into a plan. These models come in a few flavors:
Physics-Based Models: These use heat transfer math and simulations like finite element analysis to guess how heat will move and distort parts. A team at Dalian University built one to predict spindle growth based on motor power and coolant flow.
Data-Driven Models: These rely on machine learning, like neural networks, to spot patterns in sensor data. A 2023 Journal of Mechanics study used a neural network to cut thermal errors in a gantry machine by 65%, pinpointing key temperature spots driving deformation.
Hybrid Models: Combining physics and data, these are the best of both worlds. A 2025 ScienceDirect study showed a model blending convolutional neural networks (CNNs) and long short-term memory (LSTM) networks, capturing both where and when thermal issues hit a CNC spindle.
Once you know how much a machine or part is shifting, you need to act fast. Control algorithms in the CNC system make this happen by tweaking tool paths or axis positions. Here's how it works:
Coordinate Shifts: If the spindle grows by 15 µm, the system moves the Z-axis origin to match, keeping the tool in the right spot.
Feedforward Control: The model predicts the error and adjusts the tool path before it cuts. A 2019 study showed this cut errors by 50% in a 15-hour milling job.
Feedback Control: Sensors keep feeding data to the system, updating adjustments as conditions change. This is great for shops with fluctuating temperatures.
Today's sensors are a far cry from basic thermometers. Fiber Bragg grating (FBG) sensors, featured in a 2017 Chinese Journal of Mechanical Engineering study, use optical fibers to measure heat and strain with pinpoint accuracy. In a heavy-duty CNC lathe, FBG sensors cut thermal errors by 45% by feeding precise data to a compensation model. Another example, from a 2020 PMC article, used a mix of temperature, strain, and motor current data with a neural network to reduce spindle errors by 70% over a 20-hour run.
Machine learning is a game-changer for thermal compensation. A 2025 ScienceDirect study introduced a model called MABIGTCN, blending bidirectional neural networks and attention mechanisms to predict thermal errors with 62% better accuracy than older methods. It's like teaching the machine to “think” about heat the way a seasoned operator might. Another 2022 study in the Journal of Intelligent Manufacturing used unsupervised learning to spot thermal patterns in 3D printing, improving part accuracy by 30% by adjusting print orientation.
Digital twins are like virtual clones of your machine, running simulations in real time. They pull in sensor data and predict how heat will affect the machine before it happens. A 2024 MDPI study described a digital twin for a five-axis machining center that cut errors by 55% during a 24-hour aerospace job by feeding thermal and geometric data into a volumetric model.
Aerospace parts like turbine blades demand crazy-tight tolerances, often ±10 µm. A major manufacturer used a five-axis CNC with FBG sensors and a hybrid ML model to keep parts in spec during a 36-hour run. The result? Scrap rates dropped 20%, and throughput jumped 15%.

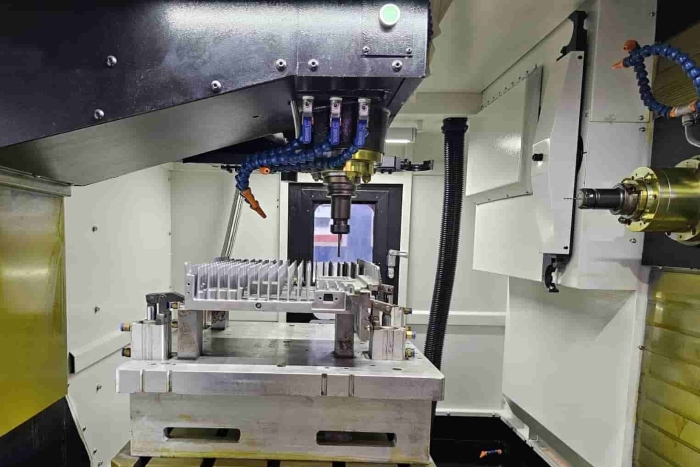

In automotive shops, engine blocks need precision even in high-volume runs. A 2019 case study from a German automaker showed a CNC mill with a feedforward system using temperature sensors and a physics-based model. It cut dimensional errors by 50% over 18 hours, keeping production on track.
For medical implants, precision is life-or-death. A 2023 study on a CNC lathe used a CNN-LSTM model to monitor spindle and part temperatures, maintaining ±5 µm tolerances over 12 hours and boosting yield by 25%.
Sensors have to be in the right spots to catch thermal shifts. A 2014 study found that poorly placed sensors on a machining center led to 20% worse errors than optimal setups. Calibration is another headache—sensors drift over time and need regular tuning. A 2025 MDPI article suggested automated calibration software, but it's not plug-and-play yet.
Real-time systems, especially those using machine learning, need serious computing muscle. Processing tons of sensor data during a long run can slow things down. A 2020 study used a technique called ICEEMDAN-KPCA to cut processing time by 40%, but it's still a hurdle for some shops.
High-tech compensation systems aren't cheap. Sensors, software, and integration can cost a fortune, especially for smaller shops. A 2022 study showed a 30% return on investment in two years for a CNC machine with these systems, but the upfront hit can scare off smaller players.
Looking ahead, technologies like quantum sensors could make thermal monitoring even sharper, while edge computing might speed up real-time adjustments. AI advancements could also predict maintenance needs, catching issues before they derail a run. Partnerships, like those at the University of Miskolc, are working on open-source platforms to make these tools more accessible to smaller shops.
Thermal compensation systems are a lifeline for shops running long, precision-heavy jobs. By catching heat-related errors with sensors, predicting distortions with smart models, and adjusting on the fly, these systems keep parts in spec when it matters most. From aerospace to medical devices, real-world examples show they can cut errors, reduce scrap, and boost output. Sure, there are hurdles—sensor placement, computing demands, and costs—but the payoff is clear. As tech like digital twins and AI keeps evolving, these systems will only get better, helping manufacturers stay precise and competitive in a world where every micron counts.
Q1: What causes thermal errors in CNC machines?
A1: Heat from spindles, motors, cutting friction, and shop temperature swings causes parts and machines to expand or deform, throwing off precision.
Q2: How do thermal compensation systems keep parts accurate?
A2: They use sensors to track heat and movement, models to predict distortions, and controls to adjust tool paths or axes in real time.
Q3: Why is machine learning useful for thermal compensation?
A3: It spots complex heat patterns in sensor data, making predictions more accurate than traditional methods, especially for long runs.
Q4: What’s tough about using these systems?
A4: Placing sensors correctly, keeping them calibrated, handling heavy computing needs, and covering high upfront costs are big challenges.
Q5: How do digital twins help with thermal issues?
A5: They simulate the machine in real time, using sensor data to predict and fix thermal errors before they affect parts.
A general purpose thermal error compensation system for CNC machine tools
Transactions on Engineering Sciences
2001
Described a flexible interpreter-based model accepting any number of temperature sensors for combined thermal and geometric compensation
Programming-language-based model evaluation with variable spaces and real-time offset application
Integration on multiple 2–5-axis machines; experimental trials on a vertical machining center
Pages 1–20
https://www.witpress.com/Secure/elibrary/papers/LAMDAMAP01/LAMDAMAP01000FU.pdf
Research on thermal error compensation strategy of CNC machine tools based on full working area modeling
Applied Mathematical Sciences
November 14, 2024
CSBP neural network with cuckoo search optimization achieved 20.27% lower maximum prediction error versus LSTM
BP neural network training with temperature inputs and B-spline fitting across full work area
Simulation and empirical validation on CNC machining center
Pages N/A
https://doi.org/10.2478/amns-2024-3246
Real-time thermal error compensation of machine tools based on support vector regression and transfer function matrix
Sensors and Materials
October 2024
SVR-TFM method limited spindle deformation from 110 µm to within 10 µm during dynamic cutting
Support vector regression for error prediction; transfer-function matrix for on-machine compensation
Implemented on an 8051 microprocessor; validated through actual cutting experiments
Pages 4222–4237
https://sensors.myu-group.co.jp/sm_pdf/SM3796.pdf
