Stamping forming is a crucial manufacturing process widely used in various industries, particularly in the production of metal components. This article delves into the intricacies of stamping forming, exploring its definition, types, applications, advantages, and the technologies involved. By understanding stamping forming, one can appreciate its significance in modern manufacturing.
Stamping forming refers to a set of processes that involve shaping and cutting materials, primarily metals, using a die and a press. This technique is essential for producing parts with precise dimensions and complex shapes. The process can be performed on various materials, including steel, aluminum, copper, and other alloys, making it versatile for different applications.

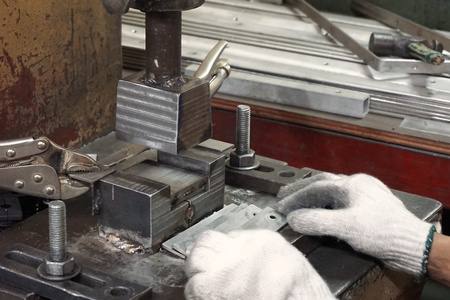

The stamping forming process typically involves several key steps. Initially, a flat sheet of metal is placed into a stamping press. The press then uses a die to apply force, which shapes the metal into the desired form. This force can be applied in various ways, including mechanical or hydraulic presses, depending on the requirements of the specific application.
The stamping process can be categorized into several types, including blanking, piercing, bending, and drawing. Each of these processes serves a unique purpose in the overall manufacturing workflow.
Blanking is the process of cutting out a flat piece of material from a larger sheet. This is often the first step in the stamping process, where the blank serves as the starting point for further operations. The blanked piece can be used as a standalone component or as a precursor to additional shaping processes.
Piercing involves creating holes in the material. This is essential for applications where components need to be fastened or assembled. The piercing process can be performed simultaneously with blanking, allowing for efficient production.

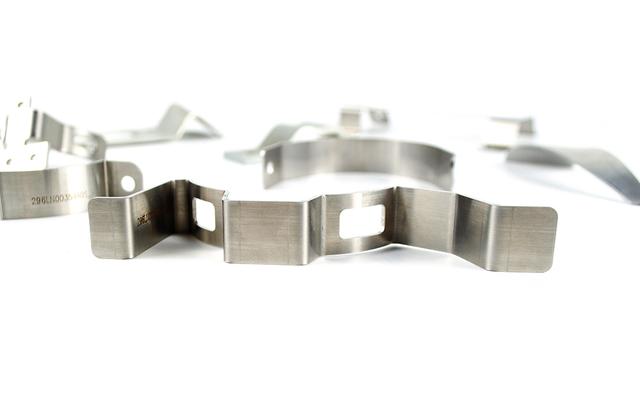

Bending is a process that changes the angle of the material, creating a bend or curve. This is crucial for parts that require specific angles or shapes, such as brackets or frames. Bending can be performed using various techniques, including air bending, bottoming, and coining.
Drawing is a more complex process that involves pulling the material into a desired shape, often creating deep or hollow components. This technique is commonly used in the automotive and aerospace industries for producing parts like fuel tanks and body panels.
Stamping forming is utilized across a wide range of industries due to its efficiency and precision. Some of the most common applications include:

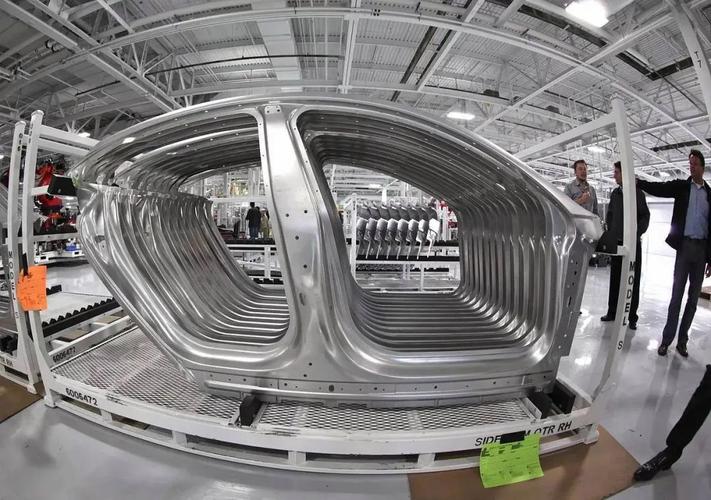

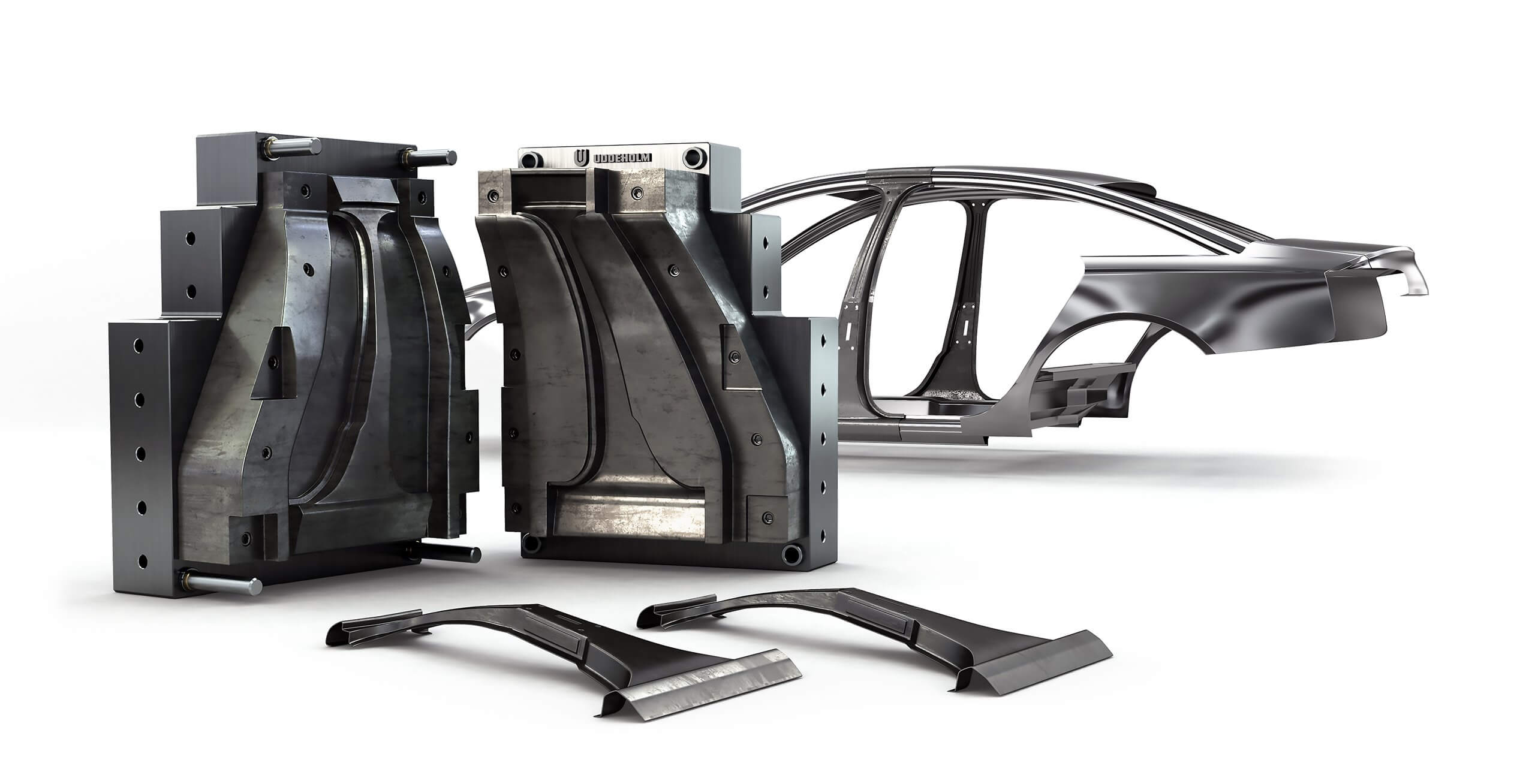

In the automotive sector, stamping forming is used to produce various components, including body panels, brackets, and structural parts. The ability to create lightweight yet strong components is essential for improving fuel efficiency and safety in vehicles.
The aerospace industry relies heavily on stamping forming for producing parts that must meet stringent safety and performance standards. Components such as fuselage sections, wing structures, and engine parts are often manufactured using stamping techniques.
In electronics, stamping forming is used to create housings, connectors, and other components. The precision of stamping allows for the production of intricate designs that are essential for modern electronic devices.
Household appliances, such as refrigerators, washing machines, and microwaves, often contain stamped components. The durability and cost-effectiveness of stamped parts make them ideal for high-volume production in this industry.
The stamping forming process offers several advantages that make it a preferred choice in manufacturing.
One of the primary benefits of stamping forming is its ability to produce parts with high precision and consistency. The use of dies ensures that each component is manufactured to exact specifications, reducing the need for secondary operations.
Stamping forming is a cost-effective manufacturing method, especially for high-volume production. The initial investment in dies and presses can be significant, but the ability to produce large quantities of parts quickly reduces the overall cost per unit.
Stamping forming minimizes material waste, as the process can be designed to maximize the use of the raw material. This efficiency not only reduces costs but also contributes to more sustainable manufacturing practices.
The versatility of stamping forming allows it to be used with a wide range of materials and for various applications. This adaptability makes it suitable for industries ranging from automotive to electronics.
Advancements in technology have significantly enhanced the stamping forming process. Modern stamping presses are equipped with sophisticated controls and automation, improving efficiency and precision.
CNC technology allows for precise control of the stamping process. By using computer software to design and program the stamping operations, manufacturers can achieve higher accuracy and repeatability in production.
Progressive die stamping is a technique that allows for multiple operations to be performed in a single pass. This method increases efficiency by reducing the number of handling steps and minimizing material waste.
Servo presses utilize electric motors to control the stamping process, providing greater flexibility and control over the speed and force applied. This technology enhances the ability to produce complex shapes and reduces cycle times.
Despite its many advantages, stamping forming also presents certain challenges that manufacturers must address.
The initial investment in tooling, including dies and presses, can be high. This cost can be a barrier for smaller manufacturers or those looking to produce low volumes of parts.
Not all materials are suitable for stamping forming. The process is best suited for ductile metals that can withstand the forces applied during stamping. Brittle materials may crack or break during the process, leading to defects.
While stamping forming is capable of producing complex shapes, there are limitations to the intricacy of designs that can be achieved. Manufacturers must carefully consider the design to ensure it is feasible for stamping.
As industries continue to evolve, so too does the stamping forming process. Several trends are shaping the future of this manufacturing technique.
The trend towards automation in manufacturing is expected to continue, with more stamping operations being integrated into automated production lines. This will enhance efficiency and reduce labor costs.
The development of new materials, including advanced alloys and composites, will expand the capabilities of stamping forming. Manufacturers will need to adapt their processes to accommodate these materials while maintaining quality and efficiency.
As sustainability becomes a priority for many industries, stamping forming processes will need to evolve to reduce waste and energy consumption. Manufacturers are exploring ways to implement more sustainable practices in their operations.
Stamping forming is a vital manufacturing process that plays a significant role in producing components across various industries. Its ability to deliver high precision, cost-effectiveness, and versatility makes it an essential technique in modern manufacturing. As technology continues to advance, the stamping forming process will likely evolve, addressing challenges and embracing new opportunities for innovation. Understanding stamping forming is crucial for anyone involved in manufacturing, engineering, or design, as it underpins many of the products we use daily.
Stamping forming can be performed on a variety of materials, including metals such as steel, aluminum, copper, and brass. It is also possible to use certain plastics and composites, depending on the specific requirements of the application.
Stamping forming primarily involves cutting and shaping metal sheets using dies and presses, while other metal forming processes, such as forging or casting, involve different techniques like heating and pouring molten metal into molds. Stamping is typically faster and more efficient for producing high volumes of parts with precise dimensions.
The main advantages of stamping forming include high precision and consistency, cost-effectiveness for large production runs, material efficiency with minimal waste, and versatility in working with various materials and designs.
Stamping forming is widely used in several industries, including automotive, aerospace, electronics, and appliance manufacturing. It is essential for producing components such as body panels, brackets, connectors, and housings.
Common challenges in stamping forming include high tooling costs for dies and presses, limitations on the types of materials that can be effectively stamped, and the complexity of designs that can be achieved. Manufacturers must carefully consider these factors during the design and production process.
