Precision in machining multi-feature components is critical for industries like aerospace, automotive, and medical device manufacturing. These parts often have complex geometries, tight tolerances, and interdependent features, making dimensional accuracy a top priority. In-process inspection serves as a vital tool to catch deviations early, reduce scrap, and ensure parts meet functional requirements. This article provides manufacturing engineers, quality professionals, and shop floor managers with a detailed guide to in-process inspection strategies that deliver consistent multi-feature accuracy. Drawing from recent research on platforms like Semantic Scholar and Google Scholar, we'll explore dimension selection, measurement tools, inspection frequency, emerging technologies, and environmental considerations. The tone is practical, grounded in real-world examples, and focused on actionable insights to strengthen machining processes.

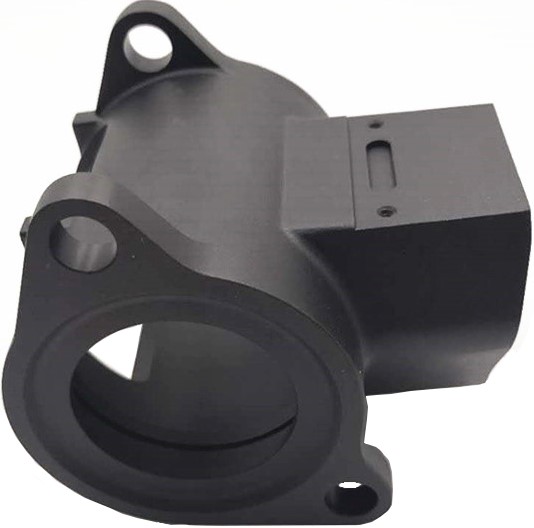

The first step in effective in-process inspection is deciding which dimensions to measure. Measuring every feature is impractical—it slows production and strains resources. Instead, focus on dimensions that impact function, fit, or safety, while considering process variability.

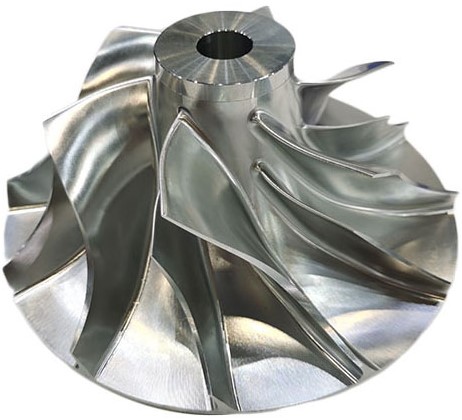

Functional dimensions are tied to a part's performance or assembly requirements. For instance, in an aerospace compressor blade, the airfoil thickness and mounting hole positions are critical for aerodynamic efficiency and structural integrity. Process-driven dimensions, by contrast, are those most likely to deviate due to machining variables like tool wear, spindle runout, or material properties. Selecting these requires close collaboration between design and quality teams, often using tools like Design Failure Mode and Effects Analysis (DFMEA) to pinpoint high-risk features.
Example 1: Automotive Fuel Injector NozzleIn a precision machining operation for fuel injector nozzles, the quality team prioritized inspecting the spray hole diameters (±0.005 mm) because they directly affected fuel delivery efficiency. Process-driven inspections targeted wall thickness, which varied due to coolant inconsistencies. By limiting inspections to these critical features, the team reduced measurement time by 30% while maintaining quality.
Example 2: Orthopedic Implant ComponentFor a titanium hip implant, the critical dimensions included the femoral stem's taper angle and surface roughness, which ensured proper fit with the bone. In-process checks revealed a 0.02 mm taper deviation due to tool chatter, allowing operators to adjust feed rates immediately, avoiding defective parts.
Focus on Assembly Interfaces: Prioritize features like bearing surfaces or threaded holes that affect mating with other components.
Leverage DFMEA: Use failure mode analysis to identify dimensions with the highest risk of functional failure.
Account for Process Variability: Target features sensitive to tool wear, thermal effects, or material inconsistencies.
Keep It Lean: Limit inspections to 5-8 key dimensions to maintain production efficiency.
By concentrating on high-impact dimensions, manufacturers can optimize quality control without overburdening the process.
The choice of measurement tools significantly influences inspection accuracy and speed. Traditional tools like calipers and micrometers are suitable for simple measurements but often fall short for multi-feature parts with tight tolerances. Advanced tools like coordinate measuring machines (CMMs), optical systems, and tactile probes offer greater precision and efficiency.
CMMs use touch probes or laser scanners to map complex geometries in three dimensions, making them ideal for parts with intricate features or tight tolerances.

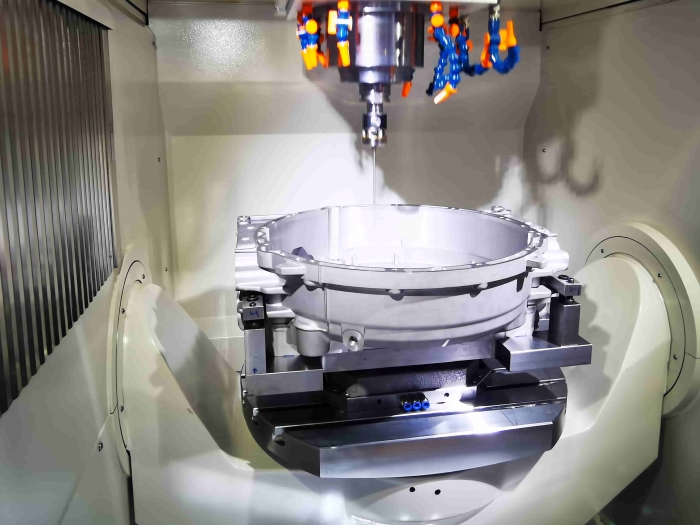

Example 3: Aerospace Gearbox HousingA manufacturer machining a gearbox housing for a jet engine used a CMM to inspect internal spline features (±0.03 mm). During a milling operation, the CMM detected a 0.025 mm misalignment in spline teeth due to fixture drift. Operators realigned the fixture mid-process, preventing a batch of defective parts.
Non-contact optical systems, such as profile projectors and vision measuring machines, excel at measuring delicate or micro-scale features where physical contact could cause damage or errors.
Example 4: Micro-Machined Sensor ComponentIn producing a MEMS sensor with features as small as 0.01 mm, a vision system was used to inspect slot widths during machining. The system identified a 0.007 mm deviation caused by tool deflection, prompting a reduction in cutting speed that restored accuracy.
Tactile probes integrated into CNC machines allow real-time inspection without removing parts, reducing setup time and improving workflow efficiency.
Example 5: Heavy Machinery ShaftA manufacturer machining a large steel shaft for construction equipment used on-machine probes to verify journal diameters (±0.02 mm). The probes detected a 0.015 mm overshoot due to tool wear, enabling a tool change that maintained tolerances without halting production.
Match Tool to Geometry: Use CMMs for complex 3D features, optical systems for micro-features, and tactile probes for on-machine checks.
Ensure High Resolution: Select tools with measurement precision at least one order of magnitude finer than the tolerance (e.g., 0.001 mm for a 0.01 mm tolerance).
Reduce Operator Error: Favor automated systems to minimize variability from manual measurements.
Integrate Seamlessly: Choose tools that align with production flow to avoid bottlenecks.
Investing in the right tools and training ensures accurate, repeatable measurements that enhance dimensional control.Optimizing Inspection Frequency and Sampling
Determining how often to inspect and how many parts to measure is a critical decision. Over-inspecting slows production, while under-inspecting risks defects. Statistical Process Control (SPC) and risk-based sampling provide data-driven approaches to optimize inspection.
SPC monitors process stability by analyzing measurement data, enabling early detection of trends or shifts before they result in defects.

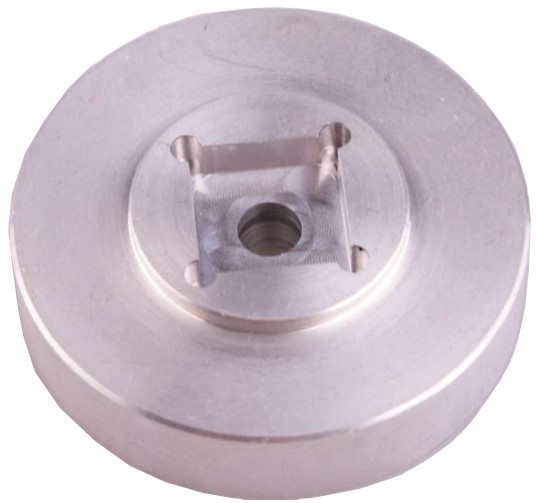

Example 6: Precision Turned ComponentsIn a high-volume turning operation for automotive bushings, SPC was used to monitor outer diameters (±0.01 mm). Sampling 10 parts per 100 revealed a gradual 0.008 mm drift due to tool wear. Adjusting the tool offset corrected the issue, preventing scrap.
Risk-based sampling focuses inspections on features or processes with the highest likelihood of deviation, such as those with tight tolerances or sensitivity to machining conditions.
Example 7: CNC-Milled Aluminum BracketA manufacturer milling aluminum brackets for aircraft prioritized inspecting hole positions (±0.05 mm) due to their critical role in assembly. Sampling every 25 parts detected a 0.04 mm shift caused by spindle misalignment, prompting recalibration that saved 150 parts.
Initial High Frequency: Inspect every 10-15 parts during process setup to confirm stability.
Shift to Sampling: Once stable, sample 5-10% of parts per batch using SPC.
Adjust for Risk: Increase frequency for high-variability processes like grinding or multi-axis milling.
Automate Sampling: Use automated probes or vision systems to maintain consistency without slowing production.
Balancing inspection frequency with production demands ensures quality while keeping costs in check.
Technologies like artificial intelligence (AI) and digital twins are transforming in-process inspection by enabling predictive and proactive quality control. These tools analyze data and simulate processes to optimize dimensional accuracy.
AI algorithms process data from sensors, CMMs, and probes to detect patterns and predict deviations, allowing operators to act before defects occur.
Example 8: AI in High-Speed MillingA CNC shop milling aluminum housings used AI to monitor spindle vibration and cutting forces. The system predicted a 0.018 mm deviation in hole diameters due to tool wear, prompting a tool change that prevented 300 parts from being scrapped.
Digital twins create virtual models of machining processes, enabling engineers to test parameters and predict outcomes before machining begins.
Example 9: Turbine Blade ProductionAn aerospace manufacturer used a digital twin to simulate milling of a nickel-alloy turbine blade. The model predicted a 0.04 mm thickness deviation due to thermal expansion. Adjusting coolant flow in the simulation corrected the issue, and real-world machining achieved ±0.025 mm accuracy.
Pilot AI Gradually: Start with specific applications, like tool wear monitoring, before expanding to full-process control.
Build Robust Digital Twins: Incorporate real-time sensor data and machine logs for accurate simulations.
Train Operators: Ensure teams understand AI outputs and digital twin insights to make informed decisions.
Ensure Compatibility: Integrate technologies with existing CNC and quality systems for seamless adoption.
These tools enhance precision but require careful planning to maximize benefits without disrupting workflows.
Thermal expansion and material properties can significantly affect dimensional accuracy. In-process inspection must account for these factors to ensure measurements reflect final part conditions.
Heat from machining or environmental fluctuations can cause parts to expand, leading to misleading measurements if inspected before cooling.
Example 10: Large Steel ForgingsA manufacturer machining steel forgings for marine engines faced thermal expansion issues due to 25°C shop floor temperature swings. In-process CMM inspections were adjusted to measure parts after cooling to 20°C, ensuring measurements matched final assembly conditions.
Materials like titanium or high-strength alloys can deform under machining stresses, affecting dimensional outcomes.
Example 11: Aluminum Aerospace FrameIn machining an aluminum aircraft frame, elastic deformation during clamping caused a 0.03 mm deviation in hole positions. In-process optical inspections detected the issue, and reducing clamping force restored accuracy to ±0.015 mm.
Stabilize Temperatures: Use coolant consistently and allow parts to cool before inspection.
Adapt to Material Behavior: Use lighter cuts for elastic materials like aluminum to minimize deformation.
Control Environment: Maintain stable shop floor temperatures to reduce thermal effects.
Apply Stress Relief: For castings or forged parts, use stress-relief treatments to minimize internal stresses.
Addressing these factors ensures measurements are accurate and reliable.
Delivering multi-feature accuracy in machining requires a strategic approach to in-process inspection. By prioritizing critical dimensions, using advanced tools like CMMs and optical systems, optimizing inspection frequency with SPC, leveraging AI and digital twins, and managing thermal and material effects, manufacturers can achieve consistent quality. Real-world cases—from fuel injector nozzles to turbine blades—demonstrate how these tactics reduce defects, minimize rework, and boost efficiency. Success hinges on collaboration between design, quality, and production teams to align inspections with functional and process needs. Emerging technologies offer powerful tools, but their value depends on thoughtful integration and operator expertise. By adopting these strategies, manufacturers can ensure parts meet tight tolerances, perform reliably, and integrate seamlessly, regardless of complexity.
Q1: How do I choose which dimensions to inspect for a multi-feature part?
A: Prioritize functional dimensions (e.g., mating surfaces) and those prone to process variability (e.g., tool wear effects). Use DFMEA to identify high-risk features and limit inspections to 5-8 dimensions for efficiency.
Q2: What are the best tools for inspecting small, delicate features?
A: Optical systems like vision measuring machines are ideal for micro-features due to their non-contact, high-resolution capabilities, detecting deviations as small as 0.001 mm without damaging parts.
Q3: How often should I inspect parts in a stable process?
A: Inspect every 10-15 parts during setup, then shift to sampling 5-10% of parts using SPC. Increase frequency for high-variability processes like grinding or multi-axis milling.
Q4: Can AI improve real-time dimensional control?
A: Yes, AI can predict deviations by analyzing sensor data. For example, an AI system in a milling operation flagged a 0.018 mm hole diameter shift, enabling a tool change that saved 300 parts.
Q5: How do I handle thermal expansion during inspection?
A: Measure parts after cooling to ambient temperature, use consistent coolant, and maintain stable shop conditions. For instance, a marine engine manufacturer adjusted inspections to post-cooling measurements for accuracy.
