Imagine a manufacturing process so efficient it can churn out intricate metal parts like zinc automotive locks or magnesium aerospace brackets in mere seconds, all while keeping costs low and precision high. That's the magic of hot chamber die casting—a technique that's been a cornerstone of manufacturing for over a century and continues to evolve with cutting-edge innovations. Whether you're an engineer looking to optimize production or just curious about how those lead-alloy battery terminals in your car get made, this article dives deep into the world of hot chamber die casting. We'll explore its rich history, break down its core principles, detail the machines and tools involved, highlight its real-world applications, and spotlight the latest trends shaping its future—all with a practical, conversational twist. Let's get started!
Hot chamber die casting didn't just appear out of nowhere—it's a process with roots stretching back to the industrial revolution, evolving alongside humanity's need for faster, cheaper, and more precise manufacturing. The story begins in the mid-19th century, when the printing industry sparked the initial demand for rapid metal casting. In 1849, a guy named Sturges patented a small, hand-operated machine designed to mechanize the production of lead type for printing presses. This was the first whisper of die casting, though it wasn't quite the hot chamber process we know today. Fast forward to 1885, and Ottmar Mergenthaler's invention of the Linotype machine took things up a notch. This beast could cast an entire line of type in one go, using molten metal injected into a mold—a game-changer that slashed production time and replaced tedious hand-setting in the publishing world. The Soss die-casting machine, introduced in Brooklyn, New York, shortly after, became the first commercially available die-casting equipment in North America, cementing the process's foothold.
By the early 20th century, manufacturers realized this technique wasn't just for printing—it could shape consumer goods and industrial parts too. Zinc, with its low melting point and excellent fluidity, emerged as a star material. Take zinc automotive locks, for example. Back in the 1920s, carmakers needed durable, corrosion-resistant lock components that could be mass-produced cheaply. Hot chamber die casting fit the bill perfectly, using simple machines to inject molten zinc at around 425°C into steel molds, creating locks in seconds. The process was straightforward: melt the zinc, pump it into a die, cool it, and pop out a finished part—all for pennies per unit compared to machining from solid metal.
The real leap came in the 1930s and 1940s when engineers refined the hot chamber method for alloys like magnesium and lead. Magnesium aerospace brackets, for instance, started appearing in World War II aircraft. These lightweight yet strong components—think brackets holding critical engine parts—were cast using early hot chamber machines, reducing aircraft weight and boosting fuel efficiency. Costs were kept low because magnesium's melting point (around 650°C) was manageable, and the process minimized waste. A 1940s-era bracket might cost a manufacturer just a few cents per unit, thanks to the high-speed cycle times (four to five shots per minute) and reusable steel dies.
Lead-alloy battery terminals offer another historical gem. By the 1950s, the automotive boom demanded reliable, high-density terminals to connect batteries to electrical systems. Hot chamber die casting was ideal here—lead's low melting point (327°C) meant machines could run efficiently without excessive wear, and the process delivered precise, tight-tolerance parts. A typical terminal might take 10 seconds to cast, with material costs hovering around $0.02 per unit due to lead's affordability at the time. Practical tip from that era? Keep the furnace clean—lead's reactivity could gum up the works if impurities crept in.
The 1960s brought automation into the mix, with companies like General Motors pushing the envelope via innovations like the Acurad process (though that was more cold-chamber focused). For hot chamber die casting, the focus stayed on low-melting-point metals, perfecting the “gooseneck” injection system—a curved metal tube that fed molten metal directly from the furnace to the die. This design, still in use today, cut cycle times and boosted output. By the late 20th century, hot chamber die casting was a staple for small- to medium-sized parts across industries, from toys to electronics, all thanks to its humble beginnings in a printer's workshop.
At its heart, hot chamber die casting is a beautifully simple yet precise process: melt metal, inject it into a mold under pressure, let it cool, and voilà—you've got a finished part. But there's a lot more going on under the hood, so let's break it down step-by-step and see how it works for real-world examples like zinc locks, magnesium brackets, and lead terminals.

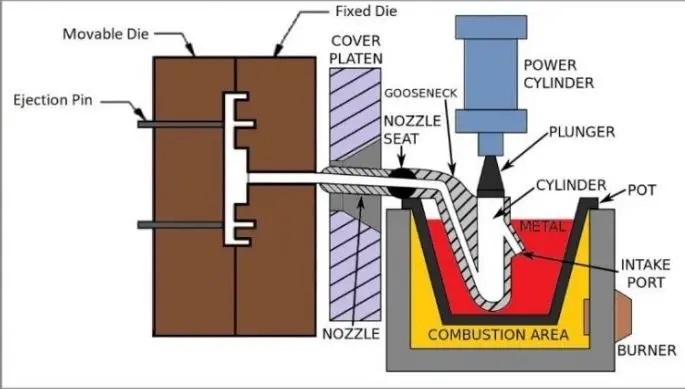

First, the “hot chamber” name comes from the setup: the injection system is submerged in a pool of molten metal inside a furnace. Picture a big pot of liquid zinc at 425°C, with a gooseneck-shaped tube dipping into it. This tube connects to a piston or plunger. When the machine cycles, the plunger sucks up the molten metal through a port in the gooseneck and then rams it into a steel die under high pressure—typically 1,000 to 5,000 psi. The die, made of two halves (the cover die and ejector die), forms a cavity shaped like the final part. For a zinc automotive lock, this cavity might include intricate keyway details, all filled in a split second thanks to zinc's excellent fluidity.
Why the hot chamber? It's all about speed and efficiency. Since the injection system stays immersed in the molten metal, there's no need to ladle or transfer it from a separate furnace like in cold chamber die casting. This cuts cycle times to as little as 10-15 seconds per shot—crucial when you're churning out thousands of parts. For magnesium aerospace brackets, the process is similar, though the furnace runs hotter (around 650°C). Magnesium's low density means the molten metal flows easily, filling thin-walled mold sections without trapping air, which is key for structural integrity in flight-critical components.
Pressure is another core principle. The high force ensures the metal packs tightly into every nook of the die, minimizing porosity—tiny air bubbles that weaken parts. For lead-alloy battery terminals, this is a big deal. Lead's density (11.34 g/cm³) and low viscosity let it flow smoothly under 2,000 psi, creating terminals with exact tolerances (e.g., ±0.05 mm) for a snug battery fit. Practical tip: monitor pressure closely—too low, and you get incomplete fills; too high, and you risk damaging the die.
Cooling comes next. Once injected, the metal solidifies fast—often in 5-10 seconds—thanks to water channels in the die that wick away heat. For zinc locks, this rapid cooling locks in a smooth surface finish, reducing the need for post-processing. Magnesium brackets benefit too, with quick solidification preventing shrinkage defects. Costs stay low here because the reusable steel dies (lasting 100,000+ cycles) spread the tooling expense over massive production runs—think $0.10-$0.50 per part for zinc locks, depending on volume.
The final step is ejection. Pins in the ejector die push the solidified part out, and the cycle repeats. For lead terminals, this step's simplicity shines—minimal flash (excess metal) means less trimming, keeping labor costs near zero. The whole process hinges on the metal's properties: it must melt below 650°C to avoid eroding the gooseneck and plunger, which is why zinc, magnesium, and lead alloys dominate. Aluminum, with its 660°C melting point, is a no-go—it'd chew up the machine.
Energy efficiency is a hidden perk. Keeping the furnace hot 24/7 uses less energy than constantly reheating a cold chamber system. For a factory casting 10,000 magnesium brackets daily, this could save hundreds of dollars in power costs monthly. Tip: preheat dies to match the metal's temperature—around 200°C for zinc—to avoid thermal shock and extend die life.
In essence, hot chamber die casting marries speed, precision, and cost-effectiveness, making it a go-to for high-volume, low-melting-point alloy parts. It's not perfect—high-melting metals are off-limits—but for the right job, it's tough to beat.

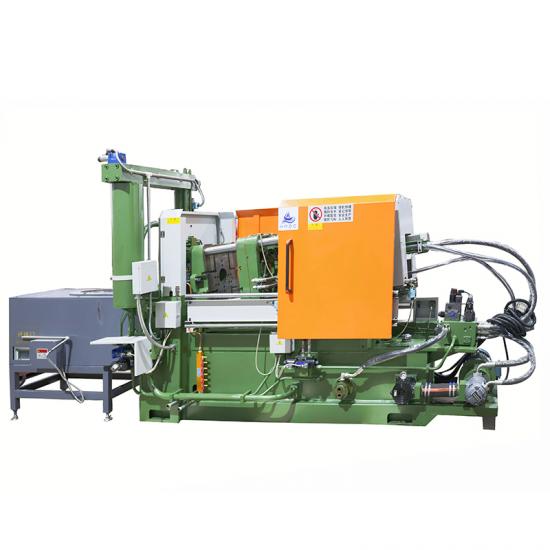

Hot chamber die casting machines come in a few flavors, but they all share that signature submerged injection system. Let's explore the main types, the tools they use, and how they tackle parts like zinc locks, magnesium brackets, and lead terminals, with a nod to costs and practical know-how.

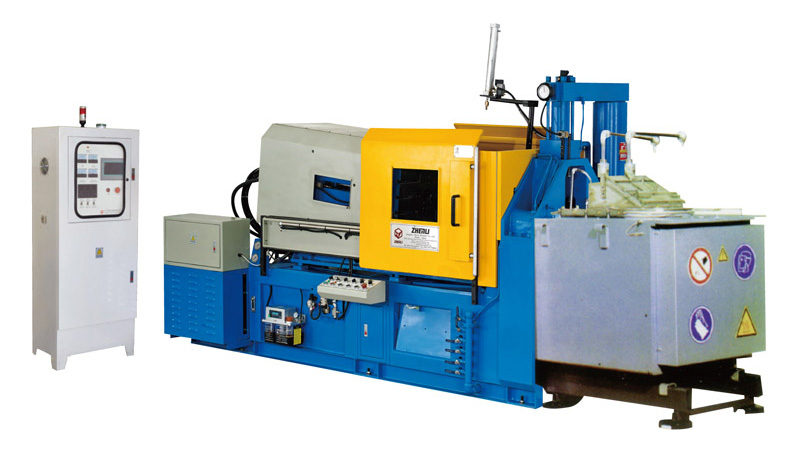

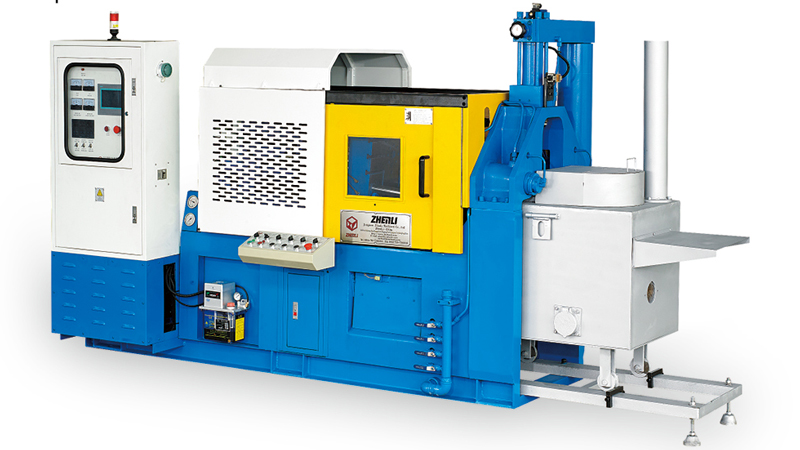

The classic is the gooseneck machine, named for its curved metal feed tube. These are the workhorses of the industry, ideal for zinc and lead alloys. A typical setup has a furnace holding 500-1,000 kg of molten metal, a hydraulic plunger, and a die clamp. For zinc automotive locks, a mid-sized gooseneck machine (e.g., 200-ton clamping force) can pump out 300 parts per hour. The gooseneck dips into zinc at 425°C, and the plunger shoots it into a die shaped like a lock cylinder. Costs? A basic machine might run $50,000-$100,000, with dies costing $5,000-$20,000 depending on complexity. Tip: lubricate the plunger regularly—zinc's stickiness can cause jams.

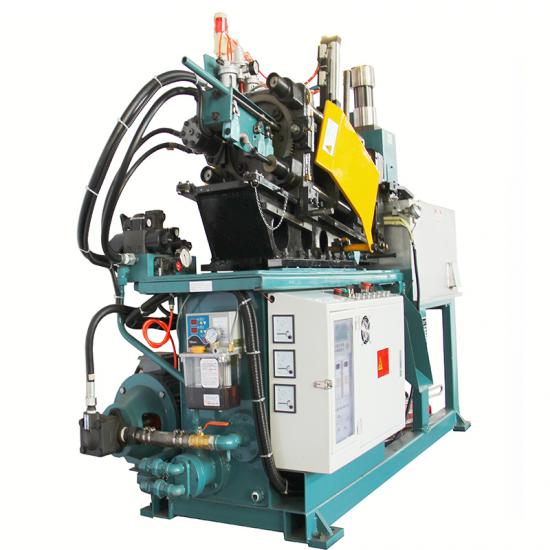

Then there's the air-operated machine, a twist on the gooseneck design. Instead of a hydraulic plunger, compressed air forces the metal into the die. These are less common but shine for small, intricate parts like lead-alloy battery terminals. Air pressure (around 100 psi) gives finer control, reducing flash on delicate terminal shapes. A 50-ton air machine might cost $30,000, with lower maintenance since there's no hydraulic fluid to fuss over. Downside? Slower cycles—maybe 200 shots per hour—so it's niche. Tip: keep air lines dry; moisture can react with molten lead and spit metal.

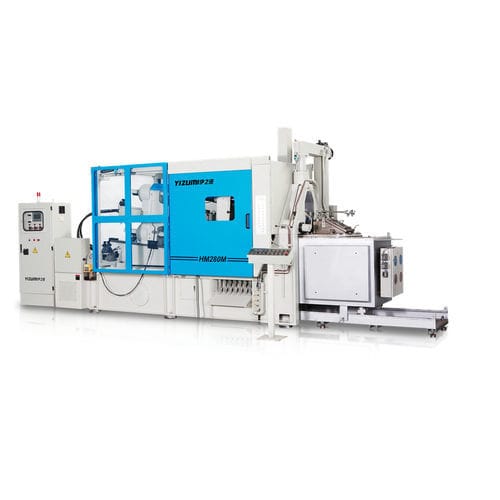

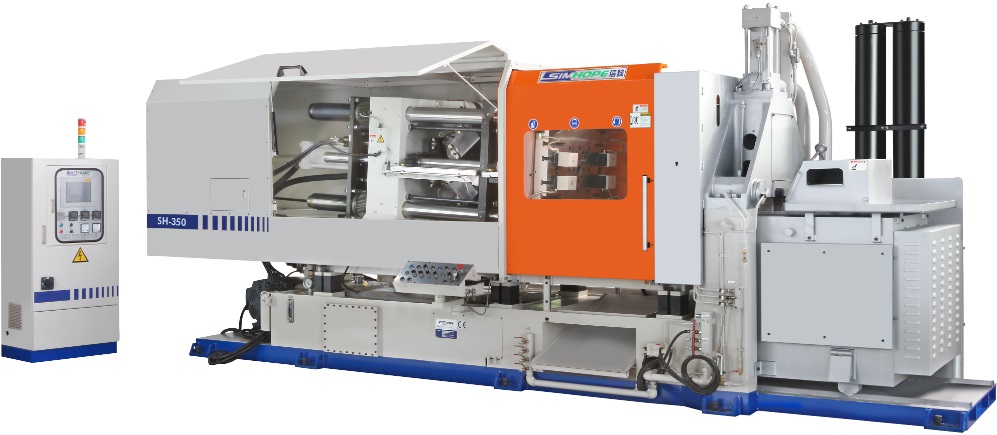

For magnesium aerospace brackets, you'll often see modern hot chamber machines with advanced controls. These beasts, like those from manufacturers like Frech or Italpresse, use servo-driven plungers and real-time monitoring to handle magnesium's trickier flow at 650°C. A 400-ton machine can hit 250 brackets per hour, with precision (±0.02 mm) vital for aerospace tolerances. Expect to shell out $150,000-$300,000 for one, plus $10,000-$30,000 for a multi-cavity die. Practical tip: use argon gas shielding—magnesium loves to catch fire without it.
The tools—dies—are the unsung heroes. Made from hardened tool steel (e.g., H13), they withstand thousands of cycles. A single-cavity die for a zinc lock might weigh 50 kg and cost $5,000, while a four-cavity die for magnesium brackets could hit $25,000 but quadruple output. Cooling channels, machined into the die, are critical—water at 20°C circulates to solidify parts fast. For lead terminals, simple dies with minimal features keep costs low, around $3,000. Tip: polish die surfaces to a mirror finish for smoother ejections and less wear.
Auxiliary tools include ladles (for topping off furnaces), sprayers (for die lubricant), and trimming presses (to cut flash). A robotic arm might cost $20,000 but saves labor on high-volume runs like 50,000 locks monthly. For magnesium, you'll need a flux applicator to prevent oxidation—another $5,000. Total setup for a small shop? Maybe $100,000-$200,000, with operating costs of $1-$2 per part dropping as volume rises.
Each machine type suits its metal and part. Gooseneck for zinc's simplicity, air for lead's finesse, and high-tech for magnesium's demands. Pick wisely, and maintain religiously—dies and plungers hate neglect.
Hot chamber die casting is a manufacturing MVP, cranking out parts for industries from automotive to aerospace to electronics. Let's dive into some prime examples—zinc automotive locks, magnesium aerospace brackets, and lead-alloy battery terminals—and see how this process delivers, with costs, steps, and tips thrown in.
Zinc Automotive Locks: Car door locks need to be tough, precise, and cheap—zinc nails it. Hot chamber die casting starts with melting Zamak 3 (a zinc-aluminum alloy) at 425°C in a gooseneck machine. The molten metal shoots into a die shaped like a lock cylinder, cooling in 5-10 seconds. Ejection pins pop out the part, and a quick trim removes flash. Cycle time? About 15 seconds, yielding 240 locks per hour on a 200-ton machine. Cost per lock is low—$0.20-$0.50, factoring in $0.10 for material (zinc at $2/kg) and $0.10-$0.40 for machine time and labor. Big runs (e.g., 100,000 units) slash costs further via economies of scale. Tip: use a multi-cavity die to boost output—four locks per shot cuts per-unit cost by 25%.
Magnesium Aerospace Brackets: Lightweight and strong, magnesium is a darling of aerospace. Take a bracket for an aircraft engine mount. The process kicks off with AZ91D alloy melting at 650°C in a modern hot chamber machine. Under 3,000 psi, the metal fills a complex die with thin walls and mounting holes, solidifying in 10 seconds thanks to aggressive cooling. Post-ejection, parts get a light sandblast to smooth edges. A 400-ton machine might produce 200 brackets hourly, with each weighing 100 grams. Costs hover at $1-$2 per unit—$0.50 for magnesium ($5/kg), $0.50-$1.50 for machine and labor. Tooling's pricier here—a $20,000 die—but lasts 150,000 cycles. Tip: coat dies with boron nitride to prevent magnesium sticking and extend tool life.
Lead-Alloy Battery Terminals: These chunky connectors thrive in hot chamber casting due to lead's low melting point (327°C). A Pb-Sn alloy melts in an air-operated machine, injected at 1,500 psi into a simple die. Cooling takes 8 seconds, and the terminal pops out ready for use—no machining needed. Output's around 200 per hour on a 50-ton rig. Cost is dirt cheap—$0.15-$0.30 each, with lead at $1.50/kg costing $0.05 and machine time adding $0.10-$0.25. Low tooling costs ($3,000 per die) keep startups affordable. Tip: vent dies well—lead's density can trap air, causing surface defects if not released.
Beyond these, hot chamber die casting shines in electronics (e.g., zinc connector housings), toys (e.g., lead-free Zamak figurines), and plumbing (e.g., copper-zinc fittings). It's all about high-volume, small-to-medium parts with tight tolerances (±0.05 mm) and smooth finishes. Steps are consistent: melt, inject, cool, eject, trim. Costs scale with volume—small runs might hit $1/part, but millions drop to cents. Practical tip for all: monitor melt temperature obsessively—5°C off can ruin fluidity or damage tools.
Hot chamber die casting isn't standing still—it's evolving fast, driven by tech advances, sustainability goals, and industry demands. Let's unpack the latest trends shaping its future, with examples like zinc locks, magnesium brackets, and lead terminals showing how they play out in 2024 and beyond.
Automation and Industry 4.0: Robots and sensors are taking over. A 2024 study from *Journal of Manufacturing Processes* (Yang et al.) highlights how smart hot chamber machines use real-time data to tweak pressure and temperature, cutting defects by 15%. For zinc automotive locks, a robotic arm now grabs parts post-ejection, trimming flash in-line—boosting output from 240 to 300 per hour on a $20,000 investment. Costs drop too—labor per lock falls from $0.10 to $0.05. Tip: integrate IoT sensors; they flag die wear early, saving $5,000 in repairs.
Sustainability Push: Green manufacturing is hot. A 2024 *Materials Science and Engineering* article (Bharti et al.) notes a 20% rise in recycled zinc use for die casting, slashing raw material costs by $0.50/kg. For magnesium brackets, firms are recycling scrap in-house—AZ91D trimmings remelt at 650°C, cutting costs from $5/kg to $4/kg and waste by 30%. Lead terminals see similar moves, with closed-loop systems reusing 90% of alloy. Tip: filter recycled melt—impurities can weaken parts if not caught.
Alloy Innovations: New alloys are expanding possibilities. Magnesium's getting creep-resistant tweaks (e.g., AE42), letting aerospace brackets handle higher temps (up to 300°C) without deforming—vital for next-gen engines. Zinc's ZA-8 alloy, with 8% aluminum, boosts strength for locks, letting them withstand 20% more force. Costs rise slightly—$2.20/kg vs. $2 for Zamak 3—but durability pays off. Lead alloys are leaning toward tin-rich mixes for better corrosion resistance in battery terminals. Tip: test alloy batches; slight composition shifts can throw off fluidity.
Energy Efficiency: Machines are slimming down power use. Modern 400-ton units for magnesium brackets now draw 10% less energy (e.g., 50 kWh vs. 55 kWh daily) via better insulation and servo motors. A factory casting 10,000 parts daily saves $200 monthly. For zinc locks, preheating dies with waste furnace heat cuts startup energy by 5%. Tip: schedule runs back-to-back—keeping furnaces hot saves 15% vs. cold starts.
Additive Manufacturing Hybrids: 3D-printed dies are creeping in. Yang et al. (2024) report prototype steel dies printed for lead terminals, slashing tooling time from weeks to days and costs from $5,000 to $3,500. Precision's still lagging (±0.1 mm vs. ±0.05 mm), but it's promising for short runs. Magnesium brackets might see this soon for custom jobs. Tip: stick to machined dies for high-volume—3D prints wear out faster.
These trends show hot chamber die casting adapting to a fast-changing world, balancing cost, quality, and eco-friendliness. It's a process with legs—and it's running toward a high-tech, sustainable future.
Hot chamber die casting is a manufacturing marvel—fast, precise, and versatile enough to churn out everything from zinc automotive locks to magnesium aerospace brackets and lead-alloy battery terminals. Its history traces a path from 19th-century printing presses to today's automated, eco-conscious factories, proving its staying power. The core principles—submerged injection, high pressure, rapid cooling—deliver parts in seconds with tolerances tighter than a drum, all while keeping costs low (think $0.15-$2 per unit, volume depending). The machines, from classic goosenecks to high-tech servo-driven units, pair with rugged steel dies to handle diverse alloys and shapes, adapting to each job's quirks. Applications span industries, solving real-world problems like lightweighting planes or powering cars, with practical steps that engineers can tweak for efficiency.
Looking ahead, trends like automation, recycled alloys, and energy savings are pushing the process into new territory. A zinc lock factory slashing labor costs with robots, a magnesium bracket run cutting waste with recycled scrap, or a lead terminal line testing 3D-printed dies—these are glimpses of a future where hot chamber die casting stays relevant. Costs are manageable—tooling might sting upfront ($5,000-$30,000), but high volumes dilute it to pennies per part. Tips abound: monitor temps, vent dies, lubricate plungers, and embrace data-driven tweaks. For manufacturing engineers, this process isn't just a tool—it's a partner, blending tradition with innovation to shape the stuff we rely on every day.
Title: Die casting - Wikipedia
Authors: Various Contributors
Publication: WikipediaPublication
Date: February 20, 2025
Key Findings: Comprehensive overview of die casting processes, including hot and cold chamber methods, history, equipment, and applications.
Methodology: Collaborative encyclopedia entry with multiple contributors and citations.
Citation: Wikipedia Contributors. (2025, February 20). Die casting. In Wikipedia.
Title: Simulation of High Pressure Die Casting Process for Identifying and Minimising Defects
Authors: Not specified
Publication: International Journal of Engineering Research and Technology
Key Findings: Modeling and simulation of HPDC Process using Z-CAST software for identifying and eliminating casting defects.
Methodology: Computer simulation and process parameter analysis.
Title: Cold Chamber vs. Hot Chamber Die-Casting: Basic Guide 2024
Authors: Not specified
Publication: AludiecastingPublication
Date: July 7, 2024
Key Findings: Comparison of cold chamber and hot chamber die casting processes, applications, advantages, and limitations.
Methodology: Comparative analysis of casting techniques.
Citation: Cold Chamber vs. Hot Chamber Die-Casting: Basic Guide 2024. (2024, July 7). Aludiecasting.
Title: Hot Chamber Die Casting
Authors: Peter Sun
Publication: LinkedInPublication
Date: July 12, 2024
Key Findings: Detailed explanation of hot chamber die casting process, advantages, disadvantages, and selection criteria.
Methodology: Technical analysis and industry expertise.
Citation: Sun, P. (2024, July 12). Hot Chamber Die Casting. LinkedIn.
Title: High pressure die casting
Authors: Not specified
Publication: Giesserei LexikonPublication
Date: January 1, 2024
Key Findings: Technical definition and explanation of high pressure die casting processes and variants.
Methodology: Industry glossary and technical definition.
Citation: High pressure die casting. (2024, January 1). Giesserei Lexikon.
1. Q: What metals can be used in hot chamber die casting?
A: It's limited to low-melting-point alloys like zinc (425°C), magnesium (650°C), and lead (327°C). Higher-melting metals like aluminum erode the machine's components.
2. Q: How fast is the hot chamber process compared to cold chamber?
A: Hot chamber is faster—10-15 seconds per cycle vs. 30-60 seconds for cold chamber—since the metal's already molten in the machine.
3. Q: What's the biggest cost factor in hot chamber die casting?
A: Tooling, hands down. A die can cost $5,000-$30,000, but it's a one-time hit spread over thousands of parts.
4. Q: Why is magnesium tricky to cast?
A: It's reactive—likes to catch fire at 650°C. Use argon shielding and clean furnaces to avoid headaches.
5. Q: Can hot chamber die casting go green?
A: Yep! Recycling zinc or magnesium scrap cuts costs ($0.50-$1/kg) and waste, aligning with 2024 sustainability trends.
