Die casting is a widely used manufacturing process for producing metal parts with high precision and excellent surface finish. However, one common defect that can occur during this process is known as "flash." This article will explore the concept of flash in aluminum die casting, its causes, effects, and methods for prevention and management.

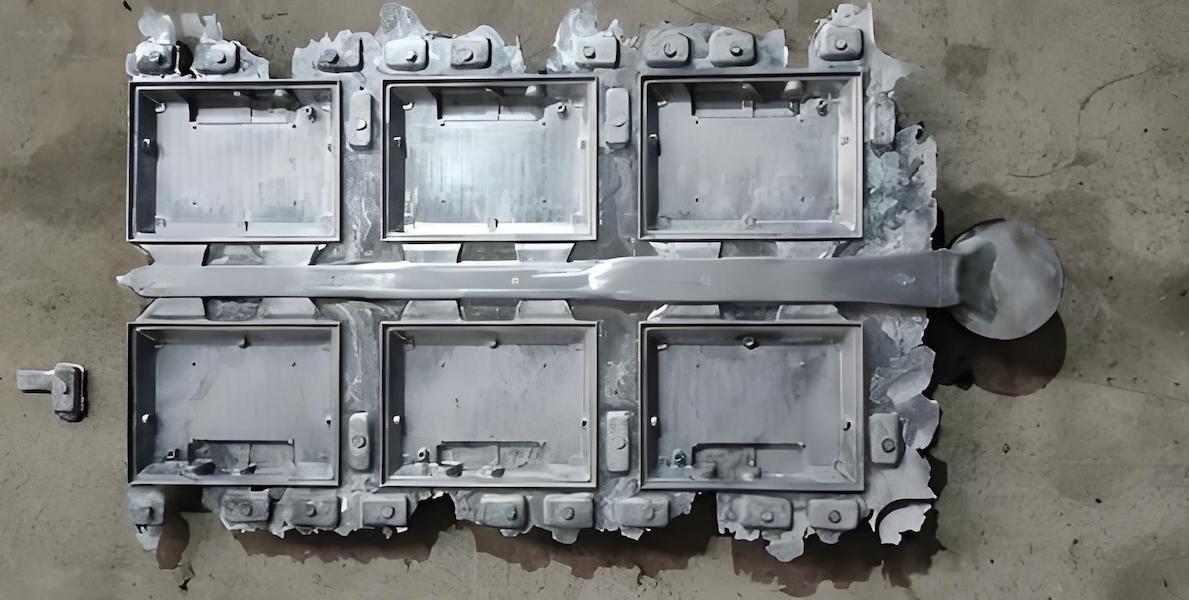

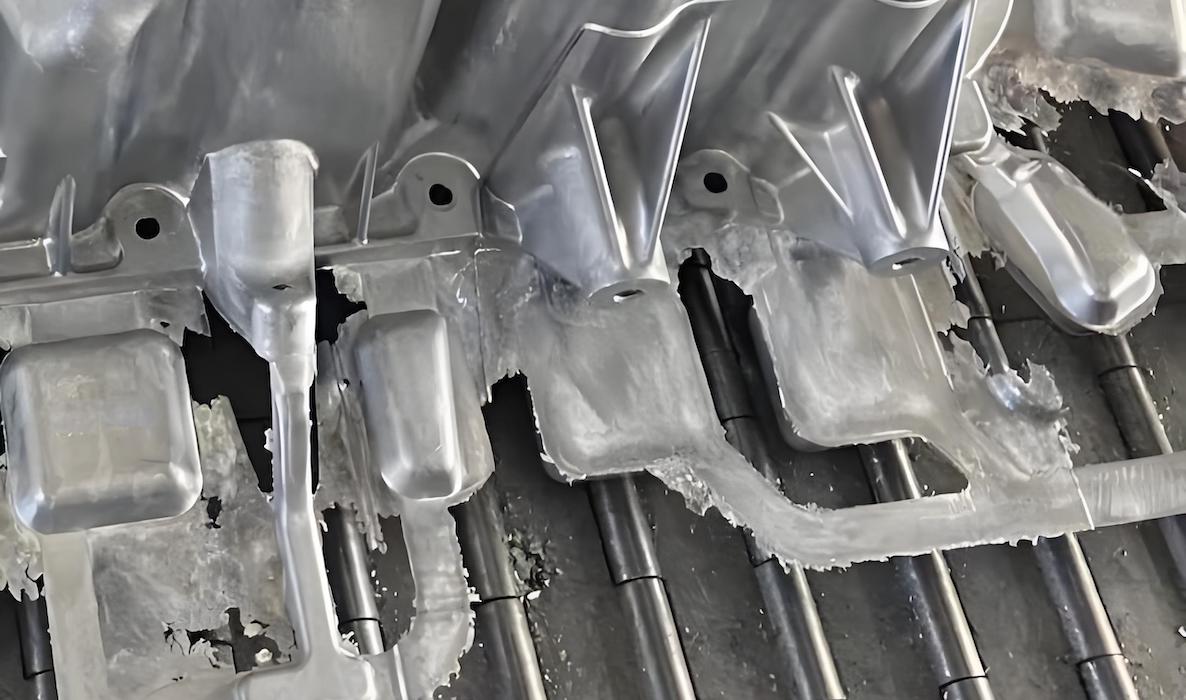

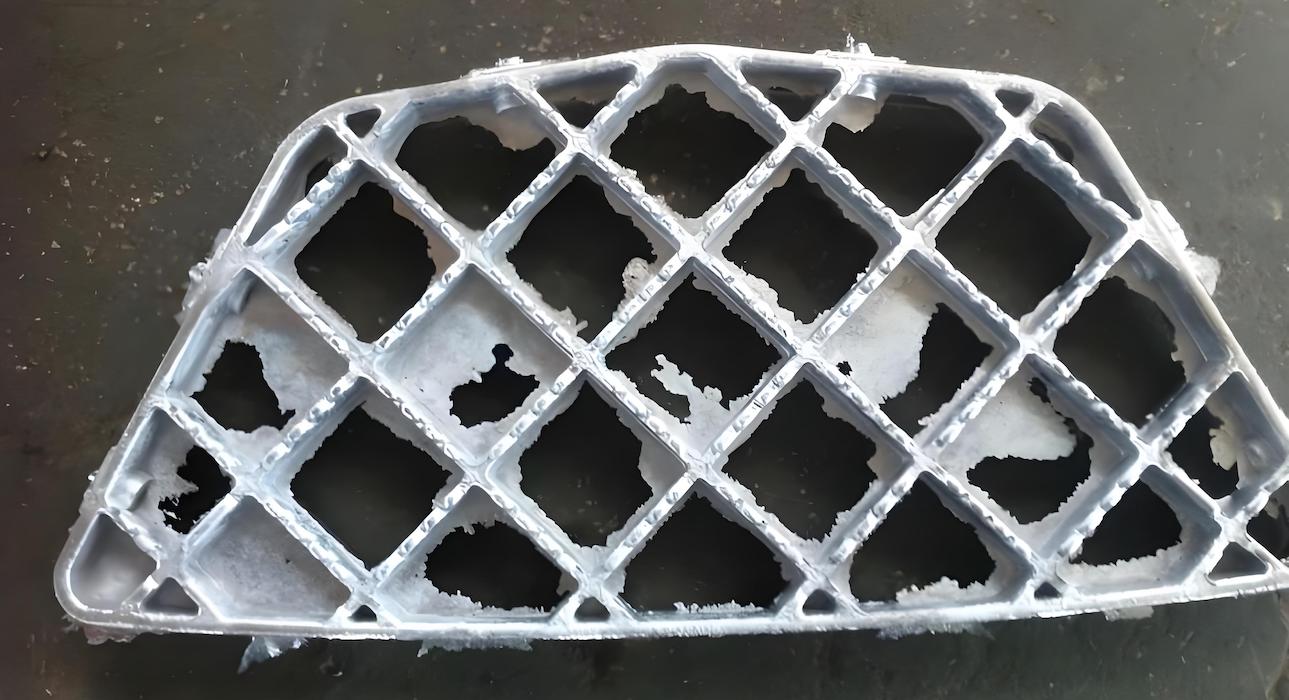

Flash refers to the thin layer of excess material that forms on the edges of a die-cast part. This defect occurs when molten metal escapes from the die cavity during the injection process, leading to unwanted protrusions on the final product. Flash can vary in thickness and can appear on any part of the casting, although it is most commonly found along the parting lines of the die. The presence of flash can be particularly problematic in applications where tight tolerances are required, as even a small amount of excess material can lead to significant issues in assembly and functionality.
Addressing flash is crucial for several reasons. First, it can affect the aesthetic quality of the finished product, leading to a less appealing appearance. In industries such as automotive and consumer electronics, where visual appeal is paramount, flash can detract from the overall design and marketability of a product. Second, flash can interfere with the functionality of the part, especially if it affects the fit or assembly with other components. This can lead to operational failures or increased wear and tear on the assembled product. Lastly, excessive flash can increase production costs due to the need for additional finishing processes to remove the unwanted material, which can also slow down production timelines and reduce overall efficiency.
One of the primary causes of flash is poor mold design. If the die does not fit together tightly, molten metal can escape through the gaps. This can occur due to wear and tear on the mold or improper alignment during the die assembly process. Additionally, inadequate design features, such as insufficient draft angles or poorly placed vents, can exacerbate the issue. A well-designed mold not only minimizes the risk of flash but also enhances the overall quality of the casting by ensuring that the molten metal fills the die uniformly and completely.
The clamping force applied to the die during the injection of molten metal is critical. If the clamping force is insufficient, the pressure from the injected metal can cause the die to separate slightly, allowing metal to leak out and form flash. Ensuring that the clamping force is adequate is essential to prevent this issue. Manufacturers must regularly assess the clamping mechanisms of their die casting machines, as variations in material properties or changes in production conditions can affect the required clamping force. Implementing a robust monitoring system can help maintain optimal clamping conditions throughout the production run.
Using excessively high injection pressure can also lead to flash formation. When the pressure is too high, it can force the molten metal into areas of the die that are not intended for casting, resulting in flash. It is important to optimize the injection pressure to balance the need for filling the die and preventing excess material from escaping. This requires a thorough understanding of the material being used, as different alloys may respond differently to varying pressures. Additionally, manufacturers should consider the design of the gating system, as poorly designed gates can lead to turbulence and increased pressure in unintended areas.
Temperature plays a significant role in the die casting process. If the molten metal is too hot, it can flow more easily and may escape from the die. Conversely, if the die is not heated adequately, it can lead to incomplete filling and increased flash. Maintaining proper temperature control is vital for achieving high-quality castings. This involves not only monitoring the temperature of the molten metal but also ensuring that the die itself is maintained at an optimal temperature. Implementing temperature control systems that can adjust heating elements based on real-time data can significantly improve the consistency of the casting process.
Flash can significantly affect the visual appeal of die-cast parts. Excess material can create an uneven surface finish, which may be unacceptable for products that require a high level of aesthetic quality. This is particularly important in industries such as automotive and consumer electronics, where appearance is crucial. The presence of flash can lead to negative perceptions of quality among consumers, potentially impacting brand reputation and sales. Manufacturers must consider the implications of flash not only on individual products but also on their overall market positioning.
In addition to aesthetic concerns, flash can also impact the functionality of the part. If the flash interferes with the fit of the component, it can lead to assembly issues or even functional failures in the final product. This is especially critical in applications where precision is essential, such as in aerospace or medical devices. The presence of flash can also create stress concentrations in the material, potentially leading to premature failure under load. Manufacturers must conduct thorough testing and quality control to ensure that flash does not compromise the integrity of the final product.
The presence of flash necessitates additional finishing processes, such as trimming or sanding, to remove the excess material. This not only increases production time but also raises costs. Manufacturers must consider these factors when evaluating the overall efficiency of their die casting operations. The need for additional labor and equipment to handle flash can strain resources and impact profitability. By investing in better design and process controls, manufacturers can reduce the incidence of flash and improve their bottom line.
To minimize the risk of flash, careful attention must be paid to the design of the die. Ensuring that the mold fits together tightly and is properly aligned can help prevent gaps that allow molten metal to escape. Additionally, incorporating features such as draft angles can facilitate easier removal of the casting and reduce the likelihood of flash. Designers should also consider the flow characteristics of the molten metal, optimizing gate locations and sizes to ensure smooth filling of the die without excessive pressure buildup.
Manufacturers should regularly assess the clamping force applied during the die casting process. Ensuring that the clamping force is sufficient to hold the die securely closed can prevent flash formation. This may involve regular maintenance and calibration of the die casting machine to ensure optimal performance. Implementing a feedback system that monitors clamping force in real-time can help identify issues before they lead to defects, allowing for proactive adjustments to be made during production.
Monitoring and controlling the injection pressure and temperature of the molten metal is essential for preventing flash. Manufacturers should establish optimal parameters for their specific materials and processes, adjusting as necessary to achieve the best results. This may involve conducting trials to determine the ideal settings for different alloys and part geometries. Additionally, investing in advanced control systems that can automatically adjust parameters based on real-time feedback can enhance process stability and reduce the likelihood of flash.
Regular maintenance of die casting equipment is crucial for preventing flash. This includes inspecting and repairing molds, checking alignment, and ensuring that all components are functioning correctly. By maintaining equipment in good condition, manufacturers can reduce the likelihood of defects such as flash. Implementing a scheduled maintenance program that includes routine inspections and preventive measures can help extend the lifespan of equipment and improve overall production efficiency.
Flash in aluminum die casting is a common defect that can have significant implications for the quality and functionality of cast parts. Understanding the causes of flash and implementing effective prevention and management strategies is essential for manufacturers seeking to produce high-quality die-cast components. By focusing on mold design, clamping force, injection pressure, temperature control, and regular maintenance, manufacturers can minimize the occurrence of flash and enhance the overall efficiency of their die casting operations. Ultimately, addressing flash not only improves product quality but also contributes to greater customer satisfaction and business success.
Common signs of flash include visible excess material along the edges of the part, uneven surfaces, and rough edges. These defects can often be seen at the parting line where the two halves of the die meet.
Flash can interfere with the fit and assembly of die-cast parts, leading to issues such as misalignment, increased wear, and potential failure during operation. In critical applications, such as automotive or aerospace components, this can compromise safety and functionality.
Flash can be removed through various methods, including trimming, sanding, or grinding. Automated trimming machines can also be used to enhance efficiency and ensure consistent quality in the removal process.
Different aluminum alloys have varying flow characteristics and thermal properties, which can affect how they behave during the die casting process. Alloys that flow more easily may be more prone to flash if not managed properly, while those with higher viscosity may reduce the risk of flash but can lead to incomplete filling.
Regular maintenance of the die is crucial for preventing flash. This includes checking for wear and tear, ensuring proper alignment, and cleaning the die to prevent material buildup. Well-maintained dies help ensure tight fits and optimal performance during the casting process, reducing the likelihood of flash formation.
