Die casting is a highly efficient manufacturing process that involves forcing molten metal into a mold cavity under high pressure. This technique is widely utilized across various industries due to its ability to produce complex, high-strength components with precision. In this article, we will explore the die casting process, its applications, advantages, and the materials commonly used in this manufacturing method.

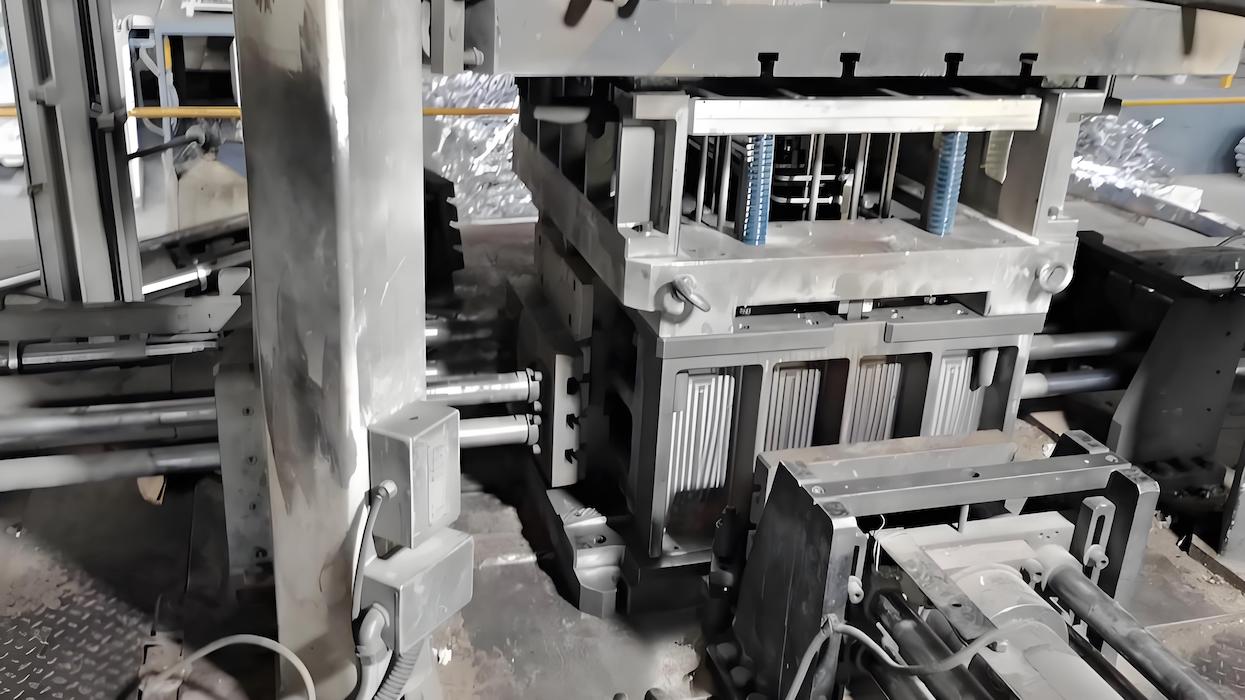

Die casting is a metal casting process that involves injecting molten metal into a mold, known as a die, which is designed to create specific shapes and features. The process is characterized by its ability to produce parts with high dimensional accuracy and smooth surface finishes. The die is typically made from high-strength steel to withstand the high pressures and temperatures involved in the casting process. This durability is essential, as the die must endure repeated cycles of heating and cooling without deforming, ensuring consistent quality in the produced parts.
There are two primary types of die casting: hot chamber and cold chamber die casting.
In hot chamber die casting, the metal is melted in a chamber that is part of the die casting machine. This method is suitable for metals with low melting points, such as zinc and magnesium. The molten metal is injected into the die under high pressure, allowing for rapid production cycles. This efficiency is particularly beneficial for high-volume production runs, where speed and consistency are critical. The hot chamber process also minimizes the risk of oxidation, as the molten metal is kept in a controlled environment.
Cold chamber die casting is used for metals with higher melting points, such as aluminum and copper. In this method, the metal is melted in a separate furnace and then transferred to the die casting machine. The molten metal is injected into the die under high pressure, similar to the hot chamber process, but with the added step of transferring the metal. This method allows for greater flexibility in material selection and is often preferred for applications requiring specific material properties, such as strength and corrosion resistance.
The die casting cycle consists of several key steps:
Mold Preparation: The die is preheated and lubricated to facilitate the release of the finished part. Proper mold preparation is crucial for ensuring that the molten metal flows smoothly into the cavity and that the finished part can be easily ejected without damage.
Injection: Molten metal is injected into the die at high pressure, filling the mold cavity. The injection speed and pressure are carefully controlled to ensure that the metal fills the mold completely and evenly, preventing defects such as air pockets or incomplete filling.
Cooling: The metal cools and solidifies within the die. Cooling time can vary depending on the material and the thickness of the part, and it is essential to allow sufficient time for the metal to solidify completely before ejection.
Ejection: Once the part has cooled sufficiently, it is ejected from the die. Ejection mechanisms, such as pins or plates, are used to push the finished part out of the mold without causing damage.
Trimming: Any excess material, known as flash, is removed from the finished part. This step is important for ensuring that the final product meets the required specifications and quality standards.
Die casting is used in a wide range of industries due to its versatility and efficiency. Some of the most common applications include:

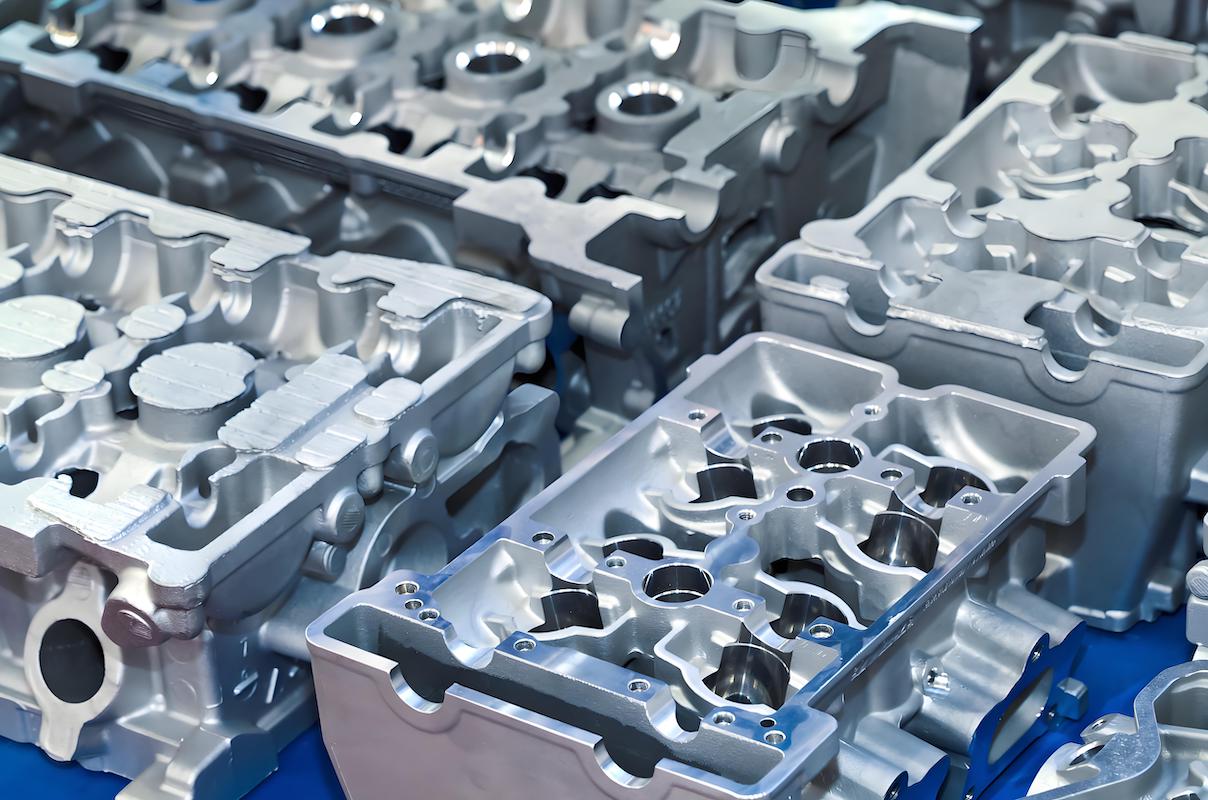

The automotive industry is one of the largest consumers of die-cast components. Die casting is used to manufacture various parts, including engine blocks, transmission housings, wheels, and brackets and supports. The lightweight and high-strength properties of die-cast parts contribute to improved fuel efficiency and overall vehicle performance. Additionally, the ability to produce complex shapes allows for innovative designs that enhance both functionality and aesthetics in modern vehicles.
In the aerospace sector, die casting is employed to produce critical components that require high strength-to-weight ratios. Applications include structural components, engine parts, and housing for electronic systems. The precision and reliability of die-cast parts are essential for ensuring the safety and performance of aerospace vehicles. As the aerospace industry continues to push for lighter and more efficient designs, die casting plays a vital role in meeting these demands while maintaining stringent safety standards.
Die casting is also widely used in the electronics industry for producing housings and enclosures for various devices. Applications include computer components, lighting fixtures, and electrical connectors. The ability to create complex shapes with tight tolerances makes die casting an ideal choice for electronic applications. Furthermore, the excellent thermal conductivity of certain die-cast materials helps in managing heat dissipation in electronic devices, enhancing their performance and longevity.
Many industrial machines and equipment rely on die-cast components for their functionality. Common applications include gear housings, pump casings, and tooling and fixtures. The durability and strength of die-cast parts contribute to the longevity and reliability of industrial equipment. As industries increasingly focus on automation and efficiency, die-cast components are essential for creating robust machinery that can withstand demanding operational conditions.
Die casting offers several advantages over other manufacturing processes, making it a preferred choice for many applications.
One of the primary benefits of die casting is its ability to produce parts with high dimensional accuracy. The precision of the die ensures that the final product meets strict tolerances, which is crucial for applications in industries such as aerospace and automotive. This high level of accuracy reduces the need for secondary machining operations, saving time and costs in the production process.
Die casting allows for the creation of complex shapes and intricate designs that may be difficult or impossible to achieve with other manufacturing methods. This capability enables manufacturers to produce lightweight components with enhanced performance characteristics. The flexibility in design also allows for greater innovation in product development, as engineers can explore new shapes and features that improve functionality.
While the initial cost of creating a die can be high, die casting is cost-effective for high-volume production runs. The quick cycle times and reduced material waste associated with die casting contribute to lower overall production costs. Additionally, the durability of die-cast parts often leads to lower maintenance and replacement costs over the product's lifecycle, further enhancing the economic benefits of this manufacturing process.
Die-cast parts typically have a smooth surface finish, reducing the need for additional machining or finishing processes. This characteristic is particularly beneficial for applications where aesthetics and surface quality are important. The smooth finish also improves the performance of the parts by reducing friction and wear in applications where they interact with other components.
Die casting is known for its material efficiency, as it minimizes waste during the manufacturing process. The ability to reuse molds and the precise nature of the injection process contribute to this efficiency. Furthermore, advancements in die casting technology continue to improve material utilization, allowing manufacturers to produce high-quality parts while minimizing environmental impact.
The choice of material for die casting is critical to the performance and characteristics of the final product. Common materials used in die casting include:
Aluminum is one of the most widely used materials in die casting due to its lightweight properties and excellent corrosion resistance. It is commonly used in automotive and aerospace applications. The versatility of aluminum alloys allows for a range of mechanical properties, making it suitable for various applications, from structural components to intricate housings.
Zinc die casting is popular for its low melting point and ability to produce intricate shapes. Zinc alloys are often used in applications requiring high strength and durability. The excellent fluidity of molten zinc allows for the production of thin-walled components, which is advantageous in applications where weight reduction is essential.
Magnesium die casting is favored for its lightweight properties, making it ideal for applications where weight reduction is essential. It is commonly used in the automotive and aerospace industries. Magnesium alloys also exhibit good strength-to-weight ratios and excellent machinability, making them suitable for complex parts that require precise tolerances.
Copper alloys are used in die casting for applications requiring high electrical conductivity and thermal resistance. These materials are often found in electrical components and connectors. The ability to produce intricate shapes with high precision makes copper die casting an attractive option for manufacturers in the electronics industry.
Die casting is a versatile and efficient manufacturing process that plays a crucial role in producing high-quality metal parts across various industries. Its ability to create complex geometries with high precision, combined with the advantages of material efficiency and cost-effectiveness, makes it a preferred choice for manufacturers. As technology continues to advance, die casting will likely remain a vital component of modern manufacturing, contributing to innovations in automotive, aerospace, electronics, and industrial equipment. The ongoing development of new materials and techniques will further enhance the capabilities of die casting, ensuring its relevance in the ever-evolving landscape of manufacturing.
Die casting offers several advantages, including high precision and accuracy, the ability to produce complex geometries, excellent surface finishes, and cost-effectiveness for high-volume production. Additionally, it minimizes material waste and allows for the reuse of molds, making it an efficient manufacturing method.
The most commonly used metals in die casting include aluminum, zinc, magnesium, and copper alloys. Each metal has unique properties that make it suitable for specific applications, such as aluminum's lightweight and corrosion resistance or zinc's ability to produce intricate shapes.
The die casting process can enhance the mechanical properties of the final product by producing parts with a fine-grained microstructure. This results in improved strength, durability, and resistance to wear and fatigue, making die-cast components suitable for demanding applications in industries like automotive and aerospace.
In the automotive industry, die casting is used to manufacture various components, including engine blocks, transmission housings, wheels, and brackets. The lightweight and high-strength characteristics of die-cast parts contribute to improved fuel efficiency and overall vehicle performance.
The choice between hot chamber and cold chamber die casting primarily depends on the melting point of the metal being used. Hot chamber die casting is suitable for metals with low melting points, such as zinc and magnesium, while cold chamber die casting is preferred for metals with higher melting points, like aluminum and copper. Other factors include production volume, part complexity, and desired material properties.
