CNC machining and 3D printing are two of the most prominent manufacturing technologies in the modern industrial landscape. Each method has its unique advantages, applications, and limitations. Understanding the differences between CNC machining and 3D printing is essential for manufacturers, engineers, and designers who are looking to choose the right technology for their projects. This article will explore the fundamental differences between these two processes, their applications, and their respective advantages and disadvantages.
CNC machining, or Computer Numerical Control machining, is a subtractive manufacturing process that involves the removal of material from a solid block to create a desired shape. This process is controlled by a computer program that dictates the movements of the machine tools. CNC machining is widely used in various industries, including aerospace, automotive, and medical device manufacturing. The precision and repeatability of CNC machining make it a go-to choice for producing high-quality components that meet stringent industry standards.
The CNC machining process begins with the design of a part using computer-aided design (CAD) software. This software allows engineers and designers to create detailed 3D models of the components they wish to manufacture. Once the design is finalized, it is converted into a format that the CNC machine can understand, typically through a process called computer-aided manufacturing (CAM). The CNC machine then uses various tools, such as mills, lathes, and routers, to cut away material from the workpiece until the desired shape is achieved. This process can involve multiple setups and tool changes, depending on the complexity of the part being produced.
There are several types of CNC machines, each designed for specific applications. Some of the most common types include:
CNC Mills: These machines use rotating cutting tools to remove material from a workpiece. They are versatile and can create complex shapes and features, making them suitable for a wide range of applications, from intricate designs to large-scale production.
CNC Lathes: Lathes rotate the workpiece while a cutting tool is applied to shape it. This method is ideal for creating cylindrical parts, such as shafts and fittings, which are commonly used in various mechanical assemblies.
CNC Routers: Routers are used primarily for cutting softer materials like wood, plastic, and composites. They are often used in the woodworking and sign-making industries, where intricate designs and high-quality finishes are required.
CNC Plasma Cutters: These machines use a high-velocity jet of ionized gas to cut through metal. They are commonly used in metal fabrication, allowing for quick and efficient cutting of thick materials.
CNC machining offers several advantages that make it a preferred choice for many manufacturing applications:
Precision and Accuracy: CNC machines can produce parts with extremely tight tolerances, making them ideal for applications that require high precision. This level of accuracy is crucial in industries such as aerospace and medical, where even minor deviations can lead to significant issues.
Material Variety: CNC machining can work with a wide range of materials, including metals, plastics, and composites, allowing for greater flexibility in design. This versatility enables manufacturers to select the most suitable material for their specific application, optimizing performance and cost.
Scalability: Once a CNC program is established, it can be used to produce large quantities of parts consistently, making it suitable for mass production. This scalability is particularly beneficial for companies looking to meet high demand without sacrificing quality.
Surface Finish: CNC machining can achieve excellent surface finishes, which is crucial for many applications, especially in industries like aerospace and medical. The ability to produce smooth surfaces reduces the need for extensive post-processing, saving time and costs.
3D printing, also known as additive manufacturing, is a process that creates objects by adding material layer by layer based on a digital model. This technology has gained significant popularity in recent years due to its ability to produce complex geometries and reduce material waste. The rise of 3D printing has revolutionized the way products are designed and manufactured, enabling rapid prototyping and customization.
The 3D printing process begins with the creation of a digital model using CAD software. This model is then sliced into thin layers using slicing software, which generates the instructions for the 3D printer. The printer then deposits material, typically plastic, resin, or metal, layer by layer until the final object is complete. This layer-by-layer approach allows for the creation of intricate designs that would be challenging to achieve with traditional manufacturing methods.
There are several different 3D printing technologies, each with its unique characteristics:

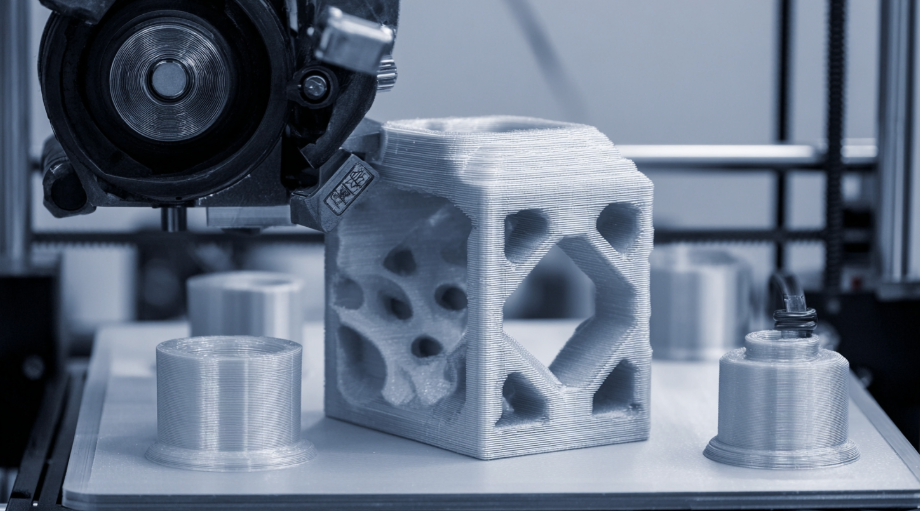

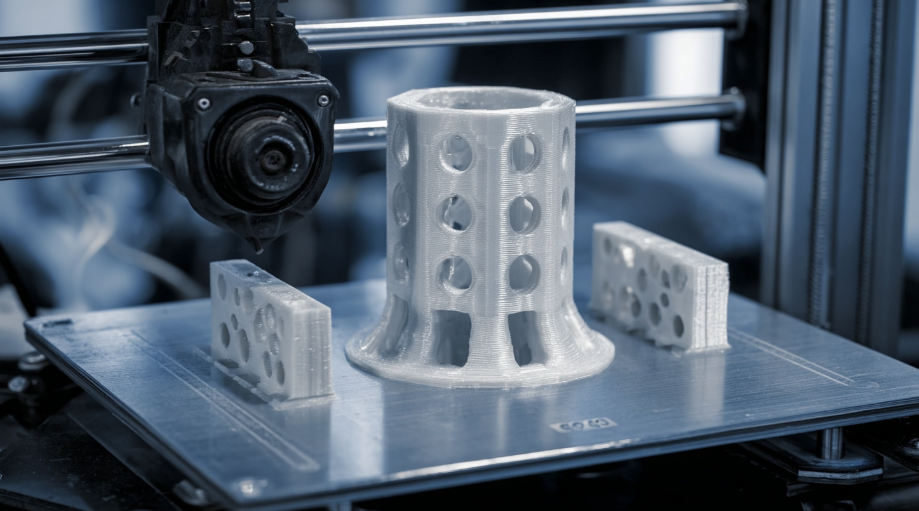

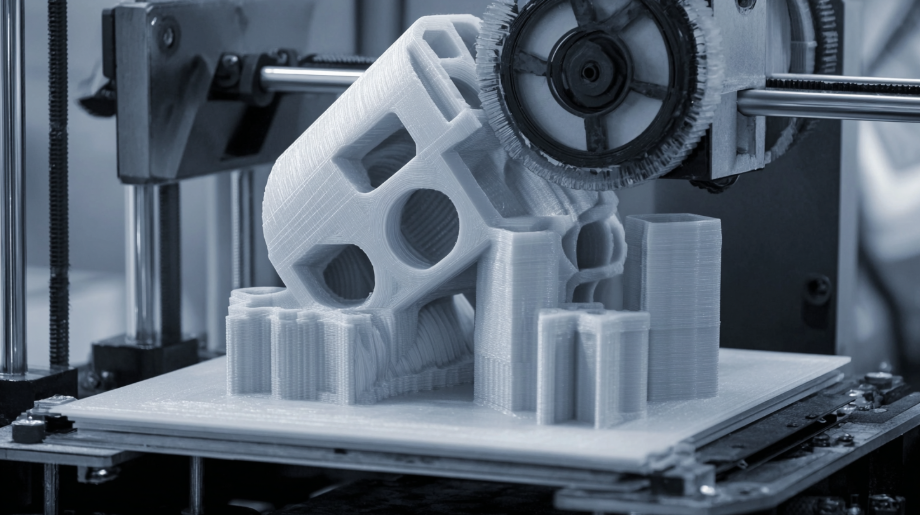

Fused Deposition Modeling (FDM): This is the most common 3D printing method, where thermoplastic filaments are melted and extruded through a nozzle to build the object layer by layer. FDM is widely used for prototyping and small-scale production due to its affordability and ease of use.
Stereolithography (SLA): SLA uses a laser to cure liquid resin into solid layers. This method is known for its high resolution and smooth surface finish, making it ideal for applications that require detailed features, such as jewelry and dental models.
Selective Laser Sintering (SLS): SLS uses a laser to fuse powdered material, typically nylon or metal, into solid parts. This method allows for complex geometries and is often used for functional prototypes and end-use parts, particularly in industries like aerospace and automotive.
Binder Jetting: This technology involves depositing a binding agent onto a powder bed to create layers. It is commonly used for metal and sand casting applications, allowing for the production of intricate designs with minimal material waste.
3D printing offers several advantages that make it an attractive option for various applications:
Design Freedom: 3D printing allows for the creation of complex geometries that would be difficult or impossible to achieve with traditional manufacturing methods. This design freedom enables engineers and designers to innovate and push the boundaries of product development.
Reduced Material Waste: Since 3D printing is an additive process, it generates significantly less waste compared to subtractive methods like CNC machining. This reduction in waste not only lowers material costs but also contributes to more sustainable manufacturing practices.
Rapid Prototyping: 3D printing enables quick iterations of designs, allowing for faster prototyping and testing of new products. This speed is particularly beneficial in industries where time-to-market is critical, as it allows companies to respond quickly to market demands.
Customization: 3D printing is ideal for producing customized parts and products, making it suitable for industries like healthcare, where personalized solutions are often required. The ability to create tailored products enhances user satisfaction and improves overall outcomes.
While both CNC machining and 3D printing are valuable manufacturing processes, they differ significantly in several key areas.
The most fundamental difference lies in the manufacturing process itself. CNC machining is a subtractive process that removes material from a solid block, while 3D printing is an additive process that builds objects layer by layer. This difference affects the types of designs that can be produced and the materials that can be used. CNC machining is often better suited for parts with tight tolerances and high strength, while 3D printing excels in creating complex shapes and lightweight structures.
CNC machining can work with a wide variety of materials, including metals, plastics, and composites. In contrast, 3D printing is often limited to specific materials, particularly thermoplastics and resins, although advancements in technology are expanding the range of materials available for 3D printing. The choice of material can significantly impact the performance and durability of the final product, making it essential to consider the specific requirements of each application.
CNC machining is known for its high precision and ability to produce parts with tight tolerances. This makes it suitable for applications where accuracy is critical, such as in aerospace and medical devices. On the other hand, while 3D printing has improved in terms of precision, it generally does not achieve the same level of accuracy as CNC machining. This difference can influence the choice of manufacturing method based on the specific tolerances required for a project.
CNC machining typically provides superior surface finishes compared to 3D printing. The layer lines and surface texture of 3D printed parts can be more pronounced, which may require additional post-processing to achieve a smooth finish. In applications where aesthetics and surface quality are paramount, CNC machining may be the preferred choice.
3D printing can be faster for producing prototypes and small batches of parts, as it does not require the same setup time as CNC machining. However, for large-scale production, CNC machining may be more efficient due to its ability to produce parts quickly once the program is established. The choice between the two methods often depends on the production volume and timeline of the project.
The cost of CNC machining and 3D printing can vary significantly based on factors such as material choice, part complexity, and production volume. CNC machining may have higher upfront costs due to tooling and setup, but it can be more cost-effective for large production runs. In contrast, 3D printing may have lower initial costs for small batches or custom parts but can become expensive for larger quantities. Understanding the cost implications of each method is crucial for making informed manufacturing decisions.
CNC machining is widely used across various industries due to its versatility and precision. Some common applications include:
In the aerospace industry, CNC machining is used to produce critical components such as engine parts, brackets, and housings. The high precision and reliability of CNC machined parts are essential for ensuring safety and performance in aircraft. Components must meet stringent regulatory standards, and CNC machining provides the accuracy needed to achieve these requirements.
CNC machining plays a vital role in the automotive industry, where it is used to manufacture engine components, transmission parts, and custom tooling. The ability to produce complex geometries and maintain tight tolerances is crucial for automotive applications, where performance and safety are paramount. Additionally, CNC machining allows for the rapid production of prototypes for new vehicle designs.
CNC machining is extensively used in the production of medical devices, including surgical instruments, implants, and prosthetics. The high level of precision and the ability to work with biocompatible materials make CNC machining ideal for this industry. Customization is often required to meet the specific needs of patients, and CNC machining can accommodate these requirements effectively.
Many industrial machines and equipment components are produced using CNC machining. This includes parts for manufacturing machinery and 3D printing, robotics, and automation systems, where precision and durability are paramount. CNC machining allows for the production of complex assemblies that can withstand the rigors of industrial use.
3D printing has found applications in various fields, particularly where customization and rapid prototyping are essential. Some notable applications include:
In the healthcare sector, 3D printing is used to create custom prosthetics, dental implants, and surgical models. The ability to produce patient-specific solutions enhances treatment outcomes and improves patient care. 3D printing also allows for the rapid production of medical devices, enabling healthcare providers to respond quickly to patient needs.
3D printing is increasingly being used in the aerospace industry for producing lightweight components and prototypes. The design freedom offered by 3D printing allows for innovative solutions that can reduce weight and improve fuel efficiency. Additionally, 3D printing can facilitate the production of spare parts on demand, reducing inventory costs and lead times.
Many consumer products, such as custom phone cases, jewelry, and home decor items, are produced using 3D printing. The ability to create unique designs and personalized products appeals to consumers looking for individuality. This customization capability has led to the rise of on-demand manufacturing, where products are made to order based on customer preferences.
3D printing is widely used in educational institutions and research facilities for prototyping and experimentation. It allows students and researchers to bring their ideas to life quickly and cost-effectively. The hands-on experience gained through 3D printing fosters creativity and innovation, preparing students for careers in engineering and design.
CNC machining and 3D printing are two distinct manufacturing technologies, each with its unique strengths and weaknesses. CNC machining excels in precision, material variety, and surface finish, making it ideal for high-volume production and applications requiring tight tolerances. On the other hand, 3D printing offers design freedom, reduced material waste, and rapid prototyping capabilities, making it suitable for custom and complex parts.
Choosing between CNC machining and 3D printing depends on various factors, including the specific requirements of the project, the materials involved, and the desired production volume. By understanding the differences between these two technologies, manufacturers can make informed decisions that align with their production goals and project needs. As both technologies continue to evolve, their integration may lead to new possibilities in manufacturing, combining the strengths of each to create innovative solutions for the future.
Recent advancements in CNC machining technology include the integration of artificial intelligence (AI) for predictive maintenance, improved automation through robotics, and the use of advanced materials such as composites and titanium alloys. Additionally, multi-axis machining has become more prevalent, allowing for more complex geometries and reduced setup times.
3D printing is increasingly being integrated with traditional manufacturing processes through hybrid manufacturing systems that combine additive and subtractive techniques. This integration allows manufacturers to leverage the strengths of both methods, such as using 3D printing for rapid prototyping and CNC machining for finishing and achieving tight tolerances.
CNC machining typically generates more material waste due to its subtractive nature, while 3D printing is more efficient as it adds material layer by layer, resulting in less waste. However, the environmental impact also depends on the materials used and the energy consumption of the processes. Sustainable practices, such as recycling materials and using energy-efficient machines, can mitigate these impacts for both methods.
Industries that benefit most from CNC machining include aerospace, automotive, medical devices, and industrial equipment manufacturing. These sectors require high precision, durability, and the ability to work with a variety of materials, making CNC machining an ideal choice for producing critical components.
The limitations of 3D printing include material constraints, as not all materials are suitable for 3D printing, and the potential for lower precision compared to CNC machining. Additionally, the surface finish of 3D printed parts may require post-processing to achieve the desired quality. Production speed can also be a concern for large-scale manufacturing, where CNC machining may be more efficient.
