● Understanding Thermal Deformation and Mechanical Misalignment
● Methods to Detect Thermal Deformation
● Methods to Detect Mechanical Misalignment
● Differentiating Thermal Deformation from Mechanical Misalignment
Manufacturing engineers often face the challenge of identifying why machined parts fail to meet specifications. Two frequent causes of such defects are thermal deformation and mechanical misalignment, each presenting unique hurdles in high-precision production environments. These issues can lead to dimensional inaccuracies, scrapped parts, or costly rework, making it essential to pinpoint their origins accurately. Thermal deformation arises from heat generated during machining, causing components to expand or distort, while mechanical misalignment stems from geometric inaccuracies in machine setup or wear. Understanding and distinguishing these phenomena is critical for maintaining quality and efficiency in production.
This article provides a detailed guide for manufacturing engineers to differentiate between thermal deformation and mechanical misalignment when troubleshooting machining defects. Drawing on recent studies from Semantic Scholar and Google Scholar, it combines practical methods with real-world examples to clarify diagnosis and mitigation strategies. The discussion adopts a straightforward tone, offering clear explanations and actionable insights. From temperature monitoring to kinematic error mapping, the techniques covered aim to equip engineers with the tools needed to address these issues effectively, whether working on a CNC lathe or a multi-axis milling machine.

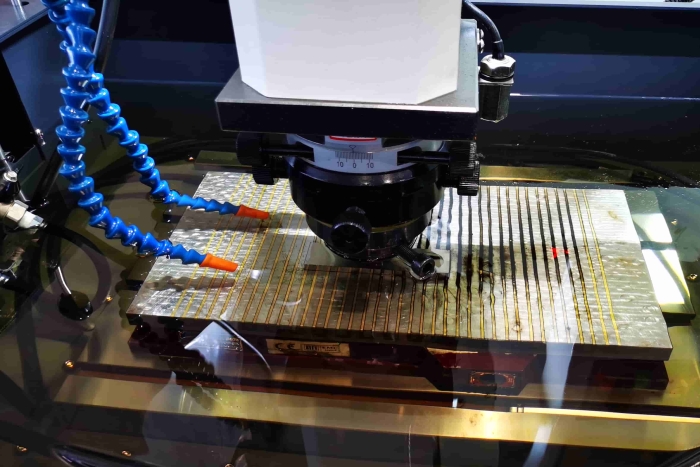

Thermal deformation occurs when heat from machining processes—such as friction in bearings, spindle motors, or cutting operations—causes expansion or distortion in the machine tool or workpiece. Materials like steel or aluminum expand predictably based on their thermal expansion coefficients, leading to dimensional errors. For example, a spindle running at high speeds can heat up, elongating the tool and shifting machined features out of tolerance.
In one case, a CNC lathe machining a stainless steel aerospace shaft experienced a 15-micron diameter error after prolonged high-speed operation. Temperature measurements revealed a 7°C rise in the spindle housing, directly correlating with the dimensional shift, confirming thermal deformation as the cause.
Mechanical misalignment results from improper alignment of machine components, such as axes, spindles, or fixtures. This can stem from manufacturing tolerances, wear over time, or incorrect setup. Unlike thermal deformation, misalignment produces consistent, position-dependent errors that do not vary with operating temperature. For instance, a misaligned X-axis relative to the Y-axis in a milling machine can cause angular errors in machined features.
Consider a milling operation where a machine's Z-axis was off by 0.03 degrees due to a worn linear guide. This led to a consistent 10-micron taper across machined surfaces, regardless of runtime or spindle speed, pointing to mechanical misalignment.
Correctly identifying whether thermal deformation or mechanical misalignment is the root cause of a defect determines the appropriate corrective action. Addressing thermal issues might involve cooling systems or thermal compensation, while misalignment requires mechanical adjustments or recalibration. Mistaking one for the other can waste time and resources, such as installing coolant systems when the issue is a misaligned axis.
Monitoring temperature changes across critical machine components is a reliable way to identify thermal deformation. Sensors placed on spindles, bearings, or the workpiece can create a thermal map, showing how heat affects dimensional accuracy. A study by Tanaka et al. (2022) used 284 temperature sensors to estimate tool center point (TCP) errors, achieving a 50% reduction in error estimation compared to methods using fewer sensors, even in the presence of cutting fluid.
In a real-world scenario, a machining center producing precision gears showed a 12-micron error after 45 minutes of operation. Sensors on the spindle and bed detected a 6°C temperature increase, which aligned with the error's onset. Adding a cooling jacket to the spindle reduced the error to 4 microns, confirming thermal deformation.
Finite element analysis (FEA) models the thermal behavior of machine tools, predicting how heat from sources like bearings or motors affects component positions. Bae et al. (2022) applied FEA to a TiC-SUS431 composite spindle, showing it reduced thermal deformation compared to SCM415 steel by minimizing elongation under high-speed conditions.
For example, a manufacturer of automotive components used FEA to analyze a grinding machine's spindle. The model predicted a 9-micron elongation due to frictional heat. By optimizing coolant flow based on the simulation, the deformation was reduced to 2 microns, improving part tolerances.
Running a machine through a warm-up cycle before machining can stabilize temperatures and minimize thermal deformation. However, as Fraser et al. (1998) noted, thermal errors persist if operating conditions deviate from the warm-up cycle. Monitoring post-warm-up behavior helps distinguish thermal from mechanical issues.
In one shop, a CNC machine producing aluminum housings used a 15-minute warm-up at 4,000 RPM. Post-warm-up measurements showed a consistent 7-micron error, which persisted regardless of further temperature changes, suggesting mechanical misalignment rather than thermal deformation.
Precision instruments like laser interferometers or ballbar systems measure geometric errors, such as straightness or squareness, to identify misalignment. These tools detect repeatable errors tied to specific axis positions. A review by Engineering.com (2019) emphasizes that kinematic errors, like misalignment, are position-dependent and measurable through calibration.
In a milling operation for engine components, a 0.02-degree tilt in the Z-axis caused a 10-micron taper in bores. A laser interferometer confirmed the misalignment, and realigning the axis reduced the error to 3 microns.
Kinematic error mapping creates a detailed profile of a machine's axes, identifying errors like backlash or angular deviations. The ISO 230 standard, as referenced by Engineering.com, outlines six error components per axis, enabling systematic diagnosis of misalignment.
A 5-axis machining center producing complex molds showed a 15-micron straightness error in the X-axis, detected via a ballbar test. Realigning the guideway eliminated the error, restoring dimensional accuracy.
Volumetric compensation corrects for combined misalignment errors across multiple axes, particularly in large machines. The Engineering.com article notes its importance for gantry mills, where errors can exceed 10 microns over long distances.
A gantry mill for aerospace structures exhibited 12-micron errors across its 4-meter envelope. Volumetric compensation, based on a grid of measurements, corrected a 0.01-degree misalignment between axes, improving accuracy by 75%.
To distinguish these defects, consider their unique traits:
Thermal Deformation:
Varies with runtime as heat accumulates.
Correlates with temperature changes in components.
Errors fluctuate with operating conditions (e.g., spindle speed).
Example: A lathe's spindle elongates 8 microns after 1 hour but stabilizes when cooled.
Mechanical Misalignment:
Consistent at specific axis positions.
Unaffected by temperature changes.
Errors repeat across cycles.
Example: A milling machine's 5-micron taper persists in every part, regardless of runtime.
A structured approach to isolate the defect includes:
Baseline Measurements: Measure part dimensions and machine errors after a controlled warm-up.
Temperature Tracking: Use sensors to monitor temperature changes and correlate with errors.
Repeatability Testing: Run multiple cycles at varying speeds. Time-dependent errors suggest thermal issues; consistent errors indicate misalignment.
Geometric Analysis: Use laser interferometers or ballbar tests to detect positional errors.
Targeted Corrections: Apply thermal compensation or mechanical realignment to confirm the cause.
In one case, a shop machining steel brackets noticed a 10-micron error after 20 minutes. Sensors showed a 5°C spindle temperature rise, but a ballbar test revealed a 0.015-degree Y-axis misalignment. Correcting the alignment eliminated the error, confirming misalignment as the primary issue.
Machine learning offers new tools for defect isolation. Chang et al. (2018) explored AI algorithms for fault diagnosis, using sensor data to identify thermal versus mechanical errors. For example, a neural network could detect temperature-driven errors, while pattern analysis might highlight repeatable positional issues.
A manufacturer of precision optics used a machine learning model to analyze a lathe's temperature and position data. The model identified a 6-micron thermal error during high-speed runs, which was mitigated by adjusting coolant flow, confirming the diagnosis.
A 5-axis CNC machine producing turbine blades showed 12-micron errors. Initial checks pointed to thermal deformation from high spindle speeds (10,000 RPM). Sensors confirmed a 5°C spindle temperature rise, but a kinematic map revealed a 0.01-degree X-Y axis misalignment. Correcting the alignment reduced errors to 2 microns, with thermal effects as a minor contributor.
A gear grinding machine produced tooth profile errors of 8 microns. FEA suggested thermal deformation, but consistent errors across runs pointed to misalignment. A laser interferometer identified a 0.025-degree wheel axis tilt. Realignment resolved the issue, confirming mechanical misalignment.
A titanium implant manufacturer noticed surface finish issues. Minimal temperature changes ruled out thermal deformation. A ballbar test detected a 6-micron Z-axis straightness error due to a loose guideway. Tightening the guideway fixed the problem, confirming misalignment.
Thermal deformation and misalignment can occur together, complicating diagnosis. For instance, misalignment may increase friction, generating heat and exacerbating thermal issues. Fraser et al. (1998) advocate for generalized modeling to address both effects, using methods like Hankel transformation for transient thermal analysis.
Even advanced sensor setups, as Tanaka et al. (2022) note, may miss subtle temperature gradients. Geometric measurement tools require high precision, which may not be feasible for smaller shops with limited budgets.
Advanced diagnostics like FEA or machine learning demand significant investment. Smaller operations may rely on manual methods, such as dial indicators or warm-up cycles, which are less precise but more accessible.
Cooling Systems: Use coolant or air-cooling to control component temperatures.
Thermal Compensation: Implement real-time algorithms based on sensor data.
Material Choices: Opt for low-expansion materials like TiC-SUS431, as Bae et al. (2022) suggest.
Regular Calibration: Perform periodic checks with precision instruments.
Robust Design: Use stiff, low-play components to minimize misalignment.
Volumetric Compensation: Apply error maps for high-precision applications.
Integrating thermal and mechanical solutions, such as combining cooling systems with regular calibration, ensures comprehensive defect prevention across varying conditions.
Distinguishing thermal deformation from mechanical misalignment is a cornerstone of precision machining. Thermal deformation, driven by heat buildup, produces time-dependent errors, while mechanical misalignment yields consistent, position-specific deviations. Tools like temperature sensors, FEA, laser interferometers, and machine learning enable accurate diagnosis, as demonstrated in aerospace, automotive, and medical manufacturing examples.
Effective diagnosis requires a systematic approach: baseline measurements, temperature tracking, repeatability tests, geometric analysis, and targeted corrections. While challenges like overlapping effects or resource constraints exist, practical solutions—ranging from cooling systems to kinematic calibration—can address both issues. By mastering these methods, engineers can reduce defects, enhance production efficiency, and achieve tighter tolerances, ensuring high-quality outcomes in demanding manufacturing environments.
Q1: How can I diagnose thermal deformation without expensive sensors?
Measure part dimensions after different runtimes. If errors grow with longer operation or higher speeds, thermal deformation is likely. Use a basic infrared thermometer to check spindle or workpiece temperature for confirmation.
Q2: What's a cost-effective way to check for mechanical misalignment?
Use a dial indicator to measure axis straightness or repeatability at specific positions. Consistent errors across cycles, especially at certain points, suggest misalignment. A ballbar test, if available, is more precise.
Q3: Can thermal compensation software replace physical fixes?
Software can reduce thermal errors by adjusting for temperature changes, but it relies on accurate sensor data. Physical fixes, like cooling systems, are often needed for lasting results. For misalignment, software offsets are temporary; mechanical realignment is essential.
Q4: How frequently should alignment checks be performed?
Check alignment every 6-12 months for high-precision machines or after noticing consistent errors. Heavy usage or signs of wear, like uneven cuts, warrant immediate checks with tools like laser interferometers.
Q5: Is machine learning practical for small shops?
For small shops, machine learning may be overkill due to cost and complexity. Basic diagnostics like temperature checks and manual measurements are more practical, though AI can benefit larger operations with complex defects.
Title: Development of a Robust and Real-Time Thermal Deformation Prediction System for Machine Tool by Multi-Point Temperature MeasurementJournal: ASME Digital CollectionPublication Date: January 25, 2022Main Findings: Using 284 temperature sensors reduced thermal displacement estimation error by 50%, maintaining accuracy despite cutting fluid interference.Methods: Multi-point temperature measurement, thermal simulation, finite element analysis for TCP error estimation.Citation and Page Range: Tanaka et al., 2022, V02BT02A045, 6 pagesSource URL: https://asmedigitalcollection.asme.org/IMECE/proceedings/IMECE2021/85609/71091
Title: Suppression of thermal deformation of machine tool spindle using TiC-Fe compositeJournal: Journal of Mechanical Science and TechnologyPublication Date: April 30, 2022Main Findings: TiC-SUS431 composite spindles minimized thermal deformation compared to SCM415 steel, enhancing machining accuracy.Methods: Transient thermal analysis via FEA, thermal characteristic tests, material property comparisons.Citation and Page Range: Bae et al., 2022, pp. 2511–2520Source URL: https://link.springer.com/article/10.1007/s12206-022-0439-8
Title: Modelling, Identification and Control of Thermal Deformation of Machine Tool Structures, Part 1: Concept of Generalized ModellingJournal: Journal of Manufacturing Science and EngineeringPublication Date: August 1, 1998Main Findings: Generalized modeling with mathematical and empirical methods predicts transient thermal loads faster than finite-element solutions.Methods: Hankel transformation for analytical solutions, computer-simulated tests, empirical calibration.Citation and Page Range: Fraser et al., 1998, pp. 623–631Source URL: https://asmedigitalcollection.asme.org/manufacturingscience/article/120/3/623/693159
