CNC milling is a highly versatile manufacturing process that utilizes computer-controlled machines to remove material from a workpiece. This process is widely used in various industries, including aerospace, automotive, and medical, due to its precision and efficiency. One of the critical factors that determine the success of CNC milling is the choice of materials. This article explores the various materials that can be used in CNC milling, their properties, advantages, and applications.
CNC milling involves the use of a rotating cutting tool to remove material from a solid block of material. The process is controlled by a computer program that dictates the movement of the tool and the workpiece. This technology allows for intricate designs and high precision, making it ideal for producing complex parts. CNC milling machines can operate in multiple axes, typically three to five, allowing for the creation of three-dimensional shapes and features that would be difficult or impossible to achieve with traditional machining methods. The ability to automate the milling process also reduces human error and increases production efficiency, making it a preferred choice for high-volume manufacturing.
The choice of material in CNC milling significantly impacts the final product's quality, durability, and performance. Different materials have unique properties that affect their machinability, strength, and application. Understanding these properties is essential for selecting the right material for a specific project. For instance, some materials may be more prone to warping or cracking during the milling process, while others may require specific tooling or cutting speeds to achieve optimal results. Additionally, the intended use of the final product—whether it requires high strength, lightweight characteristics, or resistance to environmental factors—will guide the material selection process.
CNC milling can accommodate a wide range of materials, each with its own set of characteristics. Below are some of the most commonly used materials in CNC milling.
Metals are among the most popular materials for CNC milling due to their strength and durability. Various types of metals can be used, including:

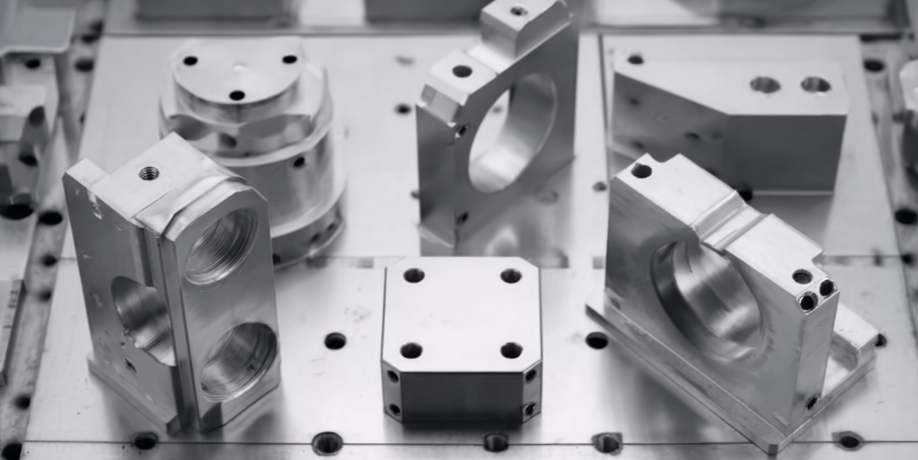

Aluminum is lightweight, corrosion-resistant, and easy to machine, making it a favorite in CNC milling. It is often used in the aerospace and automotive industries for components such as brackets, housings, and frames. Aluminum can be anodized for added protection and aesthetic appeal. Its excellent thermal conductivity also makes it suitable for applications where heat dissipation is critical. Furthermore, aluminum's ability to be easily formed and welded allows for greater design flexibility, enabling engineers to create complex geometries that meet specific performance requirements.
Steel is known for its strength and toughness. It is available in various grades, including stainless steel, which offers excellent corrosion resistance. Steel is commonly used in the manufacturing of tools, machinery parts, and structural components. However, it can be more challenging to machine than aluminum due to its hardness. The choice of steel grade can significantly affect the machining process; for example, high-carbon steels may require specialized cutting tools and techniques to prevent tool wear. Additionally, the heat treatment of steel can enhance its properties, making it suitable for high-stress applications.
Titanium is a high-strength, lightweight metal that is highly resistant to corrosion and heat. It is often used in aerospace and medical applications, such as implants and surgical instruments. CNC milling titanium requires specialized tools and techniques due to its toughness. The unique properties of titanium, including its biocompatibility, make it an ideal choice for medical implants, where it must integrate seamlessly with human tissue. Moreover, titanium's low thermal conductivity can be advantageous in applications where heat resistance is essential, such as in aerospace components exposed to extreme temperatures.
Plastics are another category of materials that can be effectively machined using CNC milling. They offer versatility and can be used in various applications.
Polycarbonate is a strong, impact-resistant plastic that is often used in applications requiring transparency, such as protective shields and lenses. It is easy to machine and can be polished to achieve a clear finish. Polycarbonate's high impact resistance makes it suitable for safety applications, such as eyewear and protective equipment. Additionally, its ability to withstand high temperatures without deforming allows it to be used in applications involving heat exposure, such as automotive components.

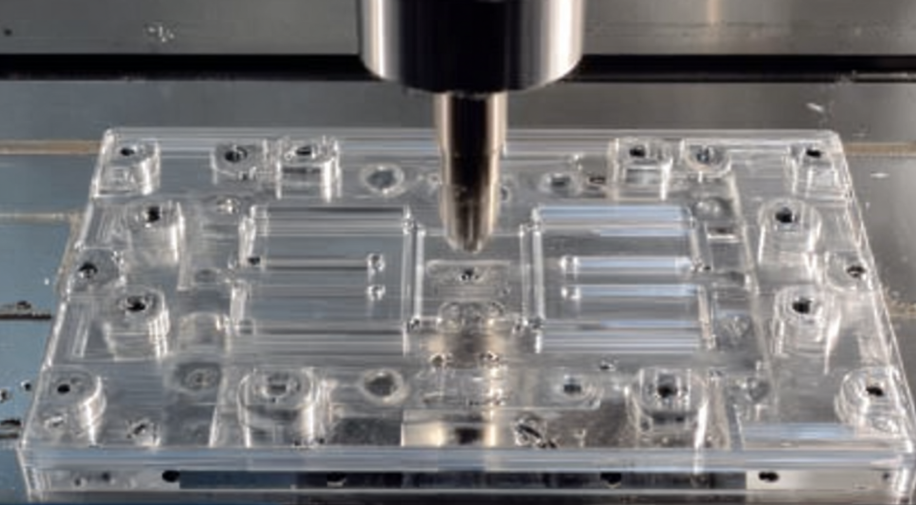

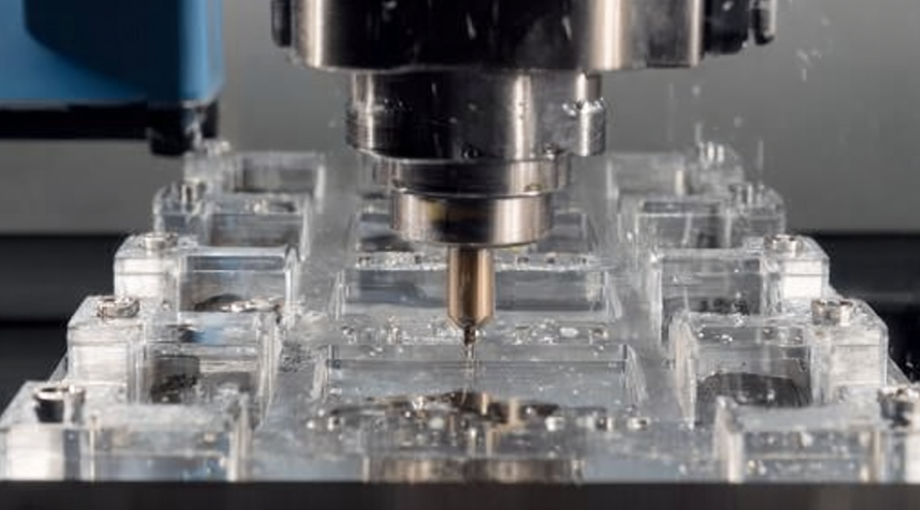

Acrylic is a lightweight, shatter-resistant plastic that is commonly used for signage, displays, and lighting fixtures. It can be easily machined and offers excellent optical clarity. CNC milling acrylic allows for intricate designs and smooth edges, making it a popular choice for decorative applications. The material can also be colored or tinted, providing additional design options. Its UV resistance makes it suitable for outdoor applications, where it can maintain its clarity and color over time.
Nylon is a durable plastic known for its strength and wear resistance. It is often used in applications such as gears, bearings, and bushings. CNC milling nylon can produce precise parts with excellent dimensional stability. The self-lubricating properties of nylon reduce friction, making it ideal for moving parts in machinery. Additionally, nylon's ability to absorb shock and vibration enhances the performance of components in high-stress environments.
Composite materials combine two or more different materials to achieve superior properties. CNC milling can be used to machine various composite materials.
Carbon fiber composites are known for their high strength-to-weight ratio and stiffness. They are commonly used in aerospace, automotive, and sporting goods applications. CNC milling carbon fiber requires specialized tools to prevent damage to the fibers. The lightweight nature of carbon fiber allows for the production of components that do not compromise strength, making it ideal for high-performance applications. Additionally, carbon fiber's resistance to corrosion and fatigue enhances the longevity of parts, reducing maintenance costs.
Glass fiber composites are less expensive than carbon fiber and offer good strength and durability. They are often used in marine applications and automotive parts. CNC milling glass fiber composites can produce lightweight and strong components. The versatility of glass fiber composites allows for various applications, from boat hulls to automotive body panels. Their resistance to moisture and chemicals makes them suitable for environments where exposure to harsh conditions is a concern.
When selecting materials for CNC milling, several factors must be considered to ensure optimal results.
Machinability refers to how easily a material can be cut and shaped using CNC milling. Materials with good machinability require less force to cut and produce a better surface finish. Factors such as hardness, ductility, and thermal conductivity influence machinability. Understanding the machinability of a material helps in selecting the appropriate cutting tools and parameters, which can significantly affect production efficiency and cost. For example, softer materials may allow for higher feed rates, while harder materials may require slower speeds to prevent tool wear.
The strength and durability of a material are crucial for its performance in specific applications. Materials must withstand the stresses and strains of their intended use without deforming or failing. Understanding the mechanical properties of materials helps in selecting the right one for the job. For instance, components subjected to high loads or extreme conditions may require materials with high tensile strength and fatigue resistance. Additionally, the environmental conditions in which the final product will be used—such as exposure to chemicals, moisture, or temperature fluctuations—should also be considered when evaluating material durability.
Cost is always a consideration in material selection. While some materials may offer superior performance, they may also come with a higher price tag. Balancing performance and cost is essential for making informed decisions in CNC milling projects. It is important to consider not only the initial material cost but also the long-term implications, such as maintenance, replacement, and performance over time. In some cases, investing in a higher-quality material may lead to lower overall costs due to reduced failure rates and longer service life.
The availability of materials can also influence the selection process. Some materials may be more readily available than others, affecting lead times and production schedules. It is essential to consider the supply chain when choosing materials for CNC milling. Factors such as market demand, regional availability, and supplier reliability can impact the choice of materials. In some cases, alternative materials may need to be considered if the preferred option is not readily available, which can lead to changes in design or performance characteristics.
The materials used in CNC milling find applications across various industries, each with specific requirements and challenges.
In the aerospace industry, materials such as aluminum, titanium, and composite materials are commonly used. These materials must meet stringent safety and performance standards while being lightweight to enhance fuel efficiency. CNC milling allows for the production of complex components such as airframes, engine parts, and landing gear. The ability to create intricate designs with high precision is critical in aerospace applications, where even minor deviations can lead to significant safety concerns. Additionally, the use of advanced materials like carbon fiber composites is becoming increasingly popular in aerospace due to their superior strength-to-weight ratios.
The automotive industry utilizes a wide range of materials, including metals and plastics, for manufacturing parts such as engine components, chassis, and interior fittings. CNC milling enables the production of precise and intricate designs that meet the demands of modern vehicles. As automotive technology evolves, there is a growing trend towards lightweight materials that improve fuel efficiency and reduce emissions. The integration of advanced materials, such as high-strength steel and composites, allows manufacturers to create vehicles that are both safe and environmentally friendly.
In the medical field, materials such as titanium and plastics are often used for surgical instruments, implants, and prosthetics. CNC milling allows for the creation of highly accurate and customized components that are essential for patient safety and comfort. The ability to produce complex geometries and fine details is particularly important in medical applications, where precision can directly impact patient outcomes. Additionally, the biocompatibility of materials like titanium ensures that implants can integrate seamlessly with human tissue, reducing the risk of rejection and complications.
The electronics industry relies on CNC milling for producing housings, circuit boards, and connectors. Materials such as plastics and aluminum are commonly used to create lightweight and durable components that protect sensitive electronic parts. The demand for smaller, more efficient electronic devices drives the need for precise machining capabilities. CNC milling allows for the production of intricate designs that accommodate the miniaturization of electronic components while maintaining functionality and reliability.
CNC milling is a versatile manufacturing process that can accommodate a wide range of materials, each with unique properties and applications. Understanding the characteristics of metals, plastics, and composites is essential for selecting the right material for specific projects. Factors such as machinability, strength, cost, and availability play a crucial role in material selection. As technology continues to advance, the possibilities for CNC milling materials will expand, leading to new innovations and applications across various industries. The ongoing development of new materials and machining techniques will further enhance the capabilities of CNC milling, making it an indispensable tool in modern manufacturing.
Recent advancements in CNC milling technology include the integration of artificial intelligence for predictive maintenance, improved software for better design simulations, and the use of advanced materials like carbon fiber and titanium alloys. Additionally, multi-axis milling machines have become more prevalent, allowing for greater precision and complexity in machining.
Material selection significantly impacts cost-effectiveness by influencing machining time, tool wear, and the overall quality of the finished product. Choosing materials that are easier to machine can reduce production time and costs, while high-performance materials may lead to longer-lasting products, ultimately saving money on replacements and repairs.
Best practices for machining different materials include selecting the appropriate cutting tools and speeds for each material type, ensuring proper tool maintenance, and using the right coolant or lubrication to reduce heat and friction. Additionally, understanding the specific properties of each material can help in adjusting machining parameters for optimal results.
Yes, CNC milling is an excellent choice for prototyping due to its precision and ability to produce complex geometries. It allows for rapid production of prototypes from various materials, enabling designers and engineers to test and iterate their designs quickly before moving to mass production.
Safety precautions during CNC milling include wearing appropriate personal protective equipment (PPE) such as safety glasses and gloves, ensuring that the work area is clean and free of hazards, and following proper machine operation protocols. Additionally, operators should be trained in emergency procedures and machine shutdown processes to prevent accidents.
