Die casting is a highly efficient manufacturing process used to produce metal parts with intricate shapes and high precision. This method is particularly favored in industries such as automotive, aerospace, and electronics due to its ability to create complex geometries with excellent surface finishes. In this article, we will explore the die casting process in detail, including its types, advantages, applications, and the materials used.
Die casting involves forcing molten metal into a mold cavity under high pressure. The molds, known as dies, are typically made from steel and can be reused multiple times, making this process cost-effective for large production runs. The die casting process can be divided into several key stages, each critical to ensuring the quality and accuracy of the final product. Understanding these stages helps manufacturers optimize their processes and improve the overall efficiency of production.
Before the die casting process begins, the die must be prepared. This involves cleaning and lubricating the die to ensure that the molten metal can flow smoothly and that the finished part can be easily ejected. Proper preparation is essential to prevent defects in the final product. Additionally, the design of the die itself is crucial; it must be engineered to withstand the high pressures of the injection process while allowing for easy release of the cast part. The use of advanced materials and coatings can enhance the durability and performance of the die, leading to longer production runs and reduced maintenance costs.
The next step is to melt the metal that will be used for casting. Common metals used in die casting include aluminum, zinc, magnesium, and copper. The metal is heated in a furnace until it reaches a molten state, at which point it is ready to be injected into the die. The melting process must be carefully controlled to ensure that the metal reaches the appropriate temperature without overheating, which can lead to oxidation and other defects. Modern furnaces often incorporate advanced temperature control systems to maintain optimal melting conditions, ensuring consistent quality in the molten metal.

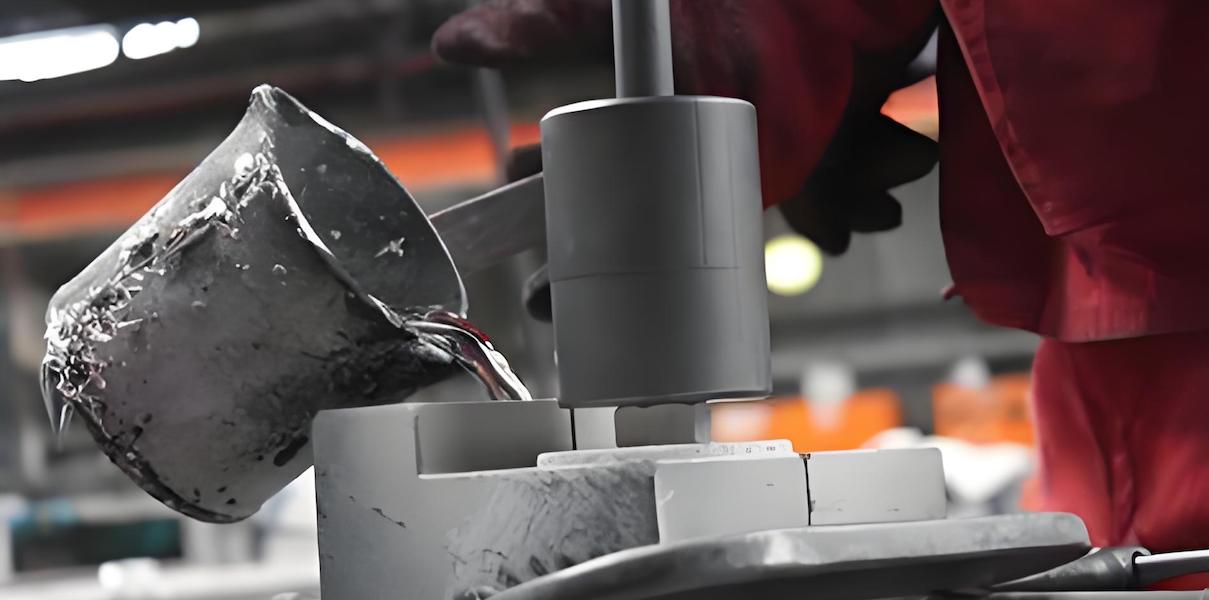

Once the metal is molten, it is injected into the die under high pressure. This pressure can range from 1,000 to 30,000 psi, depending on the type of die casting being performed. The high pressure ensures that the molten metal fills the die completely, capturing all the details of the mold. The injection speed and pressure must be precisely controlled to avoid defects such as air entrapment or incomplete filling. Advanced injection systems may utilize servo motors and real-time monitoring to optimize the injection process, resulting in higher quality parts and reduced scrap rates.
After the molten metal has been injected into the die, it is allowed to cool and solidify. The cooling time can vary based on the thickness of the part and the type of metal used. Once the metal has solidified, the die is opened, and the part is ejected. Effective cooling is critical, as it affects the mechanical properties of the final product. Cooling channels within the die can be designed to enhance heat dissipation, ensuring uniform cooling and minimizing the risk of warping or cracking. The cooling phase is often optimized through simulation software, allowing engineers to predict and control the cooling rates for different geometries.

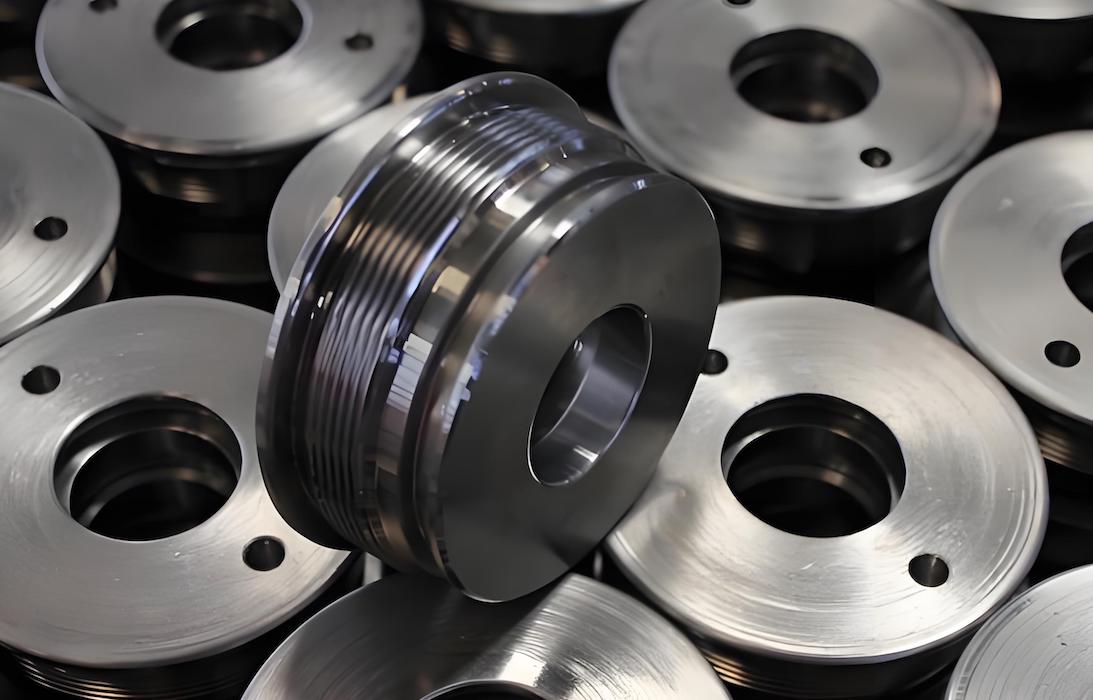

After ejection, the cast part may require additional finishing operations. These can include trimming excess material, machining for tighter tolerances, and surface treatments such as painting or anodizing. These processes enhance the appearance and functionality of the final product. Finishing operations are essential for achieving the desired surface quality and dimensional accuracy, especially in applications where aesthetics and performance are critical. The choice of finishing techniques can also impact the overall cost and lead time of the production process, making it important for manufacturers to select the most efficient methods for their specific needs.
Die casting can be categorized into two main types: hot chamber and cold chamber die casting. Each type has its specific applications and advantages, making them suitable for different manufacturing scenarios.
In hot chamber die casting, the melting pot is connected to the die, allowing for a continuous flow of molten metal. This method is typically used for metals with low melting points, such as zinc and magnesium. The advantages of hot chamber die casting include faster production rates and lower costs due to the reduced need for metal handling. This method is particularly effective for high-volume production runs, where speed and efficiency are paramount. However, the limitation of hot chamber die casting lies in its inability to process metals with higher melting points, which restricts its application to specific alloys.

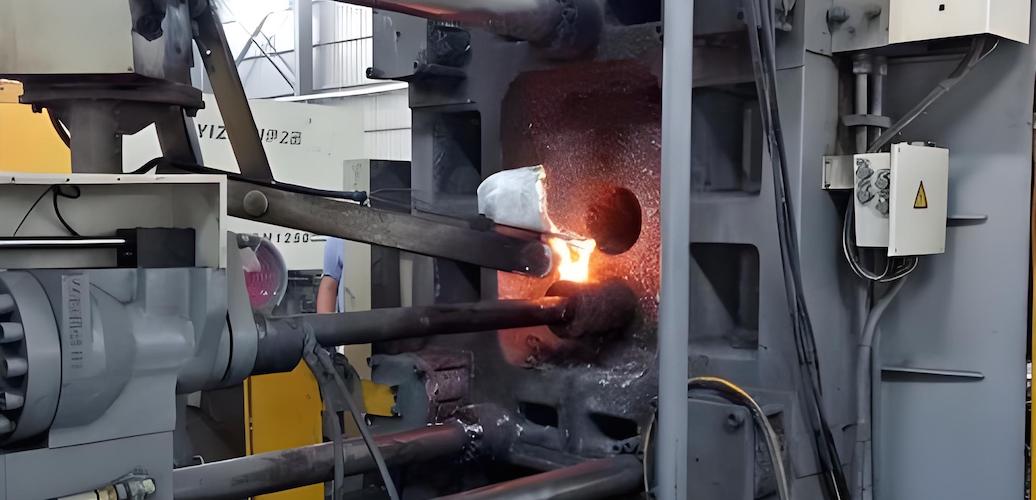

Cold chamber die casting involves pouring the molten metal into a separate chamber before it is injected into the die. This method is used for metals with higher melting points, such as aluminum and copper. Cold chamber die casting is advantageous for producing larger and more complex parts, although it generally has a slower production rate compared to hot chamber die casting. The separation of the melting and injection processes allows for greater flexibility in material selection, enabling manufacturers to work with a wider range of alloys. Additionally, cold chamber die casting can produce parts with superior mechanical properties, making it suitable for demanding applications in industries such as aerospace and automotive.
Die casting offers several benefits that make it a preferred choice for manufacturing metal parts. Understanding these advantages can help businesses make informed decisions about their production methods.
One of the primary advantages of die casting is its ability to produce parts with high dimensional accuracy and repeatability. The precision of the die ensures that each part is consistent, which is crucial for applications requiring tight tolerances. This level of accuracy reduces the need for extensive post-processing, saving time and costs in the manufacturing process. Furthermore, the ability to produce complex geometries with intricate details enhances design flexibility, allowing engineers to create innovative solutions that meet specific performance requirements.
Die casting allows for the creation of intricate shapes and designs that would be difficult or impossible to achieve with other manufacturing methods. This capability enables designers to innovate and create more efficient and functional products. The ability to integrate features such as ribs, bosses, and undercuts directly into the casting reduces assembly time and costs, as fewer components are needed. Additionally, the smooth surface finish achieved through die casting often eliminates the need for secondary machining operations, further streamlining the production process.
For large production runs, die casting is highly cost-effective. The reuse of dies and the speed of the process contribute to lower per-unit costs, making it an attractive option for manufacturers. The initial investment in die design and fabrication can be significant, but the long-term savings achieved through high-volume production often justify the expense. Moreover, the efficiency of the die casting process minimizes material waste, contributing to a more sustainable manufacturing approach.
Parts produced through die casting typically have a smooth surface finish, reducing the need for extensive post-processing. This characteristic is particularly beneficial in industries where aesthetics and surface quality are important. The fine details captured in the die result in parts that often require minimal finishing, allowing manufacturers to deliver high-quality products to their customers more quickly. Additionally, the ability to apply surface treatments directly after casting can enhance the durability and corrosion resistance of the parts, further extending their lifespan.
Die casting is widely used across various industries due to its versatility and efficiency. Some common applications include:
In the automotive sector, die casting is used to produce components such as engine blocks, transmission cases, and various structural parts. The lightweight nature of die-cast aluminum parts contributes to improved fuel efficiency and performance. As the automotive industry increasingly focuses on reducing emissions and enhancing vehicle performance, the demand for lightweight materials has grown, making die casting an essential manufacturing process. Additionally, the ability to produce complex shapes allows for the integration of multiple functions into a single component, further optimizing vehicle design.
The aerospace industry relies on die casting for producing lightweight and durable components that can withstand extreme conditions. Parts such as brackets, housings, and structural components are commonly manufactured using this process. The stringent safety and performance standards in aerospace applications necessitate the use of high-quality materials and precise manufacturing techniques. Die casting meets these requirements by providing components that exhibit excellent strength-to-weight ratios and resistance to fatigue, making them suitable for critical applications in aircraft and spacecraft.
Die casting is also prevalent in the electronics industry, where it is used to create housings and enclosures for devices. The precision and surface finish of die-cast parts are essential for ensuring the functionality and reliability of electronic products. As electronic devices become smaller and more complex, the need for compact and efficient enclosures has increased. Die casting allows manufacturers to produce intricate designs that accommodate various components while providing adequate protection against environmental factors.
Many consumer products, including appliances and tools, are manufactured using die casting. The ability to produce complex shapes at a low cost makes it an ideal choice for mass production of everyday items. As consumer preferences evolve, manufacturers are increasingly turning to die casting to create innovative designs that enhance user experience. The versatility of die casting enables the production of a wide range of products, from kitchen appliances to power tools, all while maintaining high quality and performance standards.
The choice of material is crucial in the die casting process, as it affects the properties and performance of the final product. Common materials used in die casting include:

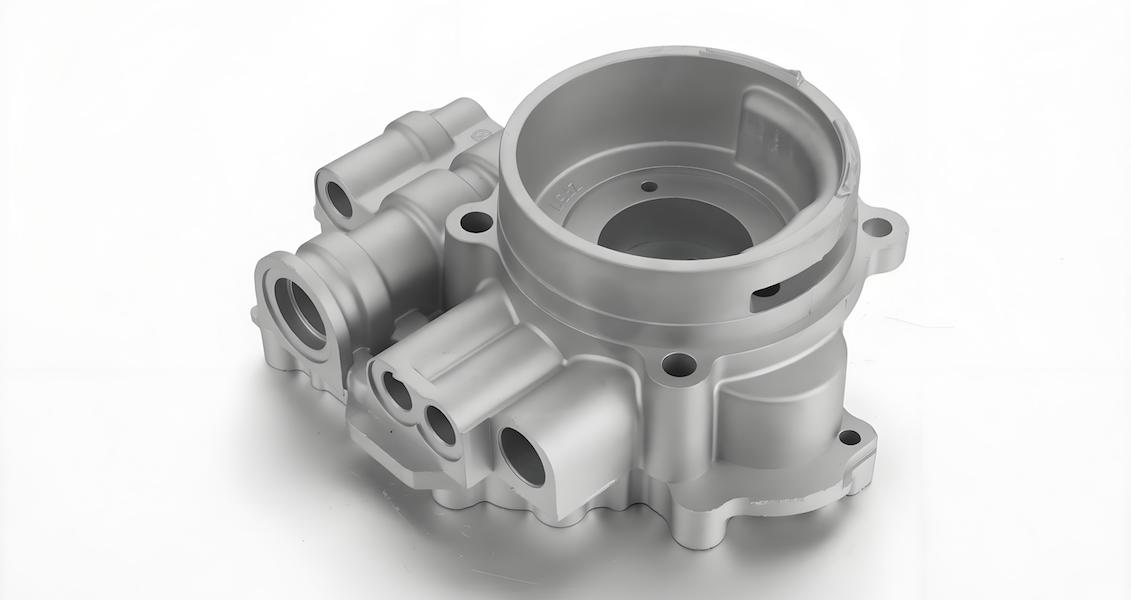

Aluminum is one of the most widely used materials in die casting due to its lightweight, corrosion resistance, and excellent thermal conductivity. It is commonly used in automotive and aerospace applications. The versatility of aluminum alloys allows for a range of mechanical properties, making it suitable for various applications. Additionally, aluminum's recyclability contributes to its sustainability, aligning with the growing emphasis on environmentally friendly manufacturing practices.
Zinc die casting is favored for its low melting point and excellent fluidity, making it ideal for intricate designs. Zinc parts are known for their strength and durability, making them suitable for various applications. The ability to produce thin-walled components with high detail is a significant advantage of zinc die casting. Furthermore, zinc's natural corrosion resistance enhances the longevity of the parts, making them ideal for outdoor and harsh environment applications.
Magnesium die casting is used for applications requiring lightweight components with high strength. It is often used in the automotive and aerospace industries to reduce weight and improve fuel efficiency. Magnesium's unique properties, such as its high strength-to-weight ratio and excellent machinability, make it an attractive choice for manufacturers looking to optimize performance. As industries continue to prioritize weight reduction, magnesium die casting is expected to gain further traction.
Copper die casting is less common but is used for specific applications requiring high electrical conductivity and thermal resistance. It is often found in electrical components and connectors. The excellent thermal and electrical properties of copper make it indispensable in applications where heat dissipation and electrical performance are critical. Although the cost of copper can be higher than other die-cast metals, its unique properties often justify the investment in high-performance applications.
Die casting is a vital manufacturing process that offers numerous advantages, including high precision, the ability to create complex geometries, and cost-effectiveness for large production runs. With its applications spanning various industries, from automotive to electronics, die casting continues to play a significant role in modern manufacturing. As technology advances, the die casting process is expected to evolve, further enhancing its capabilities and applications in the future. The ongoing development of new materials and techniques will likely expand the possibilities of die casting, making it an even more integral part of the manufacturing landscape.
Die casting offers several advantages, including high precision and accuracy, the ability to produce complex geometries, cost-effectiveness for large production runs, and excellent surface finishes. These benefits make it particularly suitable for industries requiring high-quality metal parts, such as automotive and aerospace.
The most commonly used metals in die casting include aluminum, zinc, magnesium, and copper. Each metal has unique properties that make it suitable for specific applications, such as aluminum's lightweight nature and corrosion resistance or zinc's excellent fluidity for intricate designs.
In hot chamber die casting, the melting pot is connected to the die, allowing for a continuous flow of molten metal, which is ideal for low melting point metals like zinc. In contrast, cold chamber die casting involves pouring molten metal into a separate chamber before injection, making it suitable for higher melting point metals like aluminum. Cold chamber die casting generally has a slower production rate but allows for greater flexibility in material selection.
Die casting is widely used in various industries, including automotive (for engine blocks and transmission cases), aerospace (for lightweight structural components), electronics (for housings and enclosures), and consumer goods (for appliances and tools). Its versatility makes it suitable for producing a wide range of products.
After ejection from the die, die-cast parts may undergo several finishing operations, including trimming excess material, machining for tighter tolerances, and surface treatments such as painting, anodizing, or plating. These processes enhance the appearance, functionality, and durability of the final product, ensuring it meets the required specifications and quality standards.
