In the world of manufacturing, the ability to create components that meet specific requirements is crucial. This is particularly true in the realm of die casting, where precision and adaptability are paramount. Two prominent methods in this field are High Pressure Die Casting (HPDC) and Low Pressure Die Casting (LPDC). Each method has its unique characteristics, advantages, and applications, making them suitable for different types of projects. This article will explore the differences between these two casting techniques, their processes, benefits, and ideal use cases.
Die casting is a manufacturing process that involves forcing molten metal into a mold cavity under high pressure. This technique is widely used for producing complex shapes with high dimensional accuracy and smooth surfaces. The two primary types of die casting are high pressure and low pressure, each with distinct operational methods and outcomes. Understanding these methods is essential for manufacturers looking to optimize their production processes and achieve the desired quality in their products.
High Pressure Die Casting is a process where molten metal is injected into a mold at high speeds and pressures, typically ranging from 1,000 to 30,000 psi. This method is particularly effective for producing small to medium-sized parts with intricate designs and tight tolerances. The ability to create complex geometries makes HPDC a preferred choice in industries where precision is critical.
The HPDC process begins with the melting of metal, usually aluminum, zinc, or magnesium, in a furnace. Once the metal reaches the desired temperature, it is injected into a steel mold using a plunger. The high pressure ensures that the molten metal fills the mold completely, capturing all details of the design. After the metal cools and solidifies, the mold is opened, and the finished part is ejected. This rapid cycle time allows manufacturers to produce large quantities of parts in a short period, making it an efficient choice for mass production.
Precision and Detail: HPDC allows for the production of highly detailed components with excellent surface finishes. The high pressure used in the process minimizes the occurrence of defects, resulting in parts that meet stringent quality standards.
Speed: The process is fast, enabling high production rates, which is ideal for mass production. This speed is particularly beneficial in industries where time-to-market is critical.
Material Efficiency: Minimal waste is generated, as the process uses only the necessary amount of metal. This efficiency not only reduces costs but also contributes to more sustainable manufacturing practices.
Strength: Parts produced through HPDC often exhibit superior mechanical properties due to the rapid cooling of the molten metal. This strength is essential for components that will undergo significant stress during their lifecycle.
Low Pressure Die Casting, on the other hand, involves the use of lower pressures, typically around 1 to 15 psi. This method is more akin to traditional casting techniques, where gravity plays a significant role in filling the mold. The lower pressure allows for a more controlled process, which can be advantageous in certain applications.
In LPDC, molten metal is poured into a chamber above the mold. The chamber is then pressurized, forcing the metal into the mold cavity. This method allows for a more controlled filling process, reducing the risk of defects such as air pockets or inclusions. After the metal solidifies, the pressure is released, and the mold is opened to retrieve the cast part. This gradual filling process is particularly beneficial for larger components, where uniformity and quality are paramount.
Larger Parts: LPDC is well-suited for producing larger components that require a more gradual filling process. This capability makes it ideal for applications where size and weight are critical factors.
Reduced Defects: The lower pressure reduces the likelihood of defects, resulting in higher-quality parts. This advantage is particularly important in industries where safety and reliability are non-negotiable.
Cost-Effectiveness: For certain applications, LPDC can be more economical, especially for lower production volumes. This cost-effectiveness can make it an attractive option for small to medium-sized businesses.
Versatility: This method can accommodate a wider range of alloys and is often used for parts that require good corrosion resistance. The versatility of LPDC allows manufacturers to tailor their processes to meet specific material requirements.
Understanding the differences between HPDC and LPDC is essential for manufacturers when choosing the appropriate method for their projects. Each method has its strengths and weaknesses, which can significantly impact the final product.
The most significant difference lies in the pressure used during the casting process. HPDC utilizes high pressure, resulting in faster cycle times and the ability to produce intricate designs. In contrast, LPDC operates at lower pressures, leading to slower production rates but allowing for larger parts and reduced defects. This difference in pressure and speed can influence the overall efficiency and cost of production.
HPDC is ideal for small to medium-sized parts with complex geometries, while LPDC is better suited for larger components that do not require the same level of detail. The choice between the two methods often depends on the specific requirements of the part being produced. Manufacturers must carefully consider the design and intended use of the component to determine the most suitable casting method.
Parts produced through HPDC typically have superior surface finishes and tighter tolerances compared to those made with LPDC. This is due to the rapid cooling and high pressure that help eliminate imperfections in the casting. The quality of the surface finish can significantly impact the performance and aesthetics of the final product, making this a critical consideration for manufacturers.
Both methods are efficient in terms of material usage, but HPDC tends to generate less waste due to its precision. LPDC, while still efficient, may result in slightly more scrap material due to the nature of the casting process. Understanding the material efficiency of each method can help manufacturers optimize their production processes and reduce costs.
Both HPDC and LPDC have their unique applications across various industries, including automotive, aerospace, and consumer goods. The choice of casting method often depends on the specific requirements of the application.
HPDC is widely used in industries that require high precision and rapid production. Common applications include:

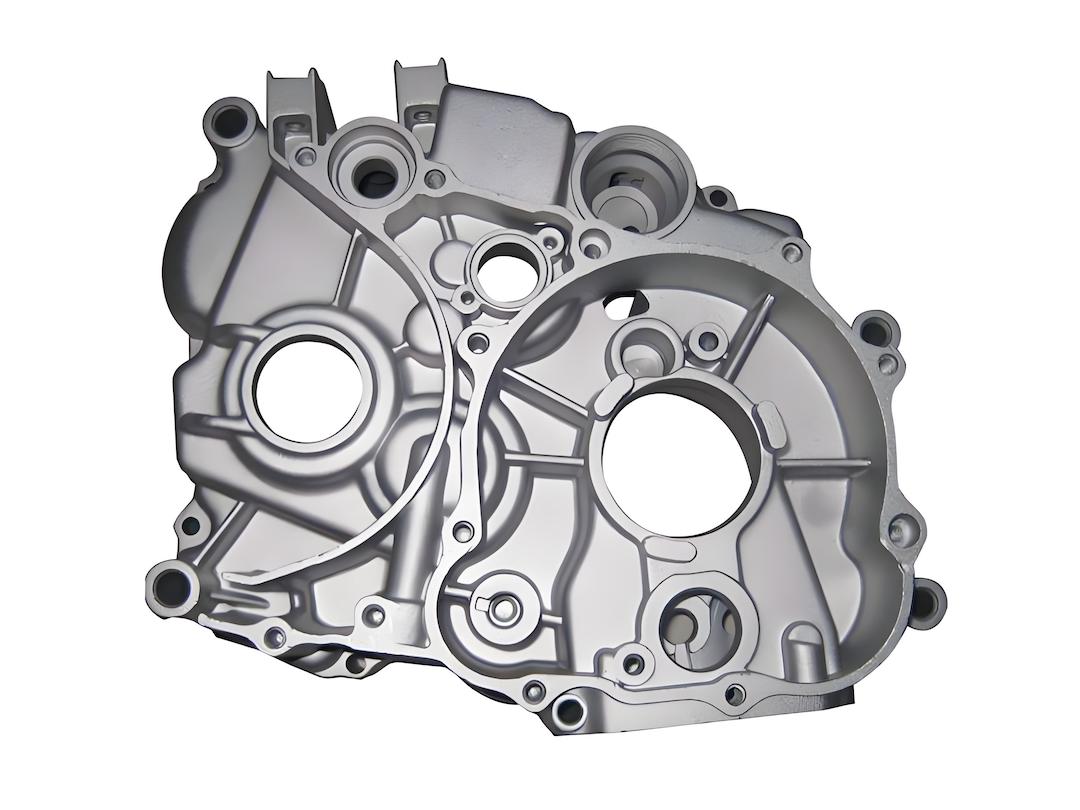

Automotive Components: Engine blocks, transmission cases, and other critical parts that require high strength and durability. The automotive industry relies heavily on HPDC for its ability to produce lightweight yet strong components that meet stringent safety standards.
Consumer Electronics: Housings for devices such as smartphones and laptops, where aesthetics and precision are crucial. The demand for sleek, lightweight designs in consumer electronics has driven the adoption of HPDC in this sector.
Industrial Equipment: Components for machinery that demand high performance and reliability. HPDC is often used to produce parts that must withstand harsh operating conditions, ensuring longevity and efficiency.
LPDC is often chosen for applications where larger parts are needed, or where the risk of defects must be minimized. Typical applications include:
Aerospace Components: Parts that require lightweight materials with good mechanical properties. The aerospace industry benefits from LPDC's ability to produce large, complex components that meet rigorous safety and performance standards.
Pipelines and Tanks: Large castings for industrial applications, such as storage tanks and piping systems. LPDC is ideal for producing components that must handle significant pressure and corrosion.
Marine Applications: Components that need to withstand harsh environments, benefiting from the corrosion resistance of certain alloys. The marine industry often relies on LPDC for parts that must endure exposure to saltwater and other corrosive elements.
Both High Pressure Die Casting and Low Pressure Die Casting offer unique advantages and are suited for different manufacturing needs. HPDC excels in producing small, intricate parts with high precision and speed, making it ideal for mass production in industries like automotive and electronics. Conversely, LPDC is better suited for larger components where quality and reduced defects are paramount.
When considering custom sizes for sheet metal panels or any other components, understanding the differences between these two casting methods is essential. Manufacturers must evaluate their specific requirements, including part size, complexity, and production volume, to determine the most suitable casting technique. By leveraging the strengths of each method, businesses can optimize their production processes and achieve high-quality results tailored to their needs. This strategic approach not only enhances product quality but also contributes to overall operational efficiency, positioning manufacturers for success in a competitive marketplace.
High Pressure Die Casting typically uses non-ferrous metals, with aluminum, zinc, and magnesium being the most common. These materials are favored for their excellent fluidity, strength, and lightweight properties, making them ideal for producing intricate and durable components.
The cycle time for High Pressure Die Casting is generally much shorter than that of Low Pressure Die Casting. HPDC can produce parts in a matter of seconds due to the high pressure and rapid injection of molten metal, while LPDC typically takes longer because of the gradual filling process and lower pressures involved.
Low Pressure Die Casting is commonly used for larger components that require good mechanical properties and reduced defects. Typical applications include aerospace parts, large industrial equipment, storage tanks, and marine components, where strength and corrosion resistance are critical.
Yes, both High Pressure Die Casting and Low Pressure Die Casting can produce custom-sized components. However, the choice of method may depend on the size and complexity of the part. HPDC is better for small, intricate designs, while LPDC is more suitable for larger, simpler components.
Both HPDC and LPDC have environmental impacts, primarily related to energy consumption and material waste. However, HPDC is generally more efficient in material usage, leading to less scrap. Manufacturers are increasingly adopting sustainable practices, such as recycling scrap metal and using energy-efficient furnaces, to minimize their environmental footprint.
