CNC (Computer Numerical Control) machining has revolutionized the manufacturing industry by allowing for precise and efficient production of complex parts. Among the various CNC processes, milling and turning are two of the most commonly used techniques. Understanding the differences between CNC milling and turning is crucial for selecting the appropriate method for a specific project. This article will explore the fundamental distinctions between these two machining processes, their applications, advantages, and limitations.

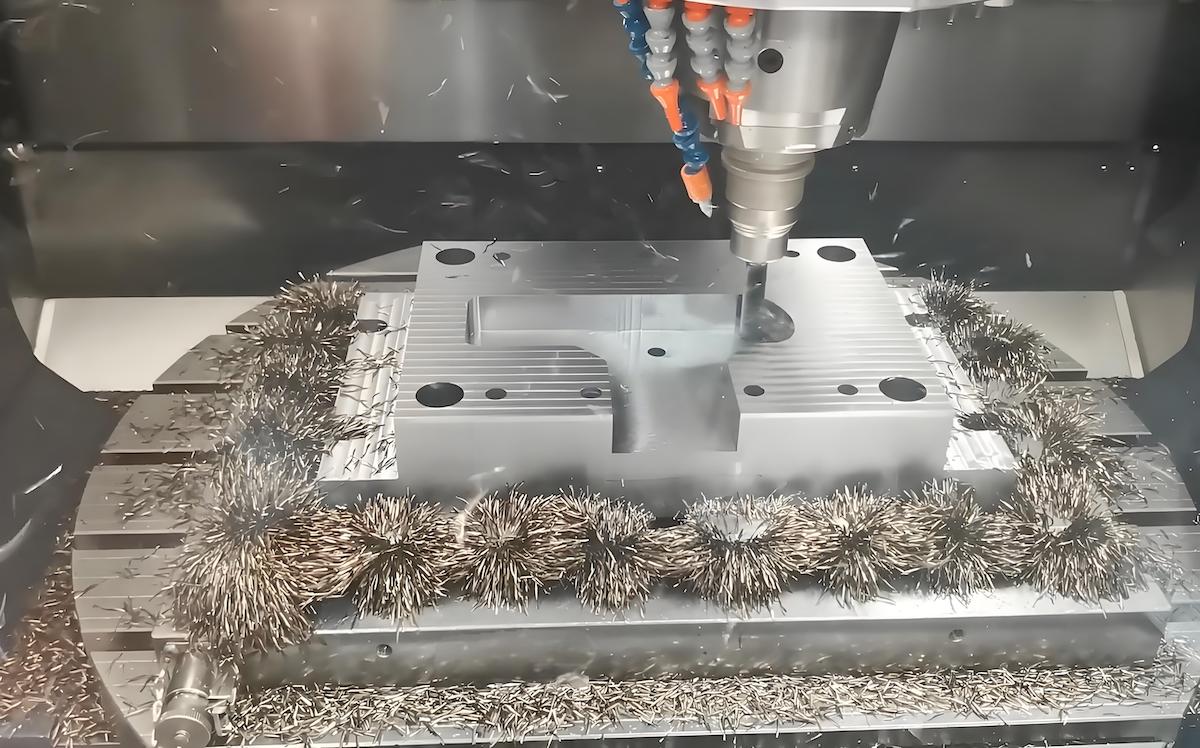

CNC milling is a machining process that involves the use of rotating cutting tools to remove material from a stationary workpiece. The workpiece is typically mounted on a table that can move in multiple directions, allowing for the creation of complex shapes and features. The milling machine operates by following a pre-programmed set of instructions, which dictate the movement of the cutting tool and the workpiece. This process is highly automated, which not only increases efficiency but also reduces the likelihood of human error, leading to more consistent and high-quality outputs.

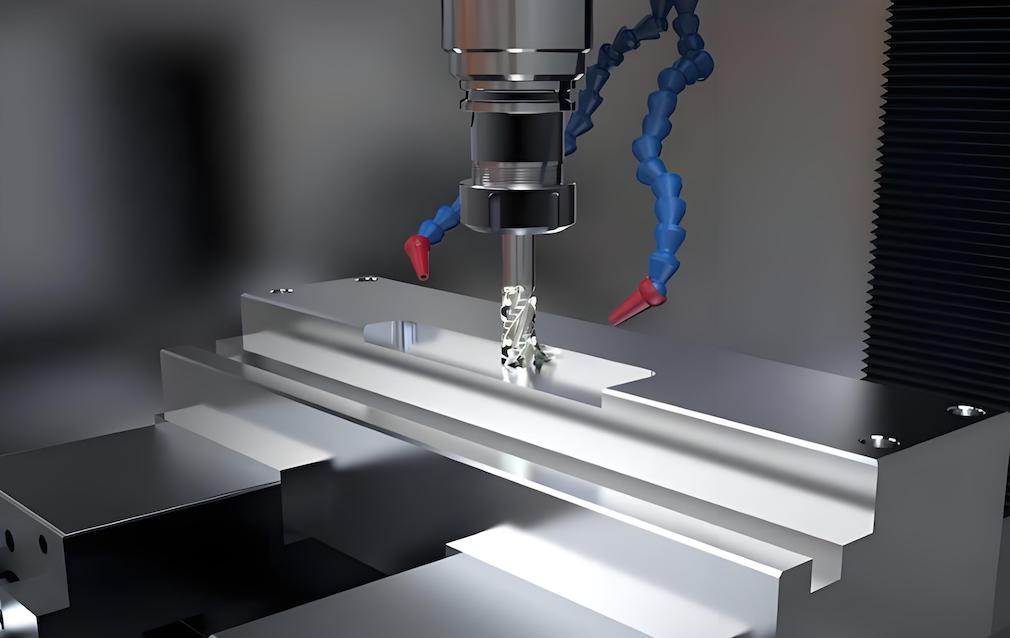

In CNC milling, the cutting tool rotates at high speeds while the workpiece remains fixed. The tool moves along various axes (usually three or more) to cut away material, creating the desired shape. The process can produce a wide range of features, including slots, holes, and intricate contours. CNC milling is particularly effective for producing parts with complex geometries and tight tolerances. The ability to program the machine with CAD (Computer-Aided Design) software allows for rapid prototyping and adjustments, making it a preferred choice in industries where design changes are frequent.
CNC milling is widely used in various industries, including aerospace, automotive, and medical device manufacturing. Common applications include:
Producing intricate components such as brackets, housings, and enclosures, which require precise dimensions and complex shapes.
Creating prototypes and custom parts for specialized applications, allowing companies to test designs before mass production.
Machining flat surfaces, grooves, and complex shapes, which are essential in creating functional parts that fit together seamlessly in assemblies.
The versatility of CNC milling makes it an invaluable tool in modern manufacturing, enabling the production of both small batches and large volumes of parts with high precision.

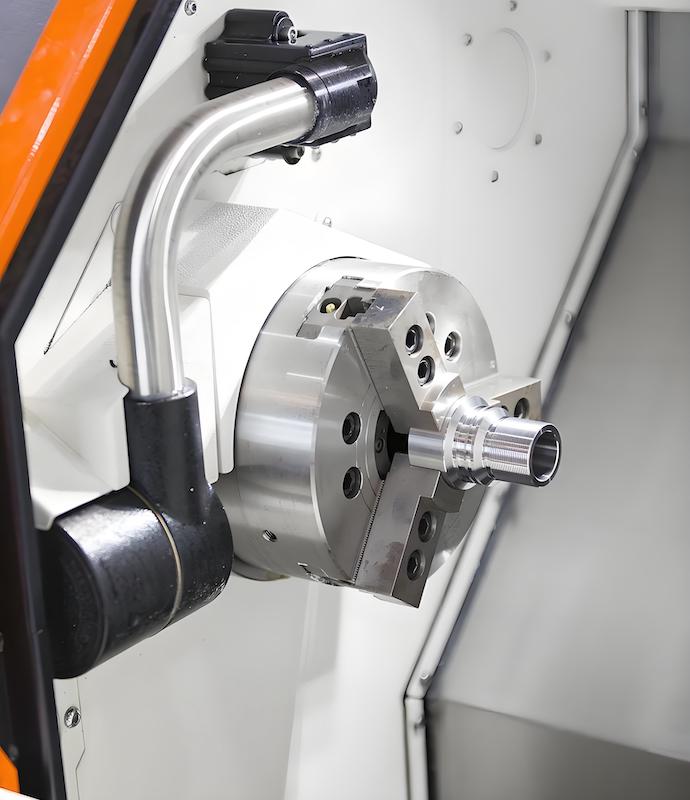

CNC turning is another machining process that involves the removal of material from a rotating workpiece. Unlike milling, where the cutting tool moves to shape the material, in turning, the workpiece itself rotates while a stationary cutting tool is applied to it. This process is primarily used to create cylindrical parts. The simplicity of the turning process allows for high-speed production, making it ideal for manufacturing components that require uniformity and precision.

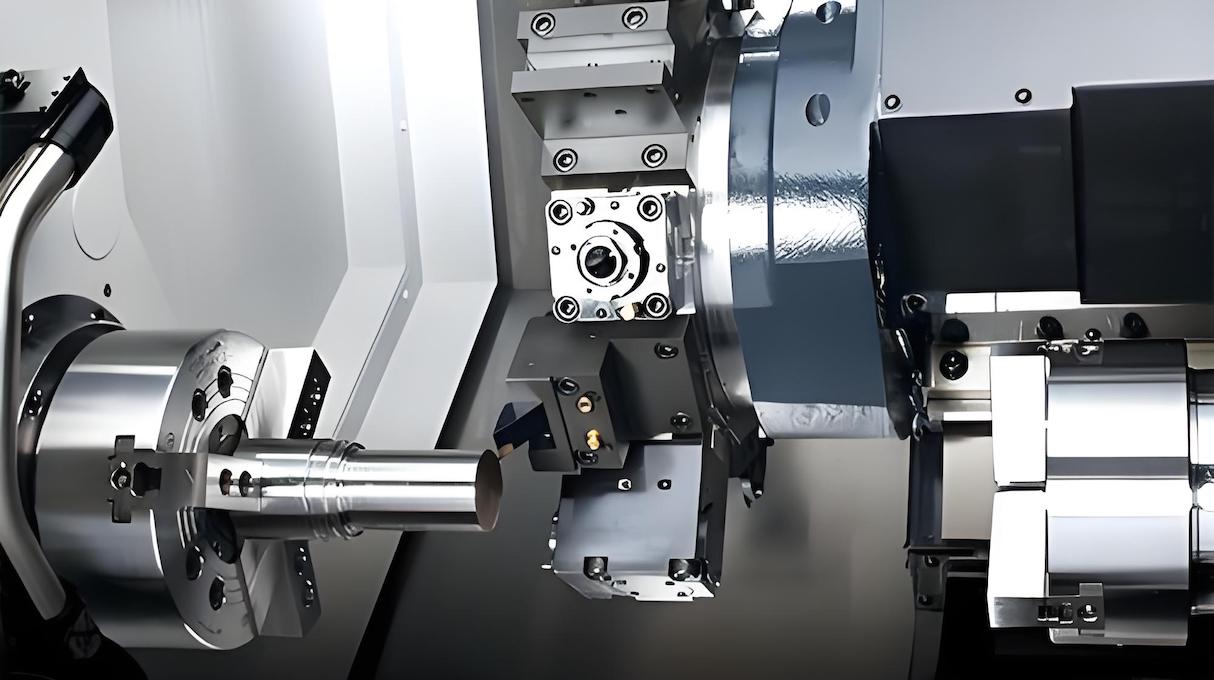

In CNC turning, the workpiece is mounted on a spindle that rotates at high speeds. The cutting tool, which is fixed in place, moves along the length of the workpiece to remove material. This method is particularly effective for producing parts with rotational symmetry, such as shafts, pins, and bushings. The CNC turning process can also incorporate various operations, such as facing, threading, and boring, which further enhances its versatility. The ability to program the machine for different operations allows manufacturers to produce a wide range of components efficiently.
CNC turning is commonly used in industries that require high precision and efficiency in producing cylindrical components. Typical applications include:
Manufacturing shafts, spindles, and other cylindrical parts that are essential in machinery and automotive applications.
Creating threaded components and fittings, which are critical in assembly processes across various industries.
Producing parts for automotive and aerospace applications, where reliability and precision are paramount.
The efficiency of CNC turning makes it a preferred choice for high-volume production runs, where consistency and speed are essential.
The most significant difference between CNC milling and turning lies in the orientation of the workpiece and the cutting tool. In milling, the cutting tool rotates while the workpiece remains stationary. In contrast, turning involves a rotating workpiece with a stationary cutting tool. This fundamental difference affects the types of shapes and features that can be produced by each method. Milling is better suited for complex shapes, while turning excels in producing cylindrical forms.
CNC milling is capable of producing a wide variety of shapes, including complex geometries and features such as pockets, slots, and intricate contours. It is ideal for parts that require detailed machining. On the other hand, CNC turning is primarily used for creating cylindrical shapes and features, making it suitable for parts that require rotational symmetry. This distinction is crucial when selecting a machining process, as the desired end product will dictate the most appropriate method.
The equipment used in CNC milling and turning also differs significantly. CNC milling machines typically have multiple axes of movement, allowing for greater flexibility in machining complex shapes. In contrast, CNC lathes used for turning are designed specifically for rotating workpieces and may have fewer axes of movement. The choice of equipment can impact the overall efficiency and capabilities of the machining process, influencing production timelines and costs.
The material removal techniques employed in milling and turning are distinct. In milling, the cutting tool removes material by moving across the surface of the workpiece, while in turning, the cutting tool removes material by moving along the length of the rotating workpiece. This difference influences the surface finish and tolerances achievable with each method. Milling can achieve finer details and smoother finishes, while turning is often faster for producing simple cylindrical shapes.
CNC turning is generally faster than CNC milling for producing cylindrical parts due to the continuous rotation of the workpiece. However, milling can be more efficient for producing complex shapes, as it can remove material from multiple sides of the workpiece simultaneously. The speed and efficiency of each process can significantly affect production costs and timelines, making it essential for manufacturers to choose the right method based on their specific needs.
Versatility: CNC milling can produce a wide range of shapes and features, making it suitable for various applications. This versatility allows manufacturers to adapt to changing market demands and design requirements.
Precision: The ability to create intricate geometries with tight tolerances is a significant advantage of milling. This precision is crucial in industries where component fit and function are critical.
Complexity: Milling is ideal for parts that require detailed machining and complex features, enabling the production of components that would be difficult or impossible to achieve with other methods.
Speed: CNC milling can be slower than turning for producing simple cylindrical parts. This speed difference can impact production efficiency, especially in high-volume manufacturing scenarios.
Cost: The complexity of milling machines can lead to higher operational costs. Maintenance and setup times can also be longer, affecting overall productivity.
Speed: CNC turning is typically faster for producing cylindrical parts, making it efficient for high-volume production. The continuous rotation of the workpiece allows for rapid material removal.
Simplicity: The process is straightforward, making it easier to set up and operate. This simplicity can lead to reduced training times for operators and lower chances of errors during production.
Shape Limitations: Turning is primarily limited to cylindrical shapes, making it less versatile than milling. This limitation can restrict the types of components that can be produced using this method.
Surface Finish: While turning can achieve good surface finishes, it may not match the precision of milling for complex geometries. This difference can be a deciding factor in applications where surface quality is critical.
CNC milling and turning are two essential machining processes that serve different purposes in the manufacturing industry. Understanding the differences between these methods is crucial for selecting the right approach for a specific project. CNC milling excels in producing complex shapes and features, while CNC turning is ideal for creating cylindrical parts with high efficiency. By considering the unique advantages and limitations of each process, manufacturers can make informed decisions that enhance productivity and quality in their operations. The choice between milling and turning ultimately depends on the specific requirements of the project, including the desired shape, material, and production volume.
The primary difference lies in the orientation of the workpiece and the cutting tool. In CNC milling, the cutting tool rotates while the workpiece remains stationary, allowing for the creation of complex shapes. In CNC turning, the workpiece rotates while the cutting tool is fixed, which is ideal for producing cylindrical parts.
CNC milling is better suited for producing complex geometries. It can create intricate shapes, pockets, and detailed features due to its ability to move the cutting tool in multiple directions.
CNC turning is typically used to produce cylindrical parts such as shafts, pins, bushings, and threaded components. It is particularly effective for parts that require rotational symmetry.
CNC turning is generally faster than CNC milling for producing cylindrical parts because the workpiece continuously rotates, allowing for rapid material removal. However, milling can be more efficient for complex shapes, as it can remove material from multiple sides simultaneously.
CNC milling can be more expensive due to the complexity of the machines and longer setup times. In contrast, CNC turning is often simpler and faster, which can lead to lower operational costs, especially for high-volume production of cylindrical parts.
