High pressure die casting (HPDC) is a widely used manufacturing process that involves forcing molten metal into a mold under high pressure. This technique is particularly favored for its ability to produce complex shapes with high precision and excellent surface finish. In this article, we will explore the intricacies of high pressure die casting, including its process, advantages, applications, and considerations for manufacturers.
Die casting is a metal casting process characterized by forcing molten metal into a mold cavity. The mold is typically made from steel and is designed to withstand the high pressures involved in the process. The key to die casting is the use of high pressure to ensure that the molten metal fills the mold completely, resulting in a solid and detailed final product. This method is distinct from other casting techniques, such as sand casting, where gravity is used to fill the mold. The precision and speed of die casting make it ideal for mass production, where consistency and quality are paramount.
Preparation of the Die: The die is prepared by cleaning and applying a release agent to ensure that the finished part can be easily removed after cooling. This step is crucial as it prevents the molten metal from sticking to the mold, which could lead to defects in the final product. The design of the die itself is also critical, as it must accommodate the thermal expansion of the metal and allow for efficient cooling.
Melting the Metal: The metal, often aluminum, zinc, or magnesium, is melted in a furnace. The temperature of the molten metal is carefully controlled to ensure optimal flow into the mold. Different metals have varying melting points and properties, which can affect the casting process. For instance, aluminum is favored for its lightweight and corrosion-resistant properties, making it suitable for automotive and aerospace applications.
Injection of Molten Metal: The molten metal is injected into the die at high pressure, typically between 1,000 to 30,000 psi. This pressure forces the metal to fill the mold quickly, minimizing the risk of defects such as air pockets or incomplete filling. The speed of injection is also critical; too fast can lead to turbulence, while too slow can result in premature solidification.
Cooling and Solidification: Once the mold is filled, the molten metal is allowed to cool and solidify. The cooling time depends on the thickness of the part and the material used. Effective cooling is essential to ensure that the metal solidifies uniformly, which helps maintain the integrity of the part. Advanced cooling techniques, such as water channels within the die, can enhance the cooling process and reduce cycle times.
Ejection of the Casting: After solidification, the die is opened, and the finished part is ejected. The use of ejector pins helps in removing the casting without damaging it. This step must be carefully controlled to avoid deforming the part, especially for intricate designs. The timing of ejection is also crucial; if done too early, the part may still be too hot and malleable.
Trimming and Finishing: Any excess material, known as flash, is trimmed off, and the part may undergo additional finishing processes such as machining or surface treatment. This final step ensures that the part meets the required specifications and quality standards. Surface treatments can include anodizing, painting, or polishing, which not only enhance the appearance but also improve corrosion resistance.

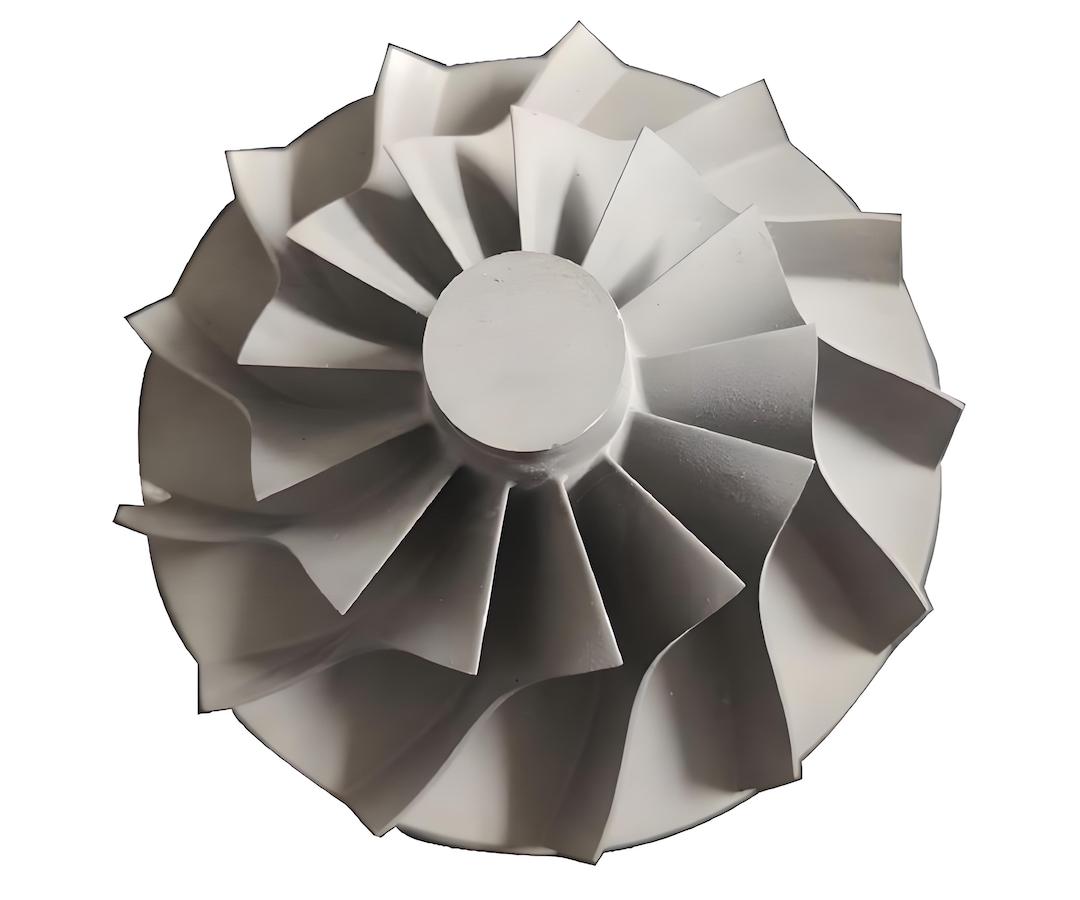

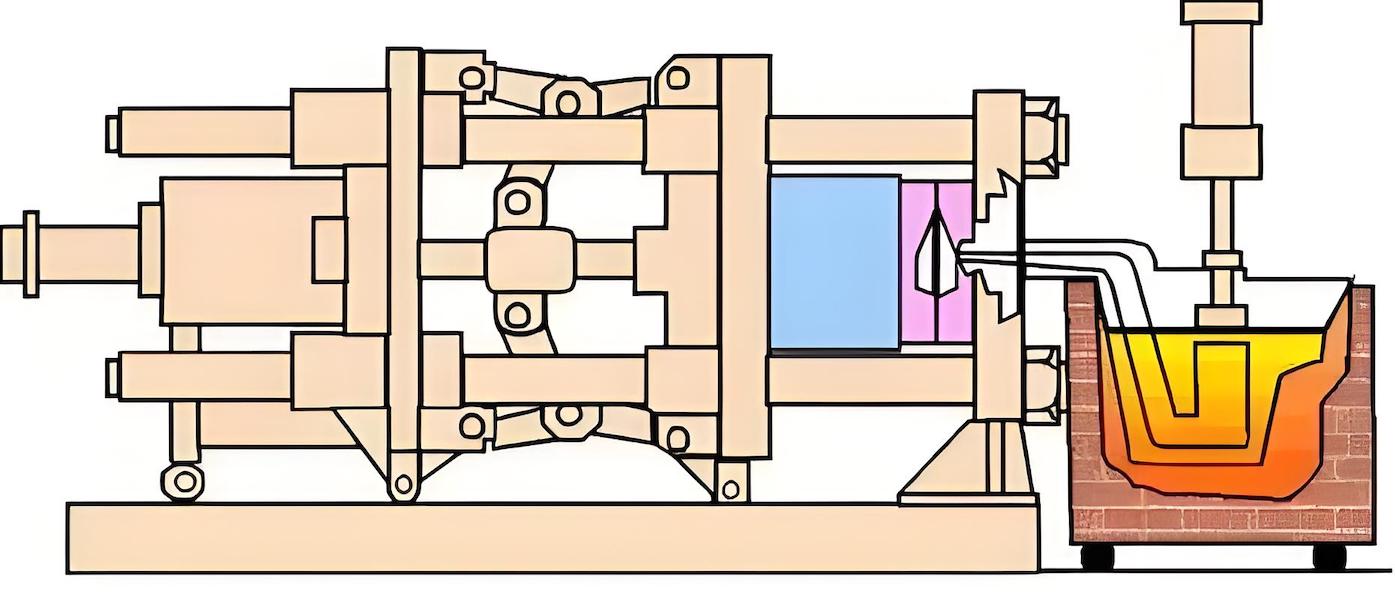

High pressure die casting machines can be categorized into two main types: cold chamber and hot chamber machines.
Cold Chamber Machines: In this type, the molten metal is poured into a chamber before being injected into the die. This method is suitable for metals with high melting points, such as aluminum. Cold chamber machines are often used for applications requiring high-quality aluminum parts, as they minimize contamination from the injection mechanism.
Hot Chamber Machines: Here, the molten metal is kept in a chamber that is heated, allowing for faster injection cycles. This method is typically used for metals with lower melting points, such as zinc. Hot chamber machines are advantageous for high-volume production runs, as they can achieve shorter cycle times and reduce operational costs.
High pressure die casting offers several advantages that make it a preferred choice for manufacturers:
The high pressure used in the process allows for intricate designs and tight tolerances. This precision is essential for components that require exact specifications, such as automotive parts and electronic housings. The ability to produce complex geometries with minimal machining reduces production time and costs, making HPDC an attractive option for manufacturers looking to optimize their processes.
Parts produced through HPDC often have a smooth surface finish, reducing the need for extensive post-processing. This quality is particularly beneficial in industries where aesthetics and functionality are critical. A superior surface finish not only enhances the visual appeal of the product but also improves its performance by reducing friction and wear in mechanical applications.
The speed of the HPDC process enables manufacturers to produce large quantities of parts in a short time. This efficiency is crucial for meeting market demands and reducing lead times. The ability to quickly scale production allows companies to respond to changes in consumer preferences and market trends, providing a competitive edge in fast-paced industries.
High pressure die casting minimizes waste by using only the necessary amount of material. The process allows for the recycling of scrap metal, further enhancing its sustainability. This efficiency not only reduces material costs but also contributes to environmental sustainability by minimizing the carbon footprint associated with metal production.

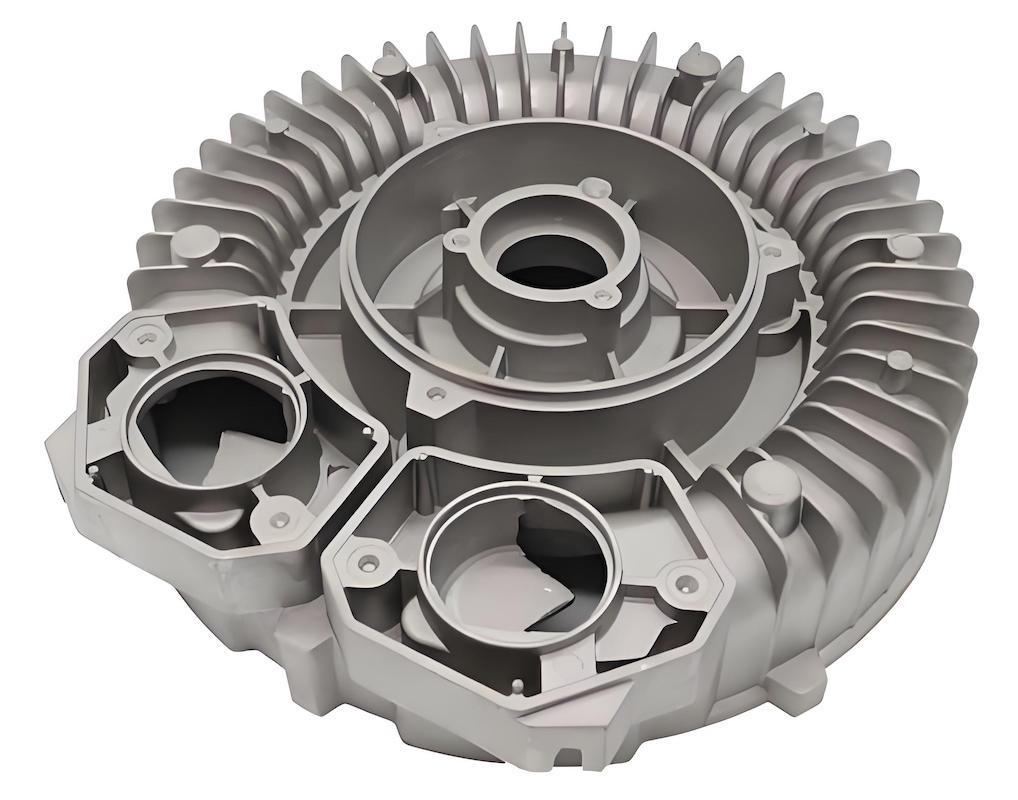

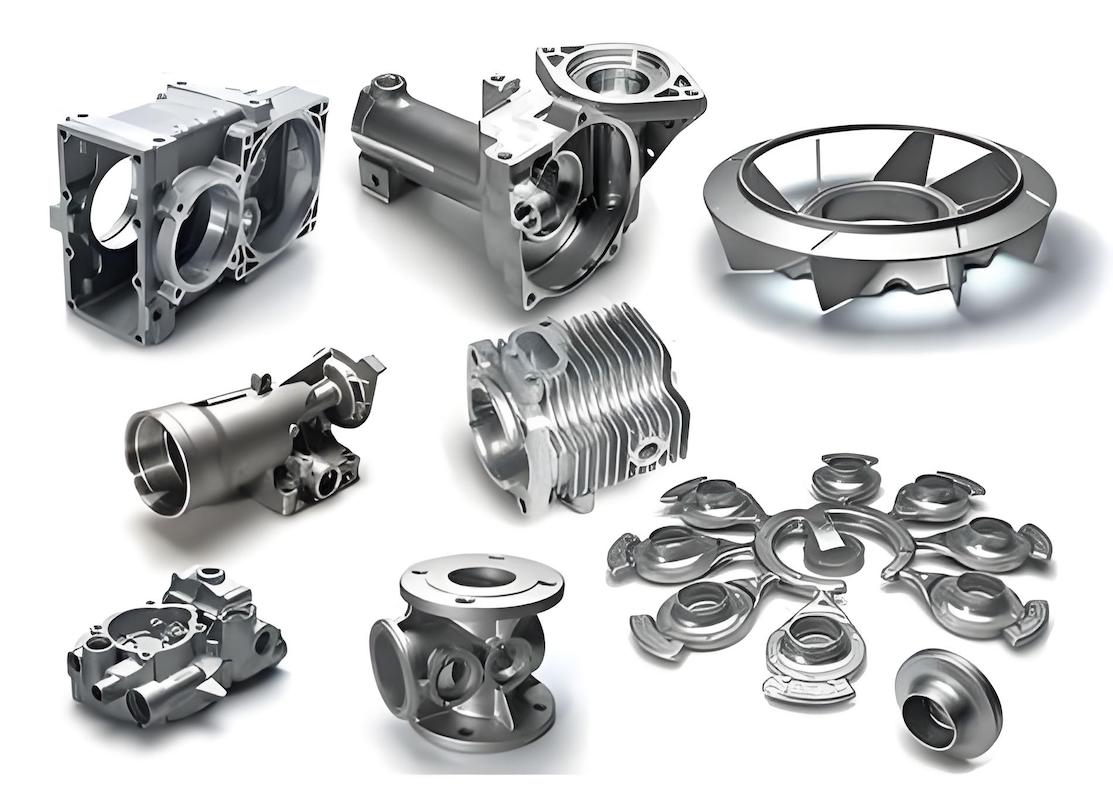

High pressure die casting is utilized across various industries due to its versatility and efficiency. Some common applications include:
In the automotive sector, HPDC is used to manufacture components such as engine blocks, transmission cases, and structural parts. The lightweight nature of die-cast aluminum parts contributes to fuel efficiency and performance. As the automotive industry increasingly focuses on reducing emissions and improving fuel economy, the demand for lightweight materials like aluminum continues to grow.
The aerospace industry relies on high pressure die casting for producing lightweight and durable components that can withstand extreme conditions. Parts such as brackets, housings, and structural elements are commonly manufactured using this process. The stringent safety and performance standards in aerospace applications necessitate the use of high-quality materials and precise manufacturing techniques, making HPDC an ideal choice.
High pressure die casting is also prevalent in the production of housings and enclosures for consumer electronics. The precision and finish of die-cast parts enhance the overall quality of electronic devices. As consumer electronics become more compact and feature-rich, the need for intricate and lightweight components continues to rise, further driving the adoption of HPDC in this sector.
Many industrial machines and equipment utilize die-cast components for their durability and strength. Parts such as gears, housings, and frames are often produced through HPDC. The ability to produce robust and reliable components is essential in industrial applications, where equipment must withstand heavy use and harsh conditions.
While high pressure die casting offers numerous benefits, there are also considerations that manufacturers must keep in mind:
The cost of creating the die can be significant, especially for complex designs. Manufacturers must weigh the initial investment against the long-term benefits of high-volume production. The design and fabrication of the die require skilled labor and advanced technology, which can add to the overall costs. However, the high production rates achieved through HPDC can offset these initial expenses over time.
Not all metals are suitable for high pressure die casting. Manufacturers must choose materials that can withstand the pressures and temperatures involved in the process. The selection of the right alloy is critical, as it affects the mechanical properties, corrosion resistance, and overall performance of the final product. Additionally, some materials may require specific processing conditions to achieve optimal results.
While HPDC allows for intricate designs, there are still limitations. Features such as undercuts or very thin walls may pose challenges in the die casting process. Designers must consider these constraints during the product development phase to ensure manufacturability. Collaborating closely with engineers and die makers can help identify potential issues early in the design process.
Maintaining quality throughout the production process is essential. Manufacturers must implement rigorous quality control measures to ensure that each part meets the required specifications. This includes regular inspections, testing for mechanical properties, and monitoring the casting process to identify any deviations from established standards. Investing in quality control not only enhances product reliability but also builds customer trust and satisfaction.
High pressure die casting is a vital manufacturing process that combines efficiency, precision, and versatility. Its ability to produce complex shapes with excellent surface finishes makes it a preferred choice in various industries, including automotive, aerospace, and consumer electronics. As technology advances, the capabilities of high pressure die casting continue to expand, offering manufacturers innovative solutions for their production needs. Understanding the intricacies of this process is essential for anyone involved in manufacturing or engineering, as it plays a crucial role in the development of modern products. The ongoing evolution of materials and techniques in HPDC promises to further enhance its applications and effectiveness in the future.
High pressure die casting primarily uses non-ferrous metals, with aluminum, zinc, and magnesium being the most common. Aluminum is favored for its lightweight and corrosion-resistant properties, while zinc is often used for its excellent fluidity and ability to fill intricate molds. Magnesium is also used for its strength-to-weight ratio, making it ideal for lightweight applications.
High pressure die casting offers several advantages over other casting methods, such as sand casting and investment casting. It provides higher precision, better surface finish, and faster production rates. While sand casting is more versatile for larger die casting parts, HPDC is preferred for high-volume production of complex shapes with tight tolerances.
High pressure die casting is widely used in various industries, including automotive (for engine blocks and transmission cases), aerospace (for lightweight structural components), consumer electronics (for housings and enclosures), and industrial equipment (for gears and frames). Its versatility makes it suitable for any application requiring precision and durability.
Some challenges include the high initial tooling costs, material limitations, and design constraints. Creating the die can be expensive, especially for complex shapes. Additionally, not all metals are suitable for HPDC, and certain design features, like undercuts, may complicate the casting process.
Manufacturers can ensure quality by implementing rigorous quality control measures throughout the production process. This includes regular inspections, testing for mechanical properties, and monitoring the casting process to detect any deviations from established standards. Collaborating closely with engineers during the design phase can also help identify potential issues early on.
