Gravity die casting is a widely used manufacturing process that allows for the production of high-quality metal parts with intricate shapes. This method is particularly favored in industries where precision and durability are paramount. In this article, we will explore the fundamentals of gravity die casting, its advantages, applications, and the various techniques involved in the process.
Gravity die casting, also known as permanent mold casting, involves pouring molten metal into a reusable mold under the influence of gravity. Unlike other casting methods that may use high pressure to inject the metal, gravity die casting relies on the natural force of gravity to fill the mold. This technique is particularly effective for producing parts with complex geometries and fine details. The molds used in this process are typically made from high-strength materials such as steel or iron, which can withstand the high temperatures and pressures involved in casting. This durability allows for multiple uses of the same mold, making gravity die casting a cost-effective solution for mass production.
The gravity die casting process can be broken down into several key steps:

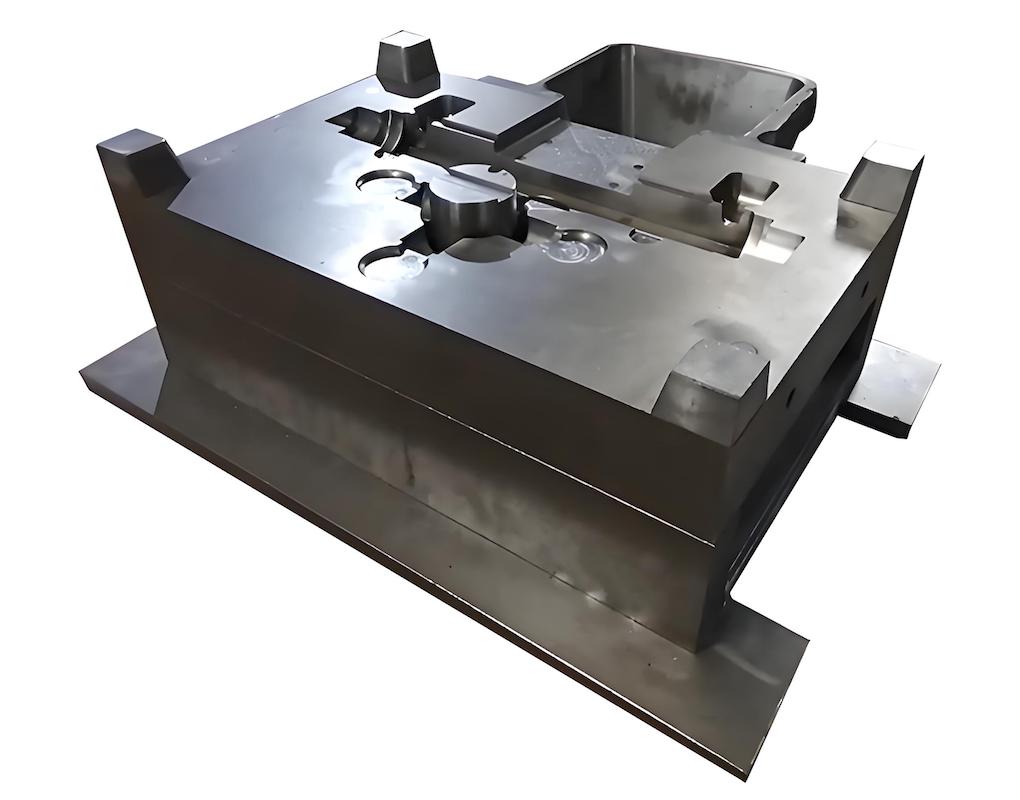

Mold Preparation: The first step involves preparing the mold, which is typically made from metal to withstand high temperatures and repeated use. The mold is designed to create the desired shape of the final product. Proper mold design is crucial, as it must account for factors such as thermal expansion and contraction, as well as the flow characteristics of the molten metal.
Melting the Metal: The metal, often aluminum or zinc, is melted in a furnace until it reaches a liquid state. The temperature must be carefully controlled to ensure optimal flow and solidification characteristics. Different alloys may require specific melting temperatures and techniques to achieve the desired properties in the final casting.
Pouring the Metal: Once the metal is molten, it is poured into the mold cavity. This is done slowly to prevent turbulence, which can lead to defects in the final product. The pouring technique can significantly influence the quality of the casting, as improper pouring can introduce air bubbles or inclusions that compromise the integrity of the part.
Cooling and Solidification: After the mold is filled, the metal is allowed to cool and solidify. The cooling rate can affect the mechanical properties of the final product, so it is crucial to manage this phase carefully. Controlled cooling can help achieve a uniform microstructure, enhancing the strength and durability of the casting.
Mold Removal: Once the metal has solidified, the mold is opened, and the casting is removed. The reusable nature of the mold allows for multiple castings to be produced over time. Proper handling during this stage is essential to avoid damaging the casting or the mold itself.
Finishing Processes: After removal, the cast part may undergo various finishing processes, such as machining, polishing, or surface treatment, to achieve the desired specifications. These finishing touches not only enhance the aesthetic appeal of the part but also improve its functional performance by ensuring tight tolerances and smooth surfaces.
One of the primary advantages of gravity die casting is its ability to produce parts with high precision and intricate details. The use of metal molds allows for tighter tolerances compared to sand casting, making it ideal for applications where accuracy is critical. This precision is particularly important in industries such as aerospace and automotive, where even minor deviations can lead to significant performance issues.
While the initial setup cost for gravity die casting can be higher due to the need for durable molds, the long-term benefits often outweigh these costs. The ability to produce large quantities of parts with minimal waste makes this method economically viable for mass production. Additionally, the reduced need for extensive post-processing can further lower production costs, making gravity die casting an attractive option for manufacturers.
Gravity die casting typically results in a superior surface finish compared to other casting methods. The smooth surfaces reduce the need for extensive post-processing, saving time and resources. This high-quality finish not only enhances the visual appeal of the final product but also improves its performance by reducing friction and wear in applications where moving parts are involved.
Parts produced through gravity die casting exhibit excellent mechanical properties, including strength and durability. The solidification process helps to minimize porosity, resulting in denser and more robust components. This strength is particularly beneficial in applications where parts are subjected to high stress or harsh environments, ensuring longevity and reliability.
Gravity die casting is extensively used in the automotive industry for producing components such as engine blocks, transmission cases, and various structural parts. The high strength-to-weight ratio of cast aluminum parts makes them particularly desirable in vehicle manufacturing. As the automotive industry continues to focus on reducing weight for improved fuel efficiency, gravity die casting plays a crucial role in developing lightweight yet strong components.
In the aerospace sector, gravity die casting is employed to create lightweight yet strong components that can withstand extreme conditions. Parts such as brackets, housings, and structural elements are commonly produced using this method. The stringent safety and performance standards in aerospace manufacturing make gravity die casting an ideal choice for producing critical components that require both precision and reliability.
The consumer electronics industry benefits from gravity die casting for producing housings and enclosures for devices. The precision and aesthetic finish of cast parts enhance the overall quality of electronic products. As consumer electronics continue to evolve, the demand for lightweight and durable components has increased, further driving the adoption of gravity die casting in this sector.
Many industrial applications utilize gravity die casting for producing components that require high durability and resistance to wear. This includes parts for machinery, tools, and equipment used in various sectors. The ability to produce complex shapes with high strength makes gravity die casting a preferred method for manufacturing components that must endure harsh operating conditions.
Tilt pouring is a technique used in gravity die casting where the mold is tilted during the pouring process. This method helps to ensure that the molten metal fills the mold evenly and reduces the risk of air entrapment, which can lead to defects. By controlling the angle and speed of the tilt, manufacturers can optimize the flow of metal and improve the quality of the casting.
In vacuum-assisted gravity die casting, a vacuum is applied to the mold cavity before pouring the molten metal. This technique helps to eliminate air pockets and improve the flow of metal, resulting in higher quality castings. The vacuum environment reduces the likelihood of oxidation and contamination, further enhancing the mechanical properties of the final product.
Low-pressure gravity die casting involves using a low-pressure system to assist in filling the mold. This method can enhance the filling process and reduce the likelihood of defects, making it suitable for complex geometries. By maintaining a controlled pressure, manufacturers can achieve better surface finishes and improved dimensional accuracy in the final castings.
One of the main challenges of gravity die casting is the initial investment required for mold creation. High-quality molds can be expensive, and the cost may be a barrier for smaller manufacturers. However, the long-term benefits of reduced production costs and increased efficiency often justify this initial expenditure, especially for high-volume production runs.
While gravity die casting is effective for certain metals, it is not suitable for all materials. The process is primarily used for non-ferrous metals, limiting its application in some industries. Manufacturers must carefully consider the material properties required for their specific applications and may need to explore alternative casting methods for ferrous materials.
The cycle time for gravity die casting can be longer compared to other methods, particularly when cooling and solidification times are considered. This can impact production rates, especially in high-demand scenarios. Manufacturers must balance the need for quality with the desire for efficiency, often implementing strategies to optimize cycle times without compromising the integrity of the castings.
As technology progresses, new materials and alloys are being developed specifically for gravity die casting. These advancements aim to enhance the properties of cast parts, making them even more suitable for demanding applications. Research into lightweight alloys and composites is particularly promising, as these materials can offer improved performance while reducing overall weight.
The integration of automation and robotics in the gravity die casting process is expected to increase efficiency and reduce labor costs. Automated systems can improve precision and consistency, leading to higher quality outputs. As manufacturers seek to streamline operations and reduce human error, the adoption of advanced technologies will likely become more prevalent in the industry.
With growing concerns about environmental impact, the gravity die casting industry is exploring more sustainable practices. This includes recycling scrap metal and reducing energy consumption during the casting process. Manufacturers are increasingly focused on minimizing waste and improving energy efficiency, aligning with global sustainability goals and consumer demand for environmentally friendly products.
Gravity die casting is a vital manufacturing process that offers numerous advantages, including high precision, cost-effectiveness, and excellent surface finishes. Its applications span various industries, from automotive to aerospace, highlighting its versatility and importance in modern manufacturing. As technology continues to evolve, gravity die casting is poised to adapt and thrive, meeting the demands of future markets while maintaining its reputation for quality and reliability. The ongoing advancements in materials, automation, and sustainability practices will further enhance the capabilities of gravity die casting, ensuring its relevance in the ever-changing landscape of manufacturing.
Gravity die casting primarily uses non-ferrous metals, with aluminum and zinc being the most common. Other materials such as magnesium and copper alloys can also be used, depending on the specific requirements of the application.
Gravity die casting differs from methods like sand casting and pressure die casting in that it relies on gravity to fill the mold rather than using high pressure. This results in a more controlled flow of molten metal, leading to higher precision and better surface finishes.
Gravity die casting is widely used in various industries, including automotive for engine components, aerospace for structural parts, consumer electronics for device housings, and industrial equipment for durable components. Its versatility makes it suitable for producing complex shapes and high-strength parts.
The main advantages of gravity die casting include high precision and detail, cost-effectiveness for mass production, excellent surface finishes, and strong, durable parts. These benefits make it an attractive option for manufacturers looking to produce high-quality components.
Challenges in gravity die casting include the high initial setup costs for creating durable molds, limited material options primarily to non-ferrous metals, and longer cycle times compared to other casting methods. Manufacturers must address these challenges to optimize production efficiency and quality.
