Gravity die casting is a widely used manufacturing process that allows for the production of high-quality metal parts with intricate shapes. This method relies on the force of gravity to fill a mold with molten metal, making it distinct from other casting techniques that utilize pressure. In this article, we will explore the gravity die casting process in detail, including its advantages, disadvantages, applications, and the steps involved in the process.

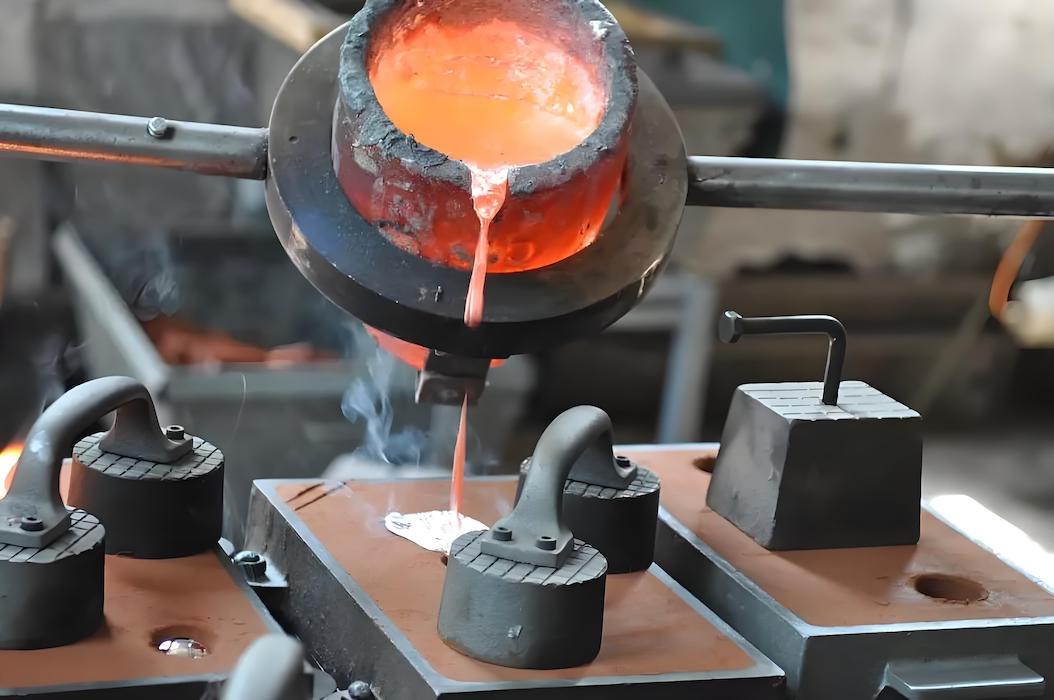

Gravity die casting, also known as permanent mold casting, is a process where molten metal is poured into a mold cavity under the influence of gravity. The molds used in this process are typically made from metal, which allows for better heat conduction and results in a more uniform cooling of the cast part. This method is particularly effective for producing parts with complex geometries and high dimensional accuracy. The process is characterized by its ability to create components that are not only strong but also lightweight, making it an ideal choice for industries that prioritize performance and efficiency.
The gravity die casting process involves several key components:
Mold: The mold is usually made of steel or iron and is designed to withstand high temperatures and pressures. It consists of two halves that are clamped together during the casting process. The design of the mold is critical, as it must accommodate the thermal expansion of the metal and allow for easy ejection of the finished part. Additionally, the mold can be designed with cooling channels to enhance the cooling rate and improve the quality of the casting.
Ladle: A ladle is used to transport the molten metal from the furnace to the mold. It is designed to minimize spillage and ensure a smooth flow of metal. The ladle's design can vary based on the type of metal being cast and the specific requirements of the casting process. Proper handling of the ladle is essential to prevent contamination of the molten metal and to maintain the integrity of the final product.

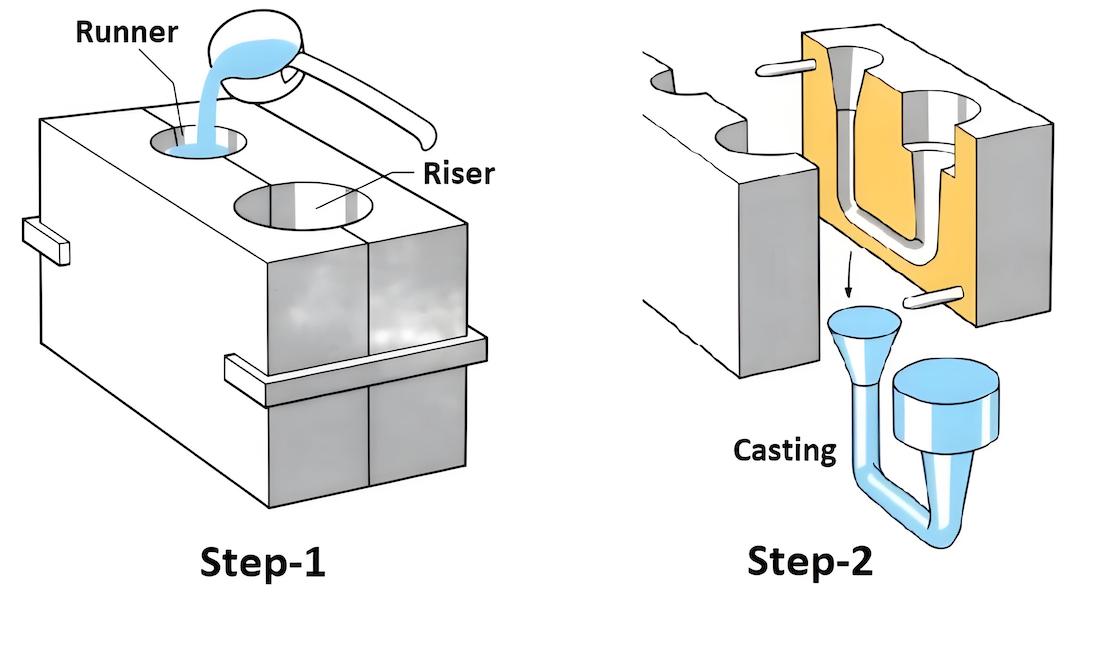

Pouring System: This system directs the flow of molten metal into the mold cavity. It typically includes a pouring basin and a sprue that guides the metal into the mold. The pouring system must be carefully designed to control the flow rate and prevent turbulence, which can lead to defects in the casting. The angle and height of the pour can also affect the filling of the mold and the quality of the final part.
Mold Preparation: The mold is preheated to a specific temperature to prevent thermal shock and ensure proper metal flow. A release agent is often applied to facilitate the removal of the finished part. Preheating the mold not only helps in achieving a better surface finish but also reduces the risk of defects such as cold shuts and misruns. The choice of release agent is also crucial, as it must be compatible with the metal being cast and should not affect the properties of the final product.
Melting the Metal: The metal, usually aluminum or zinc, is melted in a furnace. The temperature is carefully controlled to ensure that the metal reaches a liquid state without degrading its properties. The melting process can vary depending on the type of metal and the specific alloy being used. Advanced furnaces may incorporate features such as temperature monitoring and control systems to ensure consistent melting and to minimize oxidation of the metal.

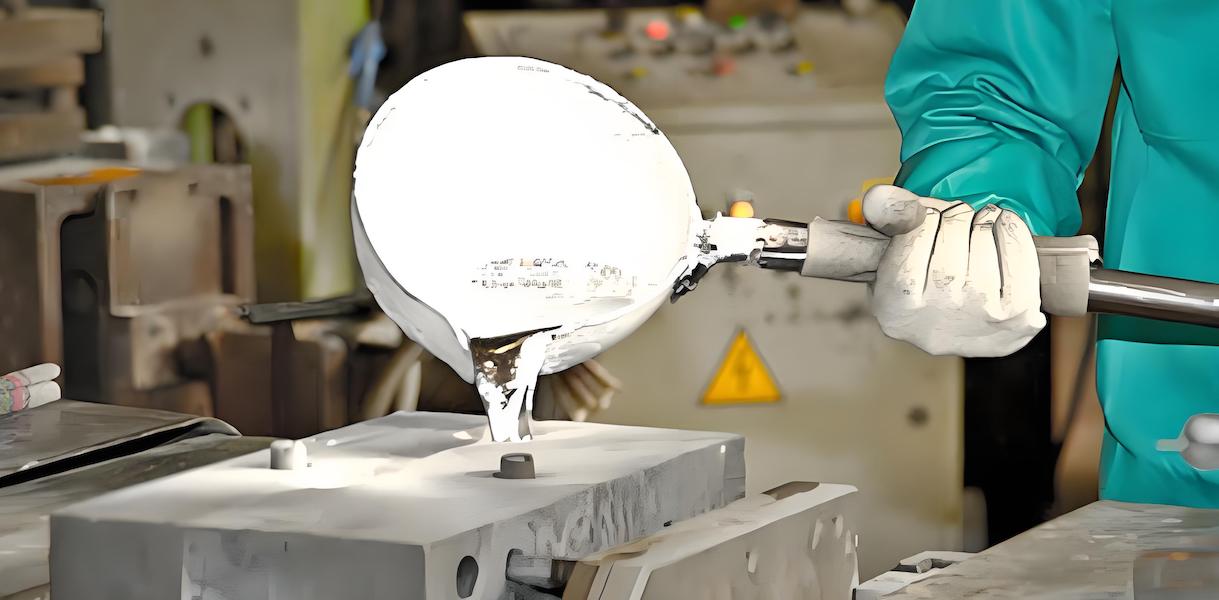

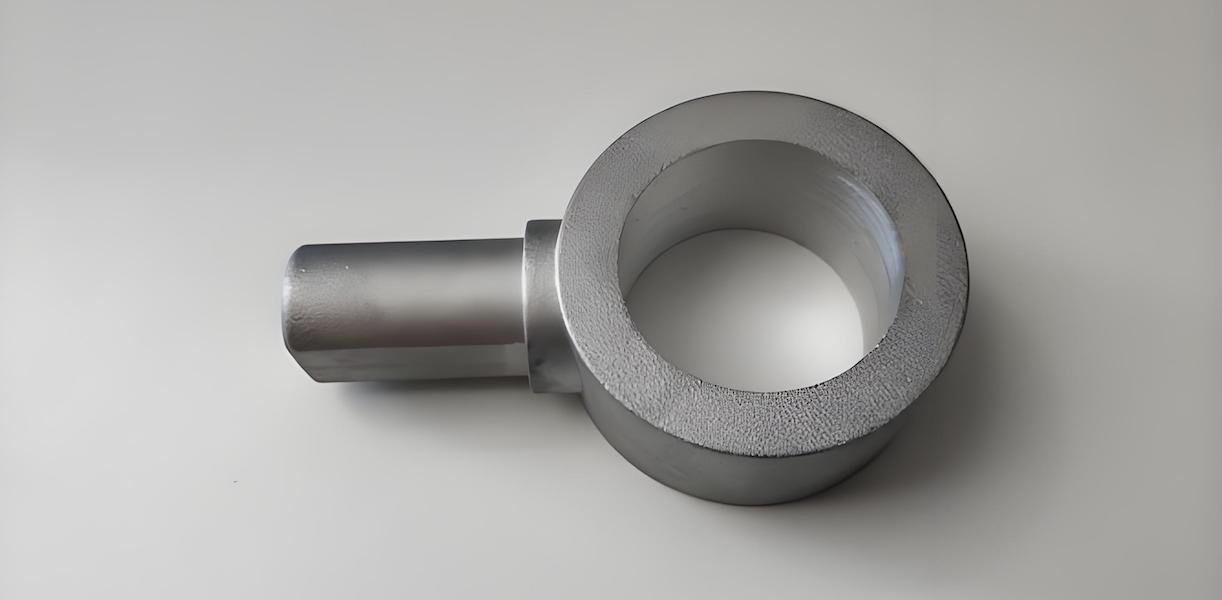

Pouring the Metal: Once the metal is molten, it is poured into the ladle and then directed into the mold cavity through the pouring system. The force of gravity allows the metal to fill the mold completely. The pouring process must be executed with precision to avoid introducing air bubbles or inclusions, which can compromise the integrity of the casting. Operators must be trained to manage the pouring speed and technique to achieve optimal results.
Cooling and Solidification: After the mold is filled, the molten metal begins to cool and solidify. The cooling rate can be controlled by adjusting the temperature of the mold and the environment. Proper cooling is essential to ensure that the metal solidifies uniformly, which helps in achieving the desired mechanical properties. The cooling phase can also influence the microstructure of the casting, affecting its strength and ductility.
Ejection of the Casting: Once the metal has solidified, the mold is opened, and the finished casting is ejected. This may involve mechanical ejection systems or manual removal, depending on the design of the mold. The ejection process must be carefully managed to prevent damage to the casting and the mold. In some cases, additional cooling may be required before ejection to ensure that the part can be safely removed without distortion.
Finishing Operations: The cast part may undergo additional finishing processes such as machining, surface treatment, or inspection to meet specific quality standards. Finishing operations are crucial for achieving the final dimensions and surface quality required for the application. Techniques such as sandblasting, polishing, or anodizing may be employed to enhance the appearance and performance of the casting.
Gravity die casting offers several advantages that make it a preferred choice for many manufacturers:
High Dimensional Accuracy: The use of metal molds allows for precise control over the dimensions of the cast parts, resulting in high-quality products with minimal need for post-casting machining. This accuracy is particularly beneficial in industries where tight tolerances are essential for the functionality of components.
Good Surface Finish: The smooth surface of the metal molds contributes to a better surface finish on the cast parts, reducing the need for additional finishing processes. A superior surface finish not only enhances the aesthetic appeal of the product but also improves its performance by reducing friction and wear.
Cost-Effective for Large Production Runs: While the initial cost of creating metal molds can be high, gravity die casting becomes cost-effective for large production runs due to the durability of the molds and the efficiency of the process. The longevity of the molds allows for thousands of cycles, making it an economical choice for high-volume production.
Versatility: This die casting process can be used to cast a wide range of metals, including aluminum, zinc, and magnesium, making it suitable for various applications across different industries. The ability to work with different alloys also allows manufacturers to tailor the properties of the cast parts to meet specific performance requirements.
Despite its advantages, gravity die casting also has some limitations:
Initial Setup Costs: The cost of designing and manufacturing metal molds can be significant, making it less suitable for small production runs or one-off parts. The investment in mold creation must be justified by the expected production volume, which can be a barrier for smaller companies or startups.
Limited to Non-Ferrous Metals: Gravity die casting is primarily used for non-ferrous metals, which may limit its application in certain industries that require ferrous materials. This limitation can restrict the range of products that can be manufactured using this process, necessitating the use of alternative casting methods for ferrous alloys.
Complexity in Mold Design: Designing molds for complex geometries can be challenging and may require advanced engineering skills and software. The design process must consider factors such as thermal expansion, shrinkage, and the flow characteristics of the molten metal, which can complicate the mold design and increase lead times.
Gravity die casting is utilized in various industries due to its ability to produce high-quality components. Some common applications include:
In the automotive sector, gravity die casting is used to manufacture components such as engine blocks, transmission cases, and various structural parts. The high strength-to-weight ratio of aluminum castings makes them ideal for automotive applications, contributing to fuel efficiency and performance. Additionally, the ability to produce complex shapes allows for innovative designs that enhance vehicle performance and safety.
The aerospace industry demands components that are lightweight yet strong. Gravity die casting is employed to produce parts like brackets, housings, and other structural components that meet stringent safety and performance standards. The rigorous testing and certification processes in aerospace manufacturing ensure that gravity die cast components can withstand the extreme conditions encountered during flight.
Many consumer electronic devices utilize components made through gravity die casting. This includes housings for smartphones, laptops, and other devices where precision and aesthetics are crucial. The lightweight and durable nature of cast aluminum allows for sleek designs while providing the necessary protection for sensitive electronic components.
Gravity die casting is also used in the production of industrial equipment components, such as housings for pumps, valves, and machinery parts. The durability and reliability of cast parts are essential in these applications. Manufacturers often rely on gravity die casting to produce components that can withstand harsh operating conditions and provide long service life.
Gravity die casting is a versatile and efficient manufacturing process that plays a crucial role in producing high-quality metal components across various industries. Its ability to deliver precise dimensions, excellent surface finishes, and cost-effectiveness for large production runs makes it a preferred choice for manufacturers. Understanding the intricacies of the gravity die casting process can help businesses leverage its advantages while being aware of its limitations. As technology advances, the applications and capabilities of gravity die casting are likely to expand, further solidifying its importance in modern manufacturing. The ongoing development of new materials and techniques will continue to enhance the efficiency and effectiveness of this process, ensuring its relevance in the ever-evolving landscape of manufacturing.
Gravity die casting primarily uses non-ferrous metals, with aluminum and zinc being the most common. Other metals such as magnesium and copper alloys can also be used, depending on the specific requirements of the application.
The main difference between gravity die casting and pressure die casting lies in the method of filling the mold. In gravity die casting, molten metal is poured into the mold cavity under the influence of gravity, while in pressure die casting, molten metal is injected into the mold under high pressure. This results in different characteristics in the final products, with pressure die casting typically producing parts with finer details and better surface finishes.
Gravity die casting is widely used in various industries, including automotive (for engine blocks and transmission cases), aerospace (for structural components), consumer electronics (for device housings), and industrial equipment (for pumps and valves). Its versatility makes it suitable for producing a range of components that require high strength and precision.
The advantages of gravity die casting include high dimensional accuracy, good surface finish, cost-effectiveness for large production runs, and versatility in working with different metals. These benefits make it an attractive option for manufacturers looking to produce high-quality components efficiently.
Some limitations of gravity die casting include high initial setup costs for mold creation, restrictions to non-ferrous metals, and the complexity involved in designing molds for intricate geometries. These factors can affect the feasibility of using gravity die casting for certain projects, particularly those with low production volumes or specific material requirements.
