Electric Discharge Machining (EDM) is a precise, non-traditional manufacturing process that removes material from a workpiece using electrical discharges (sparks) in a controlled liquid medium. Unlike conventional machining methods that rely on cutting forces and physical contact, EDM utilizes electrical energy to erode material through a series of carefully controlled sparks. This technology has revolutionized manufacturing capabilities, especially for creating complex geometries in hard, electrically conductive materials that would be challenging or impossible to machine using traditional methods.
Electric Discharge Machining represents a groundbreaking approach in modern manufacturing. The process converts electrical energy into thermal energy through controlled electrical discharges between an electrode and a workpiece, both submerged in a dielectric fluid. These discharges create localized zones of extremely high temperature—reaching between 8,000°C and 12,000°C—which melt and vaporize tiny portions of the workpiece material.
What makes EDM particularly valuable is its ability to machine any electrically conductive material regardless of hardness. This capability has made it indispensable for working with hardened steels, tungsten carbide, titanium alloys, and other difficult-to-machine materials commonly used in aerospace, medical, and tool-making industries.
The process operates without applying physical cutting forces to the workpiece, eliminating issues like mechanical stress, distortion, and vibration that can plague conventional machining operations. This non-contact nature allows EDM to create intricate internal features, sharp corners, and deep cavities that would be extremely difficult to achieve using traditional cutting tools.
EDM technology emerged in the 1940s when Soviet researchers Boris and Natalya Lazarenko were investigating ways to prevent erosion of electrical contacts. Rather than preventing erosion, they developed a controlled method to harness this erosion for machining purposes. Their work led to the creation of the first EDM machines using resistance-capacitance pulse generators.
By the 1950s and 1960s, the technology had spread worldwide with significant advancements in control systems and power supplies. The introduction of computer numerical control (CNC) in the 1970s and 1980s further enhanced EDM capabilities, allowing for greater precision and automation. Today's EDM systems incorporate sophisticated controls, adaptive monitoring, and advanced programming capabilities that have dramatically expanded the process's applications.
The fundamental principle behind EDM is elegantly simple yet remarkably effective. The process uses controlled electrical discharges to remove material through erosion rather than cutting.

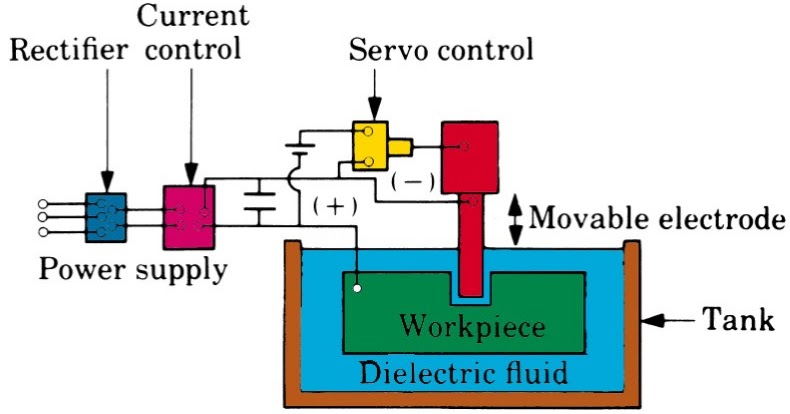

A typical EDM system consists of several essential components:
A tool electrode (cathode) and workpiece (anode)
A dielectric fluid surrounding both electrode and workpiece
A DC power supply that generates controlled electrical pulses
A servo system that maintains the optimal gap between electrode and workpiece
A filtration and circulation system for the dielectric fluid
The EDM process follows a fascinating sequence that occurs in microseconds:
Positioning: The electrode and workpiece are positioned with a small gap between them (typically 0.001-0.1mm) and submerged in dielectric fluid.

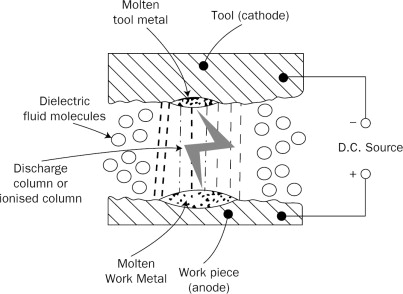

Ionization: As voltage is applied, the dielectric fluid in the gap begins to ionize. Microscopic irregularities on the surfaces create high-strength electrical fields that facilitate this ionization.
[IMAGE: Close-up visualization of the ionization process in the gap between electrode and workpiece]
Channel Formation: The ionized particles form a conductive channel between the electrode and workpiece.
Discharge: When the voltage reaches a critical level, a spark jumps across the gap, creating a plasma channel with extremely high temperature and pressure.
Material Removal: The intense heat causes small portions of both the workpiece and electrode to melt and vaporize, creating a tiny crater on the workpiece surface.
Flushing: As the voltage drops, the plasma channel collapses, causing the dielectric fluid to rush in. This rapid cooling solidifies the melted material into tiny spherical particles, which are flushed away from the gap.
Repetition: This entire process repeats thousands of times per second, gradually eroding the workpiece to achieve the desired shape.
Each discharge removes only a microscopic amount of material, but the cumulative effect of thousands of controlled discharges results in precise material removal with exceptional accuracy.
Electric Discharge Machining has evolved into several specialized forms, each optimized for specific applications:

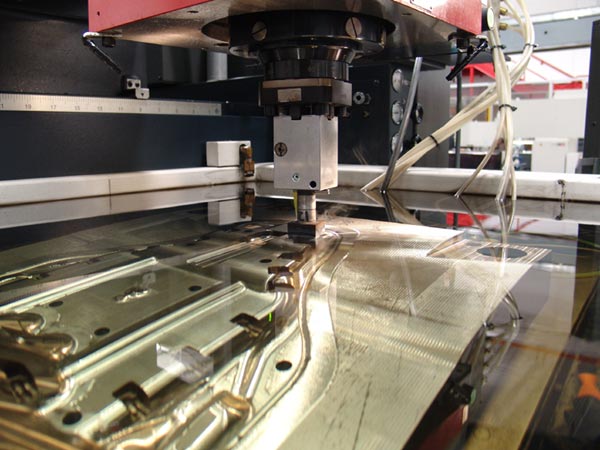

Also known as die-sinking or ram EDM, Sinker EDM uses a shaped electrode that gradually "sinks" into the workpiece to create a negative impression. The electrode, typically made of graphite or copper, is machined into the inverse shape of the desired final cavity.
In this process, both the workpiece and electrode are submerged in dielectric fluid (usually hydrocarbon oil), and the spark erosion occurs as the electrode advances into the material. Sinker EDM excels at creating deep cavities, complex 3D shapes, and sharp internal corners in molds, dies, and tooling components.

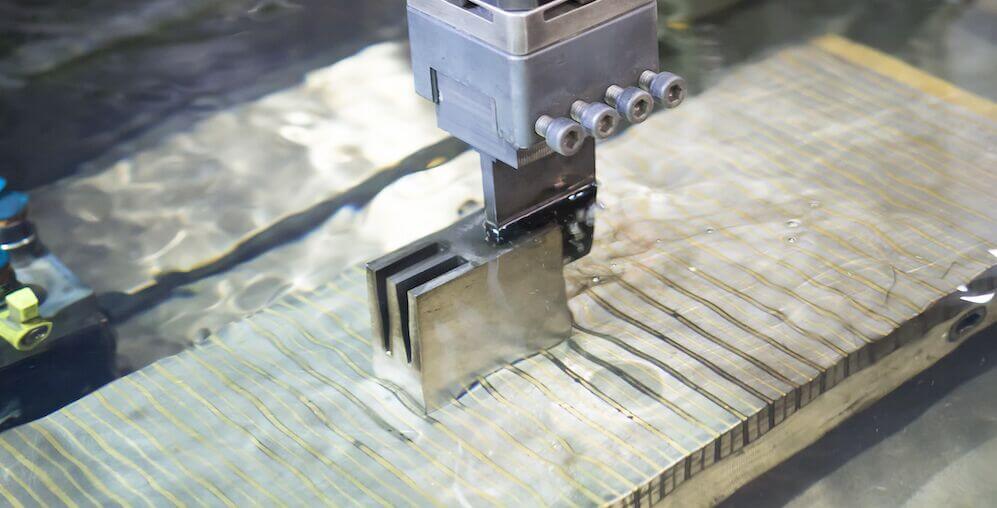

[IMAGE: Sinker EDM in operation showing electrode descending into workpiece]
Modern sinker EDM machines offer multiple power settings, from rough machining that prioritizes material removal rate to finish machining that focuses on surface quality. Advanced orbital motion capabilities allow the electrode to move in complex patterns during machining, improving accuracy and reducing electrode wear.
Wire EDM employs a thin, continuously moving wire as the electrode. The wire—typically brass or stratified copper and between 0.1-0.3mm in diameter—cuts through the workpiece like a bandsaw, but without physical contact. Instead, electrical discharges between the wire and workpiece erode the material.
This technique enables the creation of complex 2D profiles and 3D shapes with exceptional precision. Wire EDM is commonly used for cutting plates, creating punches and dies, and fabricating complex parts for electronics, aerospace, and medical devices.
Modern wire EDM systems can perform multiple passes, beginning with a rough cut followed by several finishing passes to achieve extraordinary precision and surface finish. Advanced systems can execute taper cuts, where the wire is angled to create conical or complex 3D features.
Specialized for creating deep, small-diameter holes, Hole Drilling EDM uses a tubular electrode that rotates during the machining process. The electrode, typically brass or copper tubing, has an internal channel that allows dielectric fluid to flow through it and flush away eroded particles.
This technique excels at drilling holes in difficult-to-machine materials, especially when high depth-to-diameter ratios are required. Common applications include cooling channels in molds, fuel injection nozzles, and starter holes for wire EDM operations.
Understanding the critical components of an EDM system provides insight into how this sophisticated technology achieves its remarkable precision.
The heart of any EDM system is its power supply—a sophisticated DC pulse generator that converts standard AC power into precisely controlled DC pulses. Modern generators offer extensive control over pulse parameters, including voltage, current, duration, and frequency.
These parameters significantly influence the machining characteristics:
Higher energy levels facilitate faster material removal but produce rougher surfaces
Lower energy levels provide finer surface finishes but at slower removal rates
Pulse duration affects both the size of each crater and the heat affected zone
Pulse frequency determines how many discharges occur per second
Advanced systems incorporate adaptive control algorithms that automatically adjust these parameters based on real-time machining conditions, optimizing performance throughout the process.
The electrode is a critical component that defines the shape to be produced on the workpiece. For sinker EDM, common electrode materials include:
Graphite: Excellent machinability, high temperature resistance, but can be fragile
Copper: Good conductivity and wear resistance, ideal for precision work
Copper-Tungsten: Superior wear resistance for fine details and extended machining
Brass: Economical for certain applications, good machinability
Modern electrode fabrication often employs CNC machining or additive manufacturing techniques to create complex electrode geometries. As the EDM process causes electrode wear, compensation strategies and automatic tool changers may be employed for maintaining dimensional accuracy in production settings.
The servo system controls the precise movement of the electrode relative to the workpiece. This sophisticated mechanism continuously monitors the gap conditions and adjusts the electrode position to maintain an optimal spark gap.
Modern EDM machines utilize high-resolution servo motors coupled with precision ball screws or linear motors to achieve positioning accuracy down to the micron level. The system must respond quickly to changing conditions in the gap, advancing the electrode when the gap is too large and retracting it when conditions indicate a risk of short-circuiting.

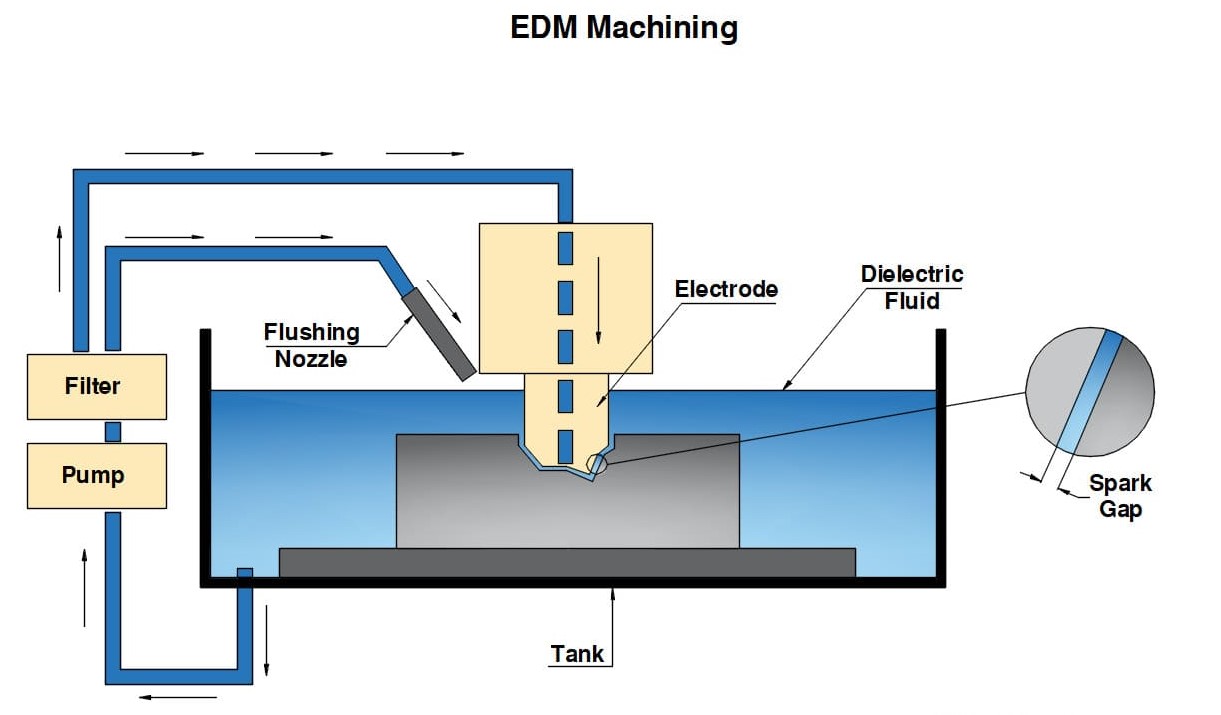

The dielectric fluid performs several critical functions in the EDM process:
Insulates the gap until sufficient voltage is applied
Forms a spark channel when ionized
Cools the electrode and workpiece
Flushes away eroded particles
Restores insulation after each discharge
Commonly used dielectric fluids include:
Hydrocarbon oils for sinker EDM
Deionized water for wire EDM
The dielectric system includes pumps, filters, temperature controllers, and pressure regulators to maintain optimal fluid conditions throughout the machining process. Efficient filtration is essential for removing the eroded particles that can interfere with the process if allowed to accumulate in the working area.
The unique capabilities of EDM have made it indispensable across numerous industries:
EDM is a cornerstone technology in the tool and die industry, where it's used to create complex molds, dies, and punches with intricate geometries and tight tolerances. The process excels at producing sharp internal corners, deep cavities, and fine details that would be challenging or impossible with conventional machining.
Injection mold tooling, stamping dies, and forging dies frequently rely on EDM for their production. The ability to work with hardened steels allows molds to be heat-treated before final machining, reducing distortion and improving tool life.
In the aerospace industry, EDM is used to manufacture turbine blades, fuel injection components, and various structural elements requiring high precision. The ability to work with high-temperature alloys and create complex cooling channels makes EDM particularly valuable for components operating in extreme conditions.
Automotive manufacturers utilize EDM for creating engine components, transmission parts, and specialized tooling. The process's capability to produce complex geometries with high repeatability supports both prototype development and high-volume production tooling.
The medical industry leverages EDM for manufacturing surgical instruments, implants, and specialized medical devices. The process's ability to work with biocompatible materials like titanium and stainless steel while maintaining exceptional precision makes it ideal for creating components like orthopedic implants, surgical cutting tools, and custom prosthetics.
In the electronics sector, EDM facilitates the production of connector pins, lead frames, and various micro-components. As devices continue to miniaturize, the precision of EDM becomes increasingly valuable for creating tiny, complex parts with tight tolerances.
Advanced micro-EDM techniques can produce features measured in microns, supporting the development of microelectromechanical systems (MEMS) and other miniaturized devices.
Electric Discharge Machining offers numerous advantages that have secured its place in modern manufacturing:
Material Independence: EDM can machine any electrically conductive material regardless of hardness, making it ideal for working with hardened steels, titanium alloys, and other difficult-to-machine materials.
Complex Geometries: The process excels at creating intricate shapes, sharp internal corners, deep cavities, and fine details that would be challenging with conventional machining.
No Cutting Forces: As a non-contact process, EDM applies no mechanical forces to the workpiece, eliminating problems like distortion, stress, and vibration that can affect delicate parts.
High Precision: Modern EDM systems can achieve tolerances down to a few microns, with exceptional surface finishes when properly optimized.
Burr-Free Results: Unlike many conventional machining processes, EDM produces parts without burrs, reducing or eliminating secondary finishing operations.
Unattended Operation: With appropriate automation, EDM machines can operate continuously with minimal supervision, enhancing productivity and reducing labor costs.
Despite its many advantages, EDM does have certain limitations that must be considered:
Material Conductivity Requirement: The workpiece must be electrically conductive, limiting EDM's application for non-conductive materials like ceramics and most polymers.
Material Removal Rate: Compared to some conventional machining processes, EDM typically removes material more slowly, potentially increasing production time for large components.
Electrode Wear: The electrode gradually erodes during the EDM process, requiring compensation strategies or electrode replacement to maintain dimensional accuracy.
Surface Layer Effects: The high temperatures involved in EDM create a recast layer and heat-affected zone on the machined surface, which may affect the mechanical properties of the component.
Environmental Considerations: Traditional EDM dielectric fluids may pose environmental and health concerns, requiring proper handling, filtration, and disposal.
Initial Investment: EDM equipment typically requires a higher initial investment compared to conventional machine tools, although this cost is often offset by the unique capabilities provided.
As manufacturing continues to evolve, several trends are shaping the future of EDM technology:
Hybrid Manufacturing: Integration of EDM with other processes like milling, grinding, or additive manufacturing to combine the strengths of multiple technologies.
Environmentally Friendly Systems: Development of biodegradable dielectric fluids and more efficient filtration systems to reduce environmental impact.
Automation and Integration: Enhanced automation, including robotic workpiece handling, automatic electrode changers, and integration with factory management systems.
Advanced Control Systems: Implementation of artificial intelligence and machine learning for optimizing process parameters and predictive maintenance.
Micro and Nano EDM: Refinement of techniques for creating increasingly smaller features, enabling new applications in microelectronics, medical devices, and other high-precision fields.
Green EDM: Research into dry and near-dry EDM techniques that reduce or eliminate the need for dielectric fluids.
These advancements continue to expand the capabilities and applications of EDM, ensuring its relevance in the manufacturing landscape of the future.
A1: EDM can machine any electrically conductive material regardless of its hardness. This includes tool steels, stainless steels, carbides, titanium, copper alloys, exotic metals, and even some conductive ceramics. The material's hardness does not affect the EDM process, making it ideal for working with heat-treated and hardened materials that would be challenging to machine conventionally.
A2: Unlike conventional machining that uses cutting tools to remove material mechanically, EDM uses electrical discharges to erode material without physical contact. This provides several advantages: no cutting forces are applied to the workpiece (eliminating distortion), complex internal geometries can be created, extremely hard materials can be machined easily, and very fine details can be achieved. However, EDM typically has slower material removal rates and can only work with conductive materials.
A3: Wire EDM excels at cutting through materials to create complex profiles, making it ideal for manufacturing punches, dies, stripper plates, and intricate 2D and 3D shapes. It's commonly used when precision cutting is required. Sinker EDM, on the other hand, is typically used for creating cavities and complex 3D shapes, making it perfect for mold making, die cavities, and complex internal features that cannot be accessed by a wire. The choice between the two often depends on the geometry of the part being manufactured.
A4: Several factors influence the surface finish achieved through EDM: the energy level of each discharge (lower energy generally produces finer finishes), pulse duration and frequency, electrode material and quality, dielectric fluid filtration efficiency, and the condition of the machine. Modern EDM systems offer various power settings, from rough cuts that prioritize speed to fine finishing passes that produce excellent surface finishes. Generally, there's a trade-off between machining speed and surface quality.
A5: Traditional EDM has some environmental concerns, primarily related to the hydrocarbon dielectric fluids used and the disposal of the electrode and workpiece particles. However, the industry is moving toward more environmentally responsible practices, including: biodegradable dielectric fluids, improved filtration and recycling systems, dry and near-dry EDM techniques that reduce fluid usage, and more energy-efficient machines. When properly managed with modern equipment, EDM can be conducted with minimal environmental impact.
