Vacuum die casting is an advanced manufacturing process that enhances the traditional die casting method by incorporating a vacuum system. This innovative approach significantly improves the quality of cast parts by minimizing defects such as porosity and gas entrapment. In this article, we will explore the intricacies of vacuum die casting, its advantages, applications, and the technology behind it.
Die casting is a metal casting process that involves forcing molten metal into a mold cavity under high pressure. This method is widely used for producing complex shapes with high dimensional accuracy and smooth surface finishes. The process is particularly effective for non-ferrous metals such as aluminum, zinc, and magnesium. The die casting process is characterized by its ability to produce large volumes of parts quickly and efficiently, making it a preferred choice in industries where mass production is essential. The molds used in die casting are typically made from high-strength steel, which can withstand the high pressures and temperatures involved in the process, ensuring durability and longevity.
While traditional die casting is effective, it often suffers from issues related to air entrapment and gas porosity. These defects can compromise the mechanical properties and surface quality of the final product. Vacuum die casting addresses these challenges by creating a vacuum environment within the mold cavity before the molten metal is injected. This vacuum not only helps in eliminating air pockets but also allows for better filling of the mold, resulting in a more uniform and denser final product. The transition from traditional to vacuum die casting represents a significant leap in manufacturing technology, enabling industries to meet stricter quality standards.
Preparation of the Mold: The die is prepared and heated to the appropriate temperature to facilitate the flow of molten metal. Proper mold preparation is crucial as it affects the quality of the cast part. The heating process helps in reducing thermal shock and ensures that the molten metal fills the mold cavity effectively.
Creating a Vacuum: A vacuum pump is activated to remove air and gases from the mold cavity, creating a low-pressure environment. This step is vital as it sets the stage for the subsequent injection of molten metal. The effectiveness of the vacuum system directly influences the quality of the cast part, as a strong vacuum can significantly reduce the likelihood of defects.
Injection of Molten Metal: Once the vacuum is established, molten metal is injected into the mold under high pressure. The high-pressure injection ensures that the molten metal fills every corner of the mold, capturing intricate details and features. The speed and pressure of injection are carefully controlled to optimize the filling process and minimize turbulence, which can lead to defects.
Cooling and Solidification: The molten metal cools and solidifies within the mold, taking on the desired shape. Cooling rates are critical in this phase, as they can affect the microstructure and mechanical properties of the cast part. Controlled cooling helps in achieving uniform solidification, which is essential for maintaining the integrity of the part.
Demolding: After sufficient cooling, the mold is opened, and the cast part is removed. The demolding process must be handled carefully to avoid damaging the newly formed part. Often, additional finishing processes may be required to achieve the desired surface quality and dimensional accuracy.

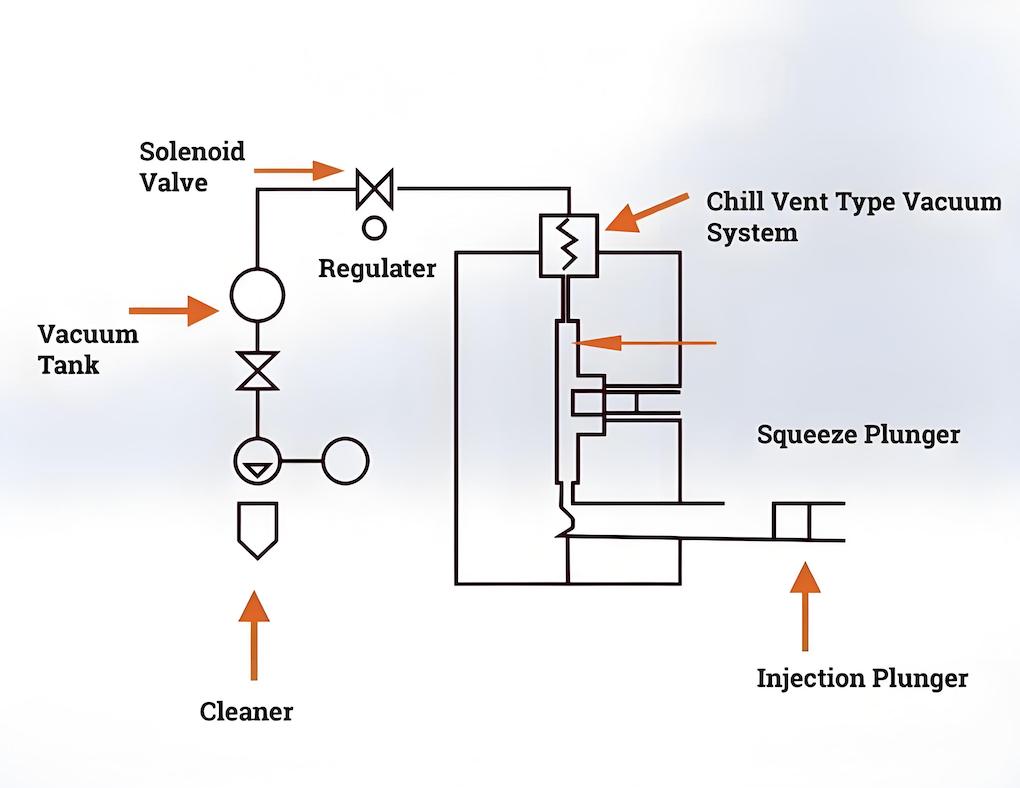

Vacuum Pump: Essential for creating the vacuum environment, it removes air and gases from the mold cavity. The choice of vacuum pump can vary based on the specific requirements of the casting process, including the size of the mold and the type of metal being cast.
Die: The mold used to shape the molten metal, typically made from high-strength steel to withstand repeated use. The design of the die is crucial, as it must accommodate the thermal expansion of the metal and the stresses involved during the casting process.
Injection System: This includes the plunger and shot sleeve, which are responsible for injecting the molten metal into the mold. The design of the injection system can significantly impact the efficiency of the casting process, influencing factors such as injection speed and pressure.
Cooling System: Ensures that the molten metal cools uniformly, preventing defects related to uneven cooling. Effective cooling systems are designed to maintain optimal temperatures throughout the casting process, which is essential for achieving high-quality parts.
One of the primary benefits of vacuum die casting is the significant reduction in defects. The vacuum environment minimizes the presence of air and gases, leading to denser and stronger cast parts. This is particularly important in industries where mechanical properties are critical. The elimination of porosity not only enhances the strength of the parts but also improves their fatigue resistance, making them suitable for demanding applications.
The vacuum process allows for a smoother surface finish on the cast parts. This is due to the elimination of gas pockets and other imperfections that can occur in traditional die casting methods. A superior surface finish reduces the need for extensive post-processing, saving time and costs associated with additional machining or finishing operations. This is especially beneficial in industries where aesthetic appearance is as important as functional performance.
Vacuum die casting enables the production of complex geometries that may be challenging to achieve with other casting methods. The ability to fill intricate molds without the risk of air entrapment opens up new possibilities for design. Designers can create parts with thinner walls, intricate features, and complex shapes, which can lead to lighter and more efficient products. This flexibility is particularly advantageous in industries such as aerospace and automotive, where weight reduction is a key consideration.
While the initial investment in vacuum die casting technology may be higher, the long-term benefits often outweigh the costs. The reduction in defects leads to lower scrap rates and less rework, ultimately saving time and resources. Additionally, the ability to produce high-quality parts in large volumes can lead to economies of scale, further enhancing cost-effectiveness. Companies can achieve a quicker return on investment by reducing production costs and improving product quality.
In the aerospace sector, components must meet stringent quality and performance standards. Vacuum die casting is used to produce critical parts such as engine components, housings, and structural elements that require high strength and low weight. The aerospace industry demands materials that can withstand extreme conditions, and vacuum die casting provides the necessary properties to ensure reliability and safety in flight.

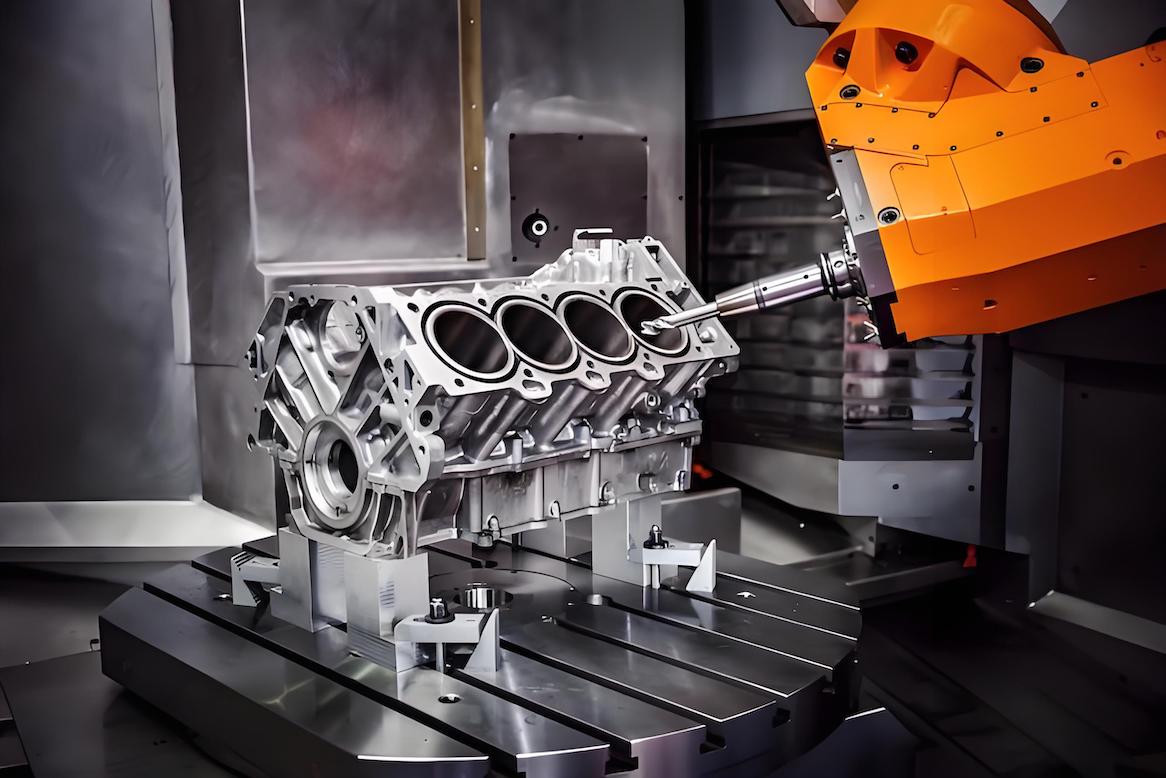

The automotive industry benefits from vacuum die casting for producing lightweight and durable components. Parts such as transmission housings, engine blocks, and structural components are often manufactured using this method to enhance fuel efficiency and performance. As the automotive sector increasingly focuses on sustainability and reducing emissions, the lightweight nature of vacuum die cast components plays a crucial role in achieving these goals.
In the medical field, precision and reliability are paramount. Vacuum die casting is employed to create components for medical devices that require high levels of accuracy and minimal defects, ensuring patient safety and device efficacy. The ability to produce complex shapes with tight tolerances is essential in medical applications, where even minor defects can have significant consequences.
The electronics industry utilizes vacuum die casting for producing housings and components that require excellent thermal and electrical conductivity. The process allows for the creation of intricate designs that meet the demands of modern electronic devices. As electronic devices become smaller and more complex, the need for high-quality, precisely manufactured components continues to grow, making vacuum die casting an ideal solution.
The effectiveness of vacuum die casting relies heavily on the vacuum system used. These systems can vary in complexity, from simple vacuum pumps to advanced multi-stage systems that provide precise control over the vacuum level. The choice of vacuum system can significantly impact the overall efficiency of the casting process, influencing factors such as cycle time and energy consumption.
The choice of materials for vacuum die casting is crucial. Commonly used metals include aluminum, zinc, and magnesium alloys, which offer excellent fluidity and mechanical properties. The selection of the right alloy can significantly impact the performance of the final product. Advances in material science are leading to the development of new alloys specifically designed for vacuum die casting, enhancing the capabilities of this manufacturing process.
Maintaining optimal process parameters is essential for achieving consistent results in vacuum die casting. Factors such as temperature, pressure, and cooling rates must be carefully monitored and controlled to ensure the quality of the cast parts. The integration of advanced monitoring systems and data analytics can help manufacturers optimize their processes, leading to improved efficiency and reduced waste.
Investing in a vacuum die casting system can be costly. The initial setup, including vacuum pumps and specialized dies, requires significant capital. However, the long-term savings from reduced defects and improved efficiency can justify this investment. Companies must carefully evaluate their production needs and potential return on investment when considering the transition to vacuum die casting.
Operating a vacuum die casting system requires skilled personnel who understand the intricacies of the process. Training and expertise are essential to ensure that the system operates effectively and produces high-quality parts. As technology evolves, ongoing education and training will be necessary to keep pace with advancements in vacuum die casting techniques and equipment.
Regular maintenance of the vacuum system and dies is necessary to ensure optimal performance. This includes routine checks of the vacuum pumps, seals, and other components to prevent failures that could lead to production downtime. Implementing a proactive maintenance schedule can help manufacturers avoid costly interruptions and extend the lifespan of their equipment.
As technology progresses, new materials and alloys are being developed specifically for vacuum die casting. These materials offer enhanced properties, such as improved strength-to-weight ratios and better corrosion resistance. The ongoing research in material science is expected to lead to the introduction of innovative alloys that can further expand the applications of vacuum die casting.
The integration of automation and smart technologies into vacuum die casting processes is on the rise. This includes the use of sensors and data analytics to monitor and optimize production, leading to greater efficiency and reduced waste. The adoption of Industry 4.0 principles in manufacturing is transforming traditional processes, enabling real-time monitoring and adaptive control of production systems.
With increasing emphasis on sustainability, vacuum die casting processes are being adapted to minimize environmental impact. This includes the use of recycled materials and energy-efficient technologies to reduce the carbon footprint of manufacturing operations. As industries strive to meet sustainability goals, vacuum die casting will play a vital role in developing eco-friendly manufacturing practices.
Vacuum die casting represents a significant advancement in the field of metal casting, offering numerous benefits over traditional methods. By creating a vacuum environment, this process minimizes defects, enhances surface quality, and allows for greater design flexibility. As industries continue to demand higher quality and more complex components, vacuum die casting will play a crucial role in meeting these challenges. With ongoing advancements in technology and materials, the future of vacuum die casting looks promising, paving the way for innovative applications across various sectors. The continuous evolution of this process will not only improve manufacturing efficiency but also contribute to the development of more sustainable practices in the industry.
The main advantages of vacuum die casting include reduced defects such as porosity and gas entrapment, improved surface finish, greater design flexibility for complex geometries, and enhanced mechanical properties of the cast parts. Additionally, it can lead to cost savings in the long run due to lower scrap rates and reduced rework.
Common materials used in vacuum die casting include non-ferrous metals such as aluminum, zinc, and magnesium alloys. These materials are favored for their excellent fluidity, mechanical properties, and ability to produce high-quality castings with intricate designs.
The vacuum die casting process improves the quality of cast parts by creating a low-pressure environment that minimizes the presence of air and gases during the injection of molten metal. This leads to denser, stronger parts with fewer defects, such as porosity, which can compromise the mechanical properties and surface quality.
Industries that benefit significantly from vacuum die casting include aerospace, automotive, medical devices, and electronics. These sectors require high-quality, precision components that can withstand demanding conditions, making vacuum die casting an ideal manufacturing solution.
Challenges associated with implementing vacuum die casting technology include the high initial investment costs for equipment and specialized dies, the need for skilled personnel to operate and maintain the systems, and the requirement for regular maintenance to ensure optimal performance. Additionally, companies must adapt to the technical complexities of the process to achieve consistent quality.
