Sheet metal shaping is a crucial process in manufacturing that involves transforming flat sheets of metal into various shapes and forms. This process is widely used across multiple industries, including automotive, aerospace, construction, and electronics. Understanding the techniques, tools, and applications of sheet metal shaping is essential for anyone involved in manufacturing or engineering. This article will explore the fundamentals of sheet metal shaping, the various methods employed, the tools used, and the applications of shaped sheet metal.
Sheet metal refers to thin, flat pieces of metal that are typically less than six millimeters thick. It can be made from various metals, including steel, aluminum, copper, and brass. The thickness of sheet metal can vary significantly, and it is categorized into different gauges, with lower numbers indicating thicker sheets.
The properties of sheet metal, such as strength, ductility, and malleability, make it an ideal material for shaping. Ductility refers to the ability of the metal to deform under tensile stress, while malleability is the ability to deform under compressive stress. These properties allow sheet metal to be easily shaped into complex forms without breaking.

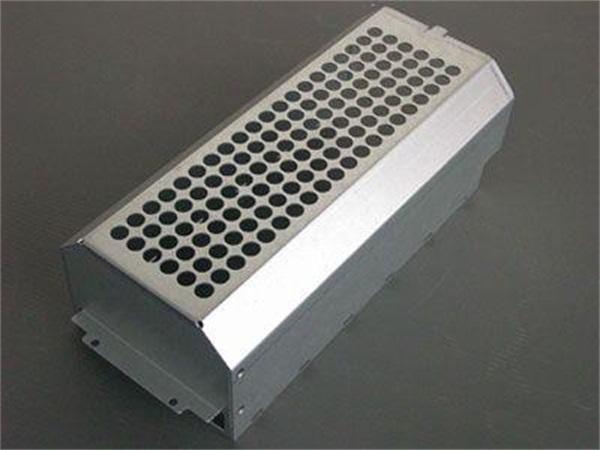

Sheet metal shaping is integral to numerous industries. In the automotive sector, it is used to create body panels, frames, and other components. In aerospace, shaped sheet metal is essential for aircraft fuselages and wings. The construction industry utilizes sheet metal for roofing, siding, and structural components. Additionally, electronics manufacturers use shaped sheet metal for enclosures and heat sinks.
The shaping of sheet metal can lead to significant cost savings in manufacturing. By using sheet metal, manufacturers can reduce material waste and lower production costs. The ability to create complex shapes also allows for more efficient designs, which can enhance product performance and reduce assembly time.

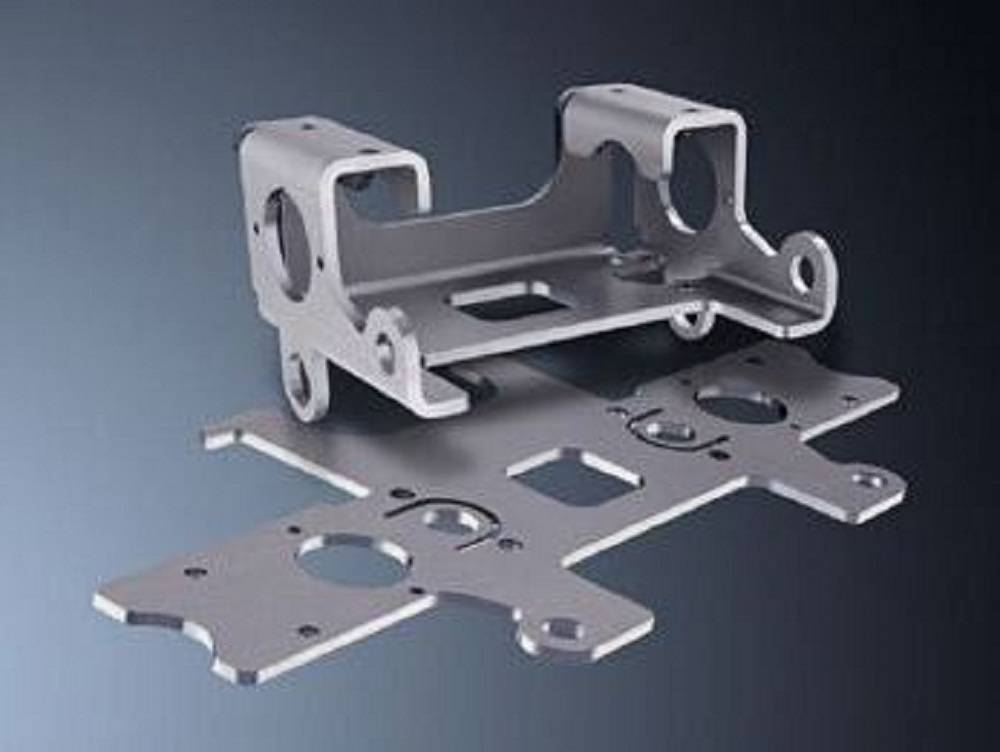

Cutting is one of the primary methods used in sheet metal shaping. It involves removing material from the sheet to create the desired shape. Various cutting techniques include shearing, laser cutting, and plasma cutting. Each method has its advantages and is chosen based on the specific requirements of the project.

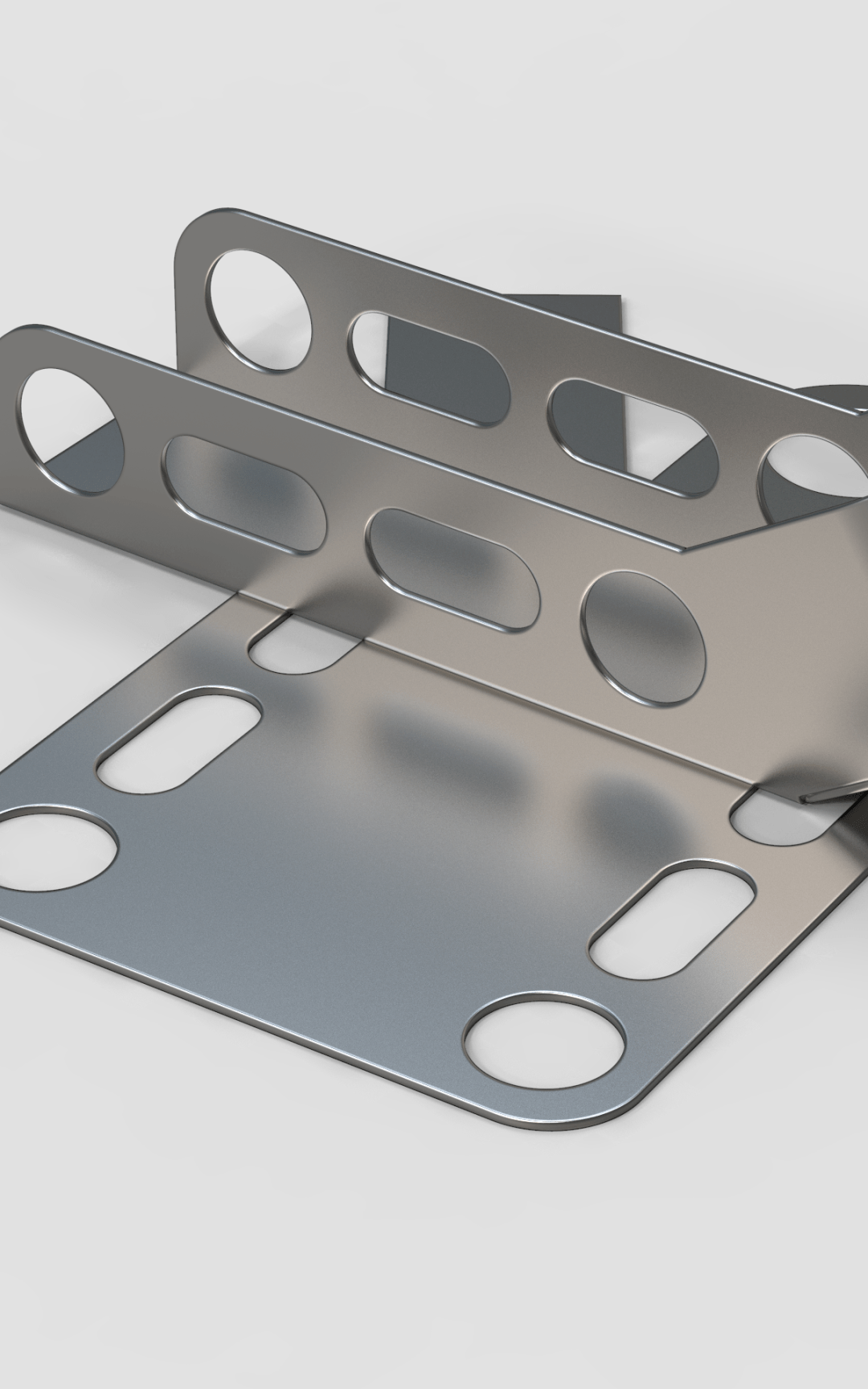

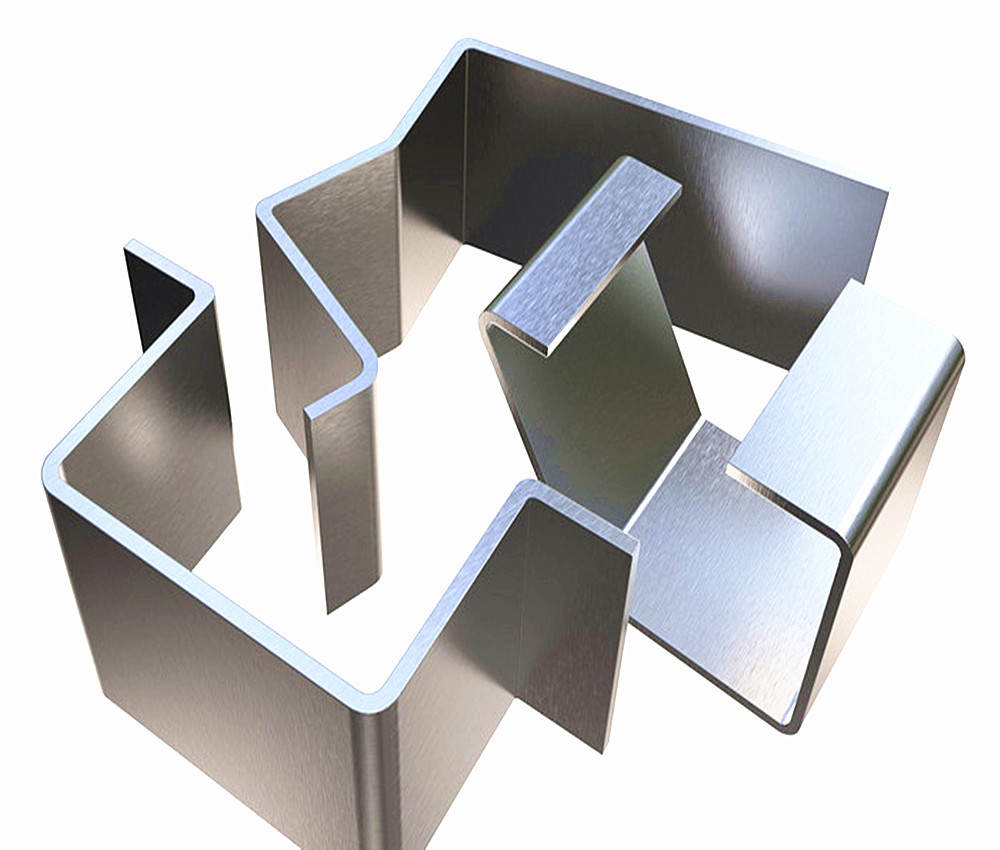

Bending is another fundamental shaping technique. It involves deforming the sheet metal along a straight line to create angles and curves. Bending can be performed using various tools, including press brakes and hand tools. The precision of bending is crucial, as it affects the overall fit and function of the final product.
Stamping is a high-volume production method that uses a die to shape sheet metal. This process is ideal for creating complex shapes and is commonly used in the automotive industry for producing body panels and other components. Stamping can be performed in various ways, including progressive stamping and deep drawing.
Hydroforming is a relatively advanced technique that uses high-pressure fluid to shape sheet metal. This method allows for the creation of complex shapes with smooth surfaces and minimal material waste. Hydroforming is often used in the automotive and aerospace industries for parts that require high strength and lightweight characteristics.
Hand tools are often used for smaller projects or in situations where precision is required. Common hand tools include snips, hammers, and bending brakes. These tools allow for manual shaping and are essential for prototyping and small-scale production.
Power tools have revolutionized sheet metal shaping by increasing efficiency and precision. Tools such as laser cutters, plasma cutters, and CNC machines are widely used in modern manufacturing. These machines can produce intricate designs and shapes with high accuracy, significantly reducing production time.
In processes like stamping and hydroforming, dies and molds play a critical role. These tools are designed to create specific shapes and are often custom-made for particular applications. The quality of the die or mold directly impacts the final product's accuracy and finish.
While sheet metal is versatile, it does have limitations. Certain metals may not be suitable for specific shaping processes due to their properties. For example, very hard metals may be challenging to cut or bend without specialized tools. Understanding the material properties is essential for successful shaping.
Designing for sheet metal shaping requires careful consideration of the manufacturing process. Factors such as bend radius, material thickness, and tolerances must be taken into account to ensure that the final product meets specifications. Poor design can lead to defects and increased production costs.
The future of sheet metal shaping is likely to be heavily influenced by automation and robotics. Automated systems can increase production speed and reduce labor costs. Robotics can also enhance precision in shaping processes, leading to higher quality products.
As industries move towards more sustainable practices, sheet metal shaping is also evolving. Manufacturers are increasingly focusing on reducing waste and using recycled materials. Innovations in shaping techniques that minimize material usage are becoming more prevalent.
The development of advanced materials, such as composites and lightweight alloys, is also impacting sheet metal shaping. These materials can offer enhanced performance characteristics, such as increased strength-to-weight ratios, which are particularly beneficial in industries like aerospace and automotive.
Sheet metal shaping is a vital process in modern manufacturing, with applications spanning numerous industries. Understanding the various methods, tools, and challenges associated with shaping sheet metal is essential for anyone involved in this field. As technology continues to advance, the future of sheet metal shaping promises to be more efficient, sustainable, and innovative. By embracing these changes, manufacturers can enhance their production capabilities and meet the evolving demands of the market.
Common metals used in sheet metal shaping include steel, aluminum, copper, brass, and titanium. Each metal has unique properties that make it suitable for different applications, such as strength, weight, and corrosion resistance.
Bending involves deforming the sheet metal along a straight line to create angles or curves, typically using tools like press brakes. Stamping, on the other hand, uses a die to shape the metal into complex forms and is often used for high-volume production.
Hydroforming is a process that uses high-pressure fluid to shape sheet metal. The fluid exerts pressure on the metal, allowing it to conform to the shape of a mold. This method is effective for creating complex shapes with smooth surfaces and minimal material waste.
Shaped sheet metal is used in various applications, including automotive body panels, aircraft fuselages, construction materials like roofing and siding, and electronic enclosures. Its versatility makes it essential in many industries.
CNC (Computer Numerical Control) machines offer high precision and repeatability in sheet metal shaping. They can produce intricate designs quickly and efficiently, reduce human error, and allow for complex shapes that would be difficult to achieve with manual tools.
