Sheet metal is one of those unsung heroes in manufacturing engineering—a material so versatile it's found in everything from car bodies to kitchen appliances. But if you've ever stood in a workshop scratching your head over terms like "16 gauge," you're not alone. Gauges can feel like a cryptic code, especially when you're trying to figure out exactly how thick that sheet of steel or aluminum really is. So, let's dive into the world of 16 gauge sheet metal and unpack what it means, how it came to be, and why it's such a big deal in modern manufacturing.
This article is for you—manufacturing engineers, fabricators, and curious minds in the field—who want a clear, practical understanding of 16 gauge sheet metal. We're not just going to throw numbers at you (though we'll get to those, don't worry). We'll explore its history, the science behind measuring it, the tools and types you'll encounter, real-world applications, and where the industry's headed with thickness standards. Think of this as a shop-floor conversation with a friend who's been around the block—detailed, hands-on, and full of examples like using 16 gauge steel for a truck fender or aluminum for an aerospace bracket. By the end, you'll not only know how thick 16 gauge sheet metal is but also why it matters and how to work with it like a pro. Let's get started.
Imagine it's the 1800s, and you're a blacksmith hammering out iron sheets by hand. Back then, there was no universal ruler for sheet metal thickness—craftsmen just eyeballed it or relied on crude measurements. That all changed as industrialization kicked into high gear, and the need for consistency gave birth to the gauge system. The story of how we got to "16 gauge" is a fascinating mix of practicality, tradition, and a little bit of chaos.
The gauge system traces its roots to the wire-drawing industry in Britain. In the early days, wire was made by pulling metal through progressively smaller dies, and each pass was numbered—starting at 0 for the thickest and going up as the wire got thinner. By the mid-19th century, this idea jumped to sheet metal, but with a twist: the higher the gauge number, the thinner the sheet. It wasn't based on any fancy math at first—just the number of times a metal strip was rolled or drawn to reduce its thickness. For example, 16 gauge meant the metal had been processed through 16 steps, though this varied by region and material.
Fast forward to the United States in the 1870s, when sheet metal started popping up everywhere—think tinplate roofs and stamped ceilings. The Manufacturers' Standard Gauge for Sheet Steel, formalized in 1893, locked in a specific thickness for each gauge based on an average steel density of 41.82 pounds per square foot per inch thick. For 16 gauge steel, that worked out to about 0.0598 inches (1.518 mm). Meanwhile, the older U.S. Standard Gauge, rooted in a slightly different weight (40 pounds per square foot per inch), pegged 16 gauge at 0.0625 inches (1.587 mm). Confusing? You bet—especially since nonferrous metals like aluminum and copper got their own gauge scales later on.
Take 16 gauge steel in automotive manufacturing as an example. Back in the early 20th century, Ford's Model T used sheets around this thickness for fenders and hoods. It was a sweet spot—strong enough to hold shape but thin enough to keep weight down. Fabricators would buy rolls of 16 gauge steel for about $0.50 per square foot (adjusted for inflation, that's roughly $15 today), cut them with hand shears, and hammer them into shape over wooden molds. The process was labor-intensive, but the gauge system gave them a reliable starting point.
Over in Europe, though, things weren't so standardized. British sheet metal workers often used the Imperial Standard Wire Gauge, which didn't quite match the American system. A 16 gauge steel sheet there might be closer to 0.064 inches (1.626 mm), leading to headaches when parts crossed borders. This patchwork of standards persisted until the mid-20th century, when global trade pushed for more uniformity—though, as we'll see later, we're still not fully there.
By the 1950s, stainless steel entered the scene, and 16 gauge found a new home in HVAC ducts. A typical duct might cost $2 per linear foot to fabricate back then (around $20 today), using 16 gauge stainless for its corrosion resistance. Workers would measure the thickness with calipers, cut it with early power shears, and rivet it together—relying on the gauge to ensure consistency across miles of ductwork.
The gauge system's quirks—like its nonlinear progression and material-specific variations—stem from its ad hoc origins. It's not perfect, and modern engineers often grumble about it (ASTM even calls it “archaic” in A480-10a). But it stuck because it worked well enough in the gritty reality of early factories. Today, when you pick up a 16 gauge sheet, you're holding a piece of that history—a practical compromise from a time when precision was more art than science.
So, how thick is 16 gauge sheet metal, really? The answer depends on what you're measuring and how you're doing it. The gauge system isn't a straightforward metric—it's a historical artifact turned industry standard, and understanding it means getting into the nitty-gritty of measurement principles. Let's break it down step-by-step, with some real-world flavor to keep it grounded.
First off, the thickness of 16 gauge sheet metal varies by material because the gauge scales evolved separately for ferrous (iron-based) and nonferrous metals. For steel, the Manufacturers' Standard Gauge sets 16 gauge at 0.0598 inches (1.518 mm). Stainless steel follows close behind at 0.0625 inches (1.587 mm), while aluminum, under the American Wire Gauge (AWG) system, is thinner at 0.0508 inches (1.291 mm). Copper? It's 0.0646 inches (1.641 mm), measured by weight per square foot. Why the differences? Early manufacturers tied gauges to practical outcomes—like how much a sheet weighed or how it performed—rather than a universal thickness.

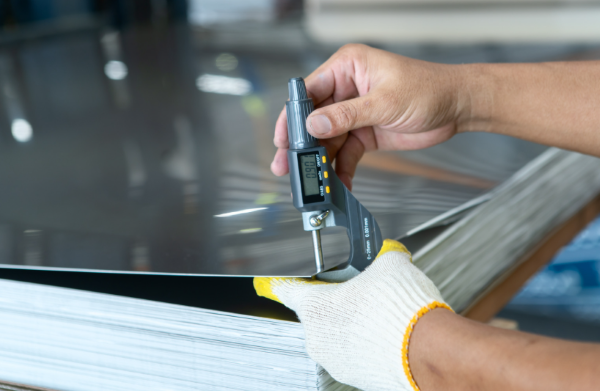

Measuring this thickness isn't as simple as slapping a ruler on it. In a modern shop, you'd use a micrometer or caliper—tools precise to 0.001 inches. Say you're checking 16 gauge steel for a car hood. You'd clamp the micrometer jaws around the sheet's edge, avoiding burrs, and read 0.0598 inches if it's spot-on. But here's the catch: during rolling, the mills bow slightly, making the edges thinner than the center. A study from Semantic Scholar (“Sheet Metal Gauge Tolerances,” Engineers Edge) notes this variation can be ±0.005 inches for 16 gauge steel—enough to matter when tolerances are tight.
For a deeper dive, let's look at how gauges translate to metric. Converting 16 gauge steel's 0.0598 inches to millimeters gives you 1.518 mm, but the industry often rounds to 1.5 mm for simplicity. Stainless steel's 0.0625 inches becomes 1.587 mm, aluminum's 0.0508 inches is 1.291 mm, and so on. The math's straightforward, but the real challenge is consistency. A journal article, “A Review of Characterization and Modelling Approaches for Sheet Metal Forming” (Materials, 2023), highlights how even small thickness variations affect forming processes like deep drawing—think of stretching 16 gauge aluminum into an aerospace bracket and hitting wrinkles because the edge thinned out.
Practically, you'd verify thickness with tools beyond micrometers. Ultrasonic thickness gauges bounce sound waves through the metal, measuring how long it takes to return—great for checking a finished part like an HVAC duct without cutting it open. For 16 gauge stainless at 0.0625 inches, you'd set the gauge to steel's sound velocity (about 5,900 m/s) and expect a reading within ±0.002 inches. Laser scanners are another option, mapping entire sheets for uniformity—handy when you're paying $1.50 per pound for 16 gauge steel (around $100 for a 4x8 sheet today).
Real-world example: fabricating a 16 gauge steel truck fender. You'd start with a $120 sheet, measure it with a caliper to confirm 0.0598 inches, then shear it to size. If it's off by 0.005 inches, your bend radius might shift, costing you an extra $50 in rework. For aluminum aerospace brackets, where 16 gauge is 0.0508 inches, precision is even tighter—think ±0.001 inches—because every ounce matters. A $200 sheet might need laser scanning to ensure it meets spec before CNC punching.
The gauge system's nonlinearity—where 16 gauge is thicker than 18 but thinner than 14—trips up newcomers. It's not a linear scale because it's tied to historical rolling steps, not modern decimals. Tip: always double-check the material's gauge chart, especially for nonferrous metals, and calibrate your tools monthly. That 16 gauge sheet's thickness is more than a number—it's the backbone of your project's success.
Now that we know how thick 16 gauge is, let's talk about what it looks like in the wild and the tools you'll need to wrangle it. Whether it's steel, stainless, aluminum, or copper, 16 gauge sheet metal comes in flavors suited to specific jobs—and each demands its own handling. Let's explore the types and the gear that makes them sing.
Start with 16 gauge steel—0.0598 inches of tough, affordable muscle. It's the go-to for automotive panels like hoods and fenders. A 4x8 sheet runs about $100 today, and its strength (yield strength around 36,000 psi) makes it ideal for parts that take a beating. Then there's 16 gauge stainless steel, at 0.0625 inches, pricier at $150-$200 per sheet but corrosion-resistant—perfect for HVAC ducts or food-grade surfaces. Aluminum, at 0.0508 inches, is lighter (about 2.7 g/cm³ vs. steel's 7.8 g/cm³) and costs $120-$180 per sheet, a favorite for aerospace brackets. Copper, at 0.0646 inches, shines in electrical applications or decorative work, though it'll set you back $300 or more per sheet due to its conductivity and rarity.

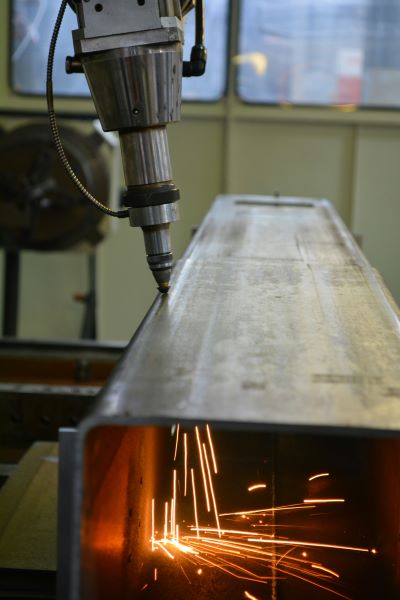

Tools for working 16 gauge vary by task. For cutting, a bench shear handles steel and stainless up to this thickness—think $500 for a decent manual model. Steps: mark your line with a scribe, align the sheet, and crank the handle for a clean edge in under a minute. For aluminum, a bandsaw ($1,000-$2,000) with a fine-tooth blade (14 TPI) cuts smoother, avoiding burrs that mess up aerospace tolerances. Copper? Tin snips ($20-$50) work for small jobs, but a power shear ($300) speeds things up.
Bending 16 gauge needs muscle. A press brake ($5,000-$20,000) is king—set the die to a 0.12-inch radius for steel, clamp the sheet, and press to 90 degrees. For a truck fender, you'd spend 10 minutes per bend, factoring in $50-$100 in setup costs. Stainless HVAC ducts might use a box-and-pan brake ($1,000), folding edges by hand for $20 in labor per piece. Aluminum brackets often go through a CNC brake for precision, adding $200 in programming but saving rework. Copper's softness lets you use a manual brake or even a mallet over a form—low-tech but effective.

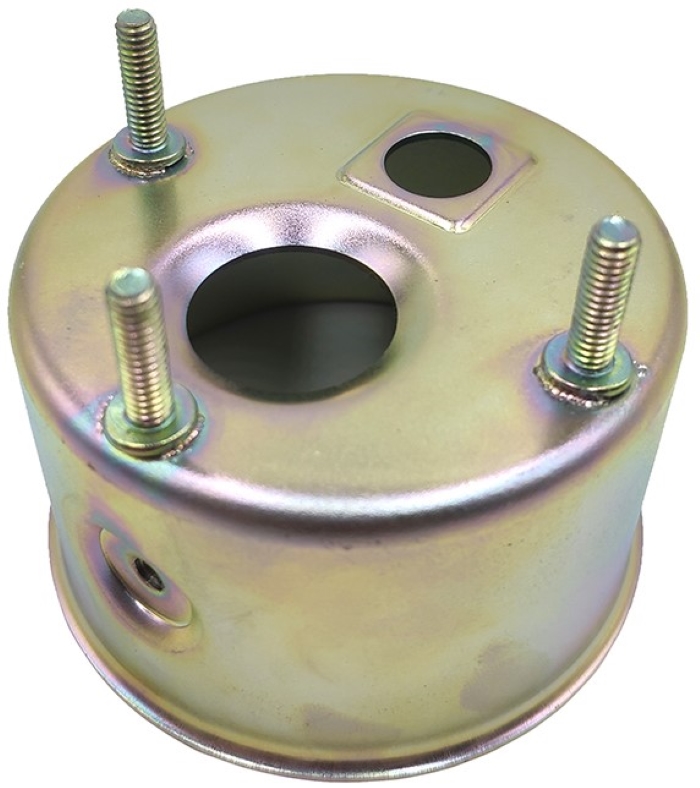

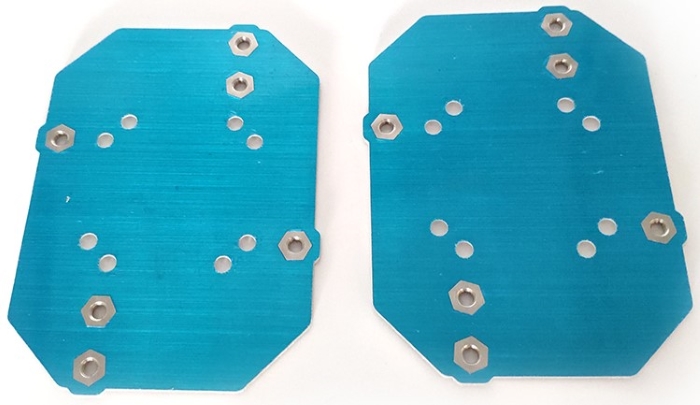

Punching holes—like for rivets in a duct—calls for a turret punch ($10,000+) or a handheld punch ($100). For 16 gauge steel, a ¼-inch hole takes 5 tons of force; stainless needs 6 tons. Aluminum and copper are gentler at 3-4 tons. Tip: lubricate the punch with cutting oil ($10/gallon) to extend tool life. Welding? A MIG welder ($500-$1,500) with 0.035-inch wire joins 16 gauge steel fenders in 20 minutes for $30 in consumables. Stainless needs TIG ($1,000+) for cleaner seams, while aluminum's trickier—use a spool gun to avoid burn-through.
Example: building a 16 gauge stainless HVAC duct. You'd shear a $180 sheet, bend it with a box brake, punch rivet holes, and TIG weld the seam—total cost around $250, including $50 labor. For an aluminum aerospace bracket, CNC cutting and bending a $150 sheet might hit $300 with tighter tolerances. Each type of 16 gauge sheet metal brings its own vibe to the shop, and the right tools make it dance.
Where does 16 gauge sheet metal show up in the real world? Everywhere you look in manufacturing, from cars to planes to your kitchen. Its thickness strikes a balance—sturdy but workable—making it a star in diverse applications. Let's walk through some examples, with costs and steps, to see why it's a shop favorite.

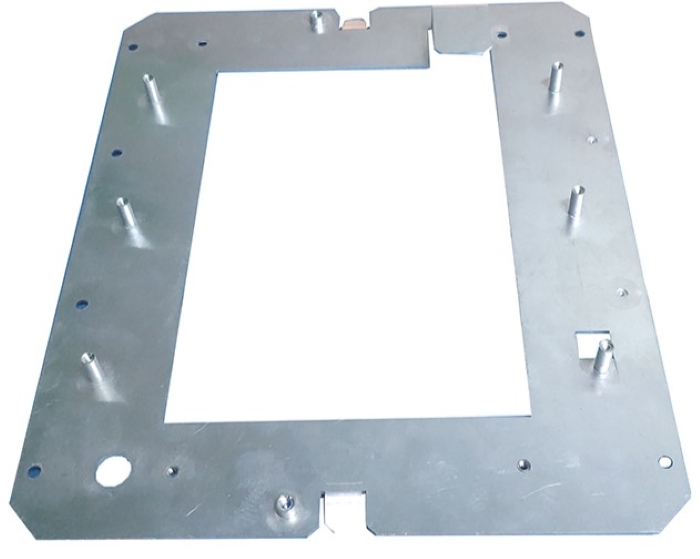

In automotive manufacturing, 16 gauge steel (0.0598 inches) is a workhorse for body panels. Picture a pickup truck fender: a 4x8 sheet costs $100, gets sheared to shape ($20 in labor), bent on a press brake ($50 setup), and spot-welded ($30 consumables). Total cost per fender? About $200, finished in an hour. It's thick enough to resist dents but light enough to keep fuel economy decent—around 60 pounds for a full set. Ford's been using it since the Model T days, and modern shops still swear by it for repairs or custom builds.
Switch to HVAC, and 16 gauge stainless steel (0.0625 inches) takes the stage. A commercial duct section—say, 10 feet long—starts with a $200 sheet. You'd cut it with a power shear ($30 labor), fold it into a rectangle with a box brake ($20), and rivet the seams ($10 materials). Add $50 for TIG welding if it's a high-pressure system, and you're at $310 total. Why stainless? It laughs off rust in humid air, saving $1,000s in replacements over a decade. A typical install might run 500 feet, costing $15,000 but lasting 20 years.

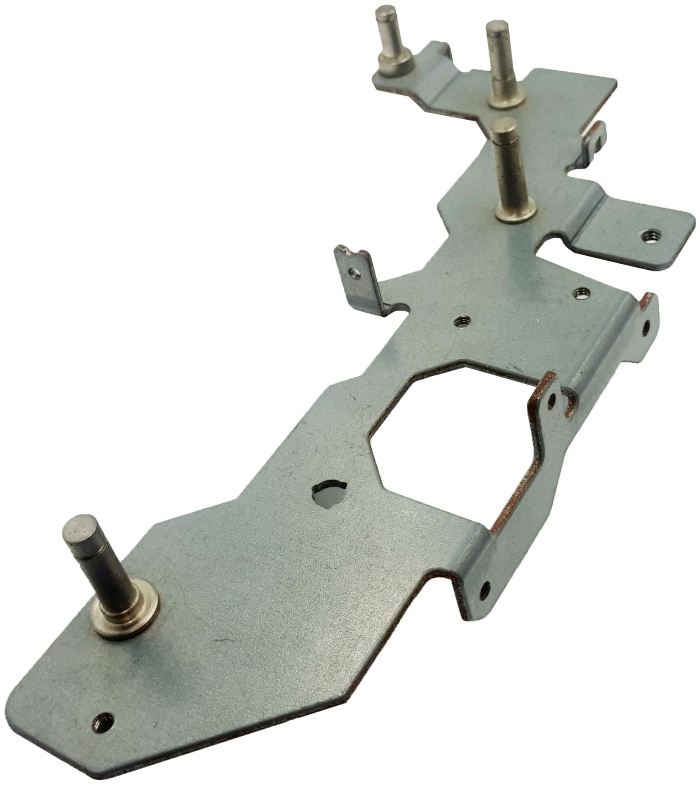

Aerospace loves 16 gauge aluminum (0.0508 inches) for brackets and supports. An engine mount bracket starts with a $150 sheet, CNC-cut to spec ($100 programming), bent precisely ($50), and drilled for bolts ($20). Total: $320, weighing just 2 pounds—critical when every ounce costs fuel. These parts see stresses up to 20,000 psi, so the alloy (like 6061-T6) matters. A Boeing 737 might use dozens, adding $10,000 to the build but shaving 50 pounds off the frame.
Then there's copper—16 gauge at 0.0646 inches—for electrical busbars or decorative panels. A busbar for a power distribution box costs $350 per sheet, cut with a shear ($20), punched for connectors ($15), and polished ($30 labor). Total: $415, conducting 1,000 amps safely. In a high-end kitchen, a 16 gauge copper backsplash might run $500 per panel, hand-formed and patinated for style. It's niche but shines where conductivity or aesthetics rule.
Practical tip: match the material to the job. Steel's cheap and tough for cars, stainless is king for durability, aluminum saves weight, and copper handles current or looks. Each application leans on 16 gauge's Goldilocks thickness—not too heavy, not too flimsy—making it a manufacturing MVP.
The gauge system's been around forever, but it's not static. Today's manufacturing world is pushing for change—some say it's overdue—driven by global trade, precision needs, and new tech. Where does 16 gauge fit in this shifting landscape? Let's explore the trends shaping thickness standards and what they mean for the shop floor.
One big push is toward metrication. The U.S. clings to gauges, but most of the world uses millimeters. A 16 gauge steel sheet at 1.518 mm might just be labeled “1.5 mm” in Europe or Asia, skipping the gauge hassle. Why? It's simpler for CNC machines and international supply chains. A journal article, “Special Issue of the Manufacturing Engineering Society” (Materials, 2018), notes that metric specs cut errors in multi-country projects—like a $10 million automotive line where a gauge mix-up could scrap $50,000 in parts. Tip: keep a conversion chart handy; a 16 gauge steel fender might be ordered as 1.5 mm overseas.
Tolerances are tightening too. Modern applications—like aerospace brackets in 16 gauge aluminum (1.291 mm)—demand ±0.001 inches, not the ±0.005 of old. Laser cutting and 3D scanning, costing $5,000-$50,000 in equipment, make this possible. For a $320 bracket, that precision saves $100 in scrap. The trend's driven by simulation software predicting how 0.002-inch variations affect forming, per “A Review of Characterization and Modelling Approaches” (Materials, 2023). Shops now spend $1,000s yearly on metrology upgrades to stay competitive.
Additive manufacturing's shaking things up. While 16 gauge sheets are rolled traditionally, 3D printing can mimic that thickness layer-by-layer. A stainless steel duct section, normally $310 in 16 gauge, might be printed for $500—but with complex shapes impossible by bending. It's niche now, but costs are dropping—down 20% since 2020, per industry reports. For prototyping a 16 gauge steel part, you might skip $200 in tooling and print it in a day.
Sustainability's another driver. Thinner sheets—like 18 gauge—cut material use, but 16 gauge holds strong for durability. A $100 steel fender lasts 15 years; a thinner one might fail in 10, costing $150 to replace. Manufacturers are balancing this with recycled stock—16 gauge steel now often has 30% recycled content, trimming costs by $10 per sheet. HVAC firms like it for ducts, saving $1,000s on big jobs without losing performance.
Global standards are inching closer. ASTM and ISO push for unified specs, but gauge lingers in the U.S. A 16 gauge stainless duct (1.587 mm) might be “1.6 mm” in a future norm, easing a $15,000 project across borders. For now, dual-labeling—gauge and metric—keeps shops flexible. The trend's clear: 16 gauge isn't going anywhere, but how we define and use it is evolving fast.
So, how thick is 16 gauge sheet metal? It's 0.0598 inches for steel, 0.0625 inches for stainless, 0.0508 inches for aluminum, and 0.0646 inches for copper—numbers that sound simple but carry a ton of history and nuance. We've traced the gauge system from its blacksmith roots to its industrial standardization, unpacked the tools and techniques to measure and work it, and seen it shine in cars, ducts, planes, and more. It's a thickness that's just right—tough yet formable, affordable yet versatile—making it a cornerstone of manufacturing engineering.
The journey's not over, though. As metrication creeps in, tolerances tighten, and tech like 3D printing reshapes the game, 16 gauge is adapting. It's still the go-to for a $200 truck fender or a $320 aerospace bracket, but how we spec it, cut it, and think about it is shifting. Sustainability and global standards are nudging us toward a future where “16 gauge” might share the stage with “1.5 mm”—and that's exciting. For now, it's a bridge between past and present, a practical choice you can feel in your hands.
Next time you're in the shop, picking up a 16 gauge sheet, you'll know exactly what you're dealing with—not just its thickness, but its story and its potential. Whether you're bending a fender, riveting a duct, or punching a bracket, you've got the know-how to make it work. And that's what manufacturing's all about—turning raw metal into something real, one gauge at a time.
