CNC turning is a crucial process in modern manufacturing, allowing for the precise shaping of materials into cylindrical forms. A key component of this process is the cutting insert, which plays a vital role in determining the efficiency and quality of the machining operation. This article will explore the various types of inserts used in CNC turning, their characteristics, applications, and how to choose the right insert for specific tasks.
CNC turning inserts are replaceable cutting tools that are mounted on a lathe to remove material from a workpiece. These inserts are designed to withstand high temperatures and pressures while maintaining sharp cutting edges. The choice of insert can significantly affect the machining process, influencing factors such as cutting speed, tool life, and surface finish. Inserts are typically made from various materials, each offering unique properties that cater to different machining needs. Understanding these properties is essential for selecting the right insert for a specific application, as it can lead to improved efficiency and reduced production costs.
Selecting the appropriate insert is essential for optimizing machining performance. Different materials, geometries, and coatings can enhance the insert's effectiveness for specific applications. Understanding the types of inserts available and their respective advantages is crucial for achieving the desired results in CNC turning operations. The right insert not only improves the quality of the finished product but also minimizes downtime and maintenance costs associated with tool changes. Therefore, manufacturers must invest time in understanding the characteristics of various inserts to make informed decisions that align with their production goals.
CNC turning inserts can be categorized based on their material composition, shape, and specific applications. Below, we will delve into the primary types of inserts used in CNC turning.
Carbide inserts are the most commonly used type in CNC turning. Made from tungsten carbide, these inserts are known for their hardness and wear resistance. They can withstand high cutting temperatures, making them suitable for a wide range of materials, including steel, aluminum, and plastics. The manufacturing process of carbide inserts involves sintering, which enhances their density and strength, allowing them to perform effectively under demanding conditions.
Carbide inserts offer several benefits, including:
High Cutting Speeds: They can operate at higher speeds compared to other materials, increasing productivity. This capability is particularly beneficial in high-volume production environments where time efficiency is critical.
Durability: Their resistance to wear extends tool life, reducing the frequency of insert changes. This durability translates to lower operational costs and less downtime for tool replacements.
Versatility: Suitable for various machining operations, including roughing and finishing. Carbide inserts can be used across different industries, from automotive to aerospace, making them a go-to choice for many manufacturers.
Ceramic inserts are another option for CNC turning, particularly effective for high-speed machining of hard materials. They are made from advanced ceramic materials, which provide excellent hardness and thermal stability. The unique properties of ceramic inserts allow them to maintain their cutting edge even under extreme conditions, making them ideal for specific applications where traditional materials may falter.
Ceramic inserts are advantageous in specific scenarios:
High Temperature Resistance: They can withstand extreme temperatures without losing their cutting edge. This property is particularly useful in high-speed machining, where heat generation can be significant.
Excellent Surface Finish: Ideal for finishing operations, they produce superior surface quality. The fine cutting edges of ceramic inserts help achieve a smooth finish, reducing the need for additional polishing or machining processes.
Cost-Effectiveness: Although initially more expensive, their longevity can lead to lower overall costs. The extended tool life of ceramic inserts means fewer replacements and less frequent interruptions in production.
High-speed steel inserts are less common in CNC turning but are still used for specific applications. They are made from a combination of steel and other elements, providing good toughness and wear resistance. HSS inserts are particularly useful in situations where flexibility and adaptability are required, as they can be ground to various shapes and sizes.
HSS inserts are suitable for:
Low-Speed Operations: They perform well in applications where cutting speeds are lower. This makes them ideal for small-scale operations or when working with softer materials.
Diverse Materials: Effective for machining a variety of materials, including softer metals and plastics. Their versatility allows manufacturers to use HSS inserts across different projects without needing to switch tools frequently.

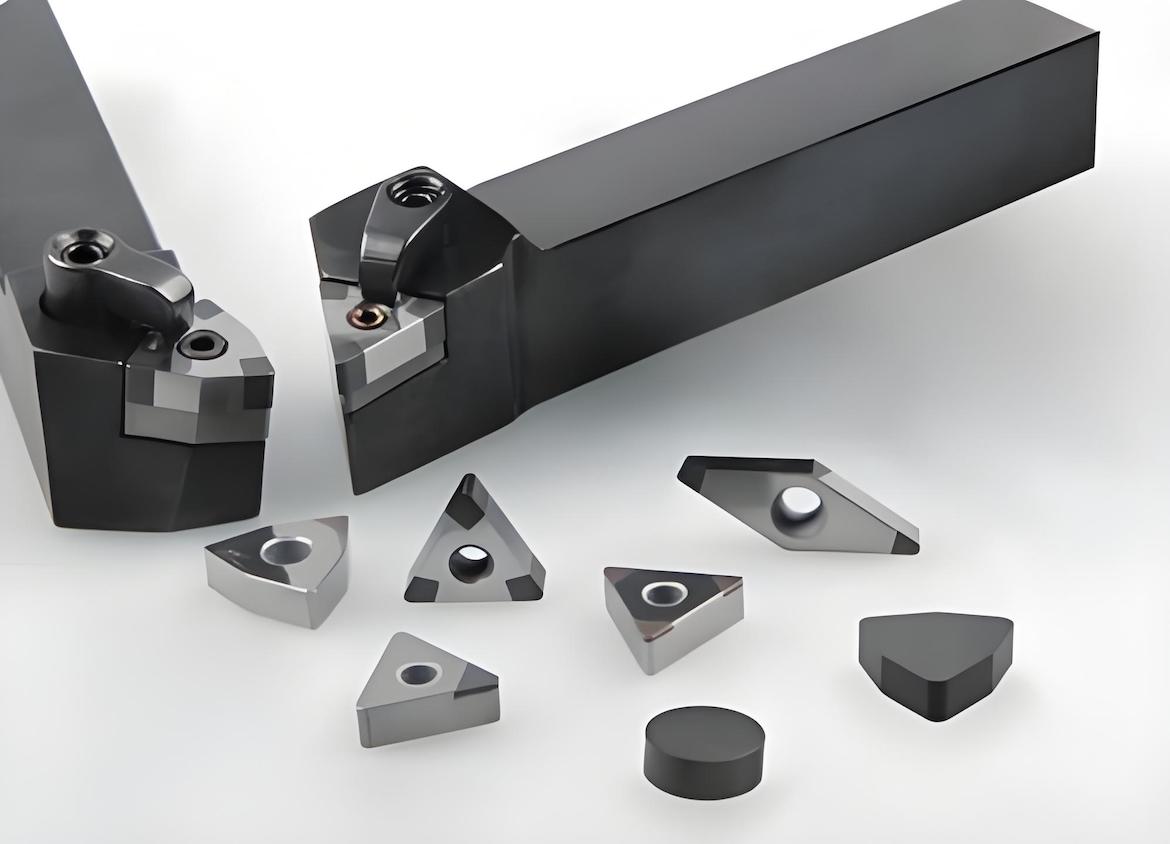

CBN inserts are designed for machining hard materials, such as hardened steel and superalloys. They are made from a synthetic material that is second only to diamond in hardness. CBN inserts are particularly valuable in industries that require precision machining of tough materials, where traditional carbide inserts may not provide the necessary performance.
CBN inserts are particularly useful in:
Hard Turning: They excel in operations where traditional carbide inserts may fail. The hardness of CBN allows for effective cutting of materials that are otherwise challenging to machine.
Precision Machining: Their stability allows for tight tolerances and high-quality finishes. This precision is crucial in industries such as aerospace and automotive, where even minor deviations can lead to significant issues.
PCD inserts are made from diamond particles bonded together, making them extremely hard and wear-resistant. They are primarily used for machining non-ferrous materials, such as aluminum and composites. The unique properties of PCD inserts enable them to achieve exceptional performance in specific applications, particularly in high-volume production settings.
PCD inserts offer unique benefits:
Exceptional Wear Resistance: Ideal for high-volume production of non-ferrous materials. Their durability ensures that they maintain performance over extended periods, reducing the need for frequent replacements.
Superior Surface Finish: They provide an excellent finish, reducing the need for additional processing. This capability can lead to significant time and cost savings in the overall manufacturing process.

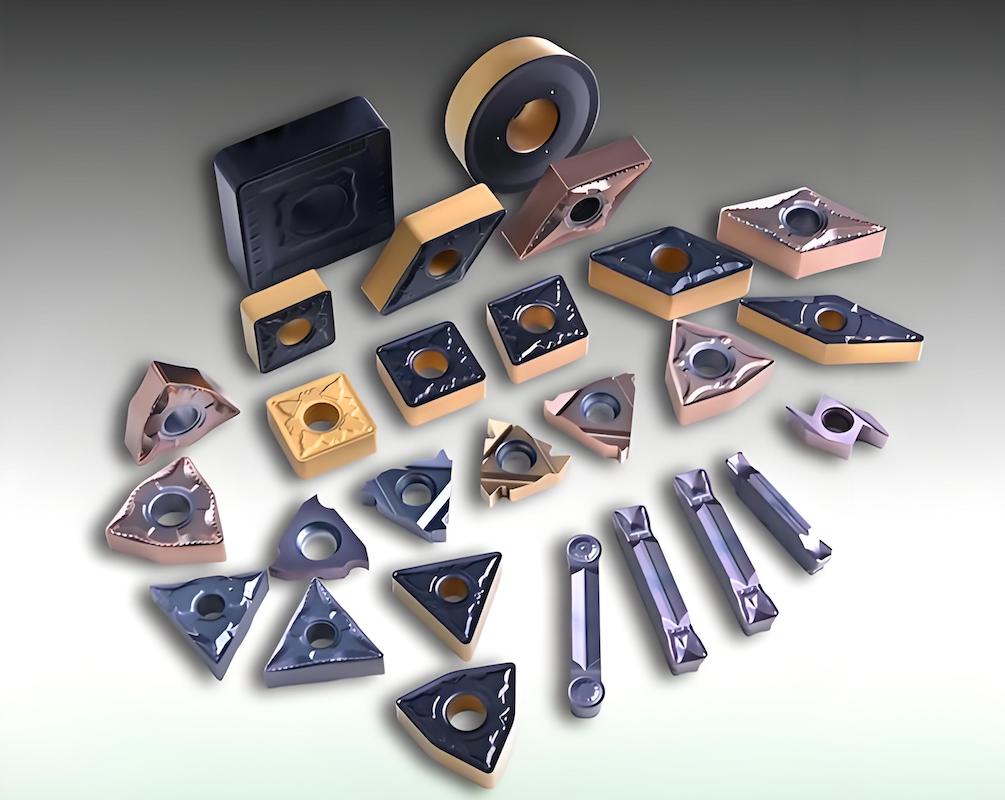

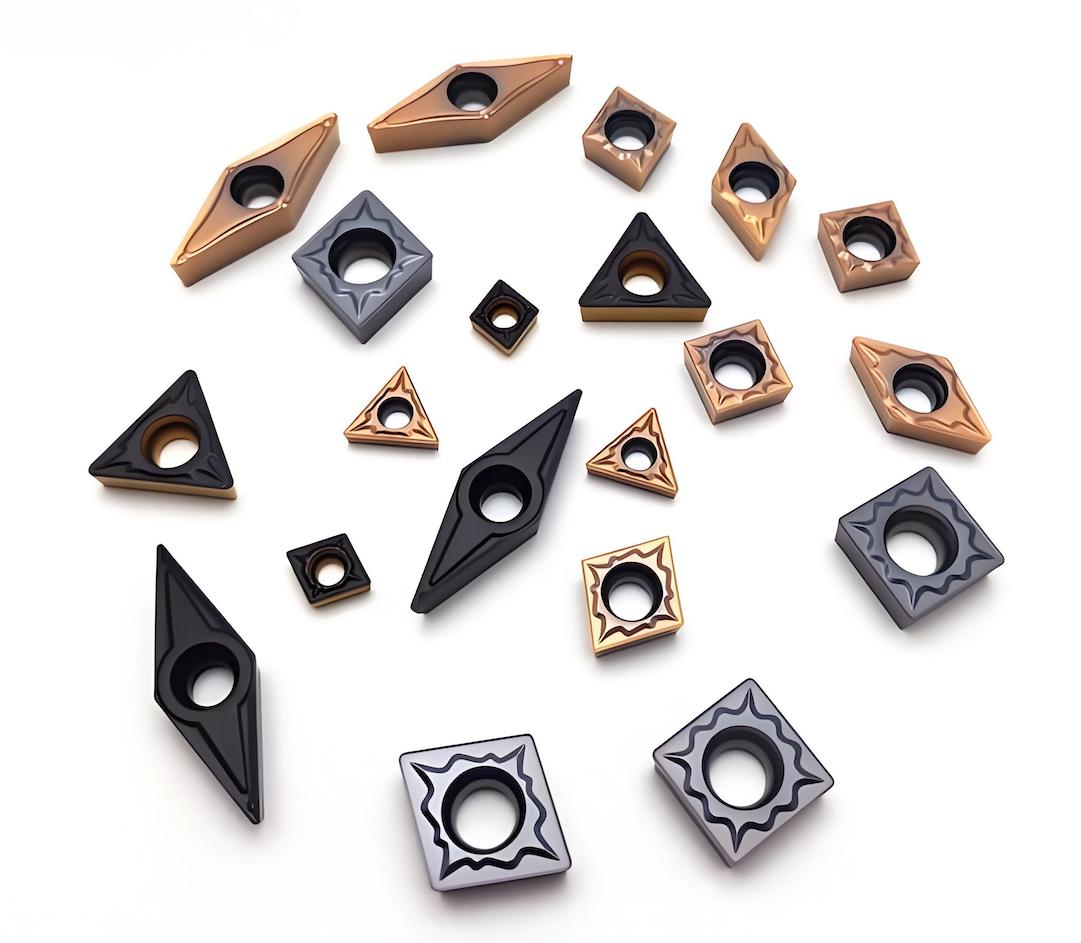

The shape and geometry of CNC turning inserts significantly influence their performance. Different shapes are designed for specific cutting applications, and understanding these can help in selecting the right insert.
Triangular Inserts: Often used for general turning applications, they provide good chip control and are versatile. Their design allows for effective cutting in various orientations, making them suitable for different machining tasks.

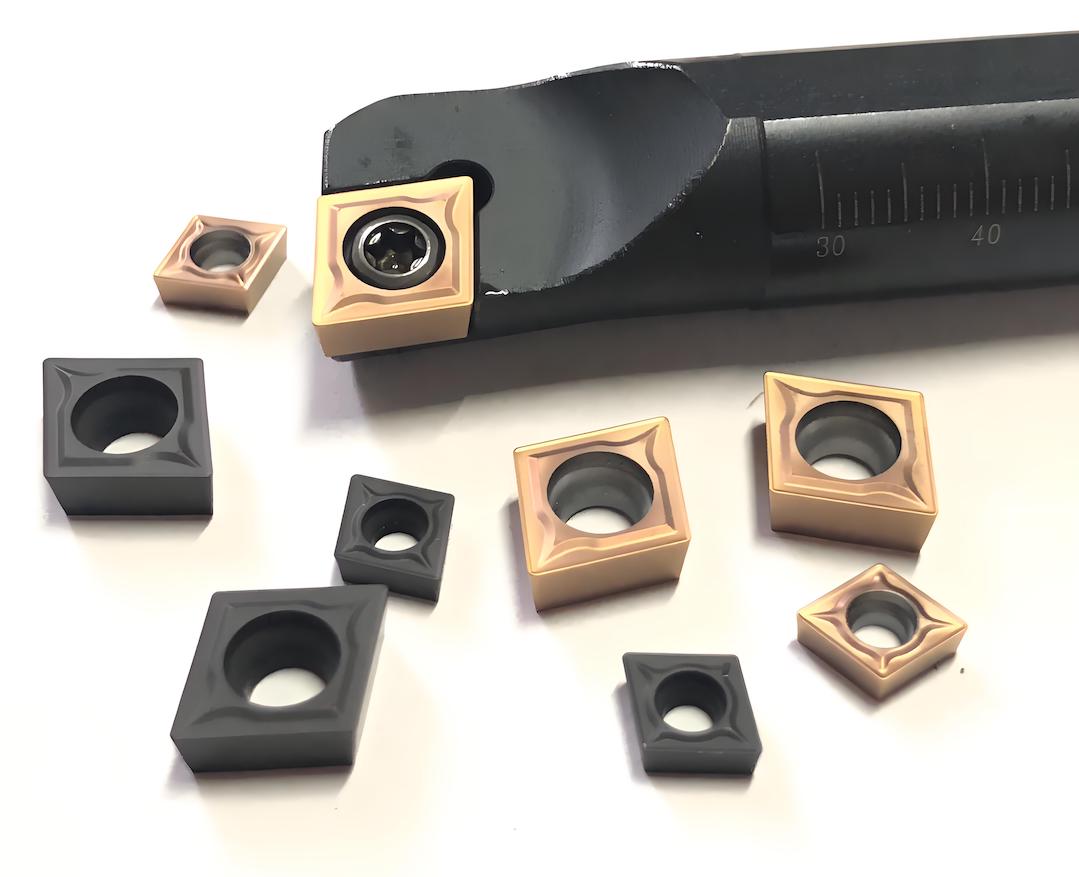

Square Inserts: Suitable for both turning and milling operations, offering stability and strength. The square shape provides multiple cutting edges, allowing for extended tool life and reduced costs.
Diamond Inserts: Ideal for finishing operations, they provide excellent surface quality and are often used in precision machining. The geometry of diamond inserts allows for fine cutting, making them perfect for applications requiring high surface finish standards.
The geometry of an insert includes factors such as:
Nose Radius: A larger radius can improve surface finish but may reduce cutting edge strength. The choice of nose radius should be based on the specific requirements of the machining operation.
Cutting Edge Angle: Different angles can affect chip flow and cutting efficiency. Understanding the relationship between cutting edge angle and material properties is essential for optimizing performance.
Relief Angles: Proper relief angles help prevent tool wear and improve cutting performance. The right relief angle can enhance chip removal and reduce friction, leading to better overall results.
Coatings can enhance the performance of CNC turning inserts by improving their wear resistance and reducing friction. Various coatings are available, each designed for specific applications. The choice of coating can significantly impact the insert's effectiveness and longevity.
TiN (Titanium Nitride): Provides a hard surface that enhances wear resistance and reduces friction. TiN coatings are commonly used in various machining applications due to their effectiveness in prolonging tool life.
TiAlN (Titanium Aluminum Nitride): Offers excellent heat resistance, making it suitable for high-speed machining. The thermal stability of TiAlN allows for effective cutting in demanding conditions, where other coatings may fail.
AlCrN (Aluminum Chromium Nitride): Known for its thermal stability and oxidation resistance, ideal for difficult-to-machine materials. AlCrN coatings are particularly beneficial in applications involving high temperatures and abrasive materials.
Coatings can significantly improve insert performance by:
Extending Tool Life: Reducing wear and tear on the cutting edge. The right coating can lead to longer intervals between tool changes, enhancing productivity.
Enhancing Surface Finish: Providing smoother cutting action and better chip control. Improved surface finish can reduce the need for secondary operations, saving time and resources.
Increasing Cutting Speeds: Allowing for higher productivity in machining operations. Coated inserts can often operate at higher speeds without compromising performance, leading to more efficient manufacturing processes.
Selecting the appropriate insert for a specific CNC turning operation involves considering several factors, including material type, machining conditions, and desired outcomes. The right choice can lead to significant improvements in efficiency and product quality.
Material of the Workpiece: Different materials require different insert types for optimal performance. Understanding the properties of the workpiece material is crucial for making informed decisions.
Cutting Conditions: Factors such as speed, feed rate, and depth of cut can influence insert selection. Analyzing these conditions helps in selecting an insert that can perform effectively under the given circumstances.
Desired Surface Finish: The required finish quality can dictate the choice of insert geometry and coating. Manufacturers should consider the final product's specifications to ensure that the selected insert meets quality standards.
CNC turning inserts are a critical component in the machining process, with various types available to suit different applications. Understanding the characteristics and advantages of each type, along with their shapes and coatings, is essential for optimizing machining performance. By carefully selecting the right insert based on the specific requirements of the operation, manufacturers can enhance productivity, improve surface quality, and reduce costs in their CNC turning processes. The investment in understanding and selecting the appropriate inserts can lead to significant long-term benefits in manufacturing efficiency and product quality.
The primary function of CNC turning inserts is to remove material from a workpiece during the turning process. They are designed to cut, shape, and finish materials with precision, contributing to the overall quality and efficiency of the machining operation.
To choose the right insert, consider factors such as the material of the workpiece, the desired surface finish, cutting conditions (speed, feed rate, and depth of cut), and the specific machining operation (roughing or finishing). Understanding these parameters will help you select an insert that optimizes performance and tool life.
Carbide inserts offer several advantages, including high cutting speeds, excellent wear resistance, and versatility across various materials and machining operations. Their durability leads to longer tool life and reduced downtime for insert changes, making them a popular choice in many manufacturing environments.
Ceramic inserts should be considered for high-speed machining of hard materials, particularly in finishing operations. They are ideal when high temperatures are generated during cutting, as they can maintain their cutting edge and provide superior surface finishes.
Coatings enhance the performance of CNC turning inserts by improving wear resistance, reducing friction, and increasing thermal stability. Different coatings, such as TiN, TiAlN, and AlCrN, are designed for specific applications, allowing inserts to perform effectively under various machining conditions and extending their tool life.
