Sheet metal fabrication is a crucial process in various industries, including automotive, aerospace, and construction. Among the various methods available for cutting sheet metal, laser cutting has gained significant popularity due to its precision and versatility. This article explores how laser cutting compares to other sheet metal cutting methods, including plasma cutting, waterjet cutting, and traditional mechanical methods. We will delve into the advantages and disadvantages of each method, their applications, and the factors to consider when choosing the right cutting technique for specific projects.
Sheet metal fabrication involves transforming flat sheets of metal into desired shapes and sizes through various processes, including cutting, bending, and assembling. The choice of cutting method can significantly impact the quality, cost, and efficiency of the final product. Fabricators must consider the specific requirements of their projects, such as the type of material, thickness, and complexity of the design. The fabrication process often begins with design and prototyping, where computer-aided design (CAD) software is used to create detailed plans. This initial stage is critical, as it sets the foundation for the entire fabrication process, influencing the choice of cutting method and the overall workflow.
Laser Cutting
Plasma Cutting
Waterjet Cutting
Mechanical Cutting (e.g., Shearing, Punching)
Each of these methods has unique characteristics that make them suitable for different applications. Understanding these differences is essential for manufacturers to optimize their production processes and achieve the desired outcomes.

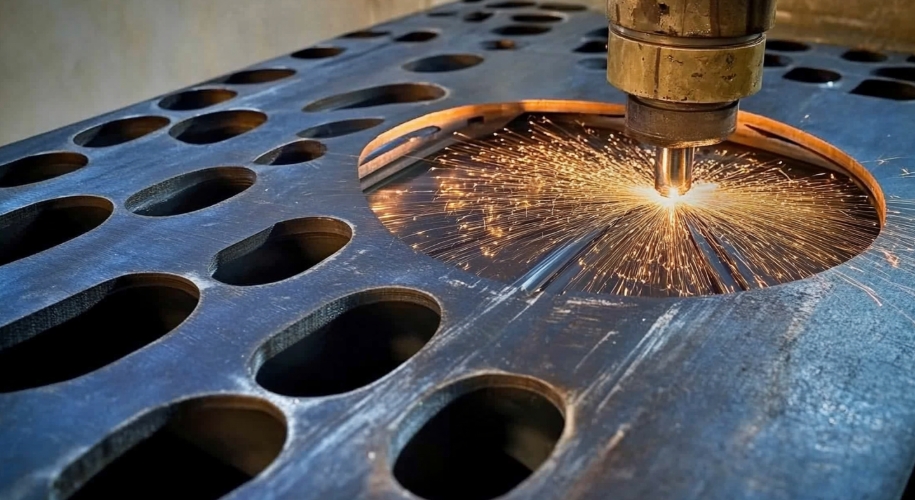

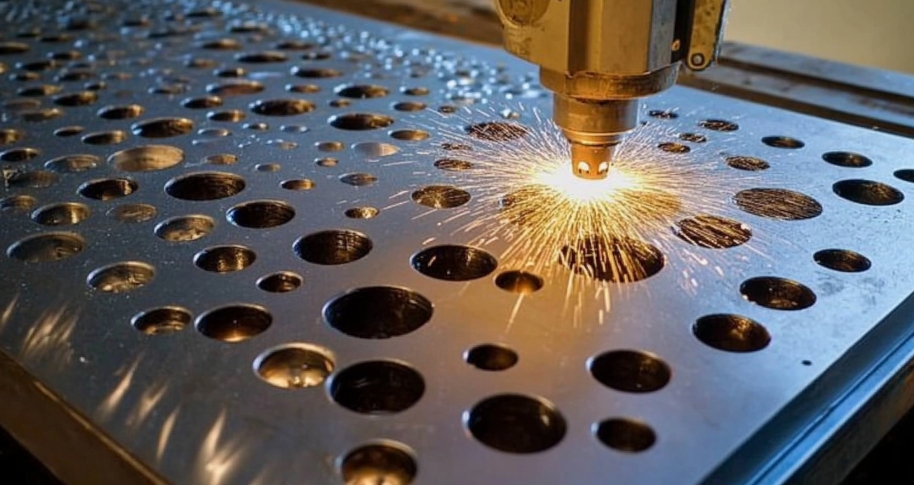

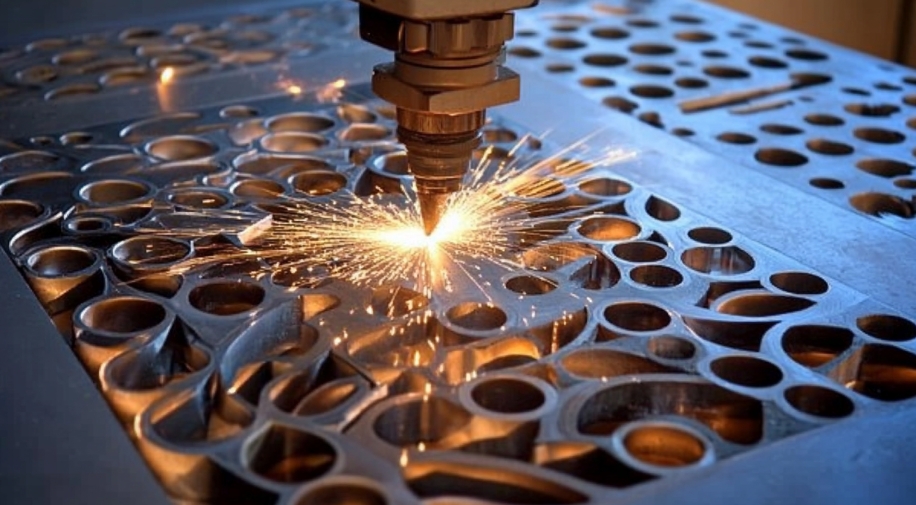

Laser cutting utilizes a focused beam of light to melt, burn, or vaporize material, creating precise cuts in sheet metal. This method is known for its high accuracy and ability to produce intricate designs without the need for extensive tooling. The technology behind laser cutting has evolved significantly over the years, with advancements in laser types, such as CO2 and fiber lasers, enhancing cutting capabilities and efficiency. The ability to program laser cutting machines with CAD files allows for rapid adjustments and modifications, making it an ideal choice for custom fabrication projects.
Precision and Accuracy: Laser cutting can achieve tolerances as tight as ±0.005 inches, making it ideal for applications requiring high precision. This level of accuracy is particularly beneficial in industries such as aerospace and medical device manufacturing, where even minor deviations can lead to significant issues.
Versatility: It can cut a wide range of materials, including metals, plastics, and composites, and is suitable for various thicknesses. This versatility allows manufacturers to use laser cutting for diverse applications, from creating intricate components to large structural parts.
Minimal Material Waste: The narrow kerf width of laser cuts allows for efficient use of material, reducing waste. This efficiency not only lowers material costs but also contributes to more sustainable manufacturing practices by minimizing scrap.
Speed: Laser cutting is generally faster than traditional methods, enabling quicker turnaround times for projects. The rapid cutting speeds can significantly enhance production efficiency, allowing businesses to meet tight deadlines and respond quickly to market demands.
Cost: The initial investment for laser cutting machines can be high, and operational costs may also be greater compared to other methods. While the long-term benefits often outweigh these costs, smaller businesses may find it challenging to justify the expense without a steady stream of work.
Material Limitations: While laser cutting is effective for many materials, it may struggle with very thick metals or certain reflective materials. For instance, cutting highly reflective metals like copper or aluminum can lead to complications, requiring specialized techniques or equipment.
Plasma cutting uses a high-velocity jet of ionized gas (plasma) to cut through electrically conductive materials. This method is particularly effective for thicker metals, making it a popular choice in heavy industries such as shipbuilding and construction. Plasma cutting systems can vary in complexity, from portable units for fieldwork to large CNC machines for industrial applications.
Cost-Effectiveness: Plasma cutting machines are generally less expensive than laser cutters, making them accessible for smaller operations. This affordability allows businesses to invest in cutting technology without incurring significant financial burdens.
Thicker Material Capability: Plasma cutting can handle thicker materials more effectively than laser cutting, making it suitable for heavy-duty applications. This capability is particularly advantageous in industries where thick steel plates are common, such as structural fabrication and heavy machinery manufacturing.
Lower Precision: Plasma cutting typically has a wider kerf than laser cutting, which can result in less precise cuts. This lack of precision may necessitate additional finishing processes, increasing overall production time and costs.
Rougher Edges: The edges produced by plasma cutting may require additional finishing processes to achieve a smooth surface. This can be a disadvantage in applications where aesthetics and surface quality are critical, such as in decorative metalwork.
Waterjet cutting employs a high-pressure stream of water, often mixed with abrasives, to cut through materials. This method is versatile and can be used on a variety of materials, including metals, glass, and stone. Waterjet cutting is particularly valued for its ability to cut complex shapes without introducing heat, which can alter material properties.
No Heat Affected Zone: Waterjet cutting does not introduce heat into the material, preventing warping or changes in material properties. This characteristic is especially important for materials sensitive to heat, such as certain plastics and composites.
Versatility: It can cut through a wide range of materials and thicknesses without the need for specialized equipment for each material type. This versatility makes waterjet cutting an excellent choice for job shops that handle diverse projects.
Slower Cutting Speed: Waterjet cutting is generally slower than laser cutting, which can impact production timelines. While it is effective for intricate designs, the slower speed may not be suitable for high-volume production environments.
Higher Operational Costs: The cost of abrasives and waterjet maintenance can add up, making it less economical for some applications. Businesses must weigh these costs against the benefits of using waterjet cutting for specific projects.
Mechanical cutting methods, such as shearing and punching, involve physically removing material using tools and machines. These methods are often used for bulk production of simple shapes. Mechanical cutting is typically faster for high-volume runs, making it a staple in many manufacturing environments.
Cost-Effective for High Volumes: Mechanical cutting can be more economical for large production runs due to lower operational costs. The efficiency of these methods allows manufacturers to produce large quantities of parts quickly, reducing per-unit costs.
Simplicity: These methods are straightforward and require less technical expertise compared to laser or waterjet cutting. This simplicity can lead to shorter training times for operators and a more streamlined production process.
Limited Complexity: Mechanical cutting is not suitable for intricate designs or tight tolerances. This limitation can restrict the types of projects that can be effectively completed using mechanical methods.
Material Limitations: Some mechanical methods may not be effective on thicker or harder materials. This can necessitate the use of alternative cutting methods for certain applications, potentially complicating the production process.
The type of material and its thickness are critical factors in determining the most suitable cutting method. For instance, laser cutting excels with thin to medium thickness metals, while plasma cutting is better for thicker materials. Understanding the material properties, such as hardness and thermal conductivity, can also influence the choice of cutting method.
If the project requires high precision and a clean finish, laser cutting is often the best choice. For less intricate designs, plasma or mechanical cutting may suffice. The required surface finish can also dictate the choice of cutting method, as some processes may necessitate additional finishing steps to achieve the desired quality.
For high-volume production, mechanical cutting methods may be more cost-effective. However, for custom or low-volume projects, laser cutting offers flexibility and precision. Manufacturers must assess their production needs and consider how each cutting method aligns with their operational goals.
The initial investment and operational costs of each cutting method can vary significantly. Businesses must consider their budget and the long-term return on investment when selecting a cutting technique. Evaluating the total cost of ownership, including maintenance and operational expenses, can help businesses make informed decisions.
Laser cutting stands out for its precision, versatility, and speed, making it an excellent choice for many sheet metal fabrication projects. However, other methods like plasma cutting, waterjet cutting, and mechanical cutting also have their advantages and are better suited for specific applications. Understanding the strengths and limitations of each method is essential for making informed decisions in sheet metal fabrication. By carefully considering factors such as material type, desired precision, production volume, and budget, businesses can select the most appropriate cutting method to meet their needs. This strategic approach not only enhances production efficiency but also contributes to the overall success of manufacturing operations.
Laser cutting is versatile and can effectively cut a wide range of materials, including:
Mild steel
Stainless steel
Aluminum
Copper
Plastics
Wood
Composites
The thickness of the material significantly influences the choice of cutting method. Laser cutting is ideal for thin to medium thickness materials (up to about 1 inch), while plasma cutting is better suited for thicker materials (up to several inches). Waterjet cutting can handle various thicknesses but is generally slower for thicker materials.
Waterjet cutting is commonly used in applications where heat-sensitive materials are involved or where intricate designs are required. Typical applications include:
Aerospace components
Architectural features
Stone and tile cutting
Food processing equipment
Custom signage
Each cutting method has different environmental impacts:
Laser Cutting: Produces minimal waste and can be energy-efficient, but the energy consumption can be high.
Plasma Cutting: Generates fumes and requires proper ventilation, which can impact air quality.
Waterjet Cutting: Uses water, which can be recycled, but the disposal of abrasives can pose environmental challenges.
Mechanical Cutting: Typically generates more waste and noise pollution compared to other methods.
Businesses can determine the best cutting method by considering several factors:
Material Type and Thickness: Assess the specific materials and their thicknesses.
Precision Requirements: Determine the level of precision needed for the project.
Production Volume: Evaluate whether the project is a one-off or requires high-volume production.
Budget Constraints: Consider the initial investment and ongoing operational costs.
Lead Time: Assess how quickly the parts need to be produced and delivered.
