Die casting is a highly efficient manufacturing process used to produce metal parts with high precision and complex shapes. This article will explore the intricacies of die casting, including its definition, types, materials used, the die casting process, advantages and disadvantages, applications, and future trends.
Die casting is a metal casting process characterized by forcing molten metal under high pressure into a mold cavity. The molds, known as dies, are typically made from hardened steel and are designed to create specific shapes and features in the final product. This process allows for the production of parts with excellent dimensional accuracy and surface finish. The high-pressure injection of molten metal ensures that even the most intricate designs can be replicated with minimal variation, making die casting a preferred method for producing components that require tight tolerances.
There are two primary types of die casting: hot chamber die casting and cold chamber die casting. Each method has its unique advantages and is suited for different applications based on the properties of the metals being used.
In hot chamber die casting, the melting furnace is integrated with the die casting machine. The molten metal is drawn directly into the injection system, making it suitable for metals with low melting points, such as zinc and magnesium. This method allows for faster production cycles due to the continuous flow of molten metal, which reduces the time between cycles. However, it is limited to specific alloys that can withstand the high temperatures of the injection system without causing damage.
Cold chamber die casting involves pouring molten metal into the injection system from an external furnace. This method is used for metals with higher melting points, such as aluminum and copper. Although the process is slower than hot chamber die casting, it provides greater versatility in terms of the materials that can be used. The separation of the melting and injection processes allows for better control over the metal's temperature and composition, which is crucial for achieving the desired properties in the final product.
The die casting process consists of several key steps, each crucial for ensuring the quality and precision of the final product. Understanding these steps provides insight into how die casting achieves its remarkable efficiency and accuracy.
The first step in the die casting process is designing the mold. Engineers create detailed 3D models of the molds using computer-aided design (CAD) software. The design must consider factors such as the part's geometry, the flow of molten metal, and the cooling process. Advanced simulation tools can predict how the molten metal will behave within the mold, allowing for optimization of the design before physical production begins. This stage is critical, as a well-designed mold can significantly reduce production time and costs while improving the quality of the final product.

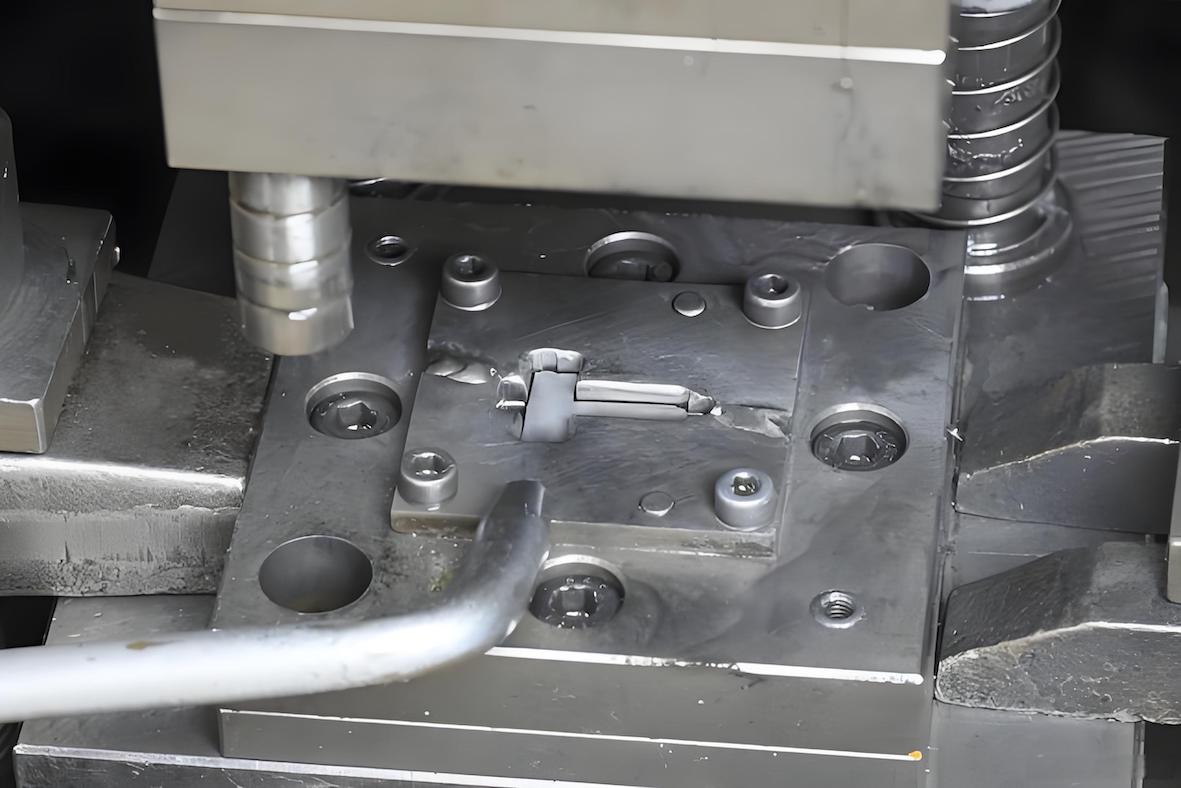

Once the design is finalized, the molds are manufactured from high-quality steel. The molds are machined to create the desired cavity shape and are often treated to enhance their durability and resistance to wear. The manufacturing process may involve techniques such as CNC machining, electrical discharge machining (EDM), and surface hardening treatments. The precision of the mold creation process directly impacts the quality of the cast parts, as any imperfections in the mold can lead to defects in the final product.

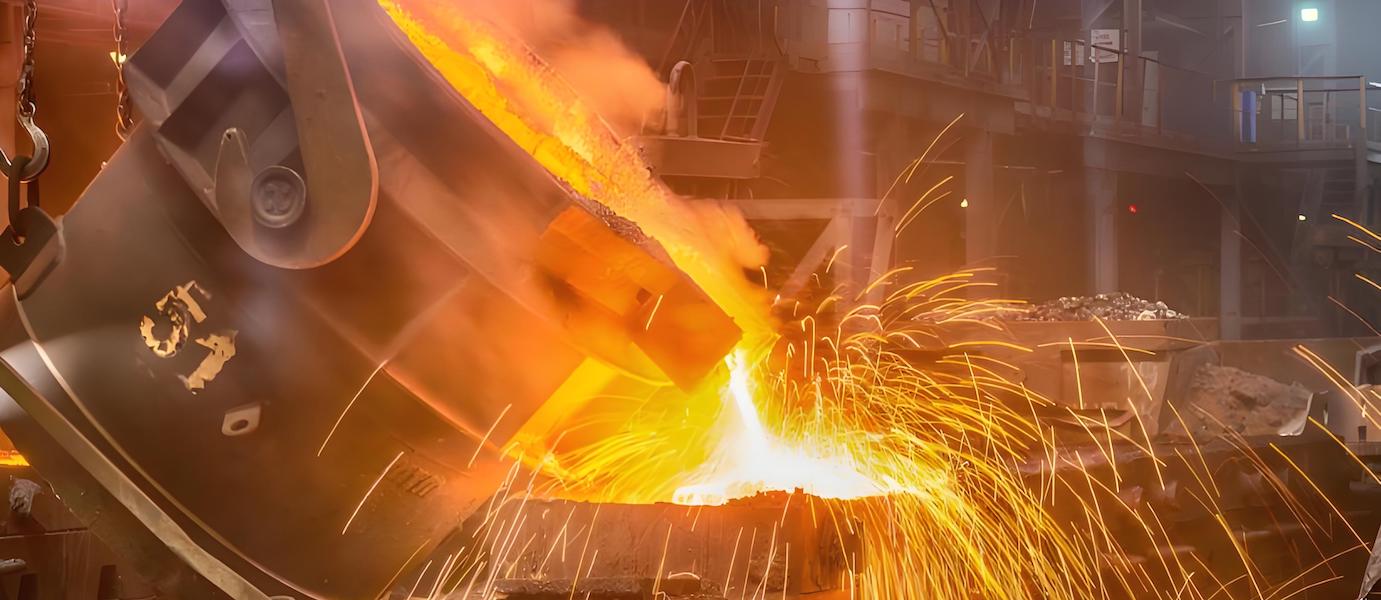

The next step involves preparing the metal alloy. The chosen metal is melted in a furnace until it reaches a liquid state. The temperature and composition of the alloy are carefully controlled to ensure optimal casting properties. This step is crucial, as the characteristics of the molten metal, such as viscosity and flow rate, can significantly affect how well it fills the mold and the overall quality of the casting. Additionally, additives may be introduced to improve the metal's properties, such as enhancing its strength or corrosion resistance.
In the die casting machine, the molten metal is injected into the mold cavity under high pressure. This pressure forces the metal to fill the intricate details of the mold, ensuring that the final product has the desired shape and features. The injection speed and pressure are carefully controlled to prevent defects such as air entrapment or incomplete filling. The ability to inject metal at high speeds allows for the production of complex geometries that would be difficult or impossible to achieve with other manufacturing methods.
After the molten metal is injected, it is allowed to cool and solidify within the mold. The cooling time varies depending on the thickness of the part and the type of metal used. Proper cooling is essential to prevent defects such as warping or cracking. Cooling channels may be incorporated into the mold design to enhance heat dissipation and ensure uniform cooling. The solidification process is critical, as it determines the mechanical properties of the final product, including its strength and durability.
Once the metal has solidified, the mold is opened, and the casting is ejected. Ejector pins are often used to assist in removing the part from the mold without causing damage. The timing of the ejection process is crucial; if the part is removed too early, it may deform, while waiting too long can lead to difficulties in ejection. The design of the mold must also facilitate easy ejection to minimize cycle times and reduce wear on the mold.
After ejection, the cast part may undergo additional finishing processes, such as trimming, machining, or surface treatment, to achieve the desired specifications and surface quality. These finishing processes can enhance the appearance of the part and improve its functional properties. For example, machining may be used to achieve tighter tolerances, while surface treatments such as anodizing or powder coating can provide additional protection against corrosion and wear.
Die casting offers several advantages that make it a preferred choice for manufacturing metal parts. Understanding these benefits can help manufacturers make informed decisions about their production processes.
One of the most significant benefits of die casting is its ability to produce parts with high dimensional accuracy. The precision of the molds ensures that the final products meet strict tolerances, reducing the need for extensive machining. This high level of accuracy is particularly important in industries such as aerospace and automotive, where even minor deviations can lead to significant performance issues. The repeatability of the die casting process also means that manufacturers can produce large quantities of identical parts with consistent quality.
Die casting allows for the creation of complex shapes and features that would be challenging to achieve with other manufacturing methods. The ability to produce parts with intricate designs and thin walls makes die casting suitable for lightweight applications, which is increasingly important in industries focused on energy efficiency and performance. The design flexibility offered by die casting enables engineers to innovate and create products that meet specific performance criteria while minimizing material usage.
Die casting is highly efficient for large production runs, as the process can produce a high volume of parts in a relatively short time. The low scrap rates associated with die casting also contribute to its cost-effectiveness. Once the initial investment in mold creation is made, the cost per part decreases significantly with increased production volume. This makes die casting an attractive option for manufacturers looking to scale their operations and meet high demand without sacrificing quality.
The smooth surface finish achieved through die casting reduces the need for additional finishing processes, saving time and costs in production. The high-quality surface finish not only enhances the aesthetic appeal of the parts but also improves their functional performance. For example, smoother surfaces can reduce friction in moving parts, leading to improved efficiency and longevity.
Despite its many advantages, die casting also has some limitations that manufacturers must consider when choosing this process.
The initial costs for designing and manufacturing the molds can be high, making die casting less economical for small production runs. The investment in tooling is justified primarily for large-scale production, where the cost per part decreases significantly. Manufacturers must carefully evaluate their production needs and consider the long-term benefits of die casting against the upfront costs of mold creation.
Die casting is primarily suitable for non-ferrous metals, such as aluminum, zinc, and magnesium. This limitation may restrict its application in certain industries that require ferrous materials. While advancements in die casting technology are expanding the range of materials that can be used, manufacturers must still consider the properties of the materials and their compatibility with the die casting process.
While die casting produces high-quality parts, there is still a risk of defects such as porosity, surface imperfections, and dimensional inaccuracies. Proper process control and quality assurance measures are essential to minimize these risks. Manufacturers must implement rigorous testing and inspection protocols to ensure that the final products meet the required standards and specifications.
Die casting is widely used across various industries due to its versatility and efficiency. Understanding the applications of die casting can provide insight into its importance in modern manufacturing.

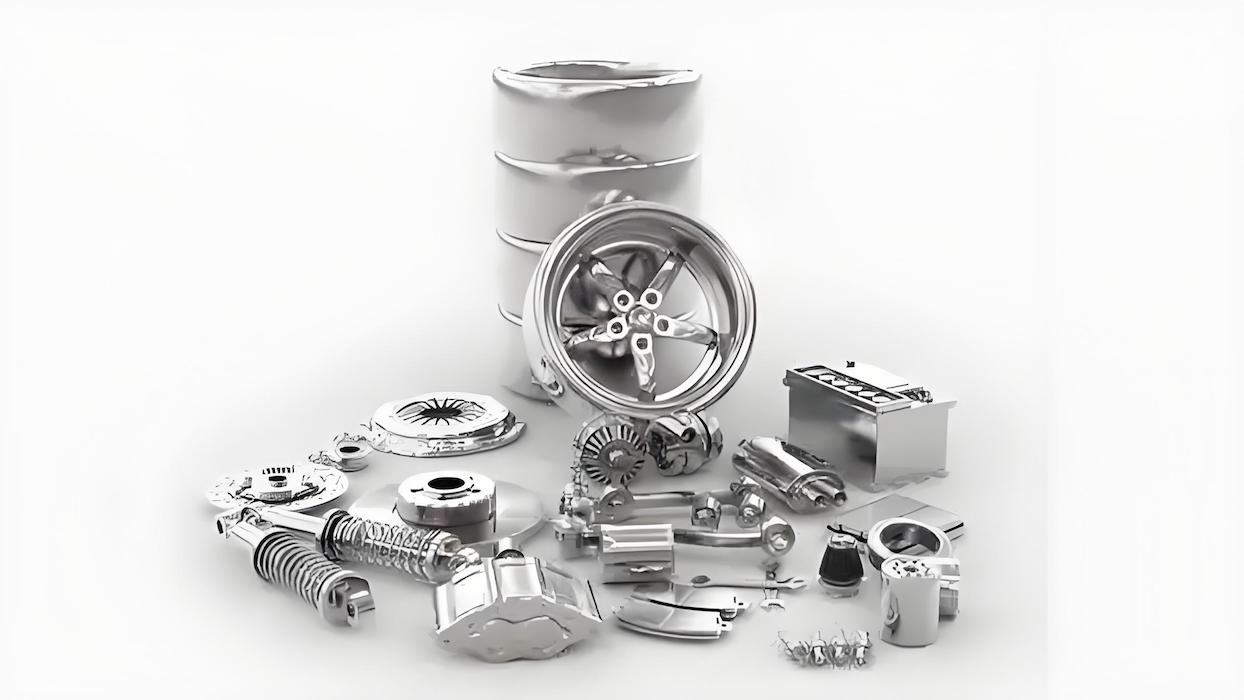

In the automotive sector, die casting is used to manufacture components such as engine blocks, transmission cases, and structural parts. The lightweight and high-strength characteristics of die-cast aluminum make it an ideal choice for automotive applications. As the industry moves towards more fuel-efficient and environmentally friendly vehicles, the demand for lightweight components produced through die casting is expected to grow.
Die casting is also prevalent in the electronics industry, where it is used to produce housings, heat sinks, and other components. The precision and surface finish of die-cast parts are crucial for ensuring the performance and reliability of electronic devices. As technology continues to advance, the need for compact and efficient electronic components will drive further adoption of die casting in this sector.
The aerospace industry relies on die casting for producing lightweight and high-strength components that can withstand extreme conditions. Parts such as brackets, housings, and structural elements are commonly manufactured using this process. The stringent safety and performance requirements in aerospace applications necessitate the high precision and reliability that die casting offers.
Many consumer products, including appliances, tools, and decorative items, are produced using die casting. The ability to create complex shapes and designs makes die casting a popular choice for manufacturers in this sector. As consumer preferences shift towards more innovative and aesthetically pleasing products, die casting will continue to play a vital role in meeting these demands.
As technology continues to advance, the die casting industry is evolving to meet new challenges and opportunities. Understanding these trends can help manufacturers stay competitive and adapt to changing market conditions.
The integration of automation and Industry 4.0 technologies is transforming the die casting process. Smart manufacturing systems, including robotics and data analytics, are enhancing efficiency, reducing downtime, and improving quality control. By leveraging real-time data and advanced analytics, manufacturers can optimize their production processes, predict maintenance needs, and respond quickly to changes in demand.
Sustainability is becoming increasingly important in manufacturing. The die casting industry is exploring ways to reduce energy consumption, minimize waste, and use environmentally friendly materials. Innovations in recycling and material recovery are also gaining traction. Manufacturers are investing in sustainable practices not only to comply with regulations but also to meet the growing consumer demand for environmentally responsible products.
Research into advanced materials, including lightweight alloys and composites, is expanding the possibilities for die casting. These materials can offer improved performance and durability, opening new avenues for applications in various industries. As manufacturers seek to enhance the properties of their products, the development of new materials will play a crucial role in the future of die casting.
Die casting is a vital manufacturing process that plays a significant role in producing high-quality metal parts across various industries. Its ability to create complex shapes with precision and efficiency makes it a preferred choice for manufacturers. As technology continues to advance, die casting will likely evolve, embracing automation, sustainability, and new materials to meet the demands of the future. The ongoing innovations in this field will ensure that die casting remains a key player in the manufacturing landscape, driving progress and enabling the creation of cutting-edge products.
The most commonly used materials in die casting are non-ferrous metals, particularly aluminum, zinc, and magnesium. These metals are favored for their excellent fluidity, strength, and lightweight properties, making them ideal for various applications.
Die casting is generally faster and more precise than other metal casting methods, such as sand casting or investment casting. It allows for the production of complex shapes with tight tolerances and smooth surface finishes. However, die casting is typically more expensive in terms of initial tooling costs and is best suited for high-volume production runs.
Die casting is widely used in various industries, including automotive (for engine blocks and transmission cases), electronics (for housings and heat sinks), aerospace (for structural components), and consumer products (such as appliances and tools). Its versatility makes it suitable for producing a wide range of parts.
The main advantages of die casting include high precision and accuracy, the ability to create complex shapes and thin walls, cost-effectiveness for large production runs, and excellent surface finish. These benefits make die casting a preferred choice for many manufacturing applications.
Potential defects in die casting can include porosity (air pockets within the metal), surface imperfections (such as roughness or blemishes), and dimensional inaccuracies (deviations from the intended measurements). Proper process control, mold design, and quality assurance measures are essential to minimize these defects and ensure high-quality castings.
