Die casting is a highly efficient metal casting process that involves forcing molten metal into a mold cavity under high pressure. This method is widely used in various industries to produce complex shapes with high precision and excellent surface finish. In this article, we will explore the die casting process in detail, including its types, advantages, applications, and the steps involved in the process.

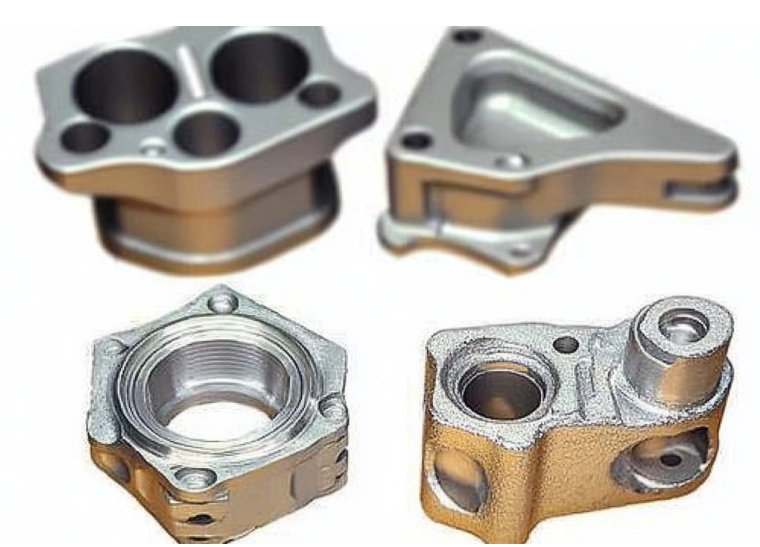

Die casting is a manufacturing process that allows for the production of metal parts by injecting molten metal into a mold, known as a die. The die is typically made from steel and is designed to withstand the high pressures involved in the casting process. The molten metal solidifies in the die, taking on its shape, and is then ejected to create the final product. This process is particularly advantageous for producing large quantities of parts with consistent quality, making it a preferred choice in industries where precision and efficiency are paramount.
There are two primary types of die casting processes: hot chamber and cold chamber die casting. Each method has its unique characteristics and is suited for different applications.
In hot chamber die casting, the melting furnace is integrated into the die casting machine. This method is ideal for low-melting-point metals such as zinc, lead, and magnesium. The molten metal is drawn directly from the furnace into the die, allowing for faster production cycles. This process is particularly efficient for high-volume production runs, as it minimizes the time between melting and injection. The hot chamber method is known for its ability to produce parts with excellent surface finishes and intricate details, making it a popular choice for manufacturers looking to optimize their production processes.
Cold chamber die casting is used for metals with higher melting points, such as aluminum and copper. In this method, the molten metal is poured into a separate chamber before being injected into the die. This process requires more time and energy compared to hot chamber die casting but is necessary for materials that cannot be melted in the machine itself. Cold chamber die casting is particularly beneficial for producing larger and more complex parts, as it allows for greater control over the injection process and the cooling of the metal.
The die casting process can be broken down into several key steps, each critical to ensuring the quality and precision of the final product.
Before the die casting process begins, the mold must be prepared. This involves cleaning the die and applying a release agent to prevent the casting from sticking to the mold. Proper mold preparation is essential for achieving a smooth surface finish and ensuring easy ejection of the casting. The design of the mold itself is also crucial, as it must accommodate the thermal expansion of the metal and allow for proper cooling. Engineers often use advanced simulation software to optimize mold design, ensuring that the final product meets all specifications.
The next step involves melting the metal that will be used for casting. In hot chamber die casting, the metal is melted in the machine itself, while in cold chamber die casting, the metal is melted in a separate furnace. The molten metal must reach the appropriate temperature to ensure it flows easily into the mold. This step is critical, as the temperature of the molten metal affects its viscosity and the quality of the final casting. Manufacturers often use thermocouples and other temperature monitoring devices to ensure that the metal is heated to the optimal temperature for casting.
Once the metal is melted, it is injected into the mold under high pressure. This pressure can range from 1,000 to 20,000 psi, depending on the type of metal and the complexity of the part being produced. The high pressure ensures that the molten metal fills all areas of the mold, capturing intricate details and features. The speed of injection is also carefully controlled to prevent defects such as air entrapment or turbulence, which can compromise the integrity of the casting. Advanced die casting machines are equipped with precise control systems that allow operators to adjust injection parameters in real-time.
After the molten metal is injected into the mold, it begins to cool and solidify. The cooling time can vary based on the thickness of the part and the type of metal used. Once the metal has solidified, it takes on the shape of the mold. The cooling process is critical, as it affects the mechanical properties of the casting, including its strength and durability. Manufacturers often use cooling channels within the mold to enhance heat dissipation, ensuring uniform cooling and minimizing the risk of defects such as warping or cracking.
Once the metal has cooled and solidified, the die is opened, and the casting is ejected. Ejection pins are often used to push the casting out of the mold without damaging it. This step is crucial for maintaining the integrity of the part and ensuring it meets quality standards. The design of the ejection system is carefully considered to minimize the risk of damage during ejection. Additionally, manufacturers may implement automated systems to streamline this process, further enhancing production efficiency.

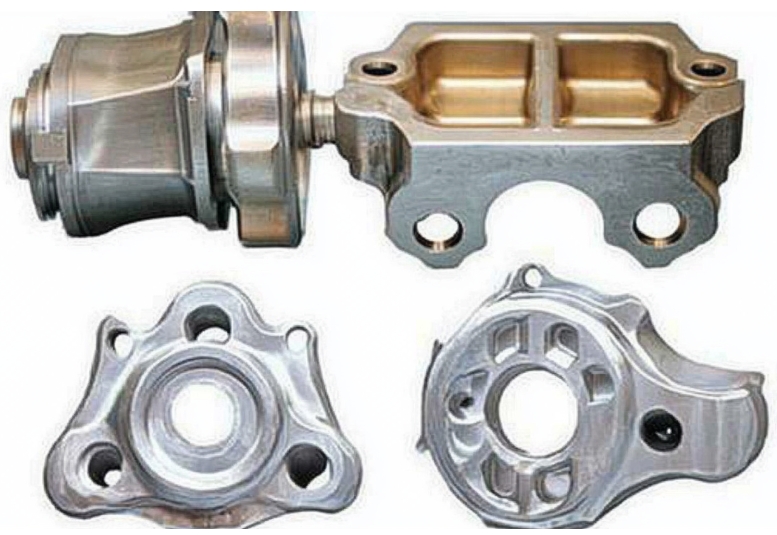

After ejection, the casting may require additional finishing operations, such as trimming, machining, or surface treatment. These processes help achieve the desired dimensions and surface quality, making the part ready for its intended application. Finishing operations are essential for ensuring that the final product meets all specifications and performance requirements. Manufacturers often employ advanced machining techniques, such as CNC machining, to achieve high precision and surface quality in the final product.
Die casting offers several advantages that make it a preferred choice for manufacturing metal parts.

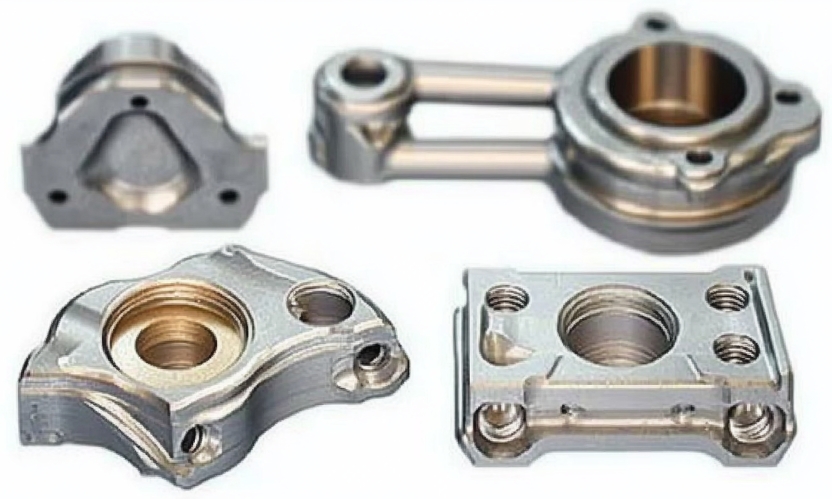

One of the primary benefits of die casting is its ability to produce parts with tight tolerances and consistent quality. The precision of the process allows for minimal machining, reducing production time and costs. This high level of accuracy is particularly important in industries such as aerospace and automotive, where even minor deviations can lead to significant performance issues. The repeatability of the die casting process ensures that manufacturers can produce large quantities of identical parts without compromising quality.

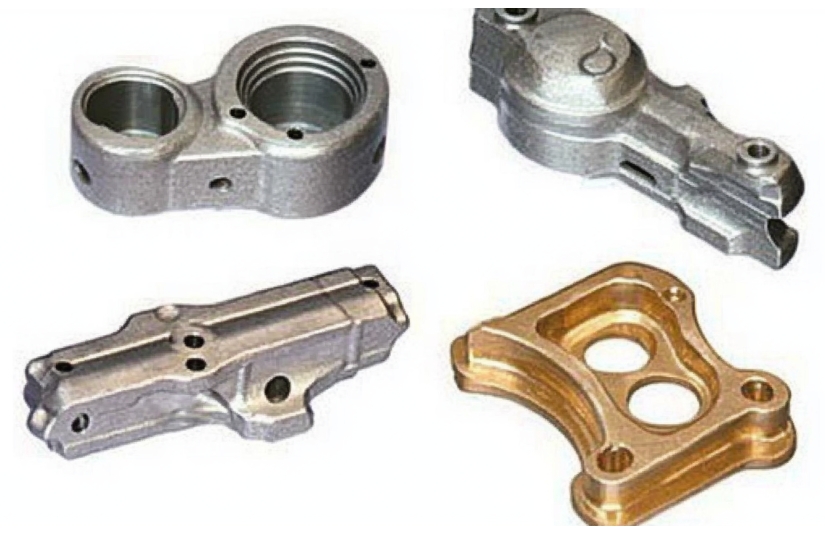

Die casting is capable of producing intricate shapes and designs that would be difficult or impossible to achieve with other manufacturing methods. This versatility makes it suitable for a wide range of applications. The ability to create complex geometries allows designers to innovate and develop new products that meet evolving market demands. Additionally, the design flexibility offered by die casting can lead to lighter and more efficient products, contributing to overall energy savings in their end-use applications.
Die casting is particularly cost-effective for high-volume production runs. The initial investment in dies can be significant, but the long-term savings in material waste and labor make it an economical choice for manufacturers. As production volumes increase, the cost per unit decreases, making die casting an attractive option for companies looking to scale their operations. Furthermore, the durability of the dies used in die casting allows for extended production runs, further enhancing cost efficiency.
Parts produced through die casting often require minimal finishing, as the process yields a smooth surface finish. This quality reduces the need for additional surface treatments, further lowering production costs. The excellent surface finish achieved through die casting not only enhances the aesthetic appeal of the final product but also improves its performance characteristics. For example, smoother surfaces can reduce friction and wear in mechanical applications, leading to longer service life and improved efficiency.
Die casting is used in various industries, including automotive, aerospace, electronics, and consumer goods. Some common applications include:
Die casting is widely used in the automotive industry to produce engine blocks, transmission cases, and other critical components. The strength and durability of die-cast parts make them ideal for automotive applications. As the automotive industry continues to evolve towards electric and hybrid vehicles, die casting plays a crucial role in producing lightweight components that contribute to overall vehicle efficiency. The ability to produce complex shapes also allows for the integration of multiple functions into a single part, reducing assembly time and costs.
In the aerospace sector, die casting is employed to manufacture lightweight yet strong components, such as brackets and housings. The precision of die casting is essential for meeting the stringent requirements of the aerospace industry. Components produced through die casting must withstand extreme conditions, including high temperatures and pressures, making the reliability of the process critical. As the demand for advanced aerospace technologies grows, die casting continues to be a vital manufacturing method for producing high-performance parts.
Die casting is also used to create enclosures for electronic devices. The ability to produce complex shapes with excellent surface finish is crucial for protecting sensitive electronic components. In an era where electronic devices are becoming increasingly compact and sophisticated, die casting provides the necessary precision and durability to meet these demands. Additionally, die-cast enclosures can offer enhanced thermal management properties, helping to dissipate heat generated by electronic components.
Many consumer products, such as kitchen appliances and tools, are made using die casting. The process allows for the efficient production of high-quality parts that meet consumer demands. As consumer preferences shift towards more sustainable and energy-efficient products, die casting enables manufacturers to create innovative designs that align with these trends. The versatility of die casting also allows for customization, enabling brands to differentiate their products in a competitive market.
The die casting process is a vital manufacturing technique that offers numerous advantages, including high precision, cost-effectiveness, and the ability to produce complex geometries. Understanding the steps involved in die casting, from mold preparation to finishing operations, is essential for manufacturers looking to leverage this process for their production needs. As industries continue to evolve, die casting will remain a key player in the production of high-quality metal parts, driving innovation and efficiency across various sectors. The ongoing advancements in die casting technology promise to further enhance its capabilities, ensuring its relevance in the future of manufacturing.
The most commonly used materials in die casting include aluminum, zinc, magnesium, and copper. Aluminum is favored for its lightweight and strength, while zinc is often used for its excellent fluidity and ability to produce intricate shapes. Magnesium is known for its low density and high strength-to-weight ratio, making it ideal for automotive applications.
Die casting is often compared to processes like sand casting and forging. Unlike sand casting, which can produce rougher surfaces and requires more finishing, die casting yields smoother surfaces and tighter tolerances. Compared to forging, die casting is more suitable for complex shapes and high-volume production, while forging is typically used for parts requiring high strength and durability.
In the automotive industry, die casting is used to manufacture a variety of components, including engine blocks, transmission cases, wheels, and housings for electrical systems. The process allows for the production of lightweight parts that contribute to fuel efficiency and performance, making it essential for modern vehicle design.
Die casting can have environmental impacts, particularly related to energy consumption and emissions from melting metals. However, advancements in technology have led to more energy-efficient processes and the use of recycled materials. Many manufacturers are also implementing sustainable practices, such as reducing waste and improving recycling rates of scrap metal.
The cost of die casting is influenced by several factors, including the complexity of the part design, the type of material used, the size of the production run, and the initial investment in die creation. While the upfront cost for creating dies can be high, the overall cost per unit decreases significantly with larger production volumes, making die casting a cost-effective option for mass production.
